MAXIM 58740 Wafer 22 Inch RD LED Surface Mount 4000K Installation Guide

Before Getting Started

• Read the instructions carefully prior to assembling the product.
• When you open the package with a sharp tool like a cutter knife, be careful not to damage the components inside.
• Carefully remove all packaging materials and retain for future use.
• Keep all hardware parts and packaging out of reach of small children.
• Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product.
• Ensure that you have all required contents for complete assembly.
• Take care when lifting. Assemble the product in close proximity to where you intend to position the item.
• Do not over tighten the screws and bolts as this may damage the threads.
• Do not let children play with this product.
• Risk of suffocation!
  Keep anypackaging materials away from children.

Contents

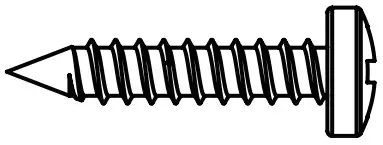

Before getting,started, ensure the package contains the following components:

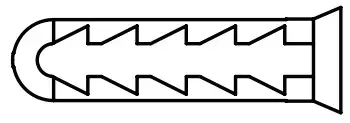

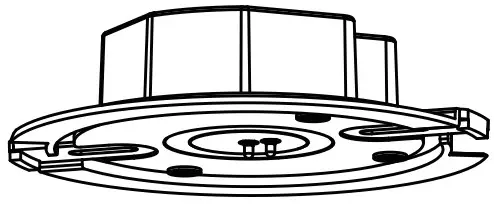

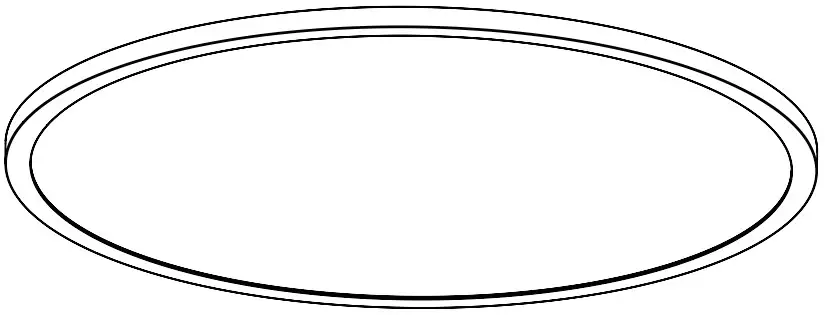

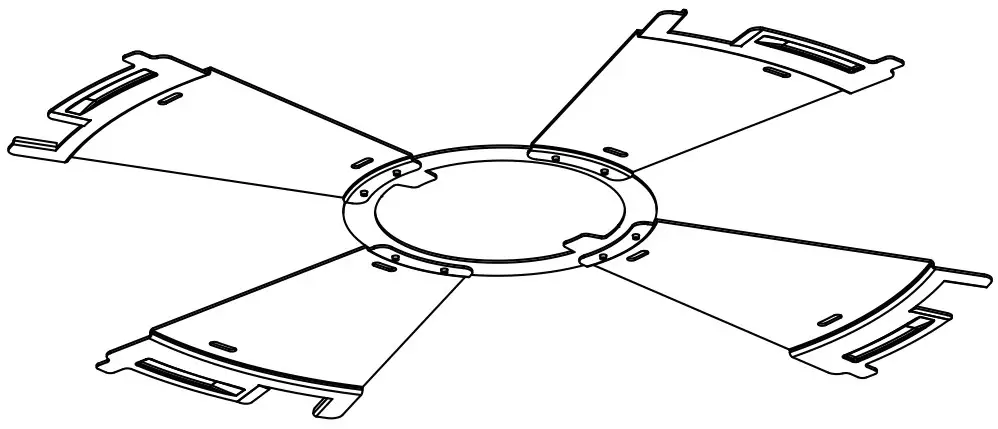

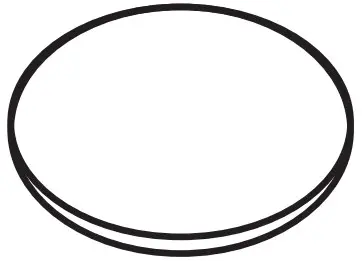

A		X1
B		X1
C		X2
D		X3
E		X8
F		X8
G		X2
H		X1

Lamp Care Instructions

1. Carefully read through the instruction sheet before assembly and using the product.
2. Caution there is a risk of shock. Disconnect from power source before assembling or cleaning.
3. Switch off, unplug and allow bulb to cool before replacing bulb or cleaning.
4. Only use the recommended bulb type and do not exceed the maximum wattage as it could cause fire.
5. Do not plug the product in if cord is torn or frayed.

Installation Instructions

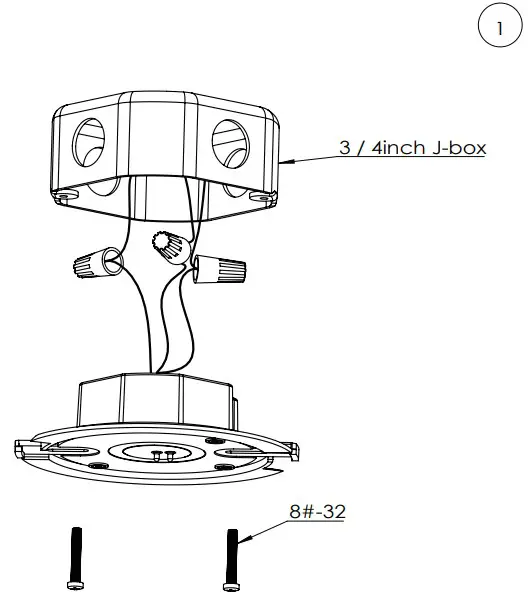

1. Connect the wires with wirenuts. Connect white to white, black to black and green wire to green wire as grounding connection. Fix the driver on the junction box.

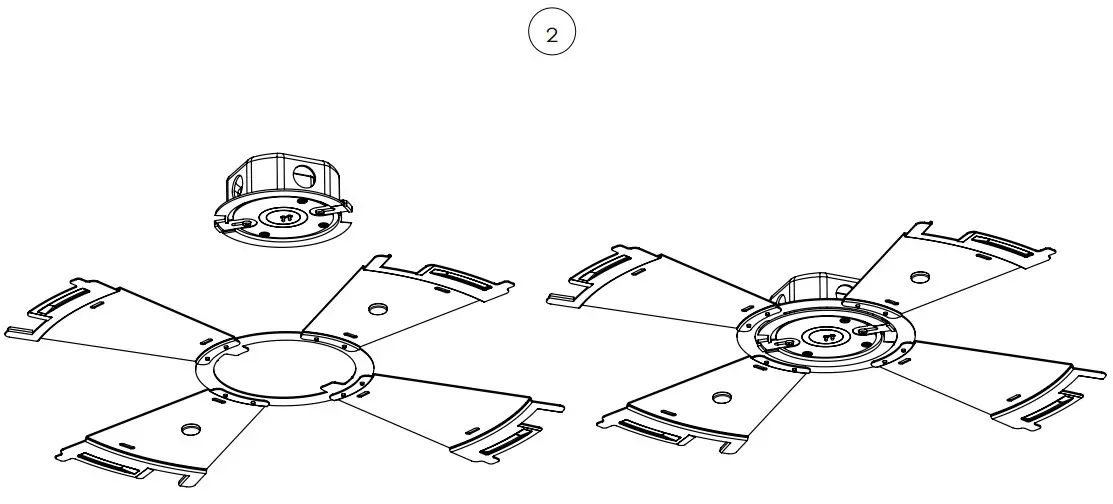

2. Fix the mounting plate to the driver, align with the slot, push upward and rotate to install.

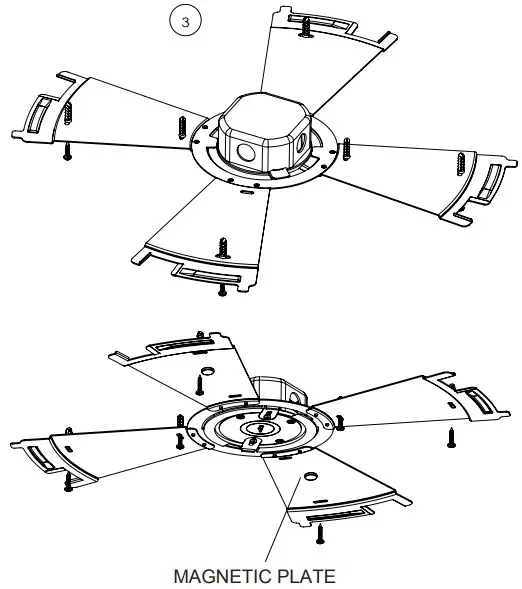

3. Screw the installation plate on the ceiling by using the screws and expansion anchor bolts (No need in Wooden Board).

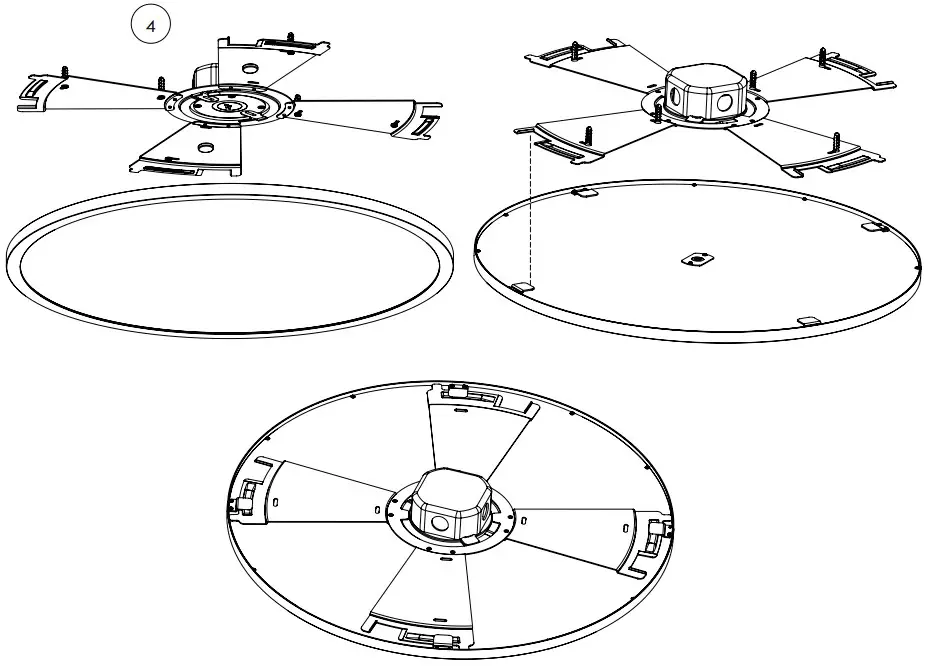

4. Install the fixture on the mounting plate, align with the clamping position, push upward and rotate to install.


Cleaning & Maintenance

• On polished finishes, often using talc powder reduces the appearance of fingerprints and other smudges.
• For respective shade surfaces, use the appropriate cleansers, i.e. glass cleaner, acrylic polish, and wood polish.
• Clean with soft cloth and a mild detergent. DO not use abrasive cleaner.
• Periodically (every 90 days) make sure that the screws are fully tightened.
• Prolonged exposure to heat sources may cause glazing, melting and scorching, or even cause color to fade.

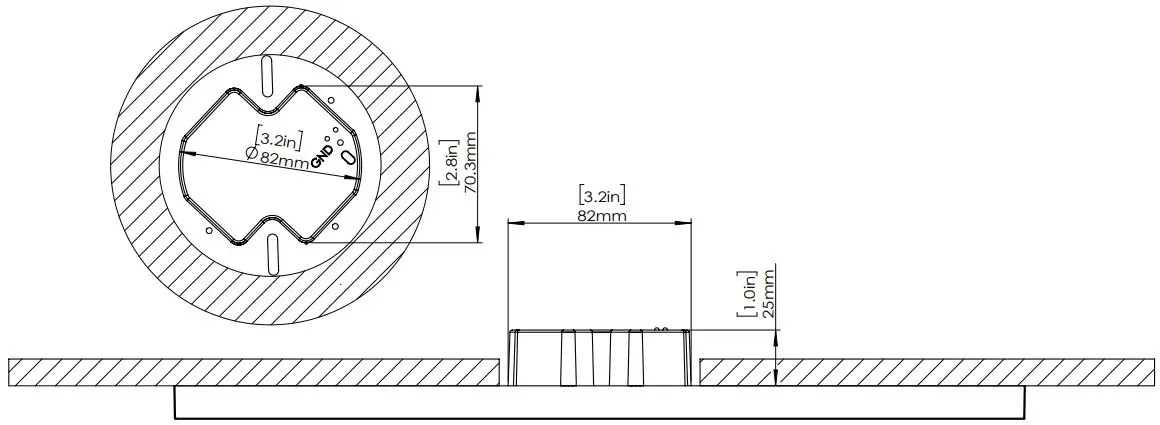

“LED driver must be installed inside junction box. See dimensions”
