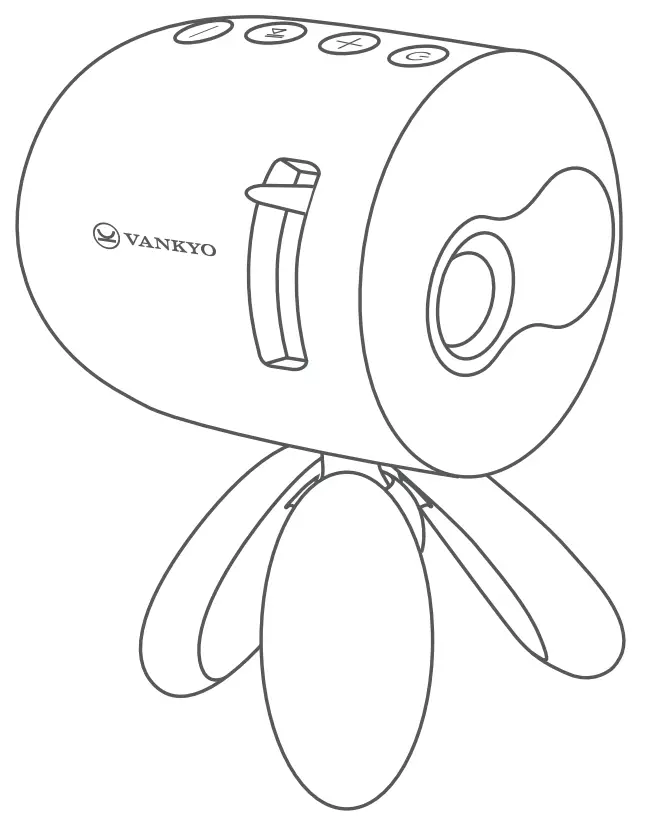

Miracle 110 Portable Projector, 1080P Supported, Ideal for Kids
User Manual
MIRACLE 110 USER MANUAL
Please read this manual thoroughly before using it and keep it well for future reference.

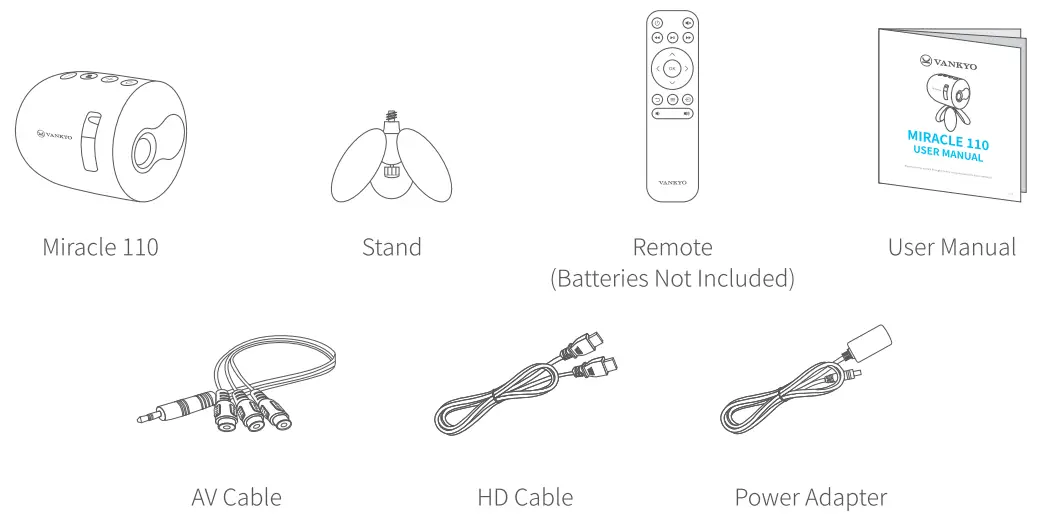

PACKING LIST

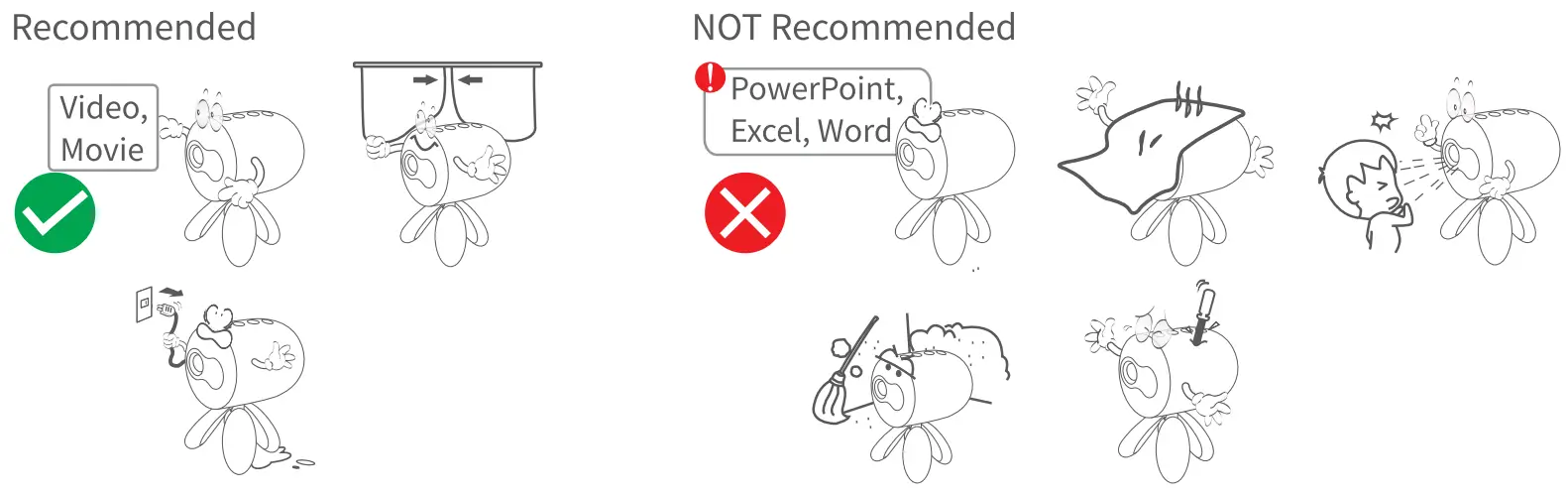

NOTICE

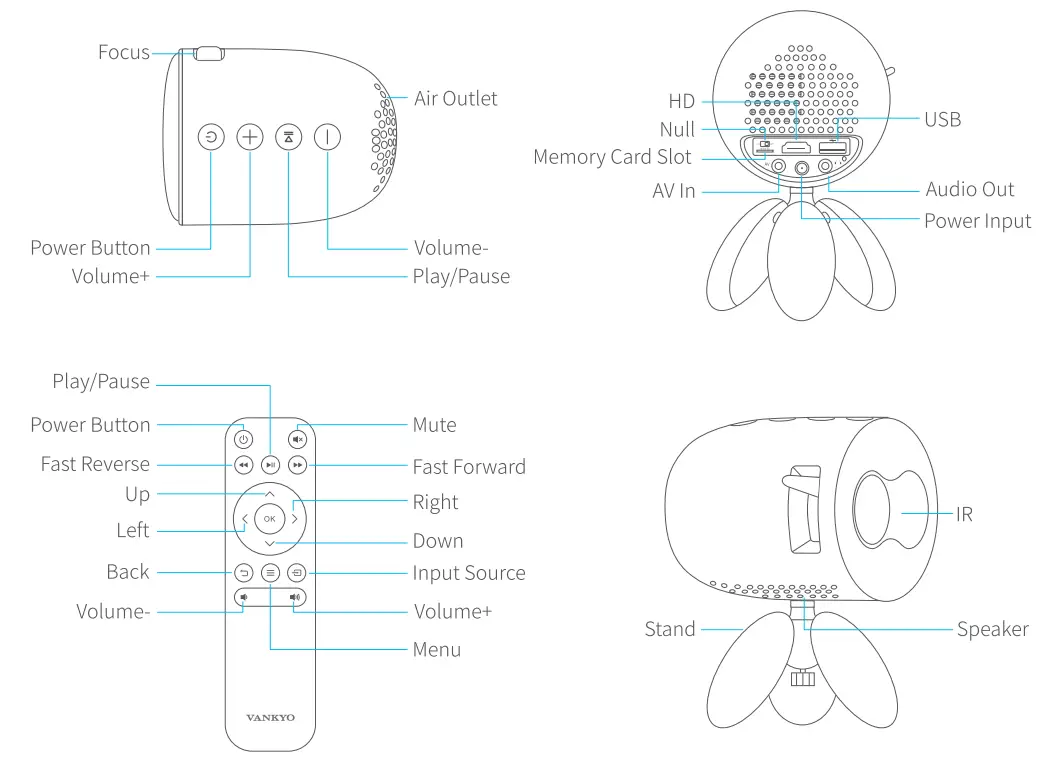

FUNCTION OVERVIEW
QUICK START
 | |

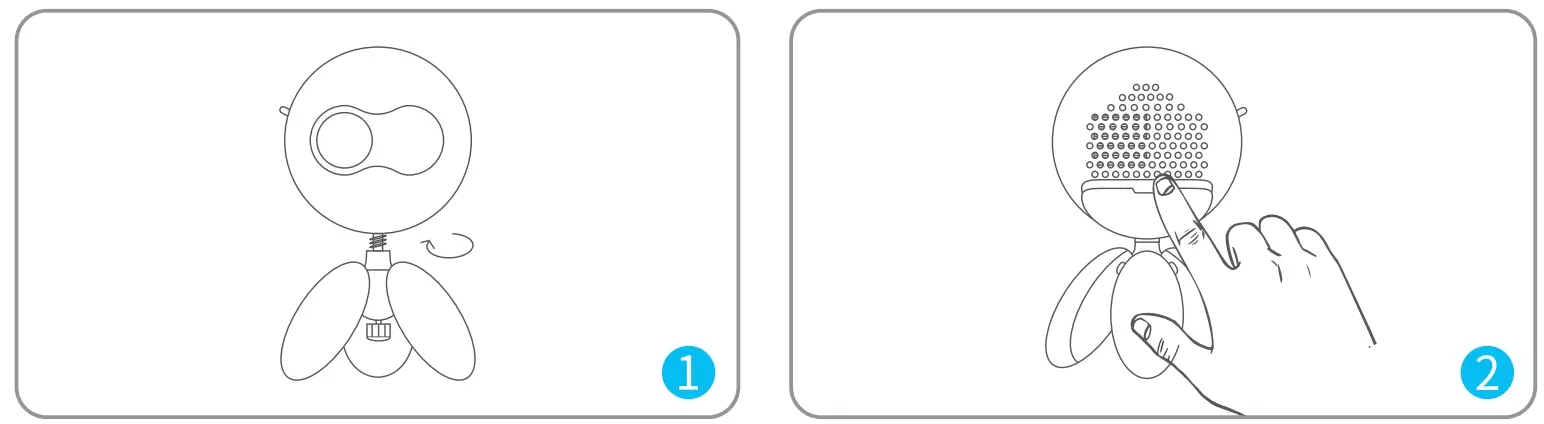

| Mount the Stand to Miracle 110. | Open the cover on the back of Miracle 110, and place the projector on a flat surface. |
 | |

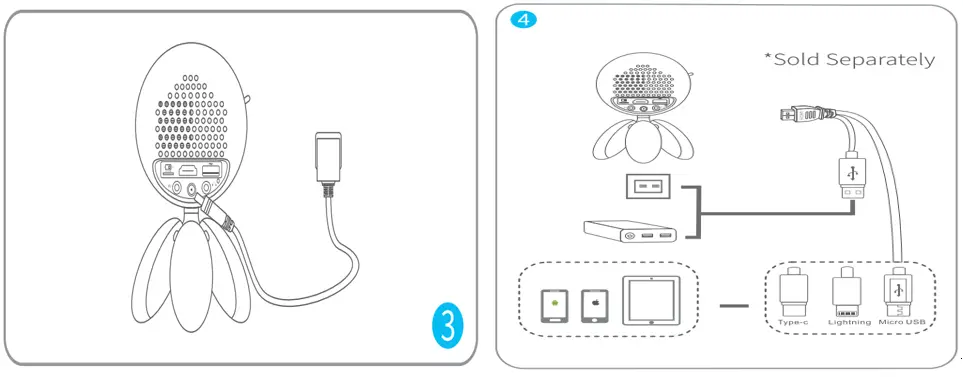

| Plug the Power Adapter into the projector and an outlet. | Connect your device to the projector correctly. |
 | |

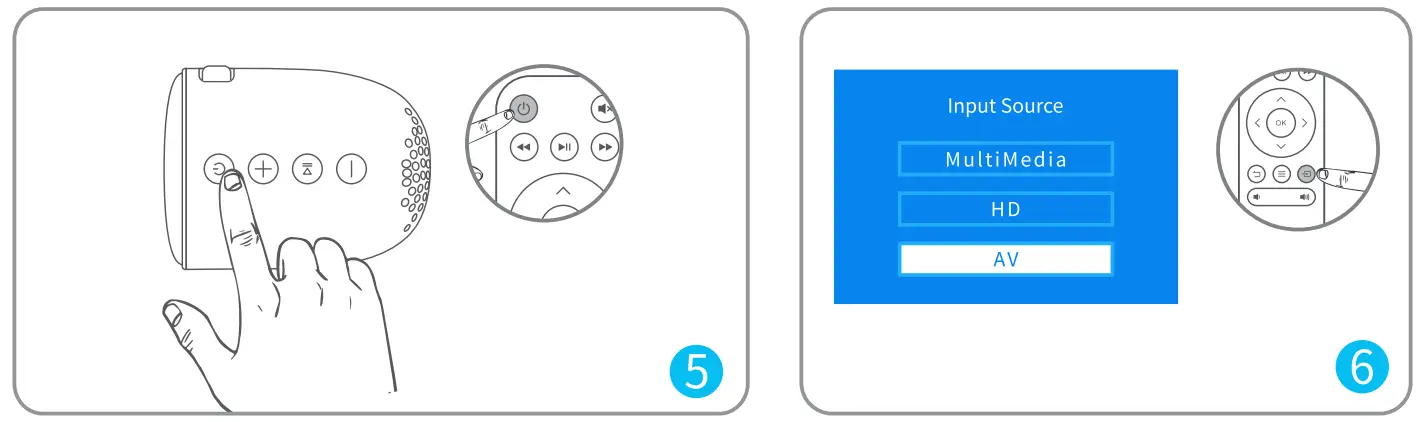

| Press the Power Button to turn on the projector. | Select the correct Input Source by pressing on  the remote |
 | |

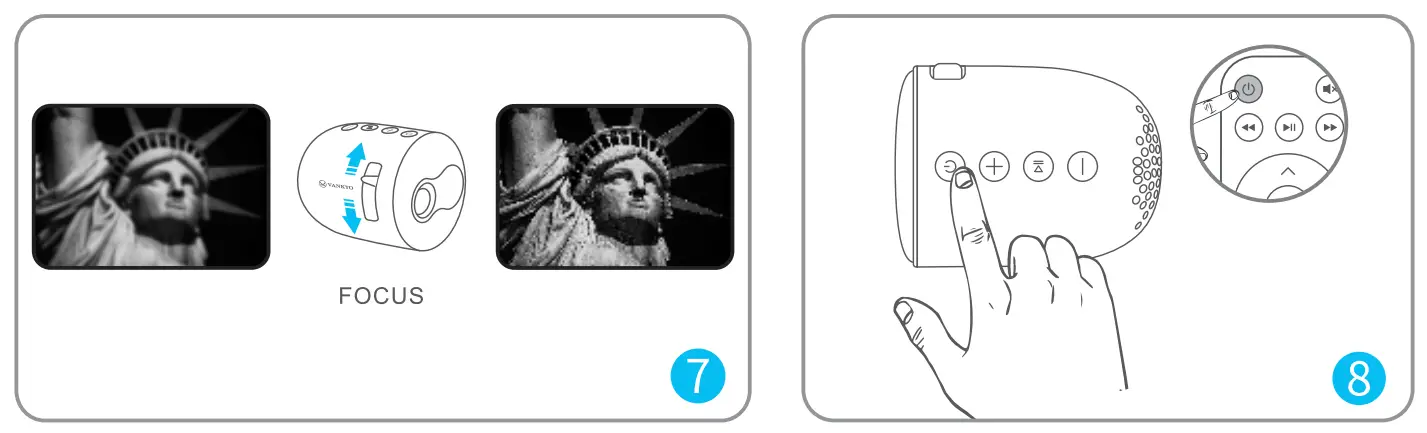

| .Adjust the Focus to get the best image performance. | Press the Power Button once to turn off the projector. |
INPUT SOURCE
Presson the remote to enter the interface of Input Source.

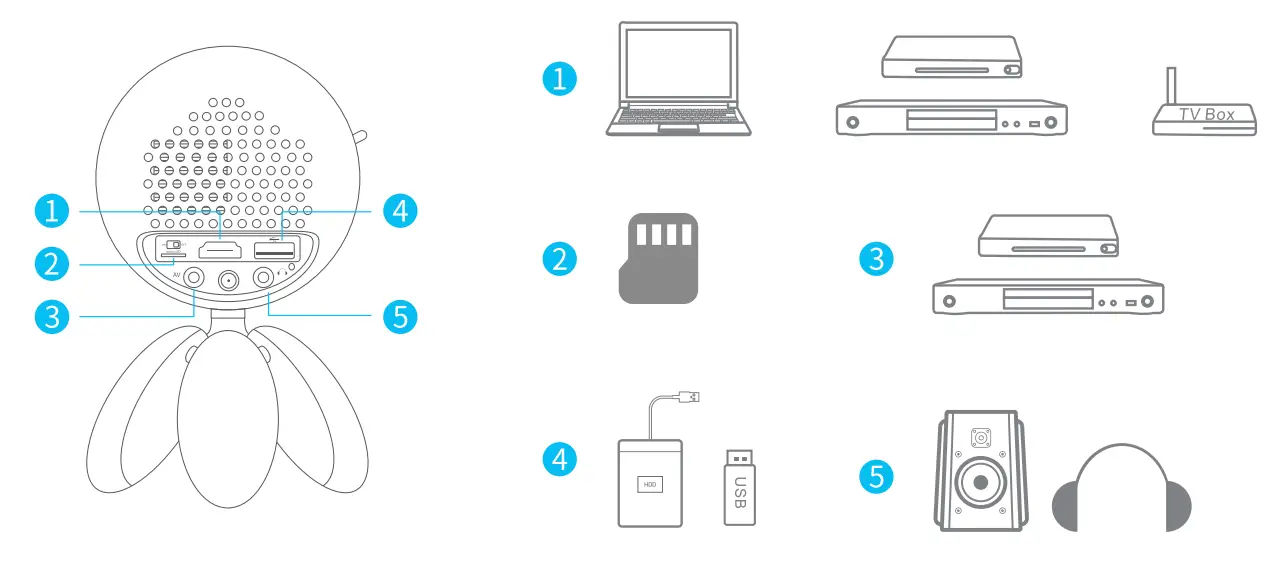

PROJECTOR CONNECTIONS

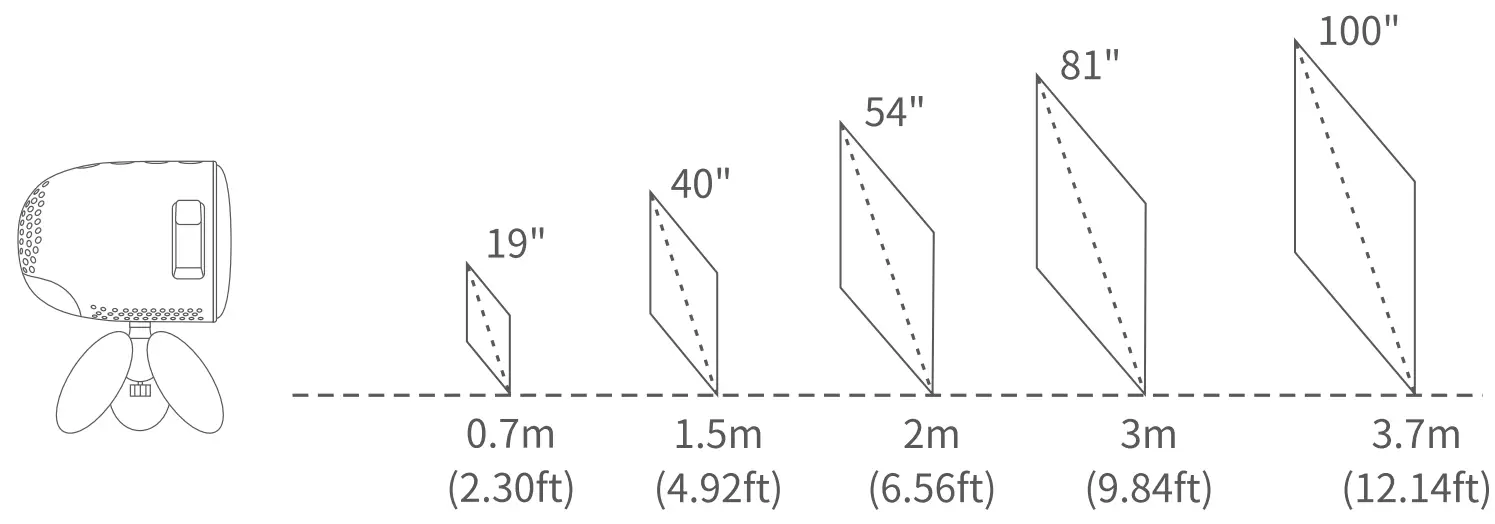

PROJECTION DISTANCE&SIZE
The recommended projection screen is around 54 inches with a distance of around 6.56h. Ambient darkness will improve the clarity of the projected images.
SPECIFICATION
Display Technology | LCD | Light Source | LED |
| Resolution | Native 480×272 | Input Signal | 576i/720P/1080i/1080P |
| Aspect Rath | 16:9/4:3/auto | Focus | Manual |
| Speaker | 3W/20 | Power Supply | DC 12V/2.5A |
| hisLaiiaLioti TA.: | Front/Rear/Ceiling | Mounting Screw | 1/4″ |
| Unit Dimension | 109.5x145x188mm (4.3×5.7×7.4in) | Unit Net Weight | 580g (1.281b) |
| Photo Format Supported | JPEG/BMP/PNG | Audio Format Supported | AAC/MP3/FLAC/WMA/OGG/APE |
| Video Format Supported | AVI/MP4/MKV/FLV/ MOV/RMVB/3GP/ MPG/VOB/RM | Ports | Memory Card Slot/USB Port/HD In/ AV In/Audio Out |
TROUBLESHOOTING GUIDE
- Blurry Image
* Adjust the focus ring.
* Projector and screen/wall must be an effective distance. - Remote Unresponsive
* Make sure the remote points at the IR receiver directly.
* Do not cover the IR receiver.
* Try a new pair of AAA batteries. - Mobile Connection
* 10S: Genuine lightning to HD cable.
* Android: Micro USB to HD adapter/Type C to HD cable. - UP Side Down Images
* Go to Menu > Picture Setting > Projection Mode to flip the projection image. - Factory Reset
* Go to Menu > System Setting > Factory Reset to restore factory settings as needed. - Language Settings
* Go to Menu > System Setting > OSD Language to select the language.
CAUTION
The symbol indicates the DC voltage
RECYCLING
This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. This product can be used across EU member states.
VAN KYO SUPPORT
North America: [email protected]
United Kingdom: [email protected]
 |  |  |
| www.ivankyo.com | https://qrs.ly/awad7ea | https://qrs.ly/diad7dp |
