We love that you are rocking JLab Audio!

We take pride in our products and fully stand behind them.

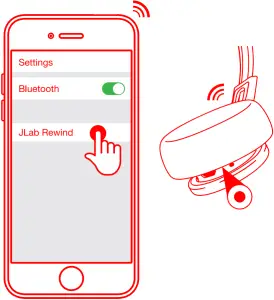

FIRST TIME SETUP: BLUETOOTH PAIRING

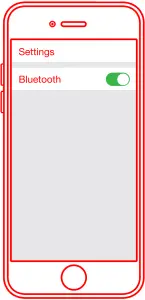

1. Turn on the Bluetooth in your device settings.

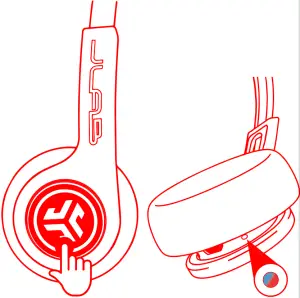

2. Press and hold button for  10 seconds. Release. Light will blink red and blue near the foam ear pad to indicate pairing mode.

3. Select “JLab Rewind” in your device settings to connect. Light will slow blink blue when Bluetooth is paired.


PAIRING NEW / ADDITIONAL DEVICES

Turn OFF Bluetooth on your previously paired device and turn ON Bluetooth on new device. Repeat FIRST TIME STEUP process for new devices.

Notes

• Bluetooth is a wireless radio technology, which means it is sensitive to objects between the headphone and the connected device. The headphone is designed to be used within 33 feet (10 meters) of a connected device, with no major objects in between (walls, etc.).
• Once successfully connected, the headphone will memorize your device and automatically pair when turned on in the future. Only one device may be connected at a time. To pair a different device, first unpair the current one through its Bluetooth settings.
• If for any reason Bluetooth connection is lost, manually reconnect your Bluetooth device.

Accessories

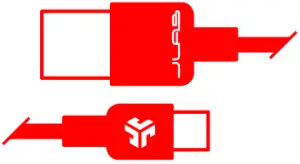

• Micro USB Cable

• 2 Sets of foam Ear Cushions


CHARGING

Note: Headphones will not turn on while charging. Allow about 3 hours to fully charge. Connect the Rewind Headphone to a computer or USB 5V output device with the provided charging cable. Red light will indicate charging and blue light will indicate a full charge.

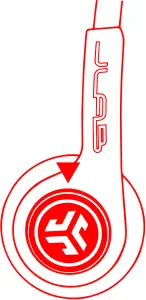

BUTTON FUNCTIONS

• BLUETOOTH PAIRING: (Follow First Time Setup instructions).
• POWER ON: Press & hold 2 seconds. POWER OFF: Press & hold 4 seconds. (slow blinking blue light indicates power is on)
• PLAY / PAUSE / ANSWER / HANG UP: 1 click.
• ACTIVATE SIRI (iOS) OR “OK GOOGLE” (ANDROID): 2 click.
• TRACK FORWARD: Press & hold 2 seconds.


EQUALIZER MODES

TOGGLE EQ CHANGE: 3 click. (Rewind will cycle 3 EQ settings).

JLab SIGNATURE (One Beep) JLab C3 signature sound with amplified vocals and bass.

BALANCED (Two Beeps) Even sound with no additional sound enhancements.
BASS BOOST (Three Beeps) Amplified bass and sub-bass.

WARM-UP YOUR HEADPHONES

Optional: Burn-in is the process for exercising new audio equipment. We recommend 40 hours of burn-in time for most headphones to reach optimal performance. The main purpose of the process is to loosen the diaphragm of a newly crafted headphone and to stress the headphone driver. Normal, everyday use can also burn-in the headphones though JLab’s proprietary burn-in provides an ideal mix of sounds and frequency sweeps to achieve this.

 Burn-in your audio equipment with the JLab Audio app available on the App Store and Google Play. Or access the burn-in method at: jlabaudio.com/burnin

CAUTIONS

• Avoid getting moisture or liquids on the headphone cups.
• Avoid extreme heat, cold, and humidity.
• Avoid dropping or crushing headphones, stressing the cable by rapid pulling or extreme force, or bending the cable at a sharp angle.
• Wax may build up in headphone cups, lowering the sound quality. Carefully remove the wax with a cotton swab or other small tool to improve the sound quality.
• If you experience discomfort or pain, try lowering the volume or discontinuing use temporarily.
• If you experience regular discomfort while using this product, discontinue use and consult your physician.
• We recommend you treat your headphones as you would a nice pair of sunglasses and keep them in safe location when not in use.

WARRANTY

YOUR SATISFACTION IS GUARANTEED

You may exchange or return merchandise within 30 days of the purchase date. Please return the item to the location you purchased it. If your item has been opened or used, restrictions may apply.

YOUR WARRANTY

You may register your product at jlabaudio.com/register. All warranty claims are subject to JLab Audio authorization and at our sole discretion. Retain your proof of purchase to ensure warranty coverage.

CONTACT US

Reach out to us at [email protected] or visit jlabaudio.com/contact.
