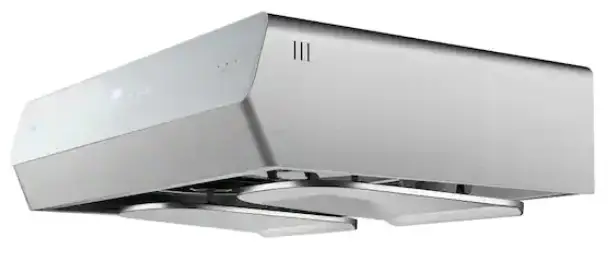

FOTILE UQS3001, UQG3002 Pixie Air Series Whisper Power 30 Inch Under Cabinet Range Hood
ABOUT
FOTILE’s Pixie Air Range Hoods are sleek and ultra-slim that blend seamlessly into your kitchen with a clean low profile. Powerful Dual WhisPower motors and Captur-Shield technology remove smoke, grease, and odors effortlessly with very little backgrOund noise. Enjoy powertul quiet kitchen ventilation. The Pixie Air incorporates CAT (CFM Adjustment Technology) that makes it efficient for Local CFM zoning laws. The Pixie Air keeps your family safe with FOTILE’s Intelligent Air Management System that detects harmful organic gases and vents them out of the house. The Pixie Air is a perfect balance of Design, Safety, Performance, and Convenience. Enjoy a fresh clean kitchen with the Pixie Air Series.
Features & Benefits

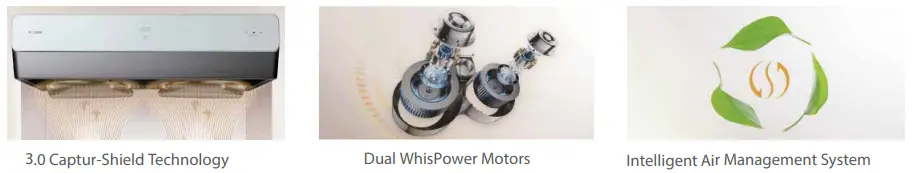

- 3.0 Captur-Shield Technology
- Covers 30″ cooktop with 5 burners nearly 6 Sq. Ft. of cooking area
- Creates a ‘Coanda Effect ensuring ultra-fast powerful ventilation
- Dual WhisPower Motors
- Industry Leading Technology
- Equivalent to 850CFM, powerful and efficient ventilation
- Refreshes the whole kitchen in just minutes
- Intelligent Air Management System
- Monitors the Kitchen for harmful gases or noxious fumes
- The fan will automatically operate and extract harmful gases out of the house

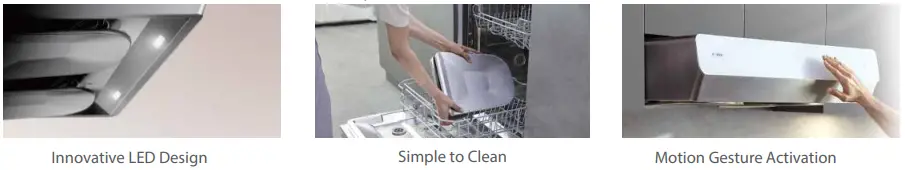

- Innovative LED Design
- Lights up your cooktop surface so you can easily see the food you are cooking
- Bright Vision with avg. 600LUX
- Simple to Clean
- Detachable Captur-Shields with integrated oil cup
- Dishwasher safe or hand clean with soap and water
- Motion Gesture Activation
- Contact-less Touch Free Operation
- Simply Wave to the Pixie Air, and it will automatically Power On/Off with fan and lights
SPECIFICATIONS
| MODEL | UQS3001 | UQG3002 |
| Dimensions & Weight | ||
| Product Size (WxHxD)(inch) | 29 13/16 x 8 5/16 x 22 1/16 | 29 13/16 x 8 5/16 x 22 1/16 |
| Duct Siz e (inch) | Vertical: Round 6″ Horizontal: Rectangular 3 1/4″ x 10″ | Vertical: Round 6″ Horizontal: Rectangular 3 1/4″ x 10″ |
| REC. Mounting Height (from cooktop to the bottom of cabinet) | 32″-36″ | 32″-36″ |
| Net Weight (lb) | 52 | 52 |
| Gross Weight (lb) | 62 | 62 |
| Packing-Box Siz e (WxDxH) (inch) | 34 1/2 × 15 3/4 × 28 3/4 | 34 1/2 × 15 3/4 × 28 3/4 |
| Technical Specifications | ||
| Motor | Dual AC Motors | Dual AC Motors |
| Motor Power (W) | 256W | 260W |
| Power Supply | 120V/60Hz | 120V/60Hz |
| Amps | Max. 1.7A | Max. 2.3A |
| Power Plug | Included | Included |
| Features and Functions | ||
| Material | Stainless Steel | Stainless Steel with Tempered-glass Panel |
| Max Static Pressure (Pa) | 350Pa | 400Pa |
| Speed Setting | 3 | 4 |
| Max. EQUIV.CFM | 680CFM | 850CFM |
| Min. Noise Level (dB) | 37 | 37 |
| Illumination (W) | 3W × 2 (LED)(5500°K)(avg.600LUX) | 3W × 2 (LED)(5500°K)(avg.600LUX) |
| Night Mode Lighting | N | Y |
| Oil Cup | One-piece (Dishwasher Safe) | One-piece (Dishwasher Safe) |
| Oil Filter | Simple to Clean | Simple to Clean |
| Captur-Shield | Professional 3.0 Gen | Professional 3.0 Gen |
| Control Type | Soft Touch Buttons | Micro Touch Control & Motion Activation |
| Delay Shutoff | N | 5、15、30min |
| Boost | N | Y |
| CAT (CFM Adjustment Tech) | Y | Y |
| Intelligent Air Management | Y | Y |
| Oil Filtration Rate | 94% | 94% |
| Odor Reduction Rate | 99% | 99% |
| Warranty | ||
| 3YEARS PARTS (LIFETIME MOTORS) ； 1 YEARS LABOR | ||

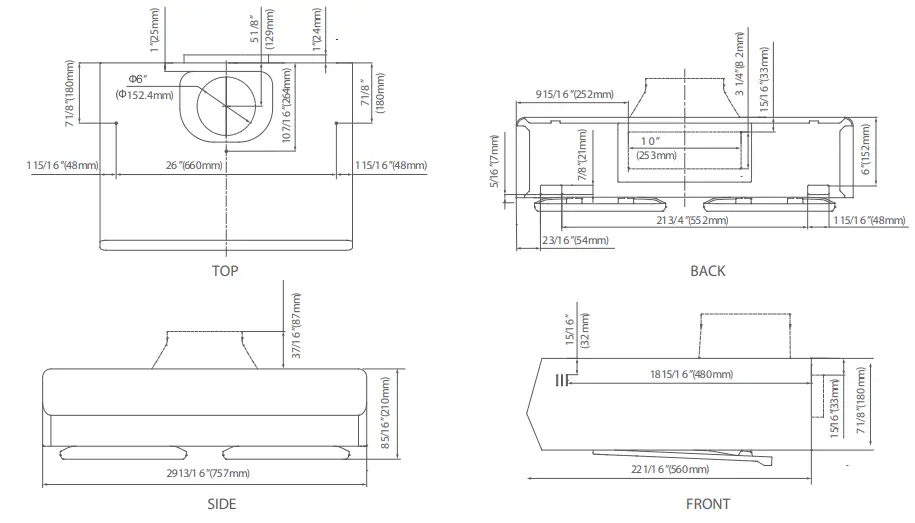

Product Dimensions

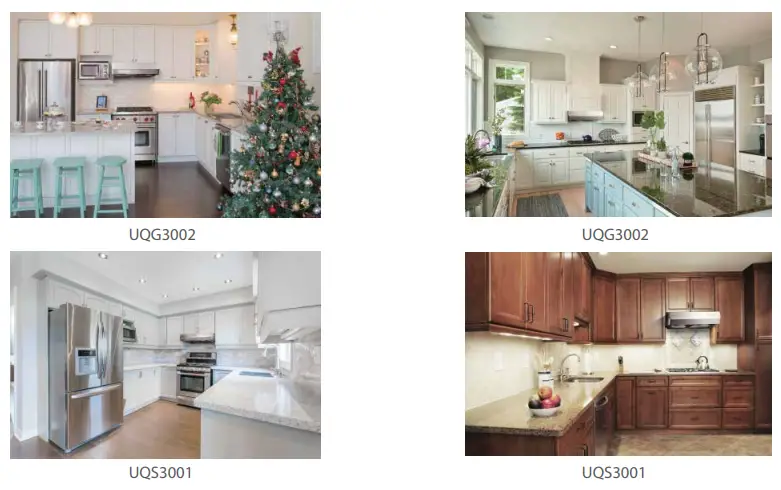

Kitchen Design
Actual color may vary. Design, specifications and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
