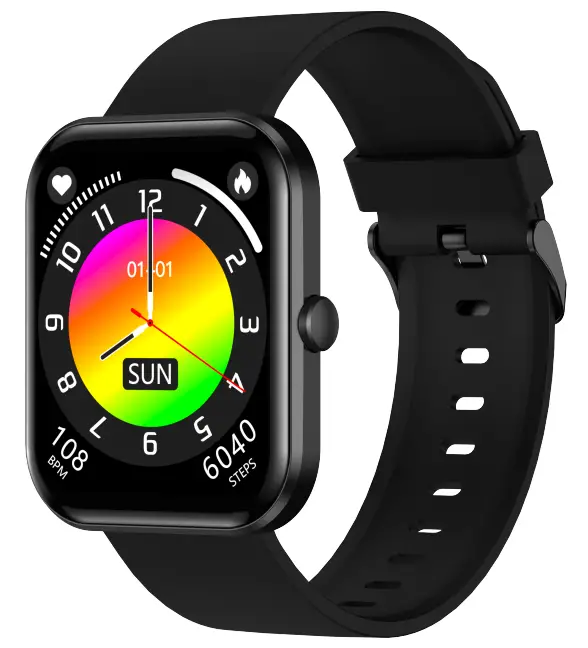

IRE-BOLTT BSW104 Smart Watch

Downloading and connecting of smart watch with Da Fit APP.

Download and install Da Fit APP.
Scan QR code with mobile phone todownload APP.
For IOS system, select APP Store, search for Da Fit App.

Android system, select Google Play to download and install Da Fit App. Or scan QR code to download.

Note: your mobile phone must support Android 5.1 or IOS 8.0 or above, and Bluetooth 4.0 or above.

Connect smart watch with Da Fit APP

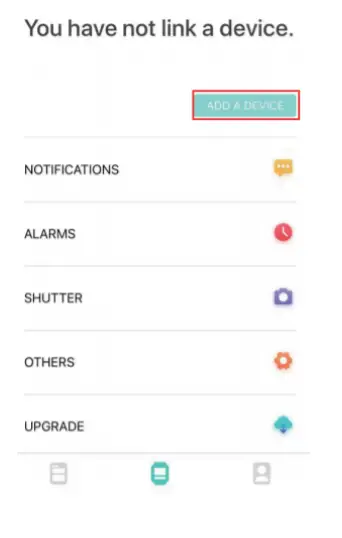

Click on “Add Device” to connect the smart watch

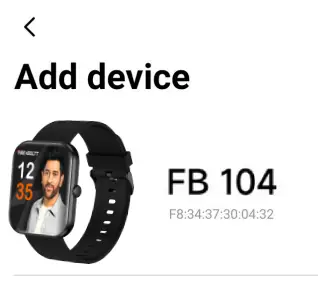

Click on your device in the device list scanned. Connect it directly to Android system.

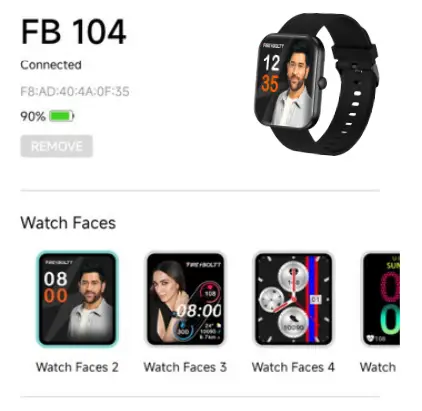

Successfully connected

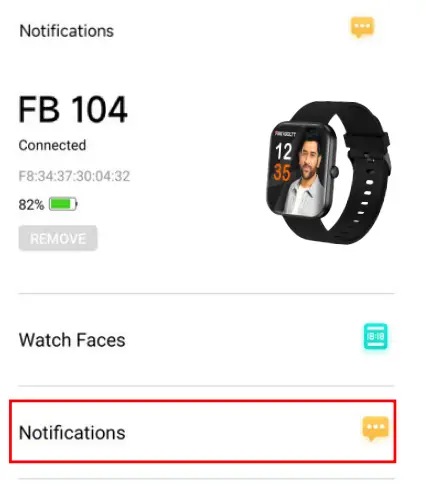

For both android & iOS click on Notifications Tab in the Dafit app

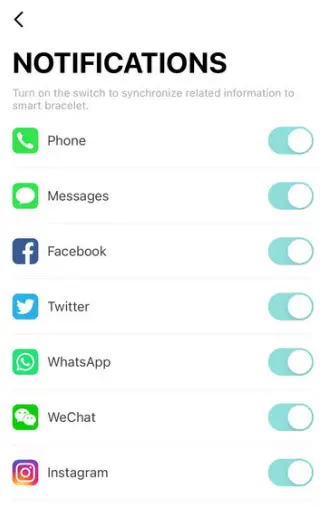

Enable all the notifications for the ease of use

BLUETOOTH CALLING FUNCTION

This watch comes with a special feature of Bluetooth calling. The user can make calls without having to open the phone. You can also view the call history of the watch. You need to keep the connection between the watch and the phone stable when using the Phone Call function.
The watch also has a microphone and a speaker built in for the ease of talking through the watch and to hear music, phone calls, and other notifications.
Follow the steps to activate the calling function and much more.

Part A – How to connect

Step 1: After connecting the watch to the Da Fit App, you need to go the bluetooth settings of the phone and pair the watch there as shown below

For iOS

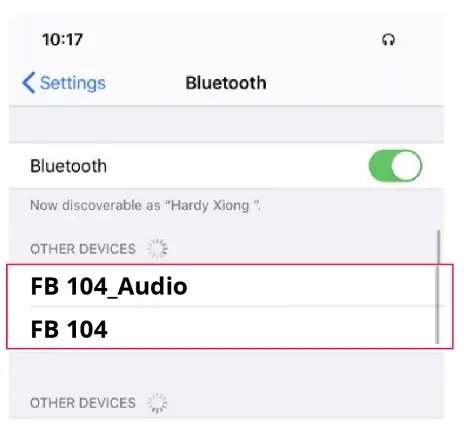

Switch on the bluetooth in the phone bluetooth settings and you shall see the available device as “FB 104_Audio

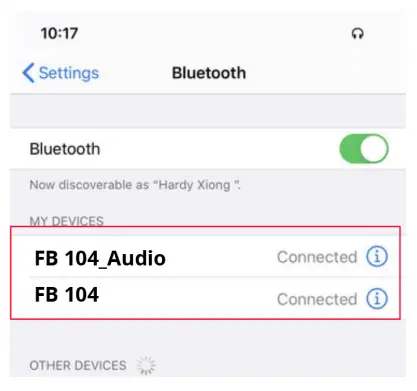

It shall show Connected

For Android

Accept the Bluetooth Pairing Request

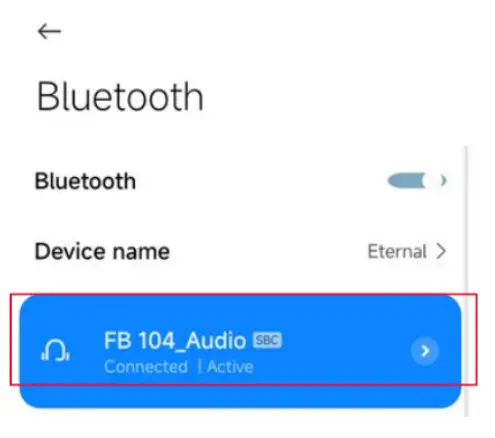

Once accepted you can see the following screens saying – “Connected for calls”

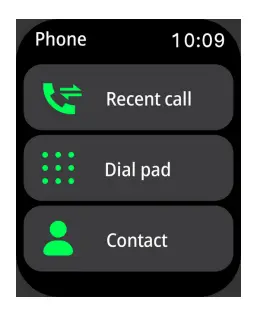

Step 2: Go to the watch and swipe left to the features page and locate the phone function.

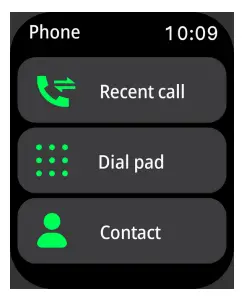

After successfully connecting the bluetooth you will get this screen.
Upon clicking on the Recent Call you can see the recent calls of your device.

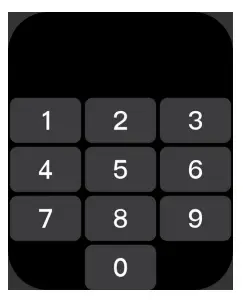

When you click on the dial pad you shall get this screen on your watch.
Once you dial the number the call button on the right corner shall appea

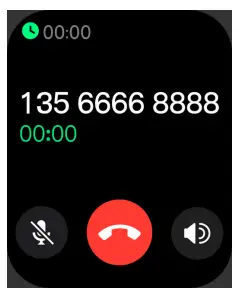

You click the dial button, you can see that the number is dialling
Through the microphone available in the watch you can talk through the watch and adjust the speaker volume by the + & – sign on the watch and disconnect the call.

Part B – How to disconnect

To disconnect the bluetooth calling the user simply has to go to the phone’s bluetooth setting and “unpair” the FB 104_Audio device.

Part C – Add contacts

You can add upto 8 contacts – Add the contacts from the Dafit App. Go to “Favourite Contacts” and add contacts. The selected contacts will get synced to your watch.

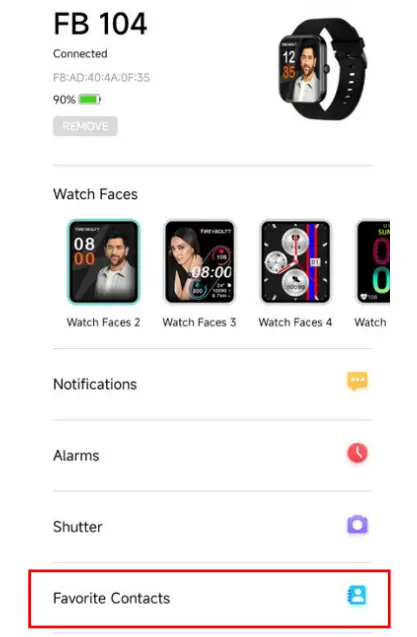

Click on Favorite Contact to add the contacts

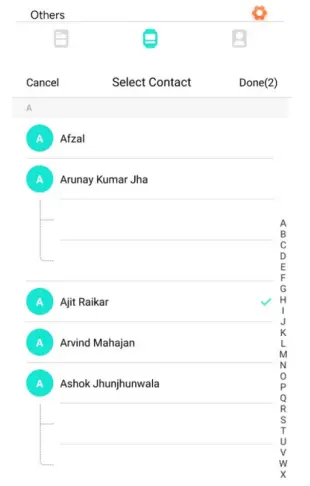

Select the contacts you want to add

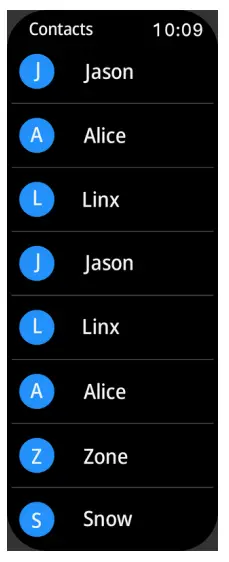

The contacts will get added.

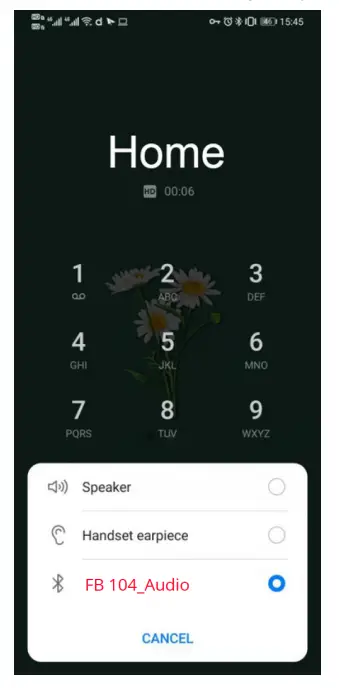

Part D – Switch between Phone / Watch

Switch Between Watch / Phone During an Active Call: If your watch is connected to the Phone via Bluetooth, all calls will come on the watch by default. If you want to change the call to the phone, during an active call, simply click on Handset earpiece icon to select it. The call will then come on your phone.

Part E – Battery Advisory

Battery

The battery lasts for 2 to 3 days with bluetooth calling mode enabled.
On standby the battery can stay for as long as 5-7days.
Advisory- To conserve battery, It is advised to turn off the bluetoothwhen not in use.

Functions Navigation

The screen can be navigated by sliding left/right or sliding up/down

Watch Face Functions Navigation and Button Instructions

The watch features a full touch control screen with a reflective display and a button

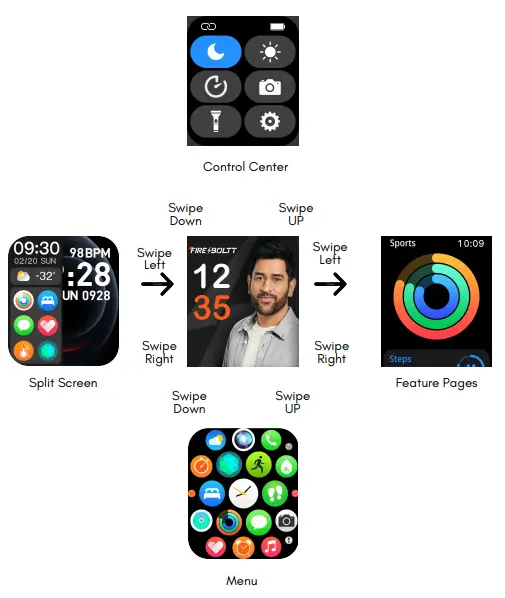

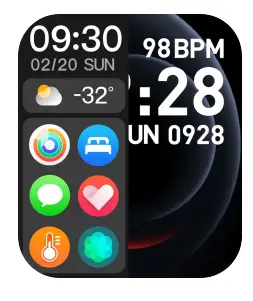

Functions Navigation

The screen can be navigated by sliding left/right or sliding up/down

By default, the watch face page displays, and on the watch face page, you can:

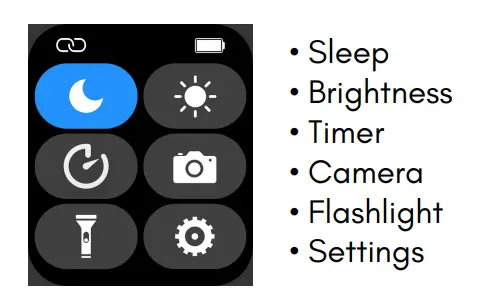

Slide down to view control centre.
Slide up to view Menu
Slide right to view spl

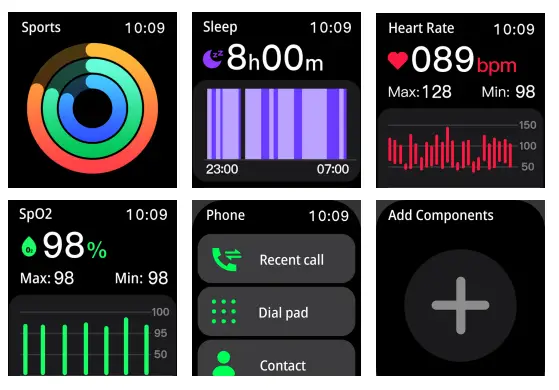

Slide left to view features like Activity Phone Call, Heart Rate, Sleep, SpO2, you can add or delete any componen.

Touch Button Operations

Short press from the side button

To unlock the screen in the lock screen status. To return to the watch face page from the first-level menu entry in the unlocked status.

Long press from the side button

To turn on the watch in the power off status

Watch Wearing and Charging

It is recommended to wear the watch with a moderate tightness at a distance two fingers far from your wrist to ensure that the optical heart rate monitor works properly

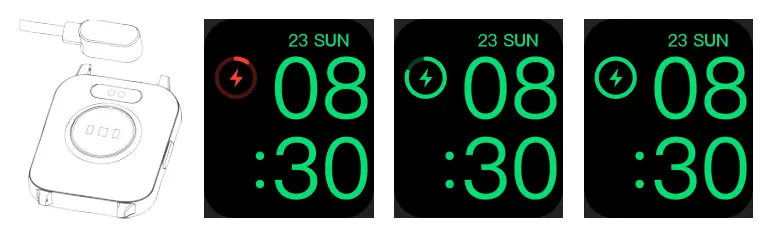

Charging

Plug the charger’s USB port into a mobile phone charger ora computer USB port to charge the watch.
Attach the charging pin to charge the smart watch.
The charging icon will appear on the screen, indicating that the watch is being charged.
It is recommended to use computer USB ports or brand mobile phone chargers to charge the watch.

Use of Functions

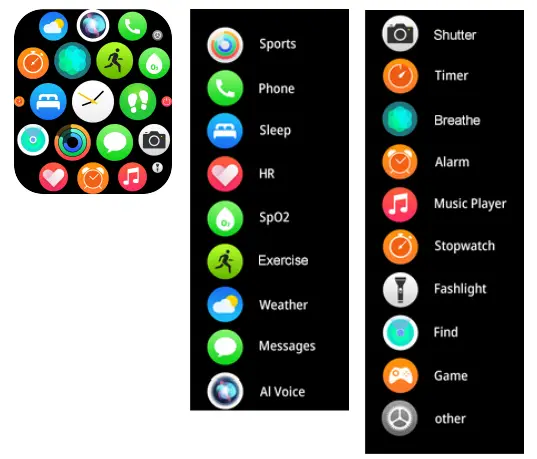

The watch has a lot of functions, these can be accessed by swiping up to the list menu. Menu consist of – Sports, Phone Call, Sleep, Heart Rate, SpO2, Sports Mode, Weather, Messages, AI Voice, Camera, Timer, Relax, Alarm, Music, Stopwatch, Flashlight, Find Phone, Game, Other.

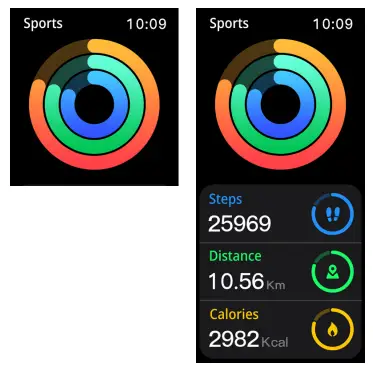

Steps- The watch automatically tracks the step taken on the screen.
Note: Your movement stats reset to 0 at midnight

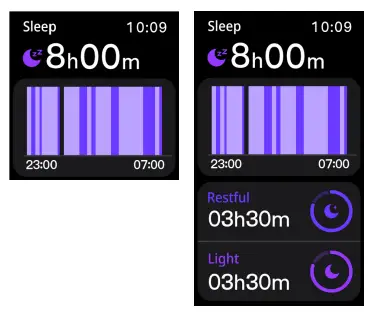

Sleep – You need to wear the watch while sleeping, it will provide the hours slept and quality of sleep stats.
Note: Sleep detection starts from 8pm to 10am the next day

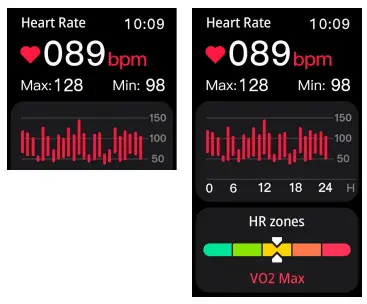

Heart Rate – The watch will record your heart rate all day. You can also tap on the page to start measuring.
Game – Play games on your wrist

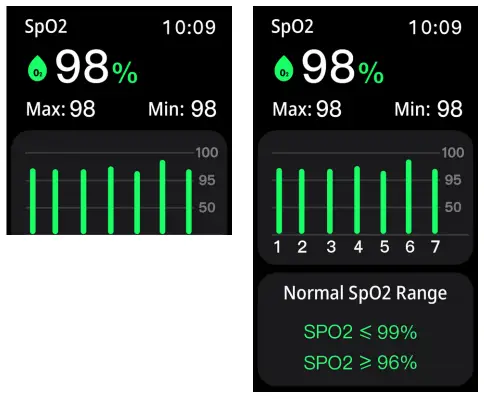

Oxygen Tracking (SPO2) – Tap the SPO2 page to start measuring. On the SPO2 page you can see the previous data
Note: The value is only for reference, not for medical use.
Phone Call – The watch supports bluetooth calling, under this option you can dial the number, view call logs & contact.

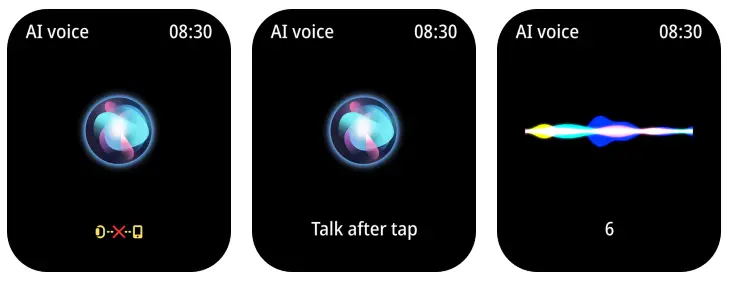

AI Voice- You can wakeup the AI voice on your phone through the watch when bluetooth calling is connected.
Find Phone – Find the phone when connected via bluetooth to ensure perfect connection.

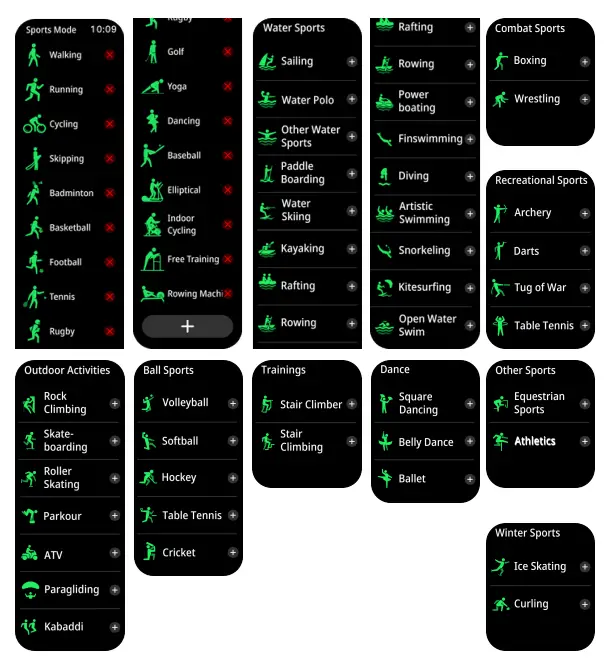

Sports Mode – This feature comprises of multiple exercise modes. 120+ sport modes tracks your fitness goals in a tap.
Alarm – You can set 3 alarm on the watch
Weather – You can know the current weather and the forecast for next 5 days. This information is synced from your app. your app. Scroll Up to see the forecast weather. It will not be updated if the phone is disconnected for a long time.

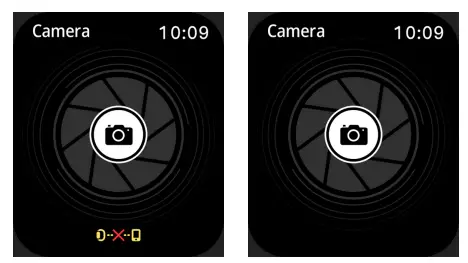

Shutter – You can remote control the camera of your phone once the watch is connected with your device
Player – You can remote control the music player of your phone once the watch is connected to the device

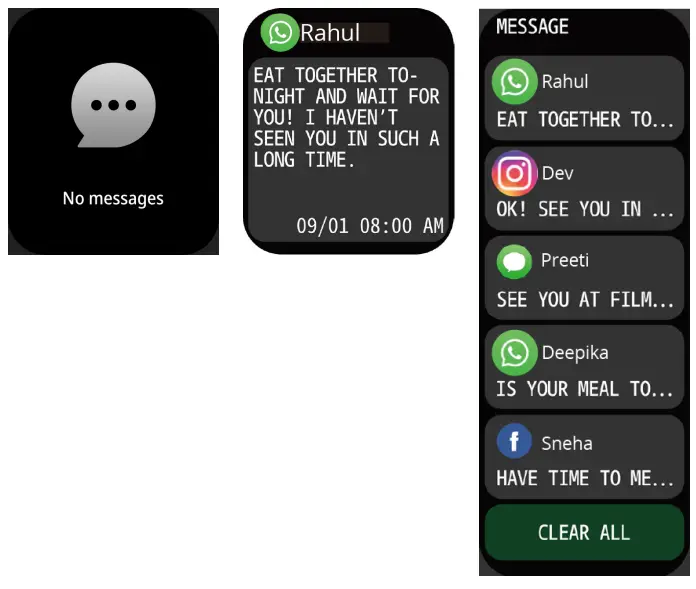

Messages – You can view all your messages and notifications under this function

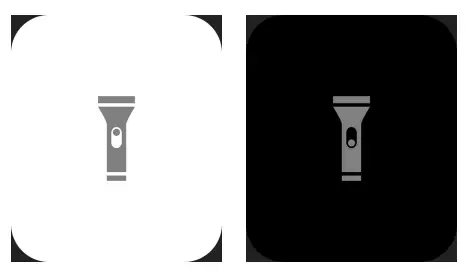

Flashlight – Never be scared in the dark again. The watch supports a flashlight

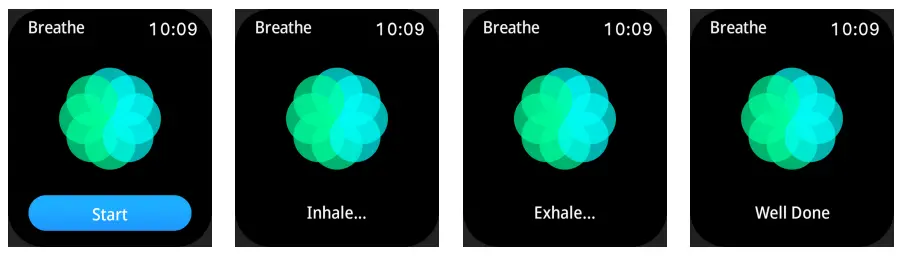

Breathe- You can now monitor your breathing activity through the watch
Stopwatch – You can record your time and always be on time with any task

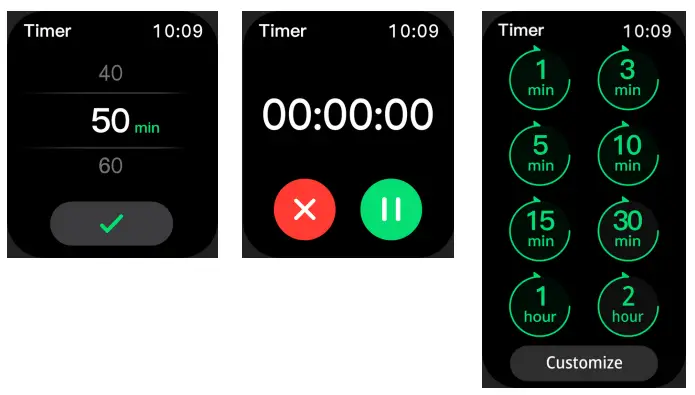

Timer- Set realistic goals and achieve them
Setting – Check out other features through this tab.

Other Settings

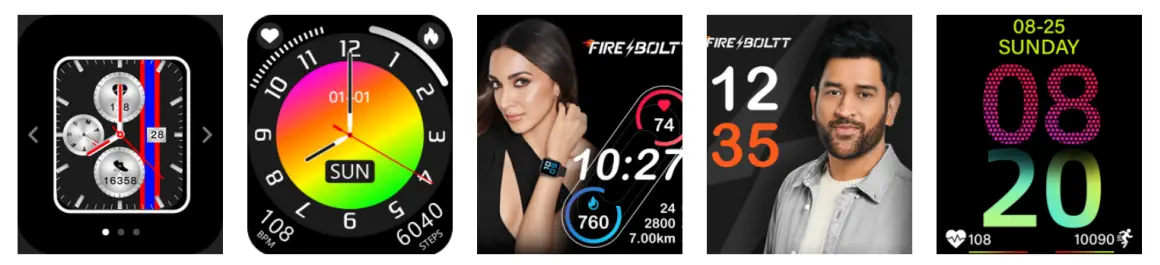

Watch Face

Replace the Watch Face on the Watch:
Long Press the screen, you shall get the options to change the watch face, scroll left and click on the watch face you want to select. The watch face will set.

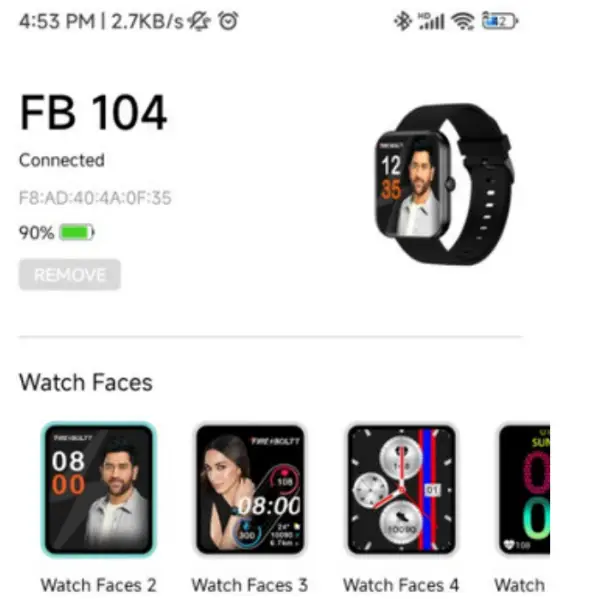

Replace the Watch Face on the App:

Tap the Watch face settings entry in the “Profile” -> “FB 104” page, and then download and sync watch faces on the Watch Face Store. After that, the replacement is done.

Notifications

Enable Notifications

During use, you need to enable the corresponding “App alerts” on the Da Fit App, and keep the watch and the mobile phone connected.
If you are using an iOS device, you need to pair the watch with the Bluetooth of the mobile phone before use.

If you are using an Android device, you need to include the App into the whitelist or self-starting list of the mobile phone in background settings and keep the App running in the background to protect it from being detected and killed by the mobile phone’s background processes. Such background processes could disconnect the watch and the App, and as a result no reminder will be received. See “Profile” -> “FB 104” – > “Run in background” settings for different mobile phone systems.

View Notifications

When the watch receives a notification alert, it will automatically display the notification content. If you do not view the notification immediately, you may slide up in the watch face page to go to messages and check the notification.

Workout

Sliding left or up in the watch face page can make the Activity app items visible from the main menu. For more information, see the “Introduction to the Workout Function” section below.

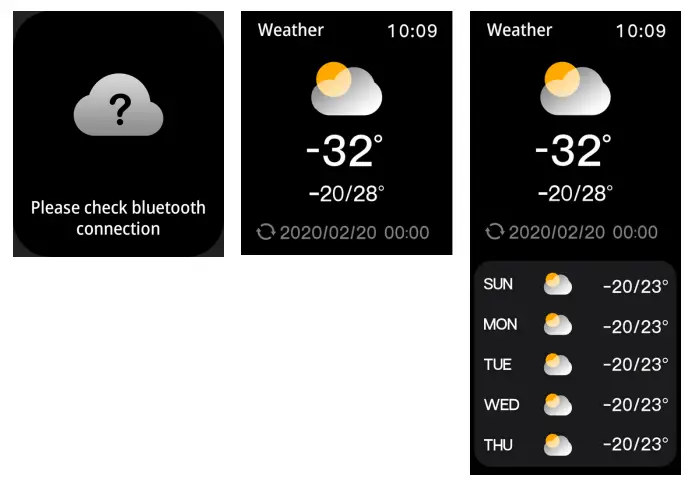

Weather

In the weather page, you can view the weather for the day and the weather information for the next 5 days. The weather displayed by the watch comes from the server. Therefore, you need to keep the Bluetooth of your mobile phone on and connect it with the watch to keep abreast of the latest weather information changes.
In addition, when a weather alert is received, the watch will receive the alert as well. You may toggle on the weather alert switch in the “Profile” -> “FB 104″ -> ” Weather settings ” page on the Da Fit App.

Settings

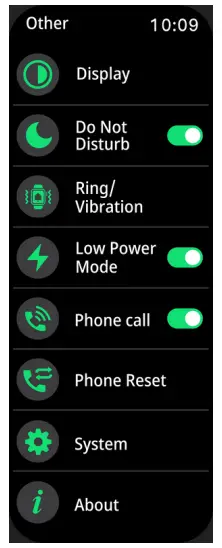

In the settings page, the settings items of Display, DND, Low Power Mode, Phone, Phone Reset, Ring, System, About are provided.

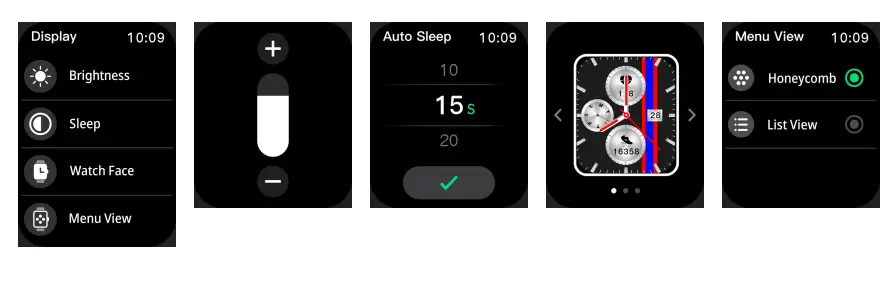

Display: This has all the setting as per convenience on how you want to see your watch.

Do Not Disturb: This will dim the light and turn off the vibrations.

Low Power Mode: This is the ultimate battery saver, this can be used when the watch is not much in use.

Phone Call: You can check this for the Bluetooth Calling function.

Ring/Vibration: Select at what intensity you want the watch to vibrate.

Phone Reset: This is a feature will allow you to reset the bluetooth calling feature.

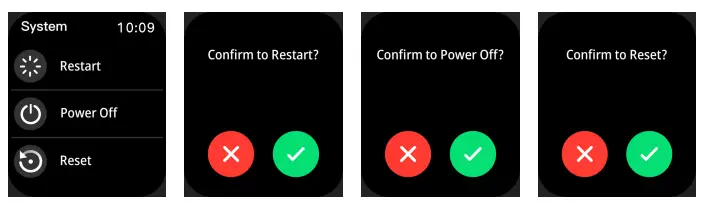

System: This is a feature has power off, reset, restart function

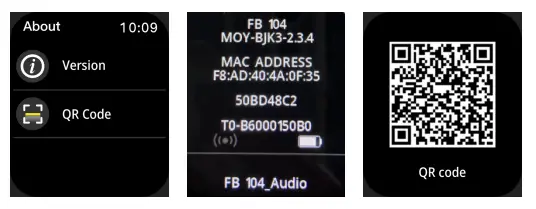

About: This is a feature allows you to check the system version

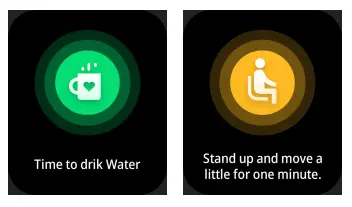

Watch Status Reminder

Incoming Call

When the watch receives incoming calls it will display to remind you, also you can reject or silent the call.

Idle alerts

When you are sitting for a long time, the watch will vibrate to remind you to get up for a while. Before using this function, you need to enable Idle alerts by tapping “Profile” -> “My devices” and turning on Idle alerts on the Da Fit App.

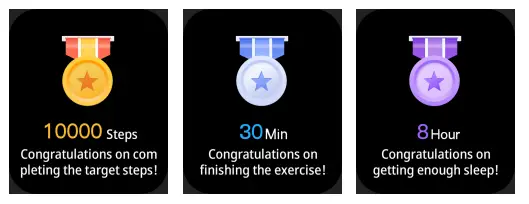

Goal Notifications
When the number of steps reaches the set goal, the watch will display a goal to remind you. Before using this function, you need to enable Goal notifications by tapping “Profile” -> “My devices” and turning on Goal notifications on the Da Fit App.

Watch Alarm Alert

When the alarm on the mobile phone rings, the watch will vibrate to remind you that the alarm is ringing. Before using this function, you need to enable Watch alarm alert by tapping “Profile” -> “My devices” and turning on Watch alarm on the Da Fit App.
