CTE C750 Air
User’s Manual
Specification
| Case Type | Full Tower |
| Dimension (WW*D) | 565.2 x 327 x 599.2 mm (22.25 x 12.87 x 23.59 inch) |
| Side Panel | Tempered Glass x 1 |
| Material | SPCC i ABS |
| Cooling System | Front (Intake): 140 x 140 x 25 mm CT140 fan (1500rpm. 30.5 (IBA) x i T op (exhaust): 140 x 140 x 25 mm CT140 fan (1500rpm. 30.5 dBA) x 1 Rear (intake): 140 x 140 x 25 mm CT140 fan (1500rpm. 30.5 (IBA) x 1 |
| Drive Bays | 7 x 3.5″ or 12 x 2.5″ |
| Expansion Slots | 7 |
| Motherboards | 6.7″ x 6.7″ (Mini ITX). 9.r x 9.r (Micro ATX). 12″ x 9.6′ (ATX). 12*x 13″ (E-ATX) |
| I/O Port | USB 3.2 (Gen 2) Type C x 1. USB 3.0x 4. HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm. 2 x120mm.1 x 120mm 3 x 140mm. 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm |
| Top: 2 x 120mm. i x 120mm 2 x 140mm, 1 x 140mm | |
| Right (MIS Side): 3 x 120mm. 2 x 120mm. 1 x 120mm 3 x 140mm. 2 x 140mm, 1 x 140mm | |
| Rear: 3 x 120mm. 2 x 120mm. 1 x 120mm 3 x 140mm. 2 x 140mm. 1 x 140mm 2 x 200mm. 1 x 200mm | |
| Bottom: 3 x 120mm. 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm. 1 x 140mm | |
| Radiator Support | Front: 1 x 360mm. 1 x 240mm. 1 x 120mm 1 x 420mm(A10 only). 1 x 280mm. 1 x 140mm |
| Top: 1 x 240mm. 1 x 120mm 1 x 140mm | |
| Right (MIS Side): 1 x 360mm. 1 x 240mm. 1 x 120mm 1 x 420mm(A10 only). 1 x 280mm. 1 x 140mm | |
| Rear: 1 x 360mm. 1 x 240mm. 1 x 120mm 1 x 420mm(A10 only). 1 x 280mm. 1 x 140mm | |
| Bottom: 1 x 360mm. 1 x 240mm. i x 120mm 1 x 280mm. 1 x 140mm | |
| Clearance | CPU cooler height limitation: 190mm VGA length limitation: 370mm (With Radiator) 420mm (Without Radiator) PSI) length limitation: 220mm |
Accessory
| Figure | Part Name | Q`ty | Used For |
 | Screw #6-32*6.0mm | 4 | Power Supply |
 | PCI-E Riser Bracket | 1 | PCI-E Riser Cable |
 | Screw Flat #6-32*5.0mm | 4 | PCI-E Riser Bracket |
 | Screw #6-32*6.0mm | 34 | PCI-E Riser Cable Motherboard / 3.5″ HDD |
 | Stand-off #6-32*7.5mm | 5 | Motherboard PCI-E Riser Cable |
 | Nut Setter | 1 | Motherboard Stand-off Installation |
 | Thumb Screw #6-32*6.0mm | 8 | VGA Card |
 | Screw M3*6.0mm | 20 | 2.5″ HDD 2.5″ SSD |
 | 3.5″ HDD Rubber | 20 | 3.5″ HDD |
 | Clip | 5 | Side Panel |
 | Zip Ties | 15 | Cable Management |
 | Buzzer | 1 | Motherboard Alarm |
Warning and Notice

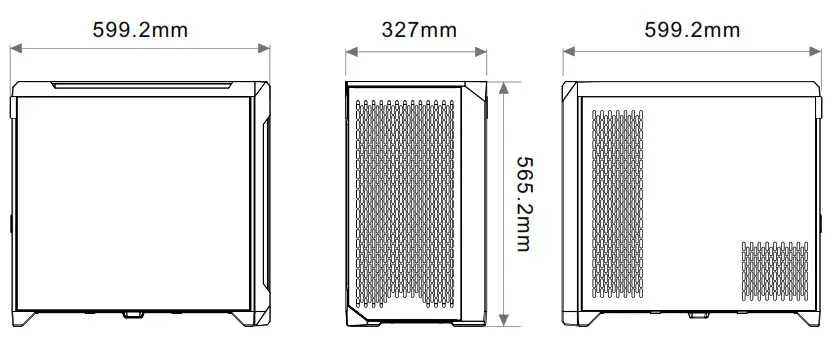

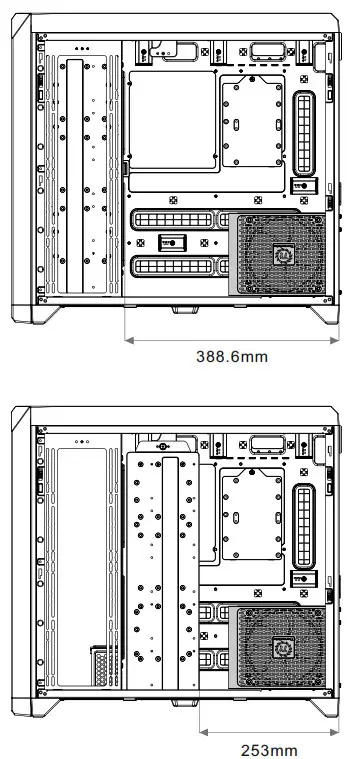

Chassis dimension

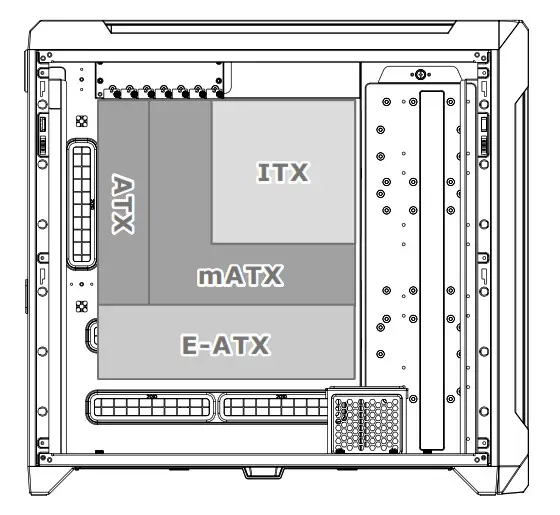

Motherboard compatibility: ITX / mATX / ATX / E-ATX (Up to 330.2mm wide)

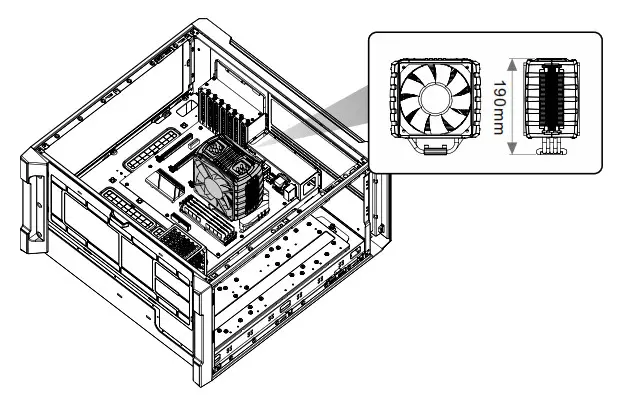

CPU cooler max height: 190mm

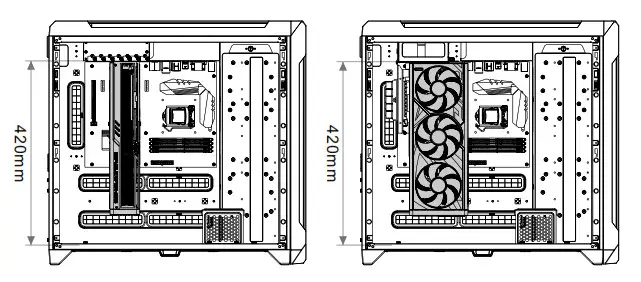

VGA max length: 420mm
PSU max length: 220 mm

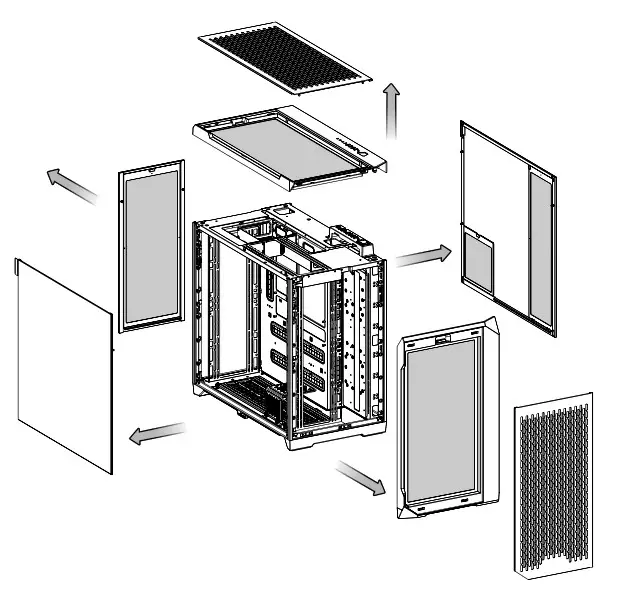

Remove Components

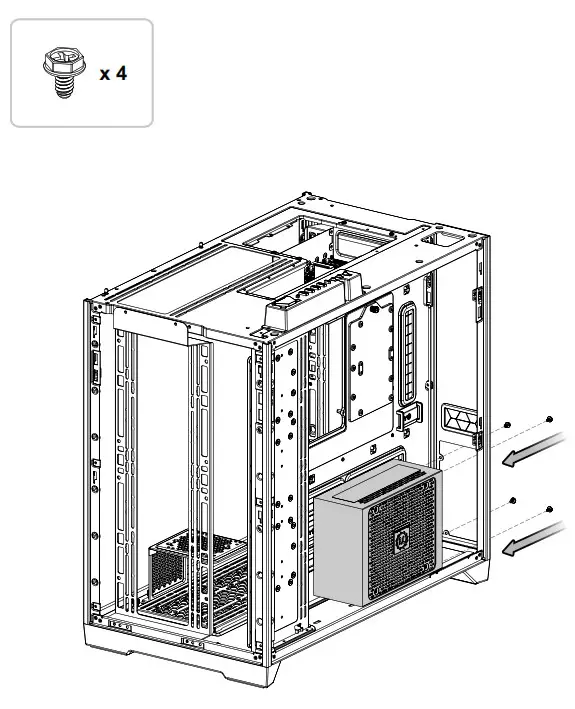

Power Supply Unit Installation

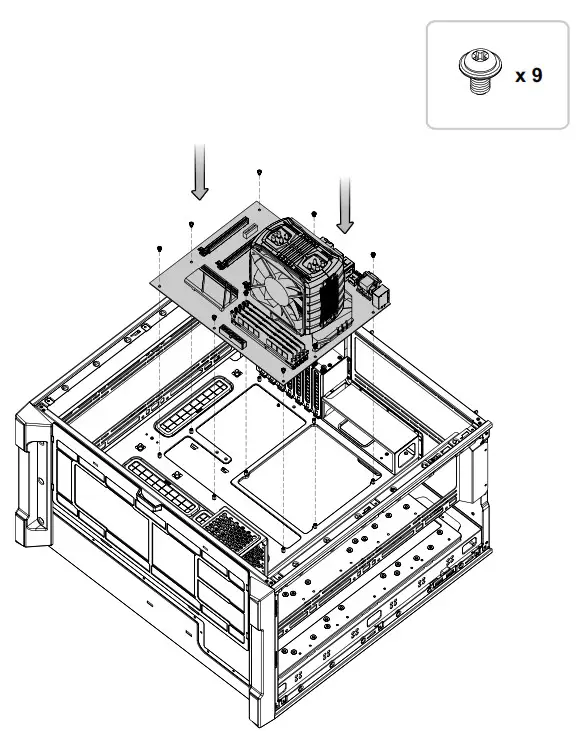

Motherboard Installation

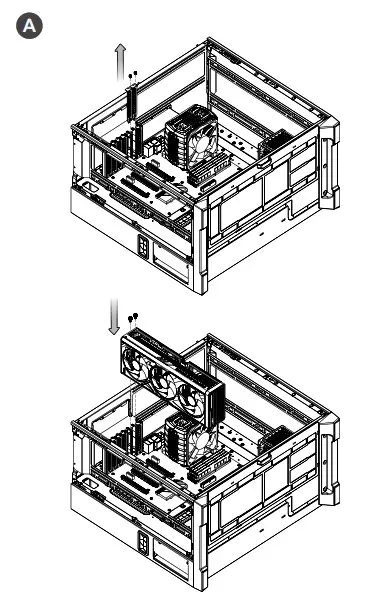

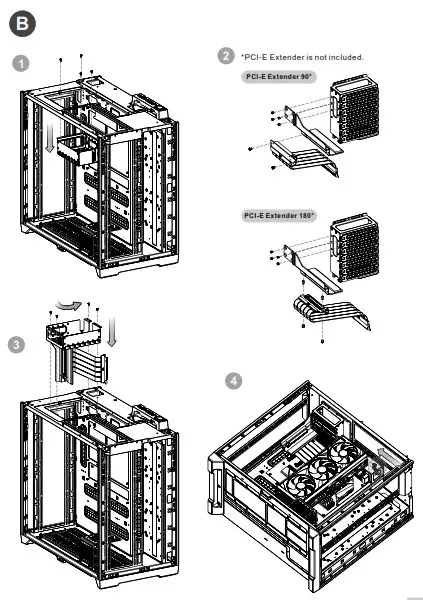

VGA Card Installation

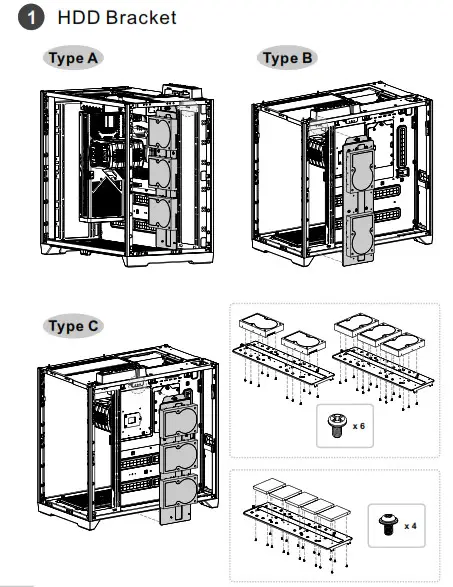

3.5″/2.5″HDD Installation

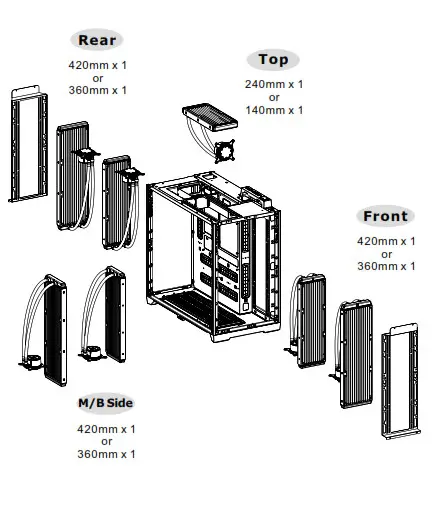

Liquid Cooling Installation
AIO Liquid Cooling Installation
Air Cooling Installation

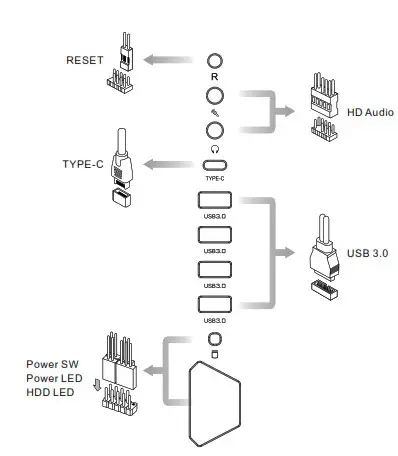

I/O Connection

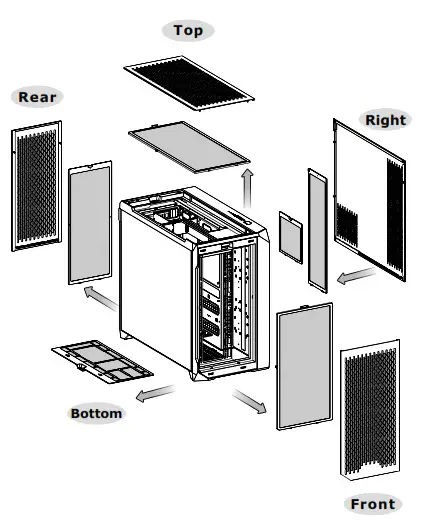

Remove Filters
Note:………………….
