TIC 300 PRO with VolTect’ Quick Start Guide
On/Off
When the TIC 300 PRO is activated. the blue LED and audible alert will pulse at a slow rate. approximately twice per second.
LOW Range Setting
- Push the ON/OFF button to turn the unit ON. The unit will default to the high voltage setting when powered up.
- Push the LOW range button, and the unit is ready for low voltage detection.
- Place the probe tip near. but not touching. the low (<10001f) voltage source. See the bottom table for range details.
- If voltage is present. the blue LEDs and audible alerts will pulse at an increased rate.
Low Range Setting
| Voltage (Phase to Ground) | Detection Distance (from the energized line)Average |
| 30 V | 1.5″ |
| 75 V | 6.5″ |
| 100 V | 8.5″ |
| 120 V | 10″ |
| 220 V | 1’1″ |
| 500 V | 1’7″ |
| 1000 V | 2’10” |
| 1500 V | 7.9″ |
Self-test
The TEST button should be used to ensure the tool is operational. The TEST function will cause the blue LEDs and audible alerts to pulse at a continuous rate on either LOW or HIGH range settings.
HIGH Range Setting
(> 1500V and <122 kV) (Must use with TIC 410A Hot Stick Attachment)
- Push the ON/OFF button to turn the unit ON. The unit will default to the high voltage setting when powered up.
- Approach the probe tip near, but not touching, the high voltage conductor. See the bottom table for range details.
- If voltage is present, the blue LEDs and audible alerts will pulse at an increased rate.
High Range Setting
| Voltage (Phase to ground) 1 | Detection Distance Average |
| 1.5 kV | 1’2′ |
| 2.0 kV | 2′ 5′ |
| 4.0 kV | 3″ |
| 10.0 kV | 6’3″ |
| 25.0 kV | 9’4′ |
| 50.0 kV | 13’0′ |
| 75.0 kV | 14’8′ |
| 100.0 kV | 19’8′ |
| 122.0 kV | 22’0′ |
For complete information on the TIC 300 PRO, visit amprobe.com
Meet The
New Standard
In Non-Contact, High
Voltage Detection

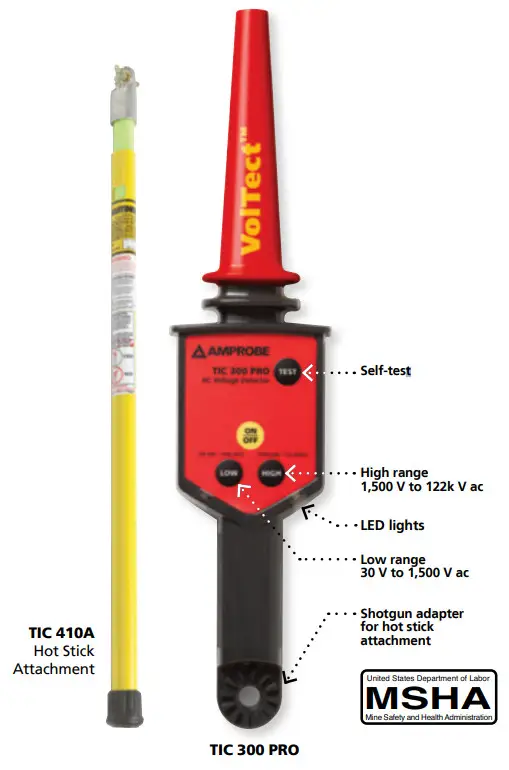

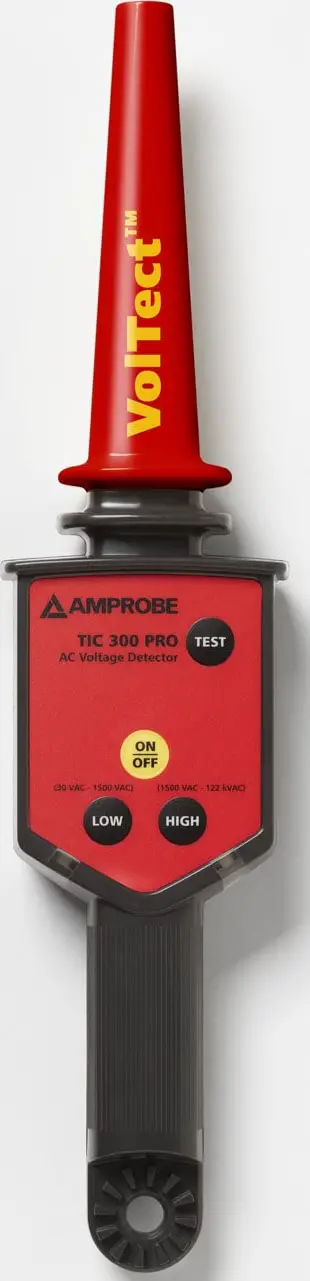

The Amprobe TIC 300 PRO with VolTecr Non-Contact High Voltage Detector
Key Features
- Bright visual and loud audible voltage indication
- Self-test verifies that the tool is operational
- Push-button functionality for ease of use with PPE gloves
- Intrinsically safe and MSHA certified
- Low range setting: 30V ac g 1,500V ac
- High range setting: 1,500V ac g 122,000V ac (must use with TIC 410A Hot Stick Attachment)
