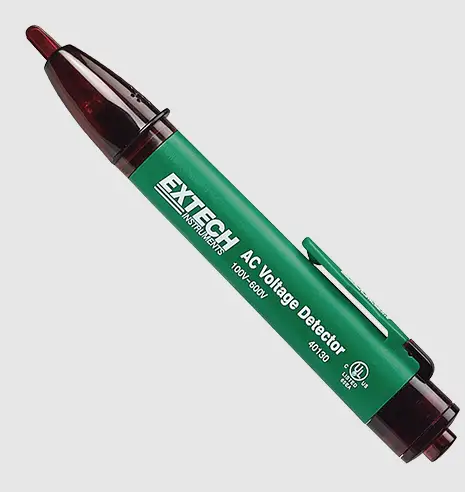

EXTECH 40130 Voltage Detector
Safety Symbols
Caution! Refer to the explanation in this Manual
Double Insulation or Reinforced insulation
CE Compliance
- This device is not a toy and must not reach children’s hands. It contains hazardous objects as well as small parts that the children could swallow. In case a child swallows any of them, please contact a physician immediately
- Do not leave batteries and packing material lying around unattended; they can be dangerous for children if they use them as toys
- In case the device is going to be unused for an extended period of time, remove the batteries to prevent them from draining
- Expired or damaged batteries can cause cauterization on contact with the skin. Always, therefore, use suitable hand gloves in such cases
- See that the batteries are not short-circuited. Do not throw batteries into the fire.
Operating Instructions
CAUTION: Read, understand and follow Safety Rules and Operating Instructions in this manual before using this product.
WARNING: Risk of Electrocution. Before use, always test the Voltage Detector on a known live circuit to verify proper operation
WARNING: Risk of Electrocution. Keep hands and fingers on the body of the probe and away from the probe tip
AC VOLTAGE DETECTION

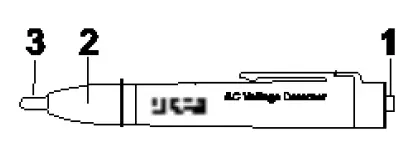

- Press the audible tone switch (1) to set the audible tone ON or OFF (IN: ON; OUT: OFF)
- Touch the probe tip (3) to the hot conductor or insert it into the hot side of the electrical outlet.
- If AC voltage is present, the detector light will flash (2) and the audible warning will sound (if enabled). The unit triggers when held within 0.2” (5.1mm) of a 110VAC receptacle. Higher voltages (up to 300V) trigger the alarm at approximately 4 to 6” (10.2 to 15.2cm).
NOTE: The detector is designed with high sensitivity. Static electricity or other sources of energy may randomly trip the sensor. This is normal operation
Battery Installation

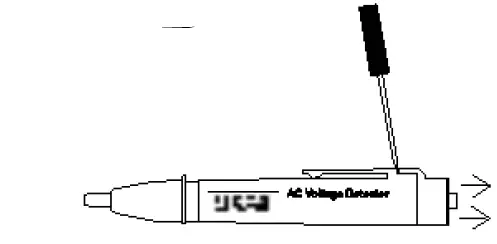

- Open the battery door (end cap) by gently prying up/out at the pocket clip using a small screwdriver.
- Insert two AAA batteries and replace the door.
You, as the end user, are legally bound (Battery ordinance) to return all used batteries and accumulators; Disposal in the household garbage is prohibited!
You can hand over your used batteries/accumulators, gratuitously, at the collection points for our branches in your community or wherever batteries/accumulators are sold!
Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the end of its lifecycle
Specifications
- Voltage Sensitivity
- 100 to 300V AC, 50/60Hz
- Detection distance
- < 5.1 mm (0.2”) for 110VAC receptacles
- 4 to 6” (10.2 to 15.2cm) up to 300VAC
- Over voltage
- Category III 600V
- Operating Temperature
- 0 to 50oC (32 to 122oF)
- Storage Temperature
- -20 to 60oC (-4 to 140oF)
- Altitude
- Operating below 2000 meters
- Relative Humidity
- 80% to 31oC, decreasing to 50% at 40oC
- Battery
- 2 AAA batteries
- Dimensions/Weight
- 152 x 19 x 25mm (6×0.75×1”) / 24.4g (0.86oz)
- Safety
- For indoor use and in accordance with Overvoltage Category III, Pollution Degree 2.
- Approvals/Listings
- UL Listed and CE Marked
