Wiha 12-1000v Voltage Detector Instructions

12-1000V Voltage Detector
Instructions
Operating instructions

12-1000V Voltage Detector

Safety Instructions

Type	Volt Detector EX 12-1000 V
Identification	II3G Ex ic op is IIC T4 Gc
Certificate No.	EPS 19 ATEX 1 223 X
Standards	EN IEC 60079-0:2018 EN 60079-11:2012 EN 60079-28:2015

Repairs are not permitted!
The following conditions must be observed for use in potentially explosive atmospheres:

• Before use in potentially explosive atmospheres, check the function and integrity of the housing and whether the correct batteries have been inserted.
• Operation only on insulated electrical systems / cable
• Maximum rated voltage U = 400 V AC
• Operation only with batteries PAIRDEER Type R03 (AAA)
• Replace batteries only if there is no explosive atmosphere

VoltDetector EX 12-1000 V
This contactless voltage tester is used to test alternating electric fields.
It can detect voltages in insulated cables, e.g. spot cable breaks.

AC > 50 V
DC > 120 V

Above these voltage limits: life-threatening electric shock if touched.

• The warranty is voided in the event of injury or damage to property caused due to non-compliance with these operating instructions. The manufacturer accepts no  liability for consequential damage.
• Operational safety is no longer guaranteed if the voltage tester has been modified in any way. Do not disassemble.
• Test the device on a known voltage source before and after you use it.
• Certified as per the ATEX standard.

Proper use

• Only trained technical staff may use the voltage tester.
• The voltage tester must not be used to verify that there is no live current.
• You may only use a two-pole voltage tester as per EN61243-3 to verify that there is no live current.
• You must pass on the operating instructions as well if you give voltage tester to a third party.

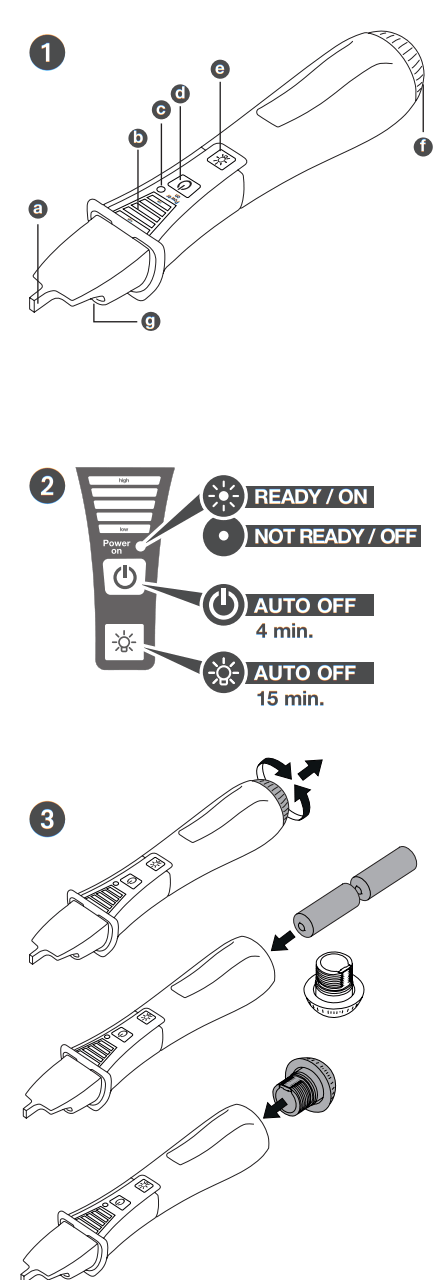

1. Operational control
   a Testing tip
   b LED indicator
   c Ready-to-use indicator
   d Power on/off button
   e Flashlight on/off switch
   f End cap
   g Torch
2. Indication & automatic switch-off
3. Fitting/replacing the battery
   Battery type: 2x 1.5 V AAA
   Low battery: the ready-to-use indicator
   LED flashes

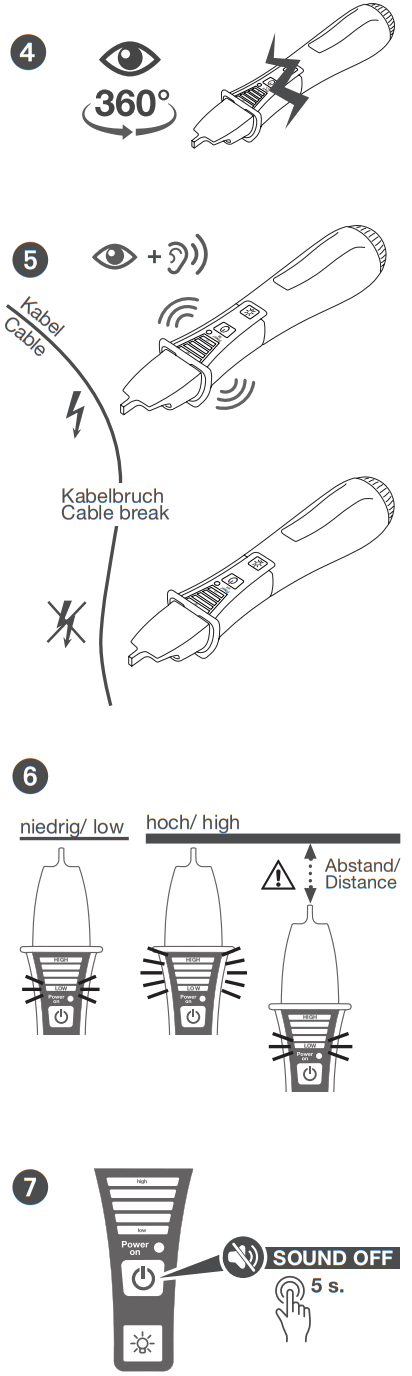

4. Preparing the device
   Check the voltage tester is safe and intact on a regular basis (e.g. examine for damage to the housing or deformation).
   Note: All LEDs light up briefly when device is switched on.
5. Checking the voltage
   Visual and audible testing signal
6. Indicator (reference only) Field force depends on:
   connected voltage
   Distance from power source
7. Mute mode

Technical specifications

Cleaning

• Switch off voltage tester before cleaning.
• Clean voltage tester with a damp cloth – do not use any scouring or solvents.
• Dry thoroughly before using again.

Disposal

• Dispose of the voltage tester as per the applicable statutory regulations.
• You must dispose of empty batteries properly and separately from the product.

	Warning: dangerous voltage, risk of electric shock and impact on the voltage tester’s electric safety.
	Important Observe the indications in the operating instructions.
	Uninterrupted double or reinforce insulation as per Category II EN 61140. Protection against electric shock.
	Complies with European specifications.
	United Kingdom Conformity Assessed
	Canadian Standards Association (NRTL/C)
	Complies with applicable Australian regulations.
	The voltage tester meets WEEE Directive (2012/19/EU).
CAT IV 1000 V	The voltage tester is used to measure the source in low-voltage installations (i.e. electrical measuring devices  and measurements on counters, overcurrent protection devices and load management devices).
	II3G Ex ic op is IIC T4 Gc

Wiha Werkzeuge GmbH
Obertalstraße 3–7
78136 Schonach/Germany
Tel. +49 77 22 959-0
Fax +49 77 22 959-160
[email protected]
www.wiha.com
