Adas Ma600 Portable Calibrations User Manual (+ PDF)

TARGET
your new revenue Stream
Affordable & portable

Foldable calibration frames don’t just replace windshields

RECALIBRATE YOUR FUTURE

OE LEVEL CALIBRATION PROCEDURES FOR MORE THAN CAMERA-BASED SYSTEMS

FIVE LINE LASER
1 PERSON PROCEDURE
QUICK & SIMPLE SETUP

www.Maxisysadas.com
ADAS CALIBRATION TOOLS PATENT PENDING

Contents hide

1 Maxisys MA600

2 Adjustable height • Stable frame base

3 Five Line laser

4 Illustrated setup instructions

5 Adas Software

6 Affordable adas

7 LDW TARGETS

8 All other parts Included

9 Expansion Packages

10 Documents / Resources

10.1 References

11 Related Posts

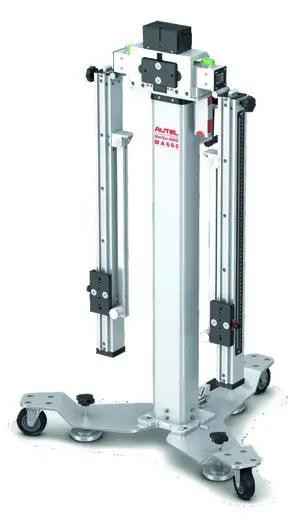

Maxisys MA600

Portable Adas calibrations

The easy-to-use MA600 frame is quickly folded and disassembled for transport.
PORTABLE
Calibrations
ACCURATE
Measurements
FOLDABLE
Components

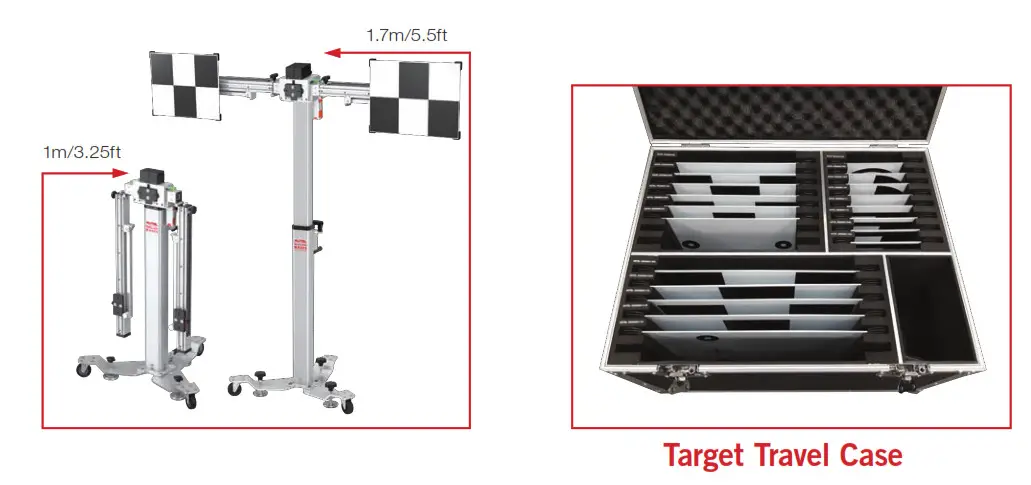

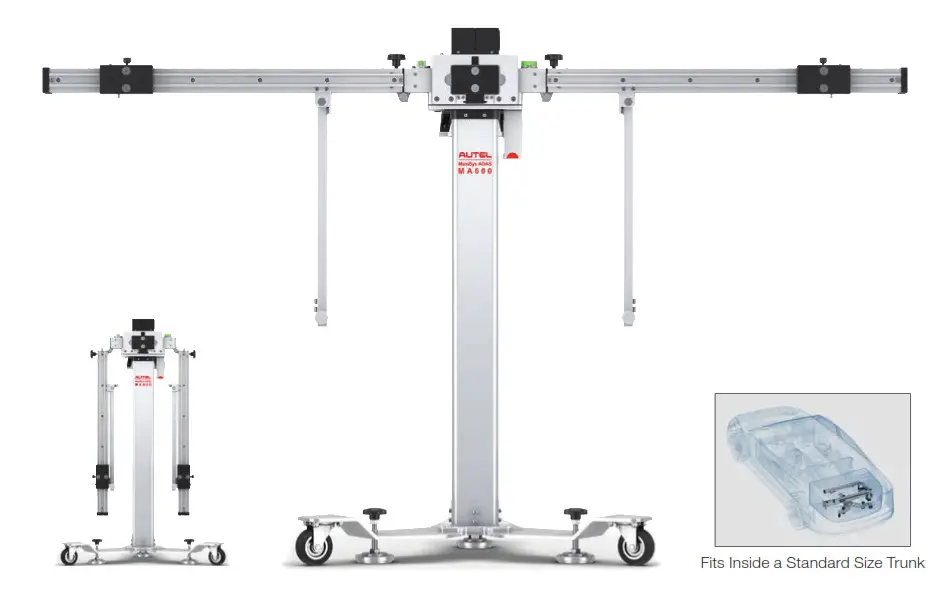

Adjustable height • Stable frame base

Calibrate in multiple locations • Simple setup for transportation • Target travel case for secure handling

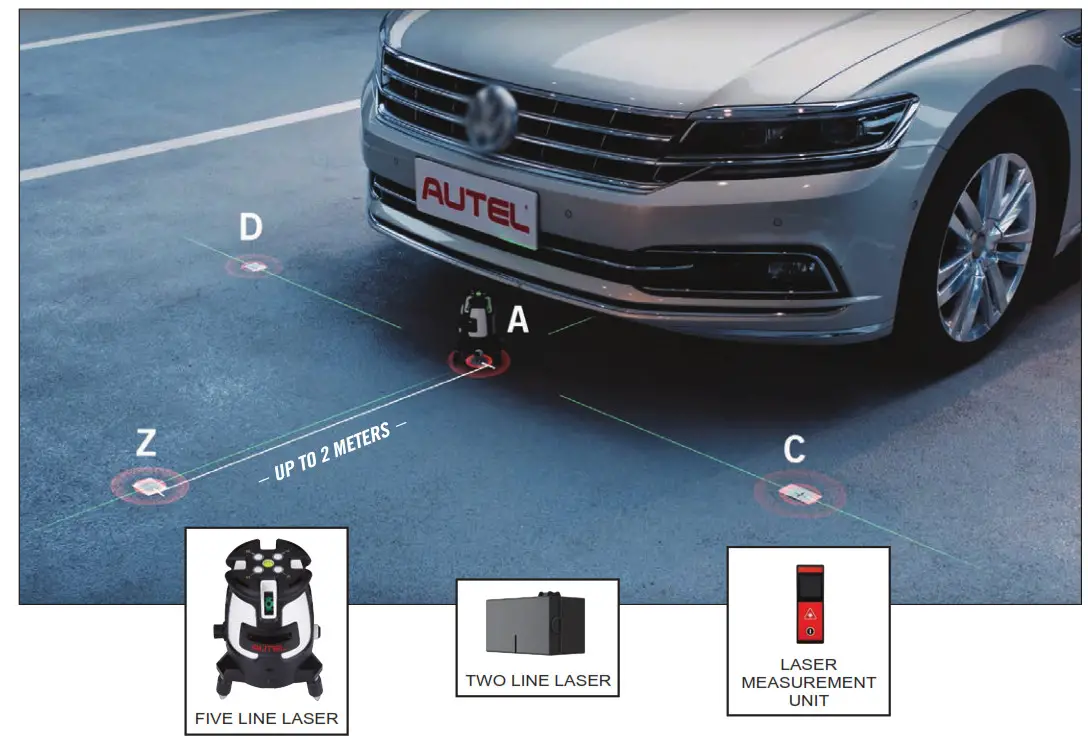

Five Line laser

1 Person procedure •Quick and simple setup
The MA600 includes a self-leveling 5-line laser allowing one person to perform accurate frame placement.

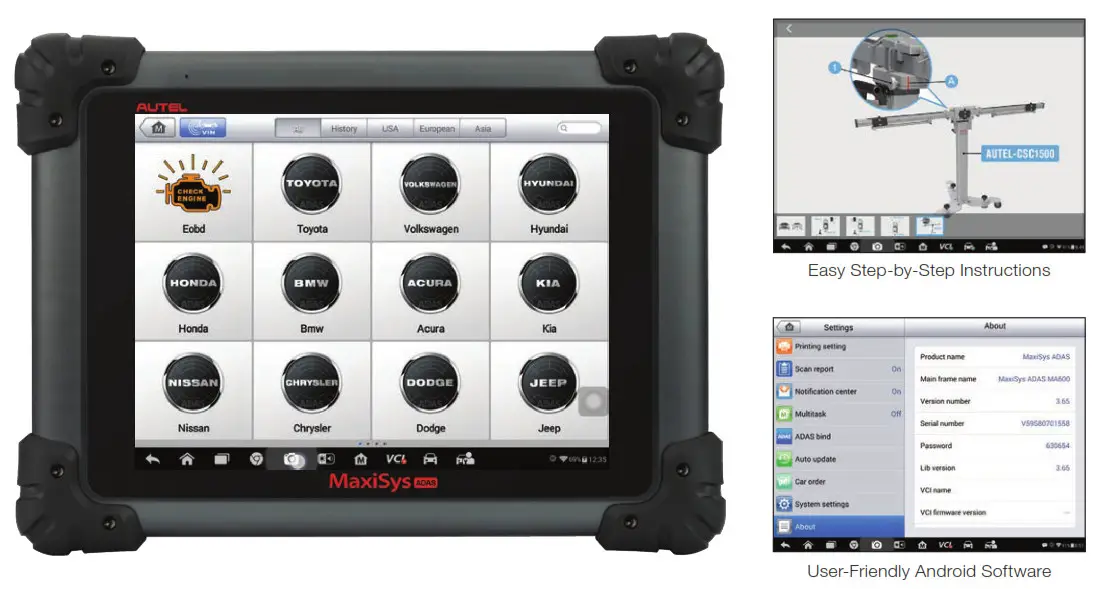

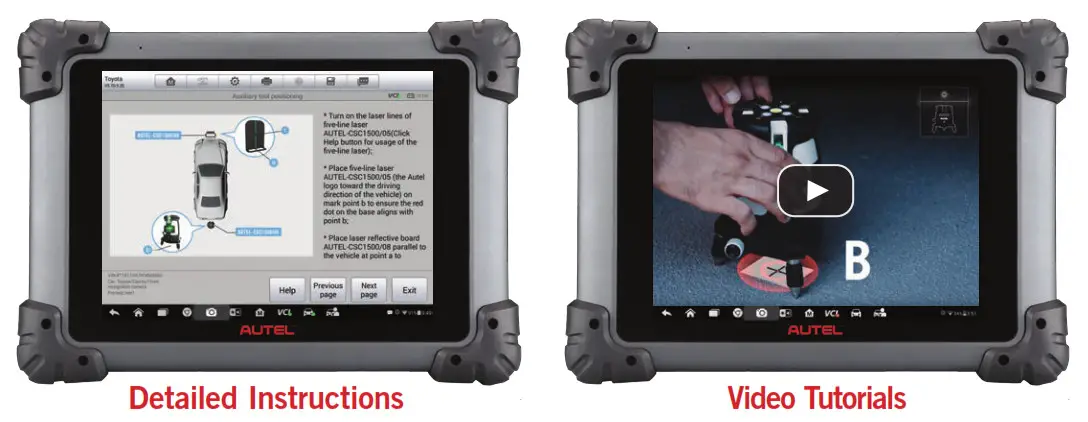

Illustrated setup instructions

Improved software includes detailed setup instructions and on-screen video tutorials.

Adas Software

PRECISE CALIBRATION procedures
Updated ADAS software provides the newest OE-level vehicle coverage and procedures.

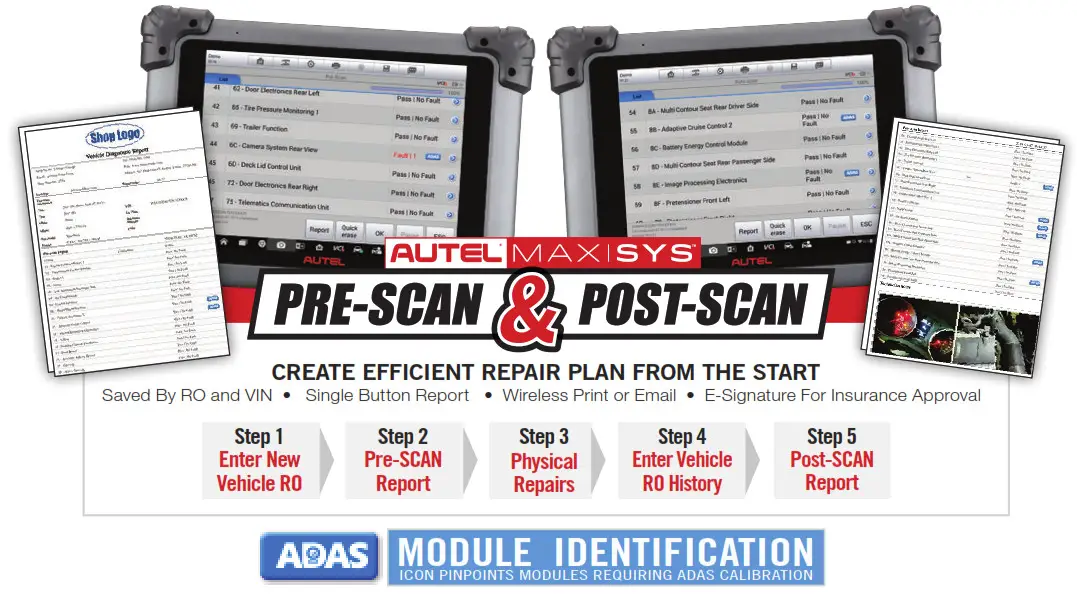

Collision repair-ready
Scan more vehicles, get more profit from every estimate. Print or email reports for faster insurance approval.

Affordable adas

Ma600 software for maxisys
MA600 software is compatible with our most affordable diagnostic tablets.

TURN YOUR EXISTING MAXISYS INTO AN MA600 ADAS FUNCTIONAL TABLET
Adas application upgrade

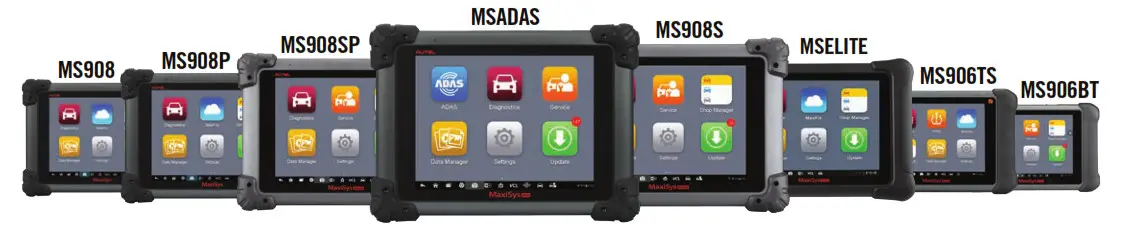

MA600 ADAS calibration software is compatible with the following tablets: MS906BT, MS906TS, MS908, MS908P, MS908S, MS908SP, MSELITE, and MSADAS. Tablet not included with MA600 purchase. Upgrade required for all tablets except MSADAS.

ONE TIME PURCHASE
Active MaxiSYS Update Subscription is Required
PART# ADASUPGRADE
Tablets with previously active ADAS software will not be compatible with MA600 software.

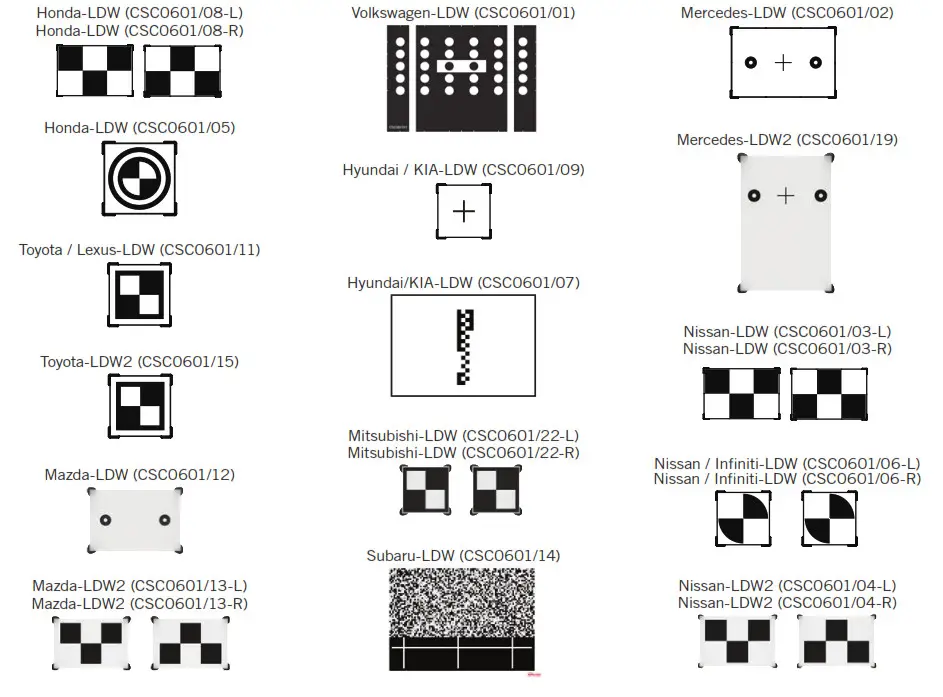

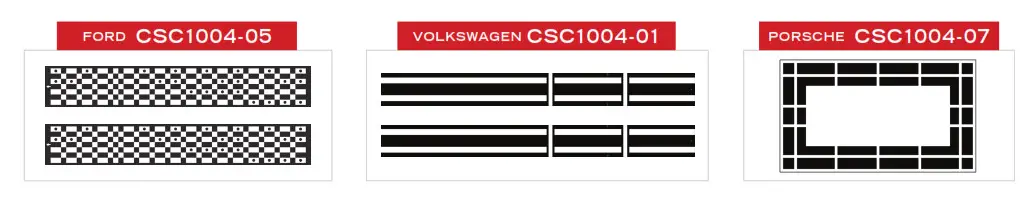

LDW TARGETS

Latest oe-level coverage
Flexible LDW target/pattern configuration with illustrated step-by-step instruction.
Targets Included

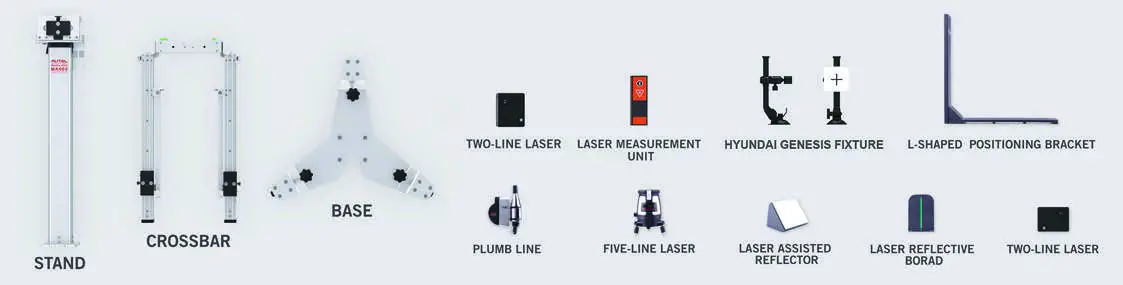

All other parts Included

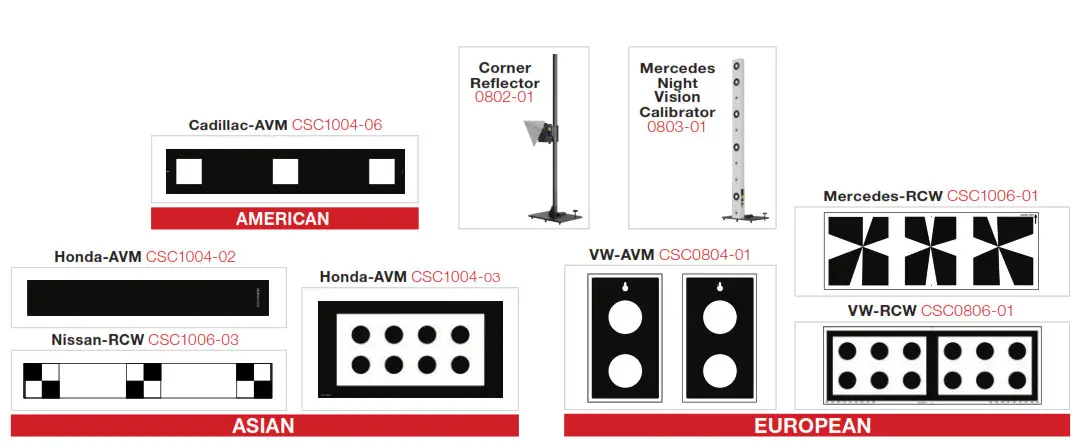

Expansion Packages

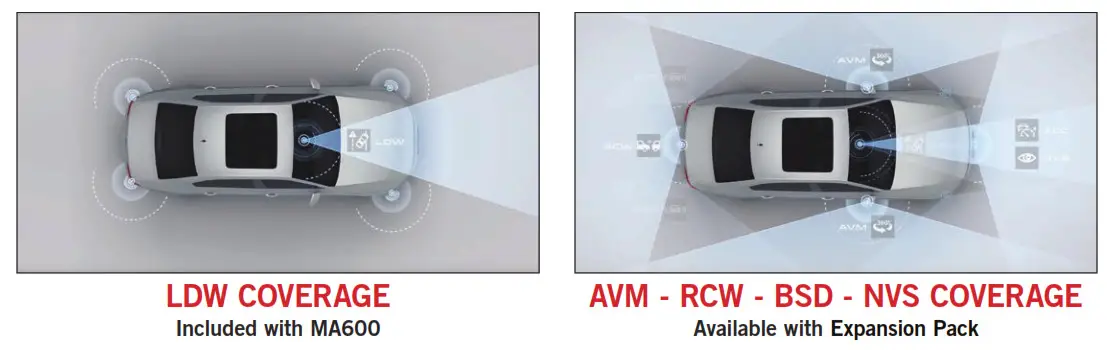

AVM, RCW & Night vision for MA600
Optional expansion packages cover more calibrations for AVM, RCW, Radar, and Night Vision systems.

PART# MA600CAL1

AVM OVERSIZE EACH SOLD SEPARATELY
EACH SOLD SEPARATELY

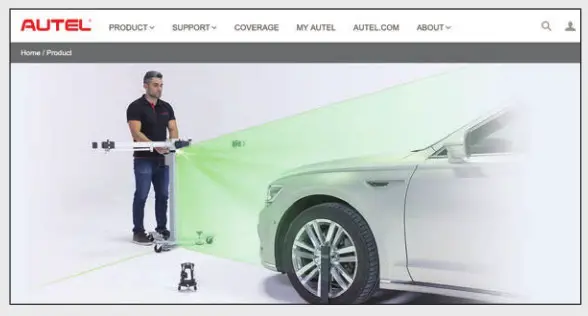

VISIT ONLINE
WWW.MAXISYSADAS.COM
NEW UPDATES

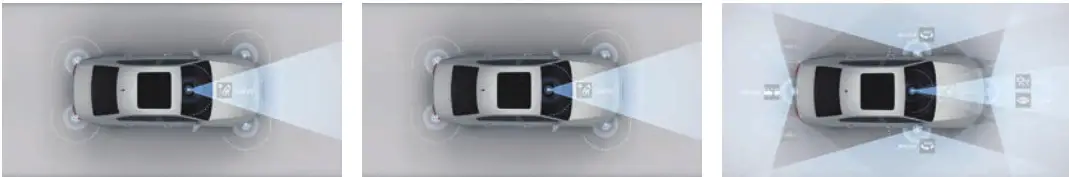

ADVANCED DRIVER ASSISTANCE SYSTEM
CALIBRATION

_	MA600	LDWPACKAGE	ADASCOMPLETE
LDW	√	√	√
ACC	Optional Included with MA600 Expansion Pack*	Limited	√
AVM	Optional Included with MA600 Expansion Pack		√
RCW	Optional Included with MA600 Expansion Pack*		√
BSD	Optional Included with MA600 Expansion Pack		√
NVS	Optional Included with MA600 Expansion Pack*		√
POWERLIFT		√	√
LDWTARGET2	√	Optional Additional Purchase Necessary	Optional Additional Purchase Necessary
5 LINE LASER	√
DIGITAL TAPE MEASURE	√
TABLET COMPATIBILITY*	MS9066T, MS906TS, MS908, MS908P, MS908S, MS908SP, MSELITE, MSADAS	MS908, MS908P, MS908S, MS908SP, MSELITE, MSADAS	MS908, MS908P, MS908S, MS908SP, MSELITE, MSADAS
ADAS APPLICATION SOFTWARE UPGRADE	Purchase Required for all Compatible Tablets except MSADAS	Purchase Required for all Compatible Tablets except MSADAS	Purchase Required for all Compatible Tablets except MSADAS

*ACC calibration coverage for vehicles using 0802-01 Corner Reflector
**RCW calibration coverage for camera-based RCW systems
*** NV calibration coverage for vehicles using 0803-01 Night Vision Calibrator
