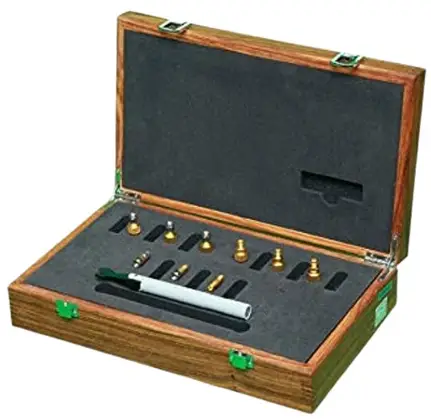

SCKCL09-N Mechanical Calibration Kit
Owner’s Manual
(DC – 9GHz / N-type)
Key Features
- Frequency Range: DC to 9GHz
- VSWR : <1.029
- Calibration standards to perform full two-port calibration
- Adapters and torque wrench included
- >500 times Cycles
Overview
Saluki’s SCKCL09-N mechanical calibration kit contains precision standard devices to calibrate network analyzers in the N-type interface. This kit also contains adapters to change the sex of the test port, and a torque wrench to ensure a repeatable reliable connection.
| Model | Frequency | Spec. | List | qty. |
| SCKCL09-N (Calibration Level) | DC – 9GHz | Open: ±1.2° Short: ±1.0° Load: VSWR<1.029 Adaptor: VSWR<1.052 | Open: N (M) | 1 |
| Open: N (F) | 1 | |||
| Short: N (M) | 1 | |||
| Short: N (F) | 1 | |||
| Load: N (M) | 1 | |||
| Load: N (F) | 1 | |||
| N(f)-N(f) adaptor | 1 | |||
| N(m)-N(m) adaptor | 1 | |||
| N(m)-N(f) adaptor | 1 | |||
| N-type Torque wrench | 1 |
Material Information
| Basic Data | |
| Interface | IEEE Std 287 |
| Mating Cycles | >500 cycles |
| Coupling Torque | 0.9Nm |
| Open-End Wrench Size | 19mm |
| Electrical Data | |
| Frequency | DC – 9GHz |
| Impedance | 50Ω |
| Average Power | ≤0.5W |
| Materials | |
| Center Conductor | Au-plated Beryllim Copper |
| Body | Copper Plating/Stainless Steel, Passivated |
| Connector Nut | Stainless Steel, Passivated |
Note: Information will conduct the necessary updates, the contents of this document are subject to change without notice
