TUNE220 TWS
quick start guide BC

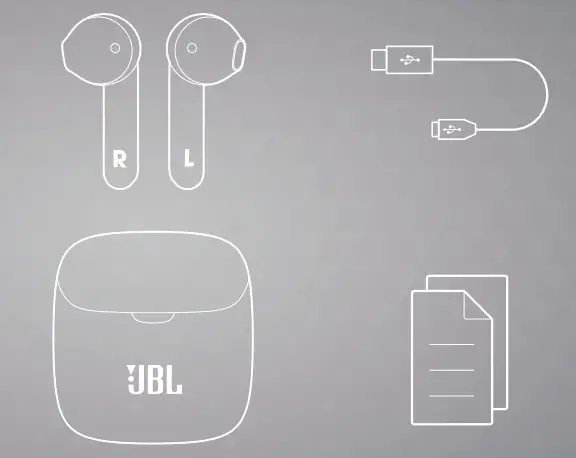

WHAT’S IN THE BOX
WHAT’S IN THE BOX

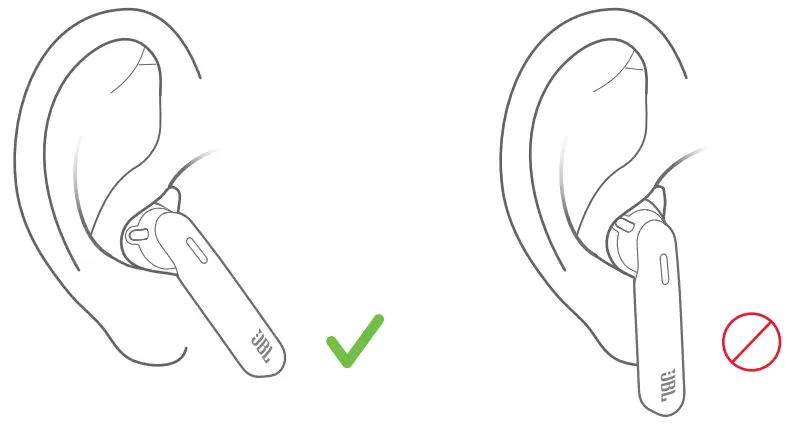

HOW TO WEAR
First-time use
First-time use

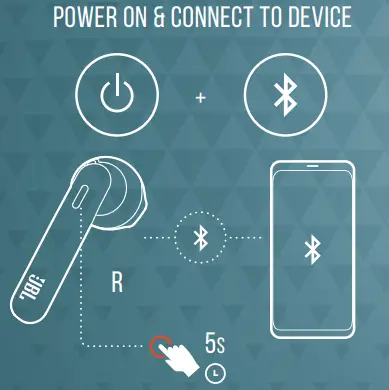

power on & connect

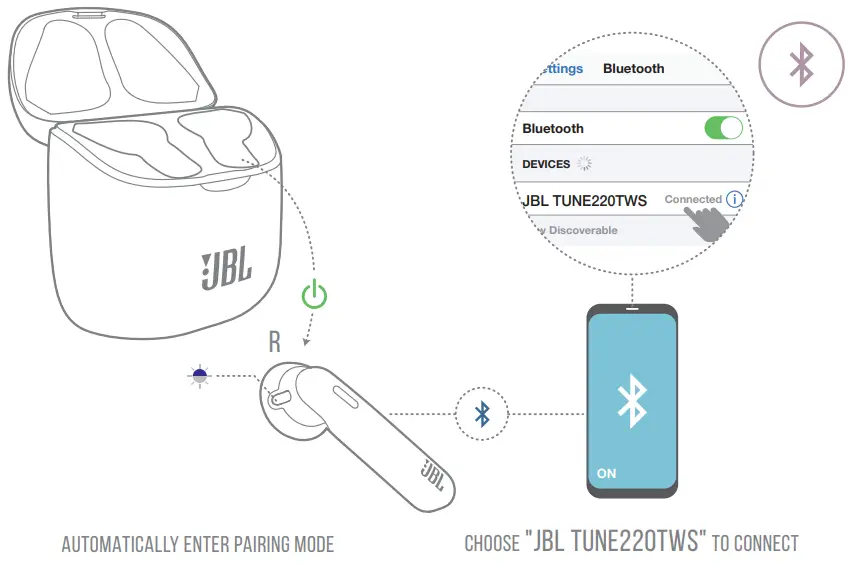

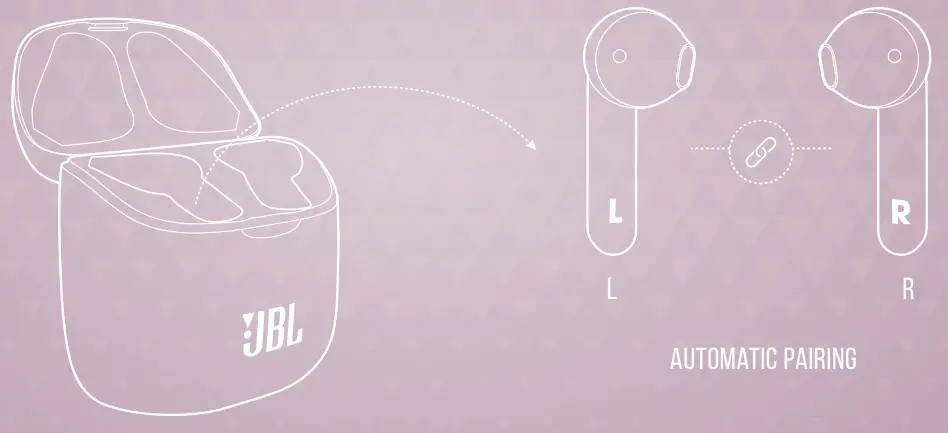

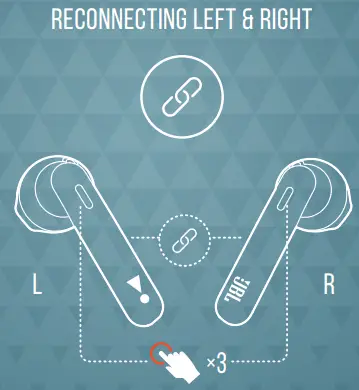

Pairing
Pairing

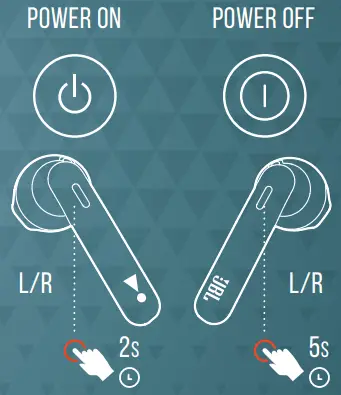

power off
power off

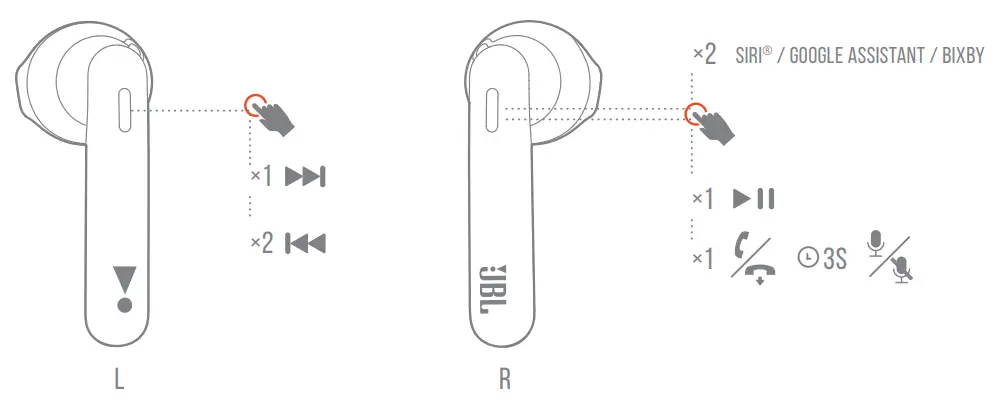

Manual Controls
 |  |
|
BUTTON COMMAND
BUTTON COMMAND

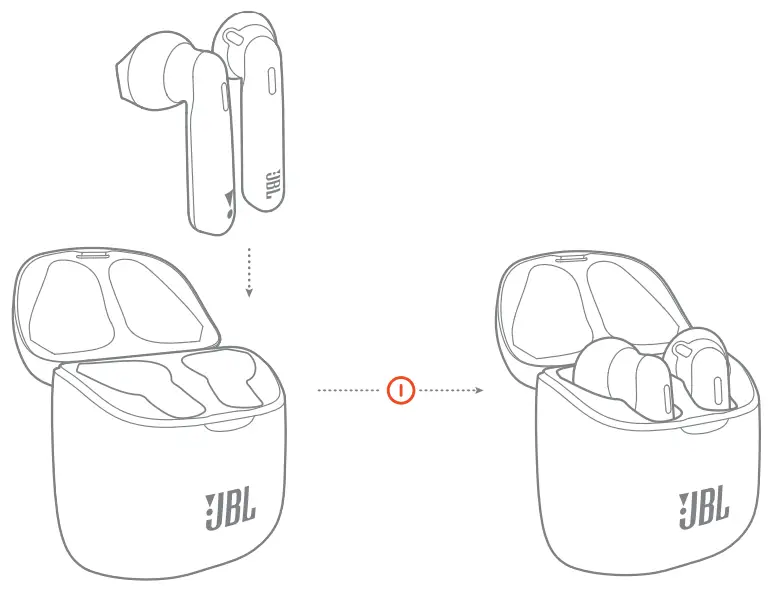

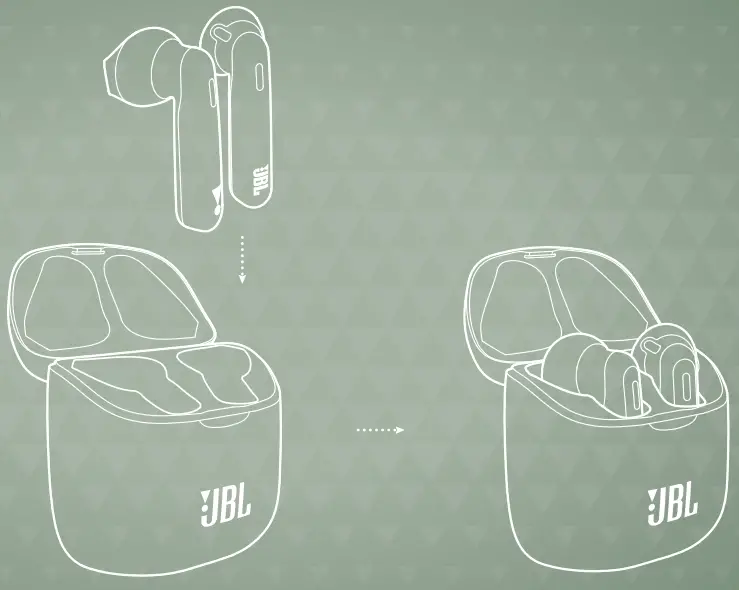

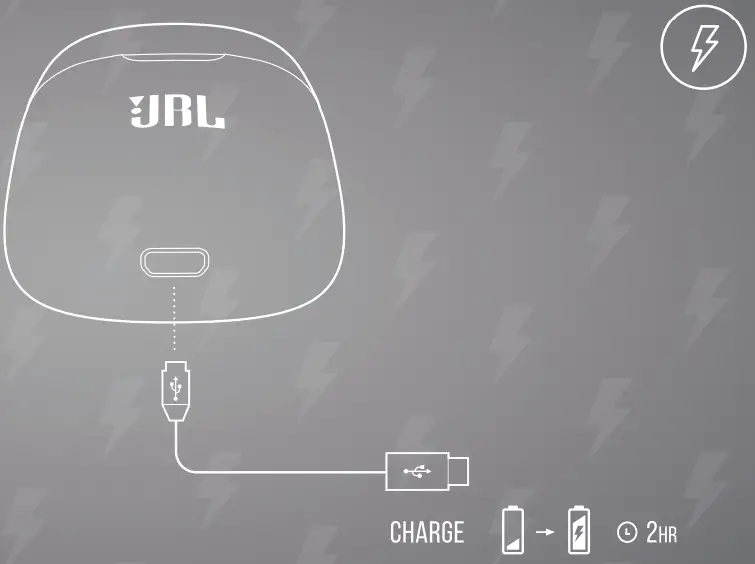

Charging
Charging

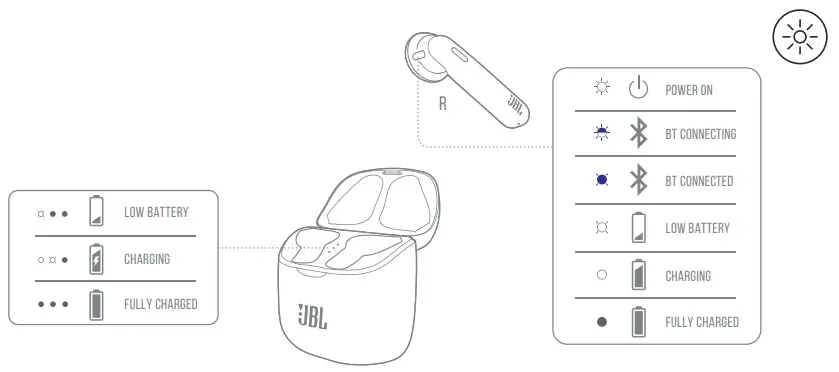

LED BEHAVIORS
TECH SPEC
TECH SPEC| Driver Size: | 12 mm Dynamic driver |
| Frequency Response: | 20 Hz – 20 kHz |
| Sensitivity: | 105 dB SPL |
| Maximum SPL: | 98 dB SPL |
| Microphone sensitivity: | -30 dBV@1 kHz/Pa |
| Impedance: | 32 ohm |
| Bluetooth transmitter power: | 12 dBm |
| Bluetooth transmitted modulation: | GFSK/ π/4DQPSK/ 8DPSK |
| Bluetooth frequency: | 2.402 GHz – 2.48 GHz |
| Bluetooth profile version: | A2DP 1.3, AVRCP 1.5, HFP 1.6 |
| Bluetooth version: | 5.0 |
| Headset battery type: | Lithium-ion battery (22 mAh / 3.85 V ) |
| Charging case battery type: | Lithium-ion battery (410 mAh / 3.85 V ) |
| Power supply: | 5 V 1.0 A |
| Charging time: | <2 hrs from empty |
| Music play time with BT on: | 3 hrs |
| Total music playtime with charging case: | 19 hrs |
| Weight: | 57 g |
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc., and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
NOTE: The maximum operating temperature of the product is 45 ° C
