quick start guide

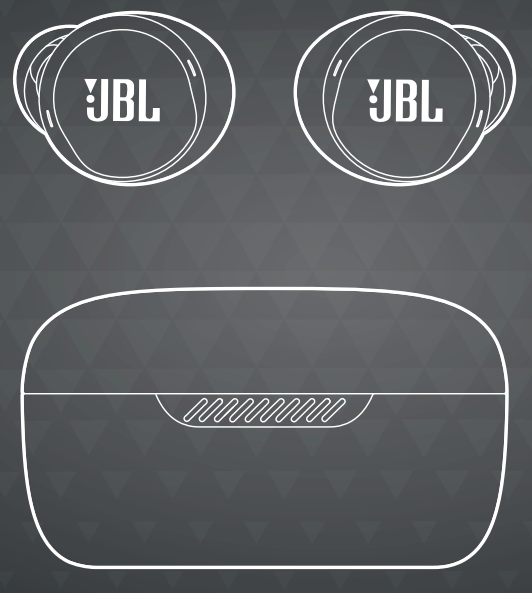

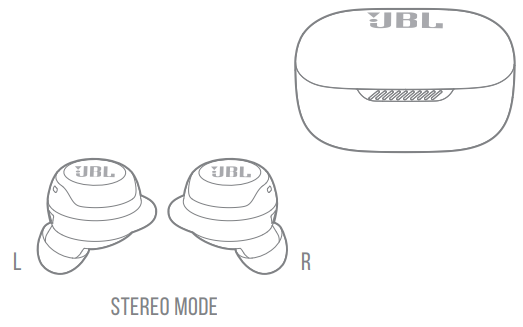

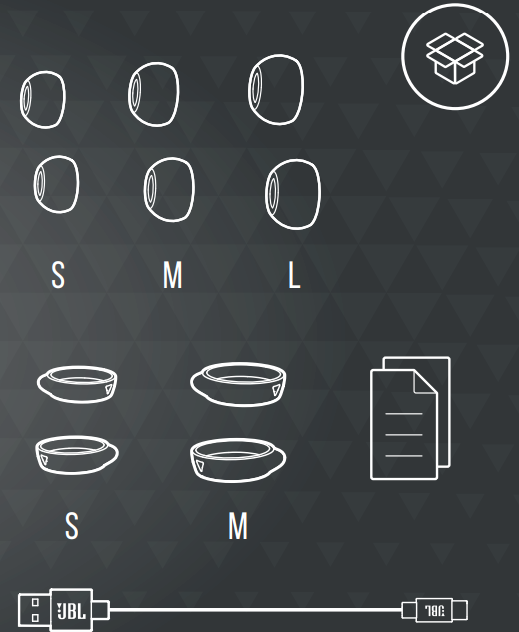

WHAT’S IN THE BOX
WHAT’S IN THE BOX |  |

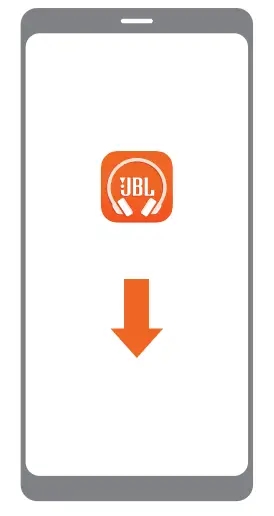

APP
My JBL Headphones
GET EVEN MORE CONTROL AND PERSONALIZATION OF YOUR LISTENING EXPERIENCE WITH THIS FREE APP.

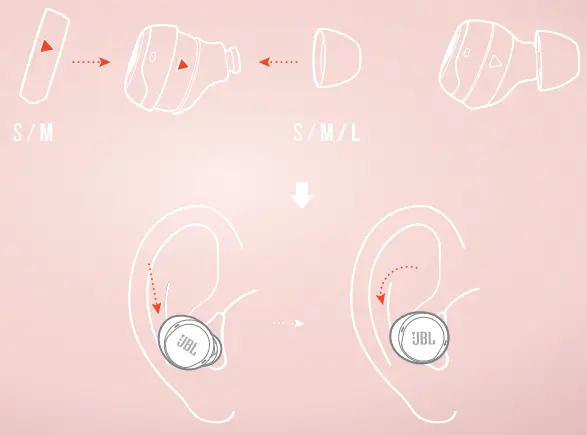

HOW TO WEAR
Mix and match for a perfect fit and audio performance

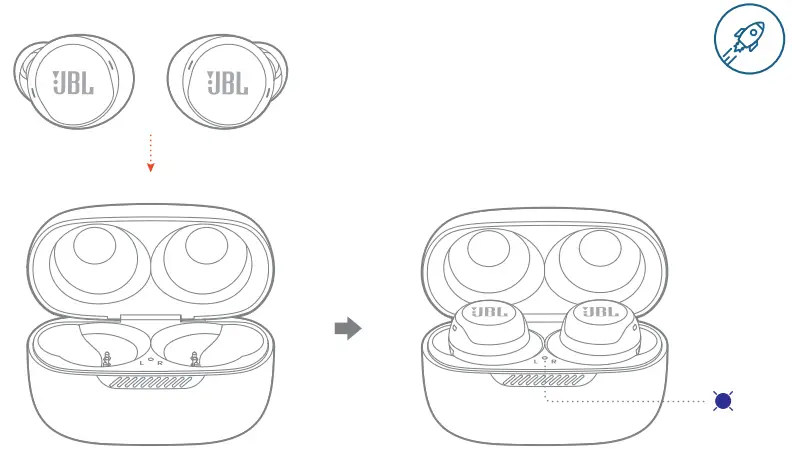

FIRST TIME USE

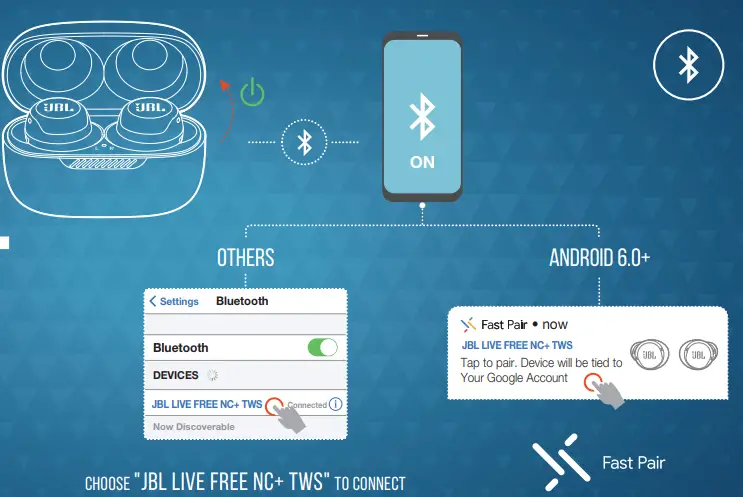

POWER ON&CONNECT
DUAL CONNECT + SYNC
 |  |

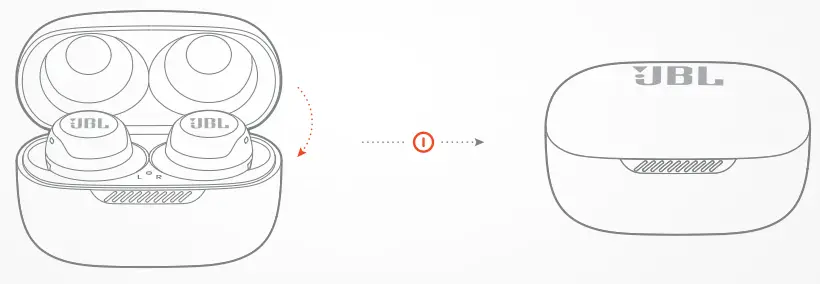

POWER OFF
Manual Controls

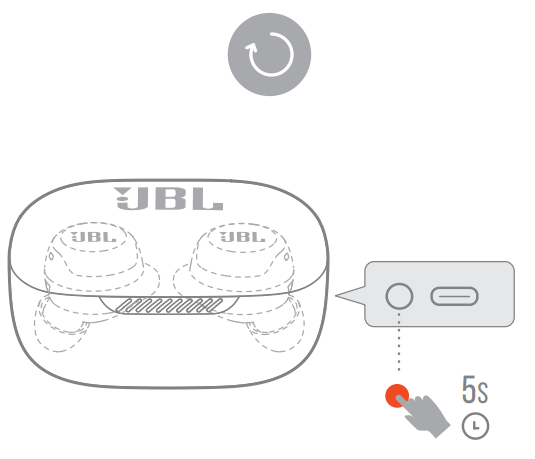

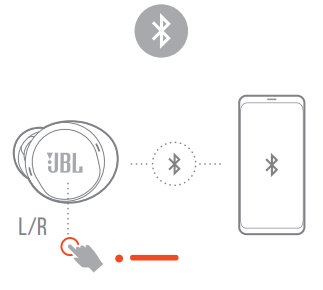

| Connect to a Bluetooth device | RECONNECT LEFT & RIGHT | RESET |
 |  |  |

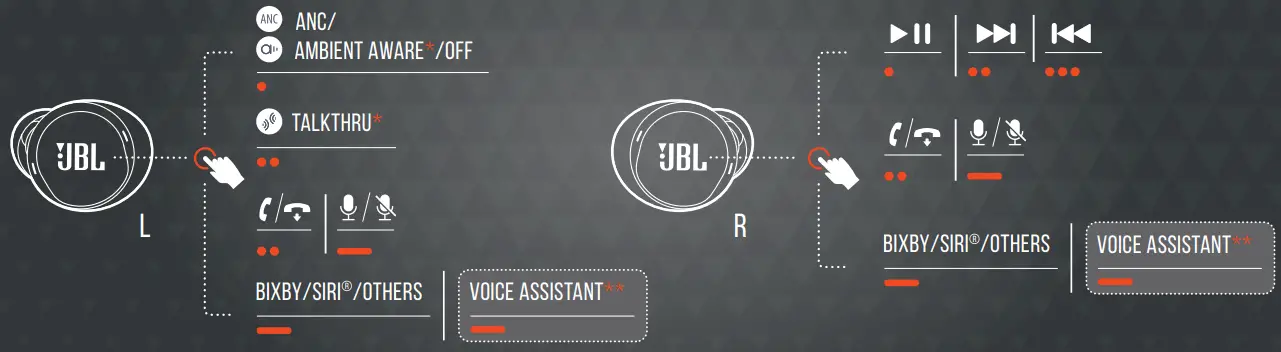

BUTTON COMMAND

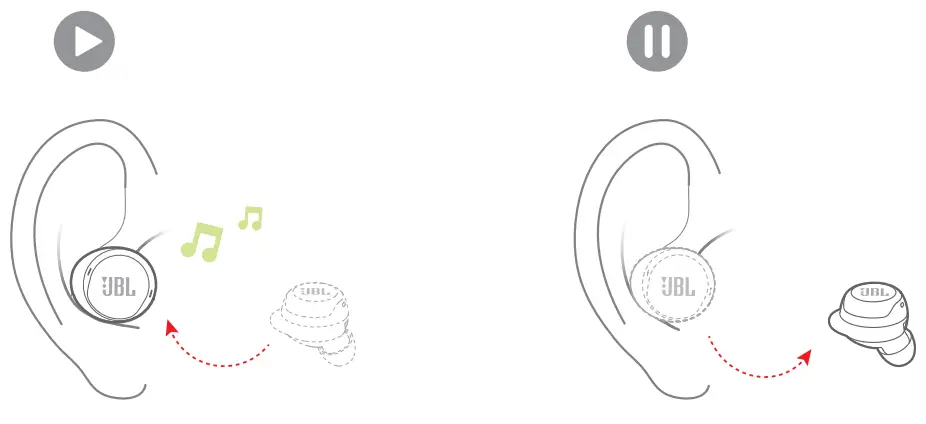

Auto Play/Pause

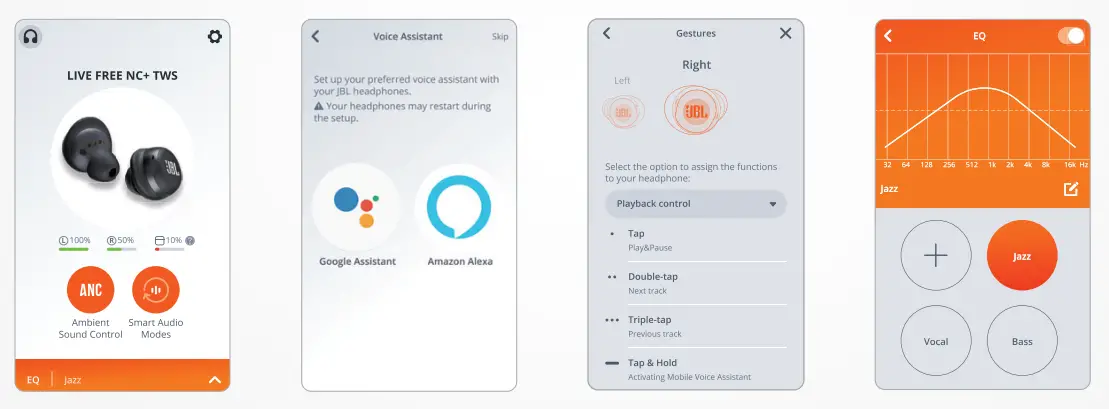

DO MORE WITH THE APP

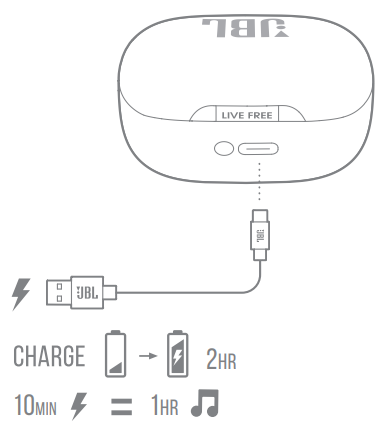

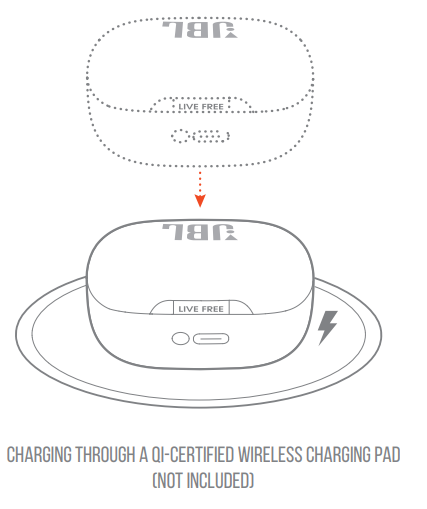

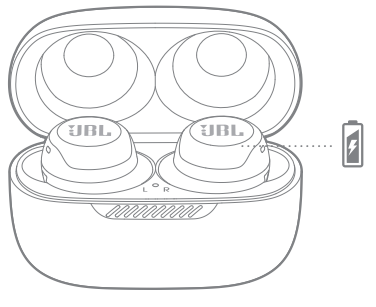

Charging
 |
 |
 |

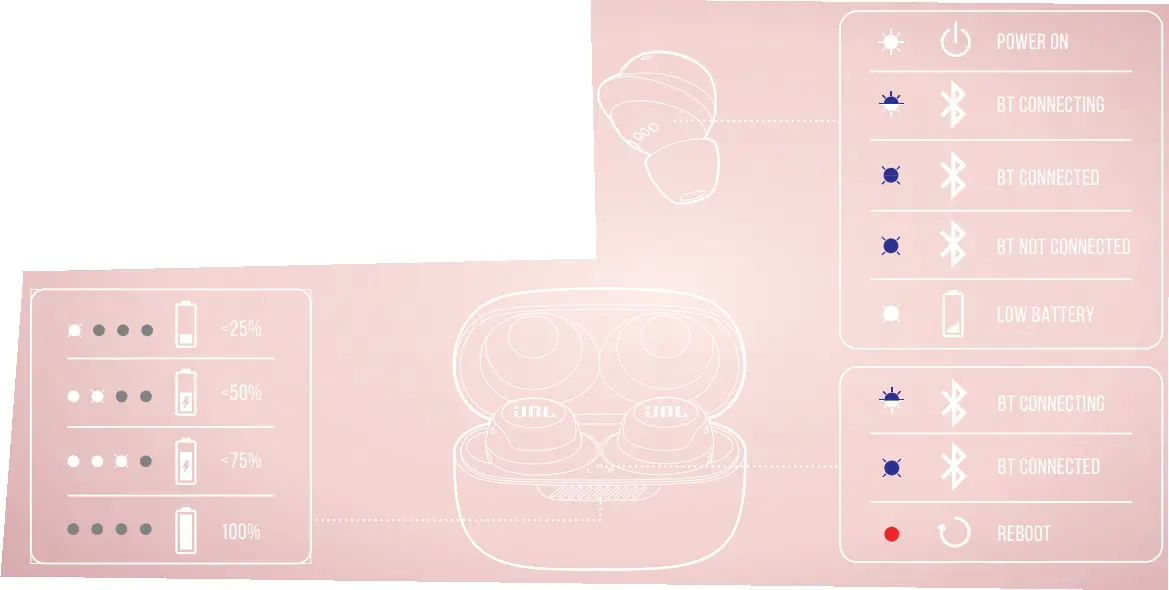

LED BEHAVIORS

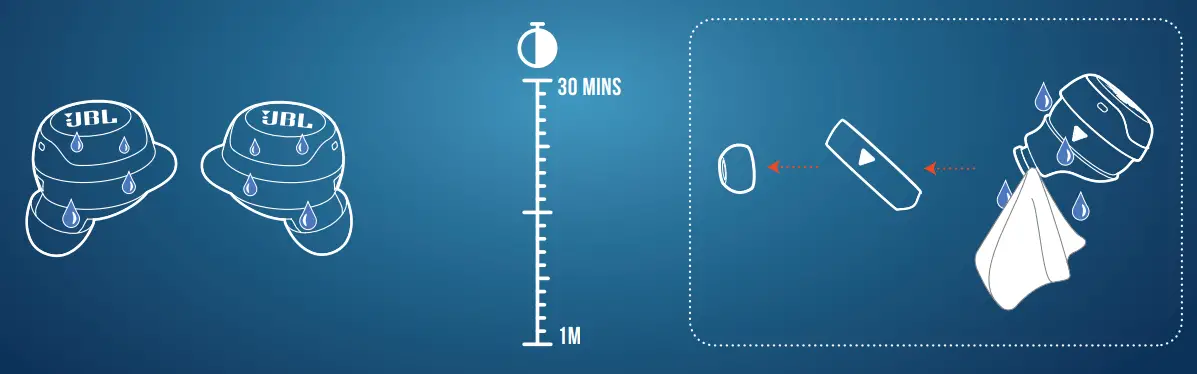

WATERPROOF IPX7
TECH SPEC
| Model: | LIVE FREE NC+ TWS |
| Driver Size: | 6.8 mm/0.27” Dynamic Driver |
| Power supply: | 5 V 1 A |
| Earpiece: | 7 g per pc (14 g combined) / 0.015 lbs per pc (0.03 lbs combined) |
| Charging case: | 40 g / 0.088 lbs |
| Headset battery type: | Lithium-ion polymer (3.7 V, 50 mAh) |
| Charging case battery type: | Lithium-ion polymer (3.7 V, 300 mAh) |
| Charging time: | 2 hrs from empty |
| Music playtime with BT on and ANC off : | up to 7 hrs |
| Music playtime with BT on and ANC on : | up to 6 hrs |
| Frequency Response: | 20 Hz – 20 kHz |
| Impedance: | 16 ohm |
| Sensitivity: | 96 dB SPL@1 kHz |
| Maximum SPL: | 94 dB |
| Microphone sensitivity: | -26 dBV/Pa@1 kHz |
| Bluetooth version: | 5.1 |
| Bluetooth profile version: | A2DP V1.3, AVRCP V1.6, HFP V1.7 |
| Bluetooth transmitter frequency range: | 2400 – 2483.5 MHz |
| Bluetooth transmitter power: | <10 dBm (EIRP) |
| Bluetooth transmitter modulation: | GFSK, π/4 DQPSK, 8DPSK |
| Maximum Operation temperature: | 45 °C |
TO PROLONG BATTERY LIFESPAN, FULLY CHARGE AT LEAST ONCE EVERY 3 MONTHS. BATTERY LIFE VARIES BY USE AND SETTING.
IC RF Exposure Information and Statement
The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types:
(IC: 6132A-LIVEFREENTP) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.33W/Kg.
The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user’s head and the back of the headset. The use of belt clips, holsters, and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.
Head operation
The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user’s ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.
Google, Android, and Google Play are trademarks of Google LLC.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International
Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
Amazon, Alexa, Amazon Music, and all related logos are trademarks of Amazon, Inc. or its affiliates.
Alexa is not available in all languages and countries, Alexa features and functionality may vary by location.
See www.amazon.com/alexa-availability for details.
FCC ID: APILIVEFREENTP
018-200269
WPC Receiver Band: 110K-205KHz
