REE LIVE TWS NC+ Wireless Earbuds
REE LIVE TWS NC+ Wireless Earbuds

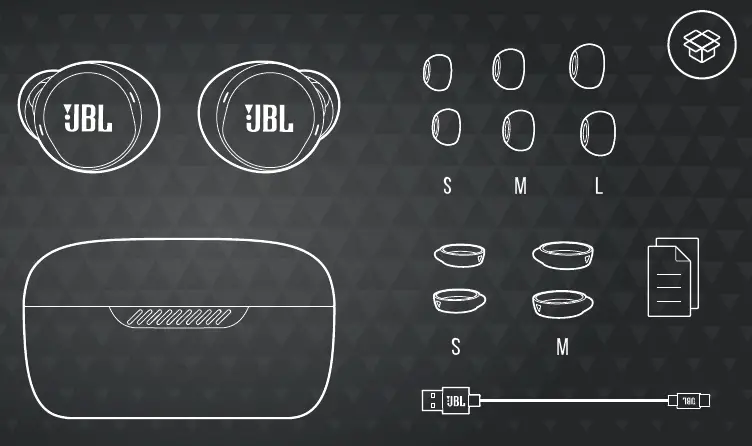

WHAT’S IN THE BOX
APP

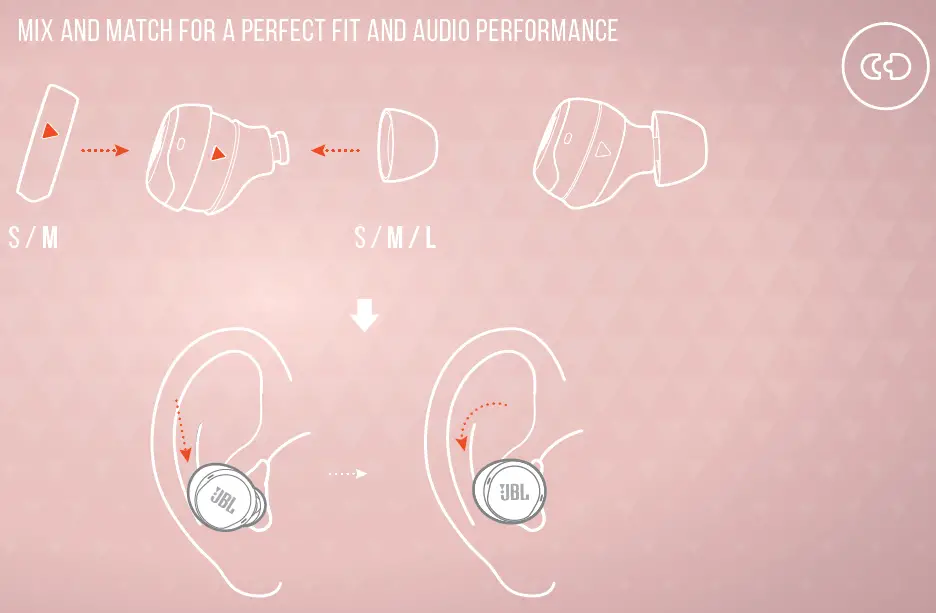

how to wear

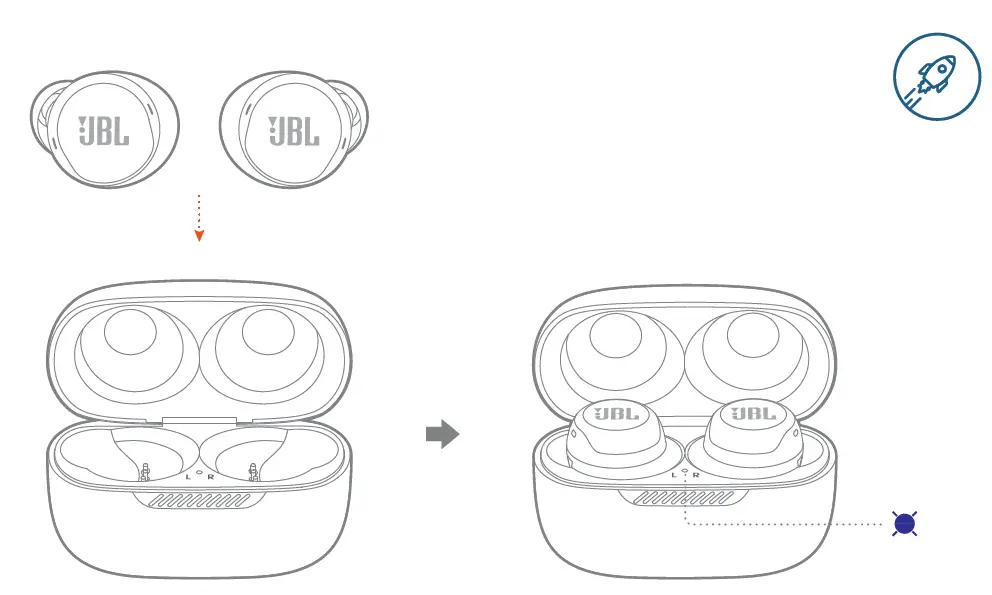

First time use

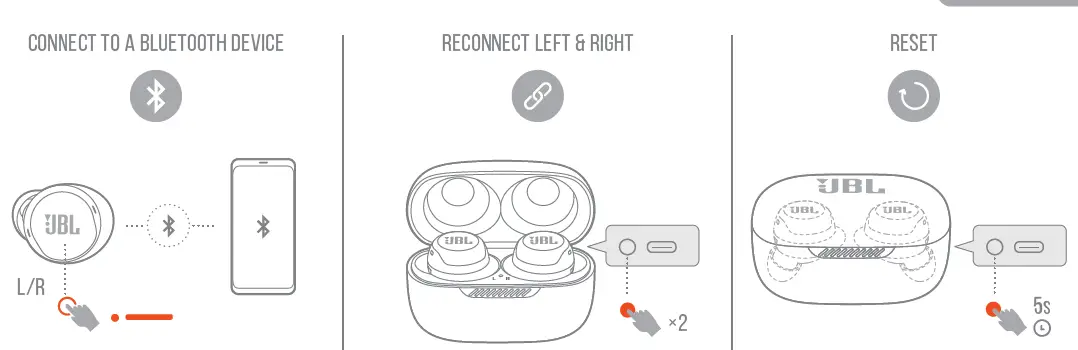

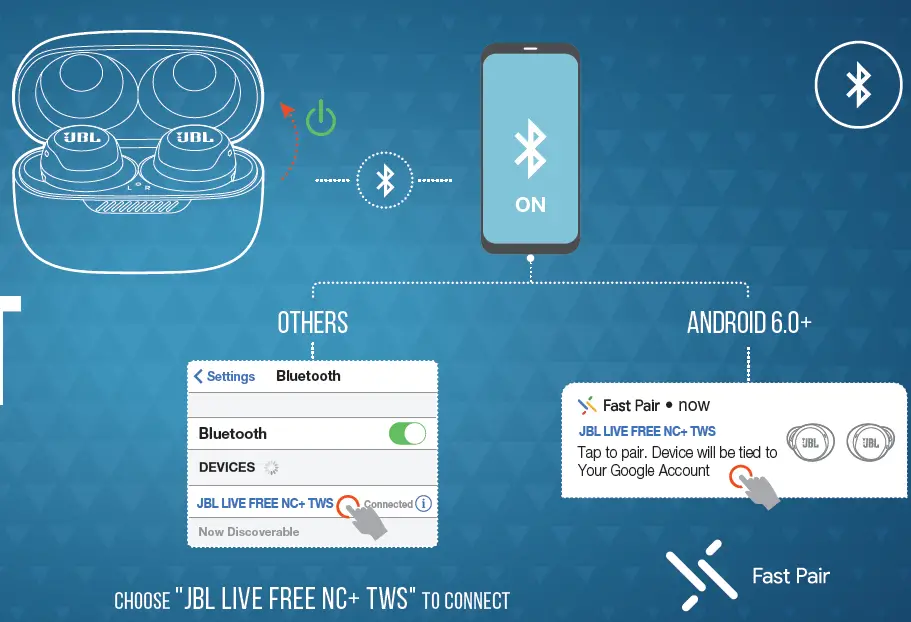

power on & CONNECT

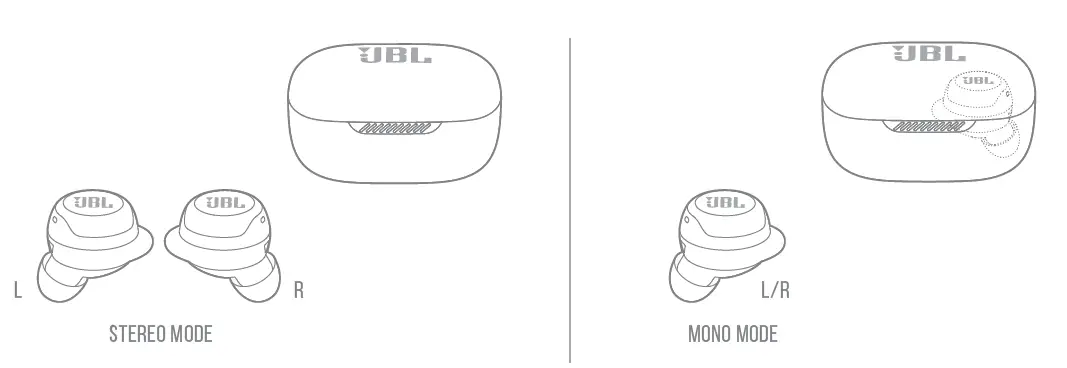

DUAL CONNECT + SYNC

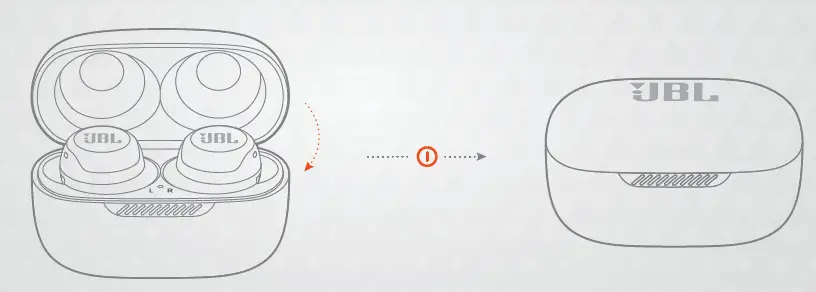

POWER OFF
Manual Controls

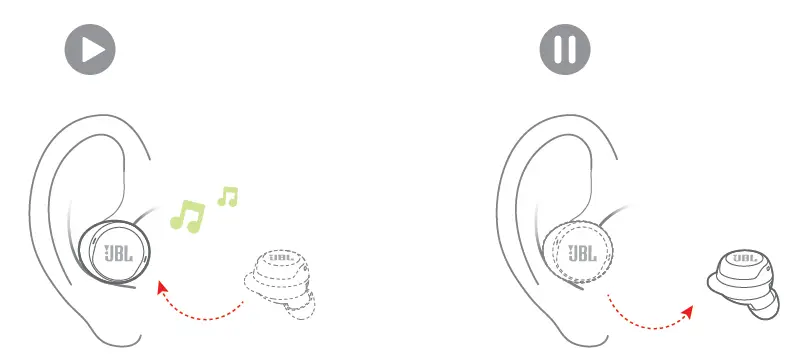

Auto Play/Pause

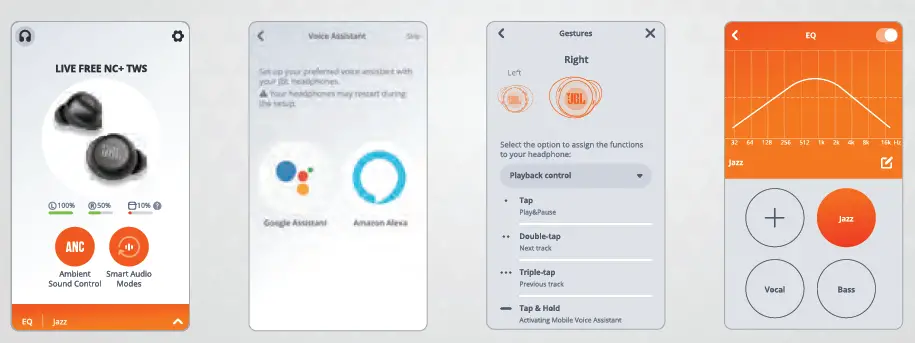

DO MORE WITH THE APP

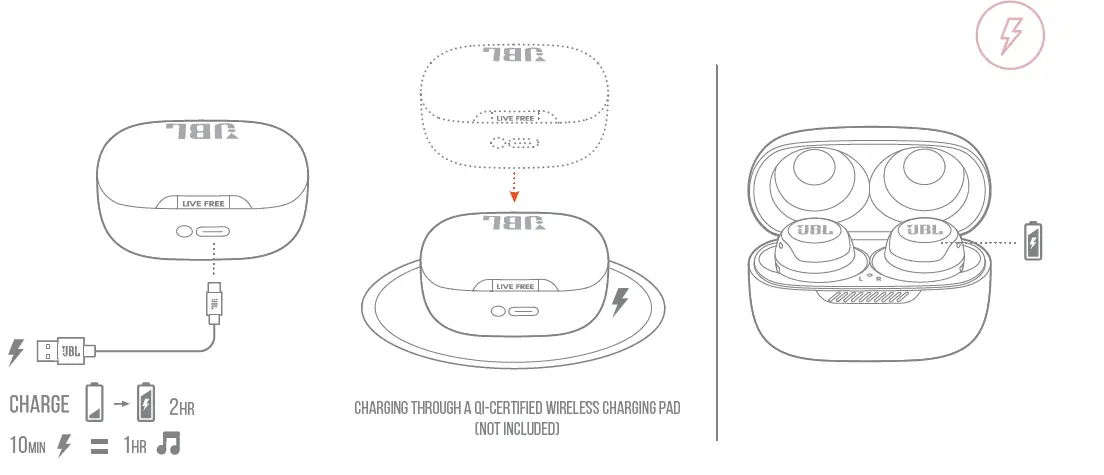

Charging

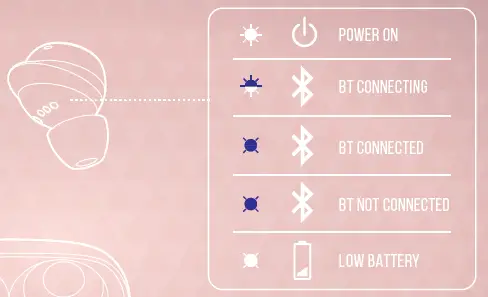

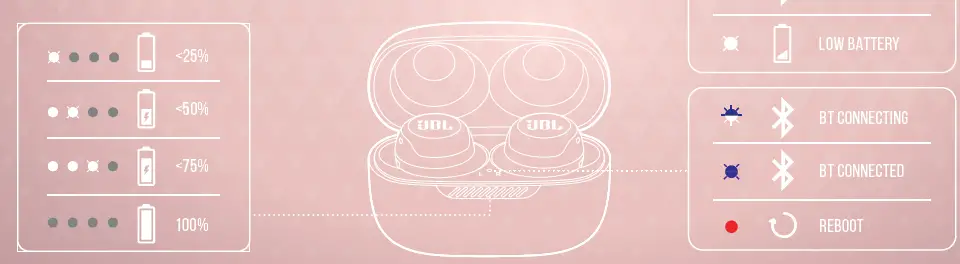

led behaviors

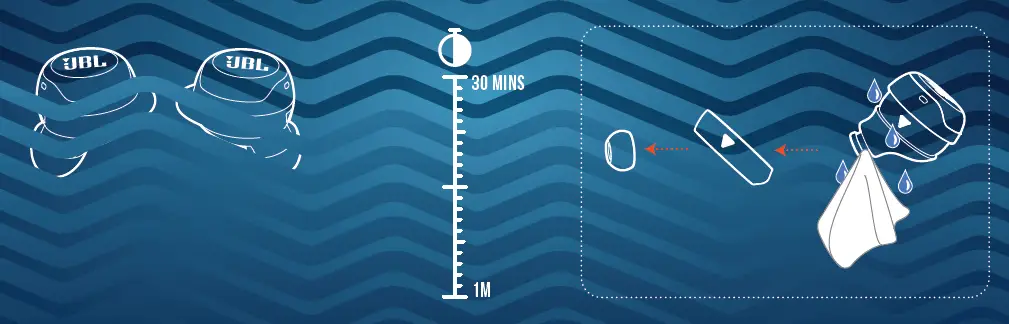

WATERPROOF IPX7
TECH SPEC
- Model: LIVE FREE NC+ TWS
- Driver Size: 6.8 mm/0.27” Dynamic Driver
- Power supply: 5 V 1 A
- Earpiece: 6.8 g per pc (14.6 g combined)/0.015 lbs per pc (0.032 lbs combined)
- Charging case: 54.7 g/0.12 lbs
- Headset battery type: Lithium-ion polymer (3.7 V, 50 mAh)
- Charging case battery type: Lithium-ion polymer (3.7 V, 300 mAh)
- Charging time: 2 hrs from empty
- Music playtime with BT on and ANC off : up to 7 hrs
- Music playtime with BT on and ANC on : up to 6 hrs
- Frequency Response: 20 Hz – 20 kHz
- Impedance: 16 ohm
- Sensitivity: 96 dB SPL@1 kHz
- Maximum SPL: 94 dB
- Microphone sensitivity: -26 dBV/Pa@1 kHz
- Bluetooth version: 5.1
- Bluetooth profile version: A2DP V1.3, AVRCP V1.6, HFP V1.7
- Bluetooth transmitter frequency range: 2400 – 2483.5 MHz
- Bluetooth transmitter power: <10 dBm (EIRP)
- Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
- Maximum Operation temperature: 45 °C
