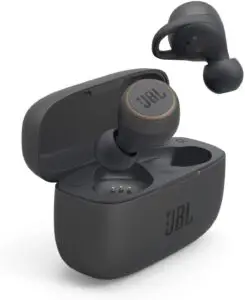

JBL LIVE 300TWS

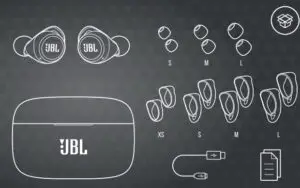

WHAT’S IN THE BOX
HOW TO WEAR
SELECT YOUR SIZE
Mix and match for a perfect fit and audio performance.

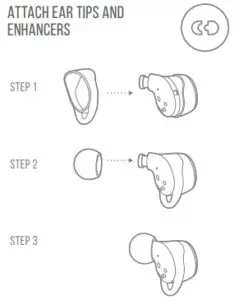

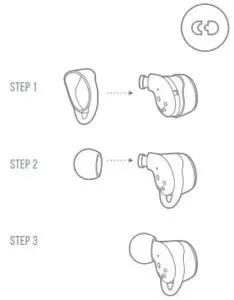

ATTACH ear tips and ENHANCERS

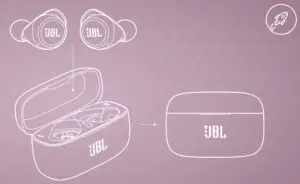

First time use

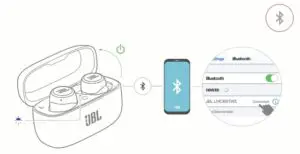

POWER ON AND PAIRING
AUTOMATIC PAIRING INSIDE THE CASE : CHOOSE”JBL LIVE300TWS” TO CONNECT

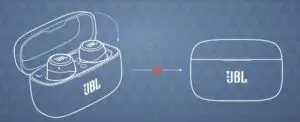

POWER OFF
Manual

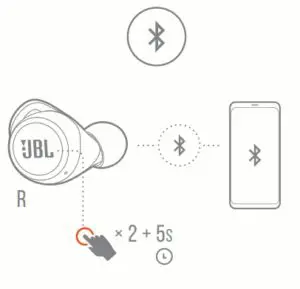

Connect to a Bluetooth device

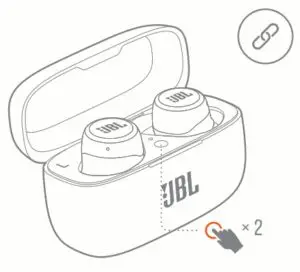

Pairing Left and Right Earpieces
Reboot
*Enable advanced swipe controls by connecting your JBL LIVE300TWS to JBL My Headphones APP.
Charging
LED BEHAVIORS
TECH SPEC
Driver size: 5.6 mm Dynamic driver
Frequency response: 20 Hz – 20 kHz
Sensitivity: 95 dB SPL @1 kHz / 1 mW
Maximum SPL: 93 dB
Microphone sensitivity: -24 dBV @ 1 kHz / Pa
Impedance: 16 ohm
Bluetooth transmitted power: < 13 dBm
Bluetooth transmitted modulation: GFSK, π/4DQPSK, 8DPSK
Bluetooth frequency: 2.402 GHz – 2.48 GHz
Bluetooth profile version: A2DP 1.3, AVRCP 1.5, HFP 1.6
Bluetooth version: 5.0
Headset battery type: Coin cell battery (55 mA / 3.7 V)
Charging case battery type: Li-ion polymer battery (450 mA / 3.7 V)
Charging time: < 2 hrs from empty
Music playtime with BT on: up to 6 hrs
Weight: 67.3
The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
FCC ID: APILIVE300TWS
