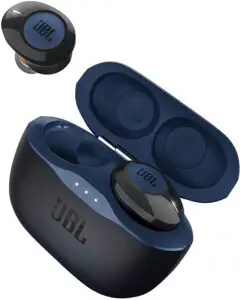

JBL TUNE 120TWS

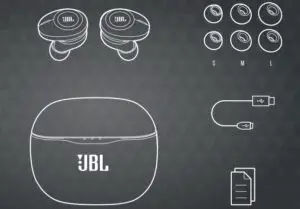

WHAT’S IN THE BOX

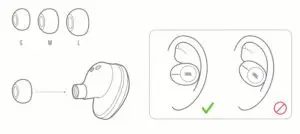

HOW TO WEAR

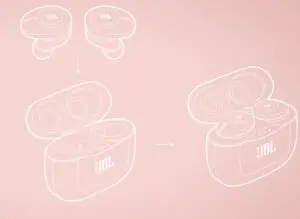

First time use

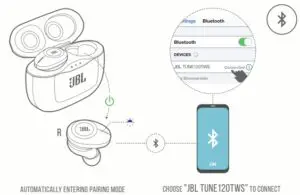

POWER ON AND CONNECT

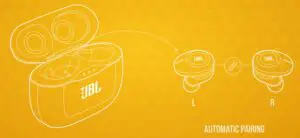

Pairing
POWER OFF
Manual Controls

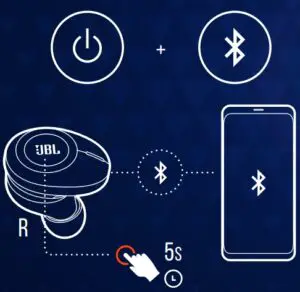

Power On & Connect To Device

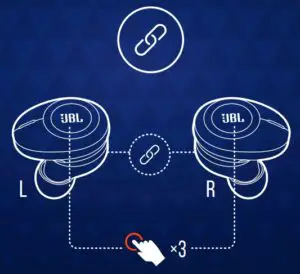

CONNECTING

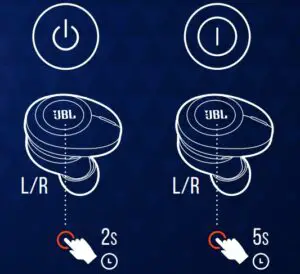

POWER ON AND OFF

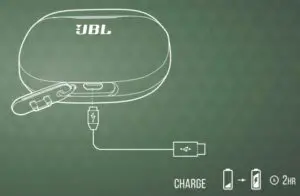

Charging

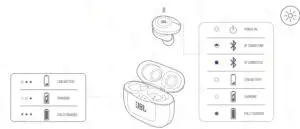

LED BEHAVIORS
TECH SPEC
Driver Size: 5.8 mm Dynamic Driver
Frequency Response: 20 Hz – 20 kHz
Sensitivity: 96 dBSPL@1 kHz 1 mW
Maximum SPL: 96 dB
Microphone Sensitivity: – 38 dBV/Pa @1 kHz
Impedance: 14 ohm
Bluetooth transmitted power: <12 dbm
Bluetooth transmitted modulation: GFSK, Π/4 DQPSK, 8DPSK
Bluetooth frequency: 2.402 GHz – 2.480 GHz
Bluetooth profile version: A2DP 1.3, AVRCP 1.5, HFP V1.6
Bluetooth version: 4.2
HEADSET BATTERY TYPE: LITHIUM-ION BATTERY (85 MAH/3.7 V DC)
Charging case battery TYPE: LITHIUM-ION BATTERY (850 MAH/3.7 V DC)
Power Supply: 5 V 1.0 A
Charging time (headset & charging case): <2 hrs from empty
Music playtime with BT on: UP TO 4 hrs
Weight: 73 g
