by HARMAN
Quick Start Guide
TUNE115 BT

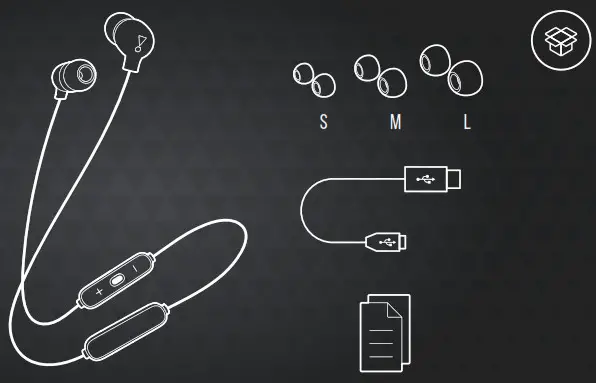

WHAT’S IN THE BOX
HOW TO WEAR

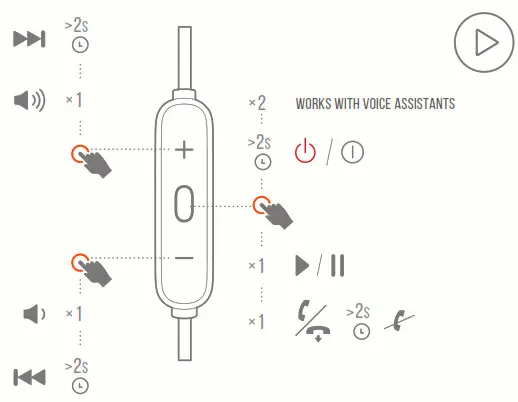

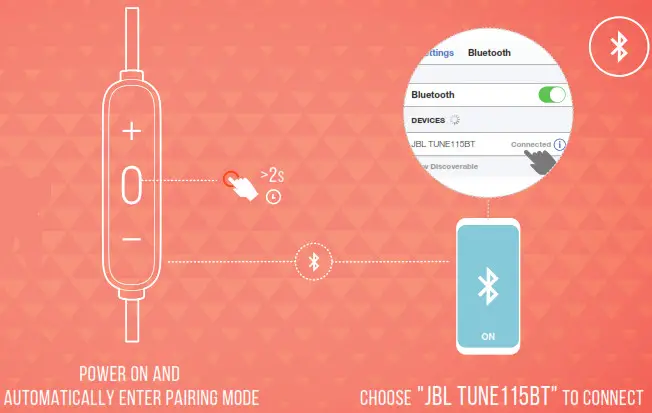

Power on & connect
Power on & connect

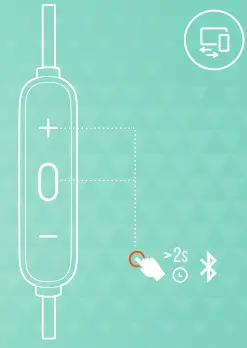

MULTI-POINT CONNECTION
(Maximum 2 devices)*
- To switch music sources, pause the music on the current device and select play on the 2 and device.
- A phone call will always take priority.
- If one device goes out of Bluetooth range or powers off, you may need to manually reconnect the remaining device.
- SELECT “forget this device” on your Bluetooth devices to disconnect multi-point.
Charging

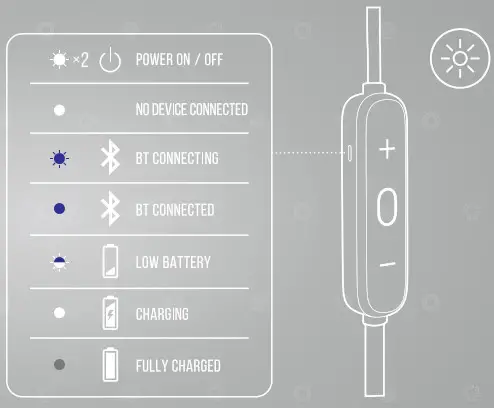

led behaviors
TECH SPEC
| Driver Size: Frequency Response: Sensitivity: Microphone Sensitivity: Impedance: Bluetooth transmitter power: Bluetooth transmitted modulation: Bluetooth frequency : Bluetooth profile version: Bluetooth version: HEADSET BATTERY TYPE: Power Supply: Charging time: Music play time with BT on: Weight: | 8.6 mm dynamic driver 20 Hz – 20 kHz 102 dB SPL@1kHz 1mW – 25 dBV/Pa @1kHz 16 ohm <5 dbm GFSK/DQPSK/8DPSK 2.402 GHz – 2.480 GHz HFP V1.6, HSP V1.2, AVRCP V1.5, A2DP V1.2 4.2 LITHIUM-ION BATTERY (3.7 V/160 mAh) 5 V 1 A <2 hrs 8 hrs 19.02 g |
