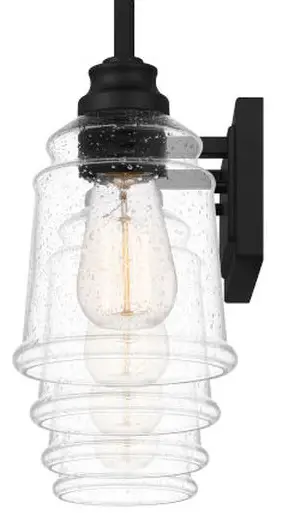

QUOIZEL MCI8633MBK Mcintire Four Light Bath Vanity
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
- RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.
CAUTION
- For your safety, read instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
- Turn off electricity to fixture before replacing the bulb(s).
TOOLS REQUIRED
CARE AND MAINTENANCE
- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
- If you need further assistance call Quoizel Customer Care at 1-800-645-3184(9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com

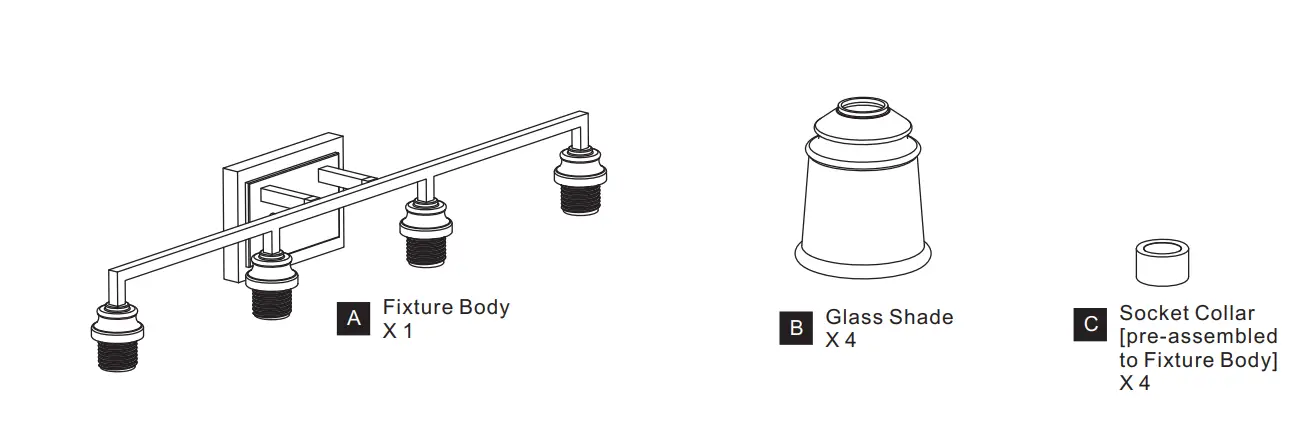

PACKAGE CONTENTS
MOUNTING HARDWARE
- AA: Crossbar Assembly X1
- BB: Alternate Mounting Screw X2
- CC: Wire Connector X3
- DD: Outlet Box Screw X2
INSTALLATION

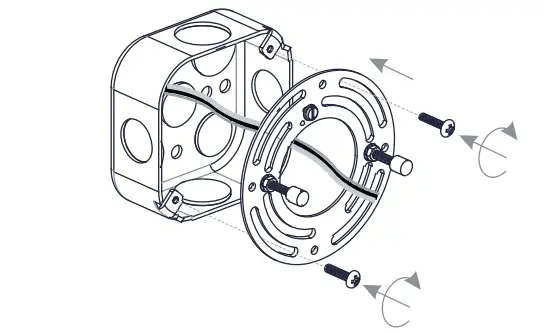

- Install Crossbar Assembly
- Alternative Screws
Alternative screws are provided to replace pre-assembled mounting screws if necessary.
- Alternative Screws

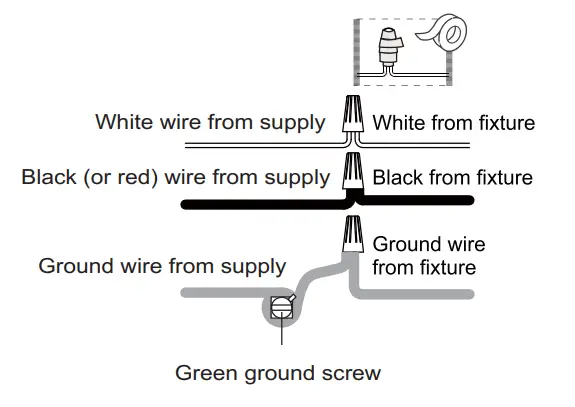

- Wiring
- Install Fixture Body

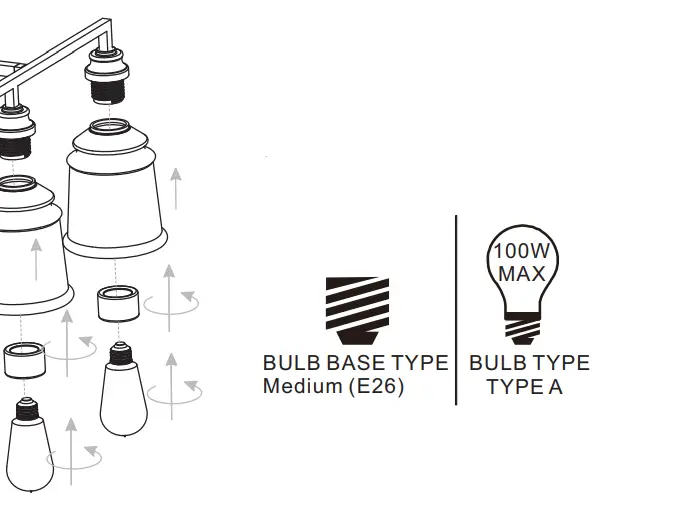

- Install Glass Shade and Bulbs
Install four correct bulbs referring to fixture markings and/or labels for maximum wattage.
Recommended Bulb Type (not Included):
Your installation is now complete! Restore electricity and save this sheet for future reference.
Quoizel | Artisans In Lighting
