Quoizel Lud8634bn Ludlow 4 Light Brushed Nickel Vanity Light Installation Guide

LUD8634BN Ludlow 4 Light Brushed Nickel Vanity Light
Installation Guide

SAFETY INFORMATION

Released Date: 2022-04-24
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING

• RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
• RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.

CAUTION

• For your safety, read instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off electricity to fixture before replacing the bulb(s).

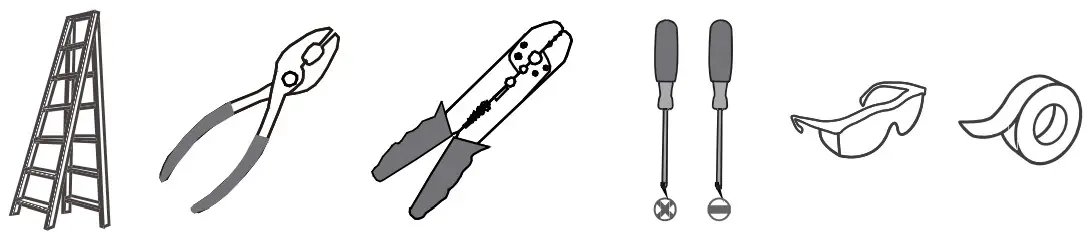

TOOLS REQUIRED

CARE AND MAINTENANCE

• Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.

If you need further assistance call Quoined Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com.

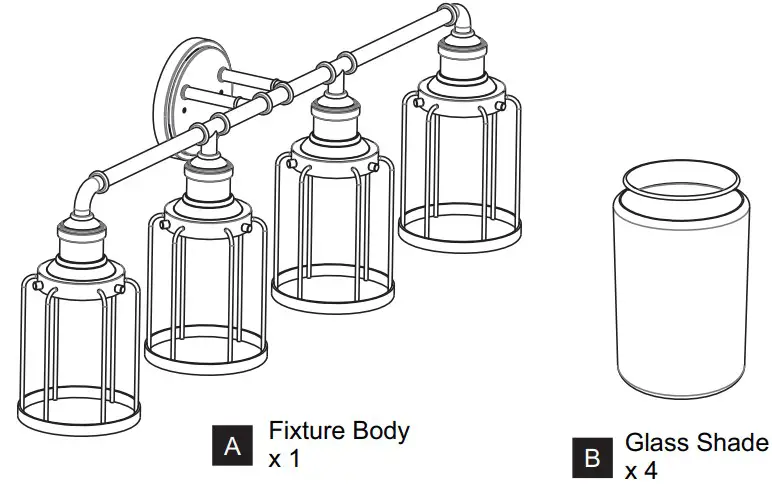

PACKAGE CONTENTS

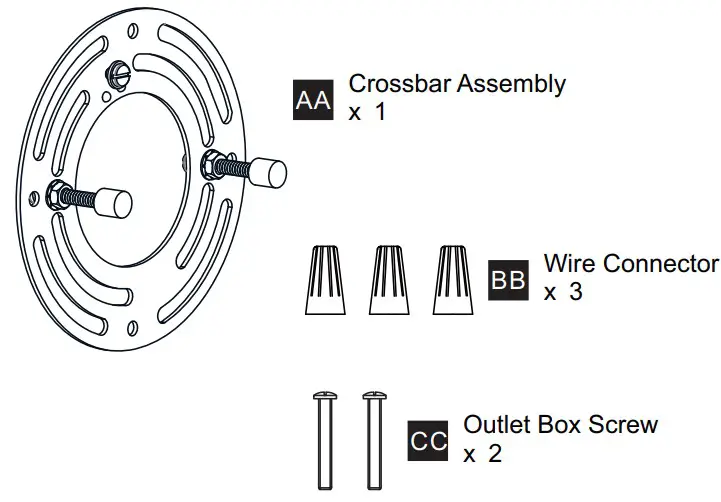

MOUNTING HARDWARE

INSTALLATION

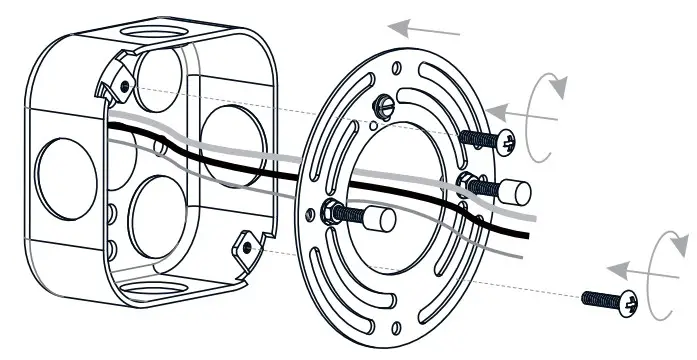

1. Install Crossbar Assembly

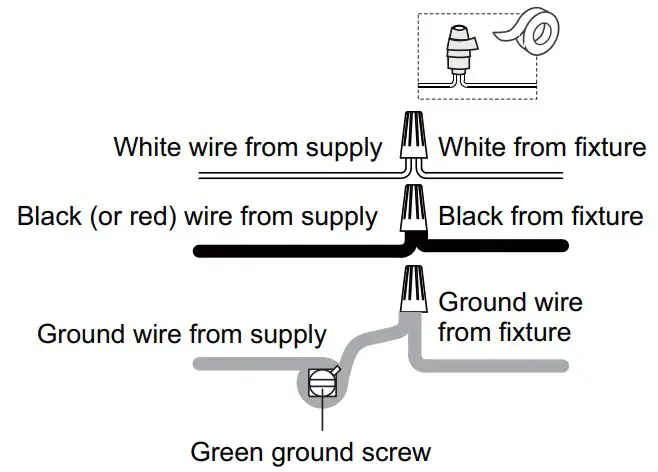

2. Wiring

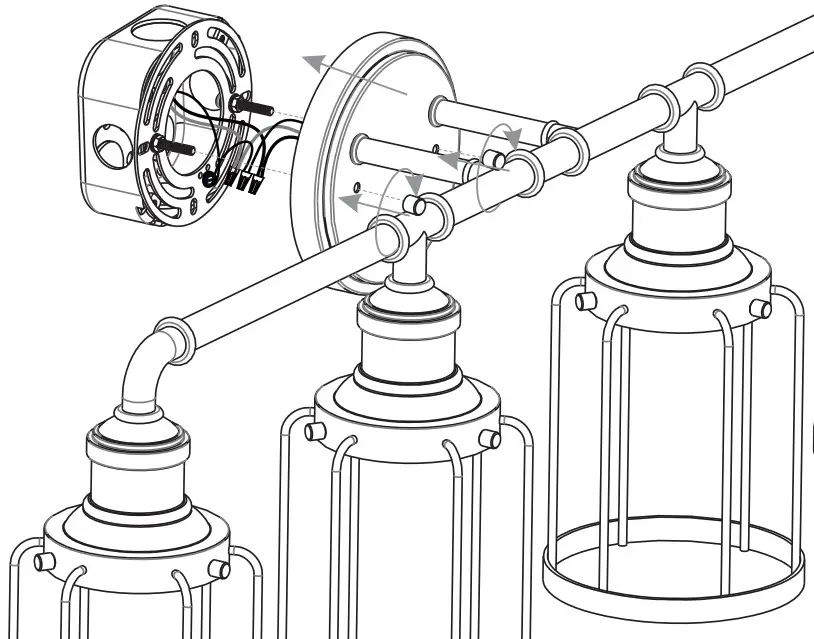

3. Install Fixture Body

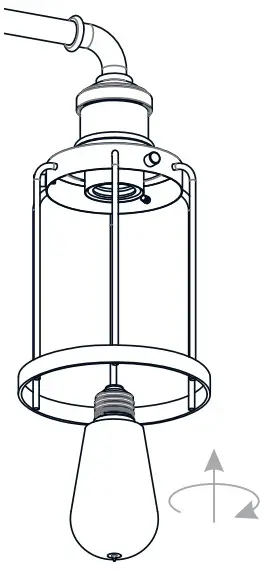

4. Install BulbsInstall four correct bulbs referring to fixture markings and/or labels for maximum wattage.
   Recommended Bulb Type (not included):

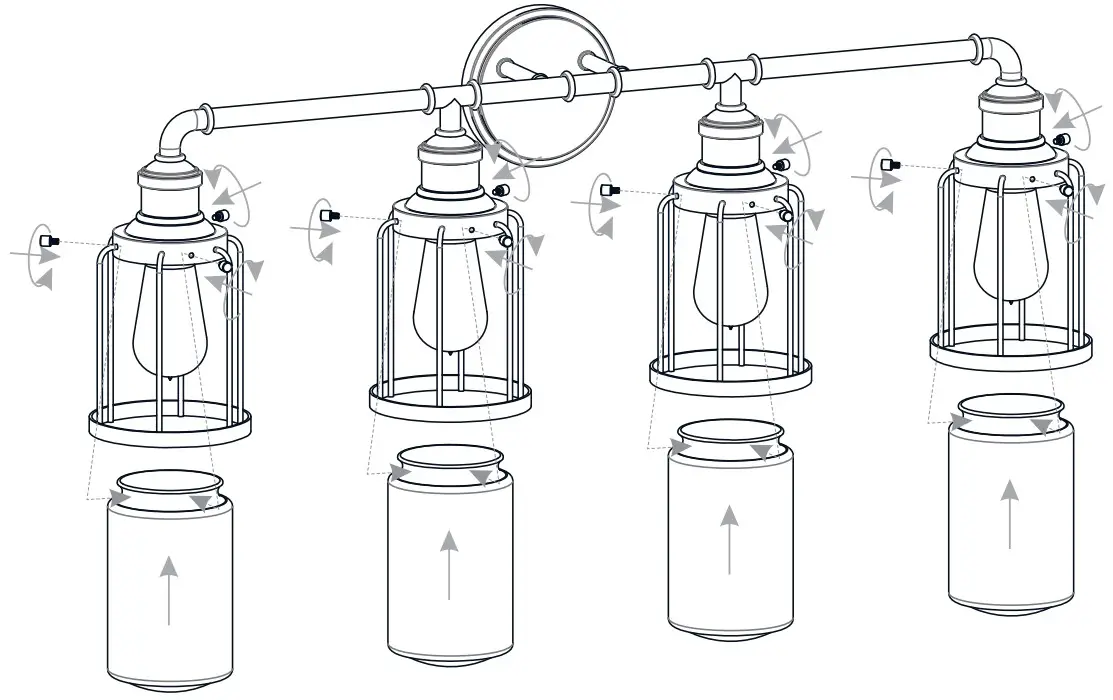

5. Install Glass Shades

Your installation is now complete! Restore electricity and save this sheet for future reference.
