SEAVIEW LTBLED12 Light Bar Tops

INSTALLATION INSTRUCTIONS

PARTS INCLUDED

TOOLS NEEDED

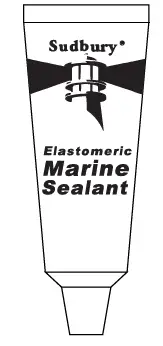

Sudbury Elastomeric Marine Sealant is recommended. To purchase call 800-655-7922 or visit www.seaviewglobal.com

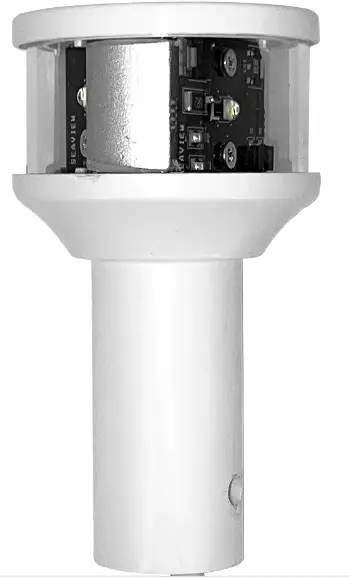

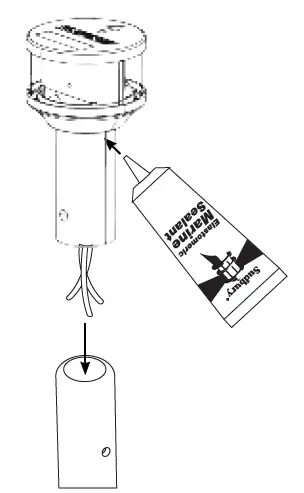

Apply marine adhesive sealant around the shaft of the LTBLED12 and then slide into the top end of the lightbar.

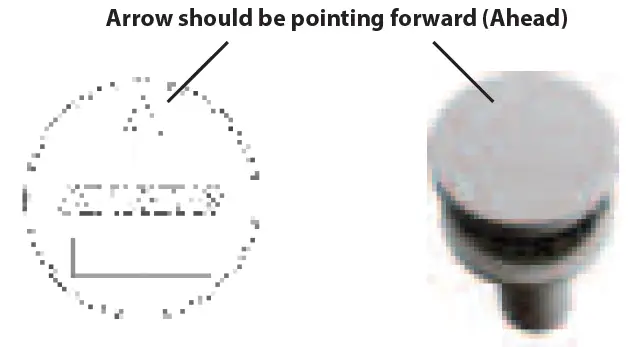

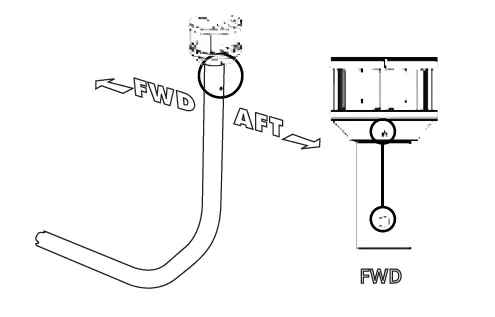

Be sure that the light is facing the correct direction. The arrow on top of the Seaview light should be facing forward (FWD).

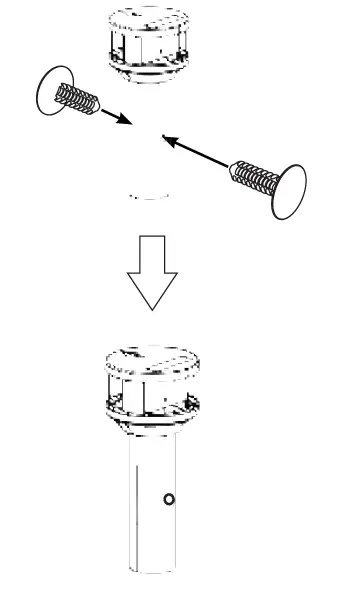

Insert the two push pins into the light bar and light to secure.

OPTIONAL ACCESSORIES

Call 800-655-7922 or visit www.seaviewglobal.com for available accessories.

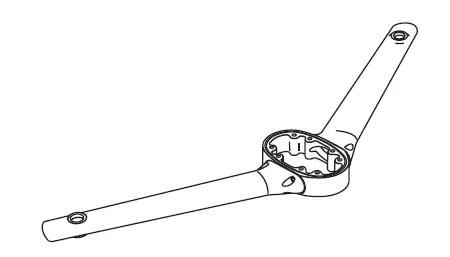

LIGHT BARS

LTBR
Fits closed dome radars.

LTBS
Fits 20” or smaller satdomes.

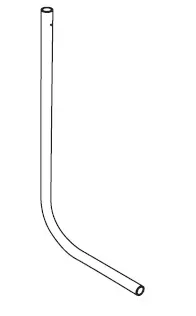

SPREADER KIT

SP1MOD

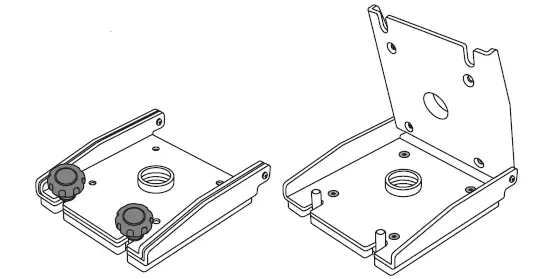

Allows user to mount GPS units or antennas onto a Seaview Modular Mount.

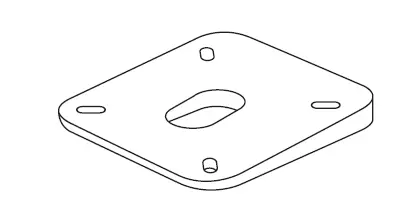

WEDGES

Compensates for plane angle. Available in 2, 4 or 6 degree wedges.

HINGES

Hinge back your Seaview Modular Mount with a Seaview Hinge for added height clearance.

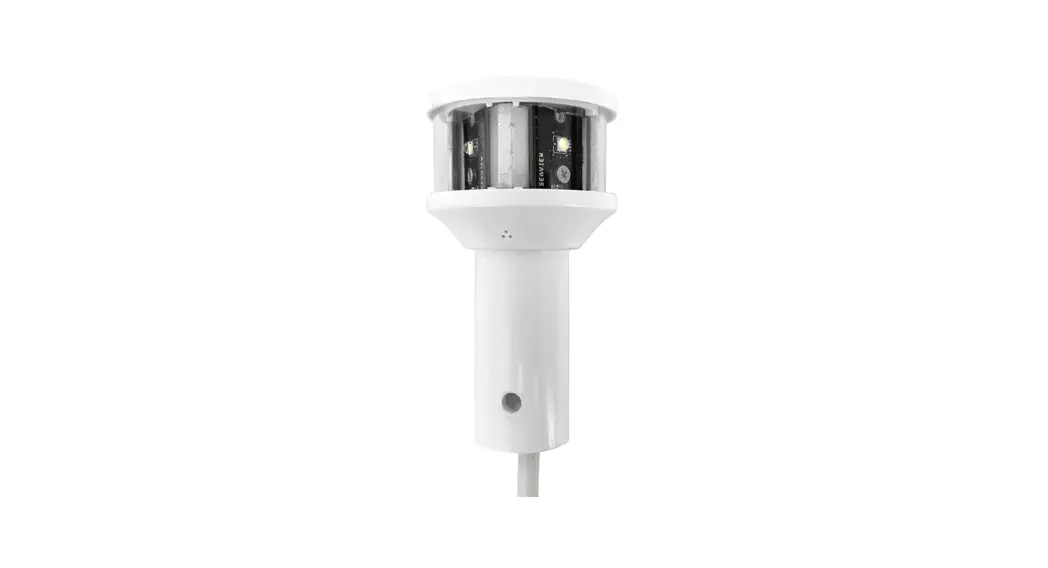

LTBLED12 LED Combination Masthead and All-Round White (Anchor) Light
The above light is designed for use on sail or power driven vessels under 20 meters (65.6 ft.) in length operating on a nominal 12 volt system. In order to comply with ‘72 COLREGS and U.S. Inland Rules, the following must be adhered to:

MOUNTING INFORMATION

Read all instructions before proceeding.

1. These instructions show the orientation of each light. For proper light selection, positioning and configuration, refer to A.B.Y.C. Standard A-16*, the ‘72 COLREGS and the U.S. Inland Navigation Rules* . These lights are supplied complete with 12 volt LED’s. LED lights have no user serviceable parts.
2. These lights are designed to be mounted on a horizontal surface.
3. These lights are furnished for mounting such that the long dimension of the mounting base is parallel to the fore-aft centerline of the boat.
4. This light is furnished with a 3/4 inch tube and is designed to be mounted vertically into a 3/4 inch hole.
5. WIRING: Please choose from the configurations that meet your current wiring.
   Attach supply connections to the light making sure to wire in accordance with both A.B.Y.C. Standard E4* and U.S. Coast Guard Safety Standards for Boat Electrical Systems (33 CFR 183)*.

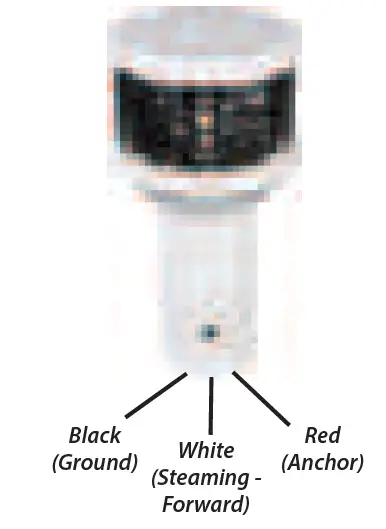

   The connection wires are coded as follows:
   WHITE: Steaming: Forward compartment only (masthead light) positive lead supply.
   RED: Anchor: Forward compartment and aft compartment (anchor light) positive lead supply.
   BLACK: Ground: Negative lead supply.
   Electrical connections are to be made such that only the forward compartment (masthead light) is energized with the other running lights (sidelights, stern lights etc.) while underway. Both compartments are energized simultaneously by themselves to create the all-round (anchor) light.
6. Make sure the top of the light is vertical during operation (see illustration) and the arrow on the top cover points ahead (not astern), with the reference mark parallel to the fore-aft centerline of the boat.
   *The above referenced standards can be obtained from:
   1. American Boat & Yacht Council, Inc.
   2. U.S. Coast Guard 613 Third Street, Suite 10 Washington D.C. 20593
      Annapolis, MD 21403 (or your local C.G. office)

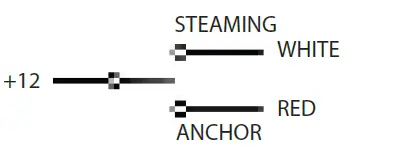

WIRING DIAGRAMS

Diagram A

Diagram B
(Two Switches)

Diagram C

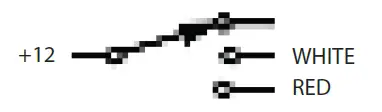

(SPDT Toggle Switch)

CONFIRM LIGHT MOUNTING

APPROPRIATE WIRE INSTALLATION

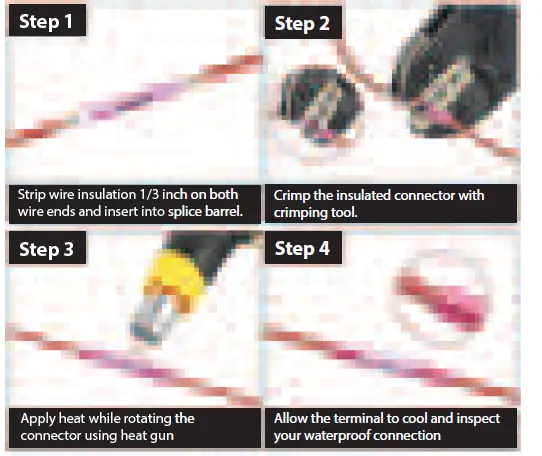

Using Waterproof Butt Connectors (not included)
