Match Lit with Flame Sense
Installation & Operation Instructions

INSTALLATION

We suggest that our products be installed by professionals that are locally licensed by the authority having jurisdiction in gas piping.

SERVICE
We suggest that our products be serviced by a professional certified in the US by
the National Fireplace Institute (NFI) as NFI Gas Specialists.

WARNING If the information in this manual is not folled exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.

DANGER FIRE OR EXPLOSION HAZARD if you smell gas: Shut off gas to the appliance. Extinguith any open flame. If odor continues, leave the area immediately, After leaving the area, call your gas supplier or fire department. failure to follow these instructions could result in fire or explosion which could cause property damage, personal injury, or death.

DANGER	CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home,	WARNING Do not store or use gasonline, or other flammable vapors and liquid, in the vicinity of this or any other appliance. An LP-cylinder not connected for use shall not be store in the vicinity of this or any other appliance.

Product Specific Information

The installation must conform with local codes, or in the absence of local codes
with the National Fuel Gas Code, ANSI Z223.1 • NFPA 54; National Fuel Gas
Code; Natural Gas and Propane Installation Code, CSA B149.1; or Propane
Storage and Handling Code, CSA B149.2, as applicable.

The appliance must be isolated from the gas supply piping system by closing its
individual manual shutoff valve during any pressure testing of the gas supply
piping system at test pressures equal to or less than 1/2 psi (3.5 kPa)

GENERAL INFORMATION

Instructions are also available at theoutdoorplus.com
Please carefully follow the instructions in this manual to prevent personal injury or property loss. Instructions are updated as needed. It is the installer’s responsibility to periodically review instruction for applicable updates.

The steps listed as:

WARNINGS: Contains information critical to the safe installation and operation of the fire pit.

WARRANTY REQUIREMENT: Must be strictly followed to qualify for product warranty. Warranty will be void if not followed.

IMPORTANT: Are notes and insights to help ensure product satisfaction and serviceability

WARNING: It is the installer’s responsibility to ensure a safe installation and to educate the end user as to proper operation. Leave this manual with the end user.

WARNING: Never alter product or configuration in any way.

WARNING: NOT FOR REMOTE CONTROL USE: This family of product is not for use with any type of remote or start-up timer control.

WARNING: We suggest that our products be installed by professionals that are locally licensed by the authority having jurisdiction in gas piping. We suggest that our products be serviced annually by a professional certified in the US by the
National Fireplace Institute (NFI) as NFI Gas Specialists or in Canada by WETT (Wood Energy Technical Training). Installer must follow all instructions carefully to ensure proper performance and safety. The Outdoor Plus Company is not responsible for your actions.

WARNING: Product is not intended to be a starter for wood or any other combustibles.

WARNING: Product is not for use with small LP Tanks and must utilize permanent fixed piping for fuel supply.

WARNING: It is the responsibility of the installer to follow:

• The National Fuel Gas Code, ANSI Z21.97-(2017)/NFPA 54 or International Fuel Gas Code.
• The National Electrical Code, ANSI/NFPA 70.
• Local Codes

WARNING: Only use gas/fuel type specified for this fire pit see label on the fire pit control Box. Verify correct gas/fuel type and pressure. Never use an alternative fuel to include bio-fuel, ethanol, lighter fluid or any other fuel.

Gas pressure and type should be checked prior to use and installation.

• Natural Gas Fire Pit:
  Supply Pressure: Minimum: 3.5” W.C.; Maximum: 7.0” W.C.
• LP Gas:
  Supply Pressure: Minimum: 8.0” W.C.; Maximum: 11.0” W.C

SELECTING THE LOCATION

WARNING: All fire pits, match lit kits, spark ignition, safety pilot and electronic ignition systems are designed and intended for outdoor use only.

WARNING: All fire pits must have a gas shutoff on the outside of the exterior of the fire pit to allow for emergency shut off and maintenance.

WARNING: Select a location where the fire pit can be attended during operation. Never leave an operating fire pit unattended or by someone not familiar with its operation or emergency shut off locations.

WARNING: Both children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns and clothing ignition.

WARNING: Young children should be carefully supervised when they are in the area of fire pit.

WARNING: Clothing or other flammable materials should not be placed on or near fire pit.

WARNING: Fire pits create very high temperatures – Combustibles must be located far enough away that there is no risk of ignition.

IMPORTANT: It is recommended that material such as granite, marble or other dense stone be kept away from heat and especially flame due to risk of cracking. Manufacturer is not responsible for damage.

Fire Pit Clearances – See Figures 1 and 2 On Last Pages
Under Valve Box When Applicable               2” For Drainage
Sides Surrounding Fire Pit                            48” From Structure or Combustibles
Overhead Clearance                                      Min. 96″ Overhead Clearance

• Select a location with good drainage.
• Choose a location that allows easy access for installation and maintenance of the fire pit.
• Pick a location that allows sufficient horizontal room to enjoy the fire pit while allowing a safe distance from the heat and flame.

CONSTRUCTION OF THE ENCLOSURE

WARNING: All fire pits must have a gas shutoff on the outside of the exterior of the fire pit to allow for emergency shut off and maintenance.
WARNING: Always use proper materials and construction for gas supply, power and enclosure.
WARNING: The enclosure must incorporate 1 vent on at least two opposing sides (2 vents total) at a minimum size of 18 sq. inches of total free area each (Example: 3”x 6” or larger). Installation of the vents in the mid to lower area of the enclosure is recommended. Ventilation allows for heat and or residual fuel to escape. Failure to properly vent enclosure may result in the fire-pit overheating or explosion. Some
enclosures may require more ventilation based on material, size, and extended use. The vent may work as a drain as well when installed at bottom sidewall to prevent water build up.

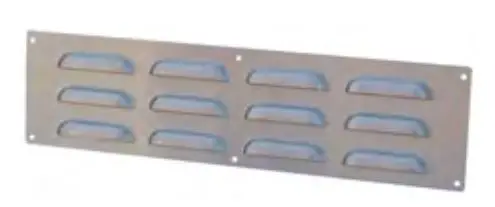

Vents

WARNING: The interior void space of the enclosure surrounding the valve box cannot be filled with any material (gravel, crushed rock, concrete, etc.)- It is a requirement to have a minimum of 2” under the valve box for proper ventilation and drainage.
WARNING: Select materials that are non-combustible in both initial installations as well as over time.
WARNING: The fire pit assembly should be recessed a minimum of 2.25” from the top of the enclosure to protect flame from being blown out. Some areas may require more- 4 to 6” is not uncommon.
WARRANTY REQUIREMENT: The enclosure must be constructed on a stable surface. The weight of the fire pit must be supported by the pan and not by any control/valve box. For electronic ignition models the control/valve box must be above grade with adequate drainage to prevent water damage to the controls inside the box.

• Make sure that the structure is level. We recommend the use of the installation collar (optional) that may be mortared into the surround.
• The Outdoor Plus recommends that the pan lip is recessed on trough (linear), and large round products as illustrated below. The Outdoor Plus cannot guarantee the lip on all of our products will be perfectly flat and will not
  warp due to heat.

IMPORTANT: Product must be accessible for service.

INSTALLATION OF A FIRE PIT

WARNING: We suggest that our products be installed by professionals that are locally licensed by the authority having jurisdiction
in gas piping.

WARNING: We suggest that our products be serviced annually by a professional certified in the US by the National Fireplace Institute (NFI) as NFI Gas Specialists.

WARNING: Confirm this appliance is built for gas used – natural gas or LP. Do not use natural gas appliance with LP or LP appliance with natural gas. Refer to the label on the appliance.

WARNING: To prevent damage, unhook fire pit from gas supply for pressure leak tests.

WARNING: Fuel line sizing is the responsibility of the installer and must be able to supply the stated maximum btu for the product.

WARNING: Burn Testing- It is the responsibility of the qualified installer to test for gas leaks at all connections.
WARNING: When filling the pan with lava rock and/or decorative glass, the instructions in Section 5 must be followed.

WARNING: Gas Plumbing Connections: Use only joint compound or tape that is resistant to all gases. Apply joint compound to all male pipe fittings only- DO NOT use on FLARED fittings. Be sure to tighten every joint securely.

WARNING: For systems with an extended or detached valve box the area in which the valve box is installed must conform with all installation requirements to include but not limited to location, construction, venting and local codes. Failure to do so may result in personal injury property damage or explosion.

WARRANTY REQUIREMENT: Warranty is void if product is altered.

• Refer to cut sheets on our Web-Site for important dimensional information for your fire pit.
• Plan your project well in advance to comply with all instruction and codes and allow for access and serviceability of the product.
• Purge gas lines of air.
• Perform all leak test with leak detector or leak reactant.
• Verify correct gas type and pressure.
• Perform leak test on main gas supply. Repair leaks as necessary.
• Shut Off Gas Supply and Power to fire-pit.
• Connect fire-pit to main gas supply.
• Turn on gas supply and perform leak test on all inlet connections. Repair as needed.
• Position fire pit safely with access to all gas connections for testing.
• Light fire pit. It may take several cycles to purge air from the lines.
• Once fire pit is lit perform leak test on all gas connections. Repair as needed.
• Turn off fire pit and allow to cool.
• Apply media as described in (Section 5).
• Turn on fire pit again and perform leak test with media correctly installed. If gas leak is detected verify correct media application and repair as needed.
• If trimmer valve is installed adjust flame to desired height. ( Never alter the product configuration )
• Set fire pit in properly constructed enclosure (Section 3).
• Verify correct operation and lighting.
• Review safety manual with end user and instruct not to change/ modify fire pit or media.
• Leave manual with end user.

MEDIA

WARNING: The fire pit is designed to use approved media correctly installed over the burner to achieve proper combustion.
WARRANTY REQUIREMENT: Never install a mesh or screen under the media.
IMPORTANT: Media affects flame pattern greatly. It is possible to create an unusual flame pattern that could damage your enclosure. Enclosure damage from an open flame fire feature is not covered under any warranty

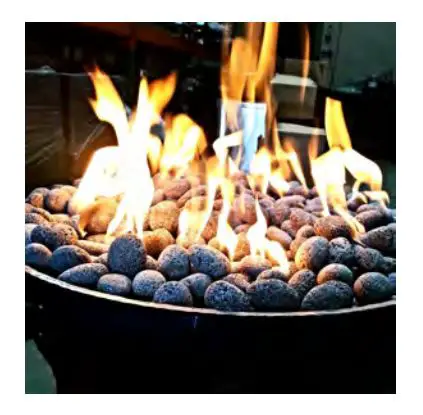

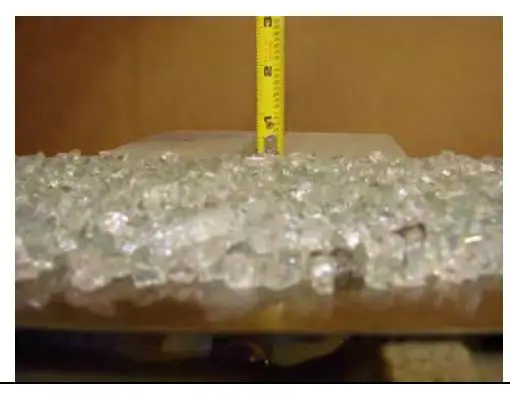

Lava Rock & Glass Application

Please follow the instructions below to add the finishing touch to your fire pit.

PARTS LIST

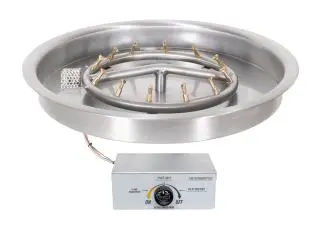

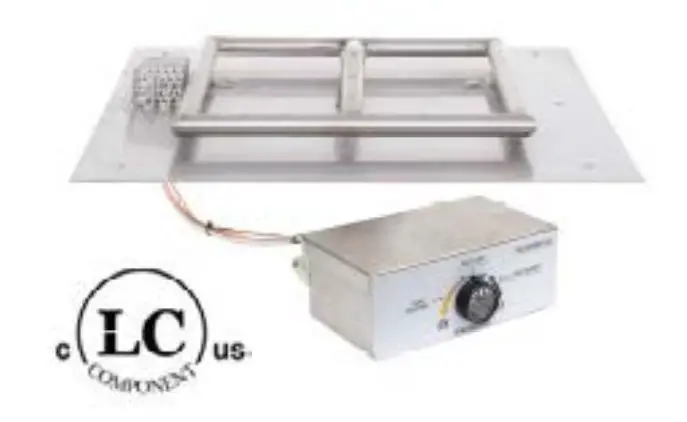

1. Match Lit with Flame Sense Fire Pit
2. Lava Rock
3. Instructions

INSTALLATION

WARNING: Product certification is void if product configuration is altered.

1. Read and follow all instructions.
2. Provide access panel for burner valve.
3. Mount product in your enclosure per Section 3.

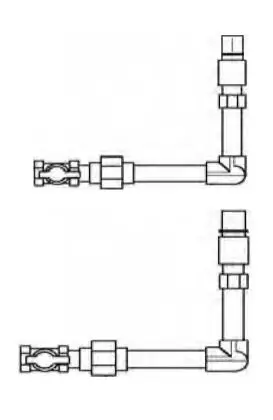

4. Connect fuel supply to inlet of valve.
5. Leak test all fittings and connections.
6. For LP models check back pressure with media installed. This may need to be done with the pit outside of the enclosure.

Approximate Standard Product Configuration

Other Configurations available upon request – Configurations may change without notice

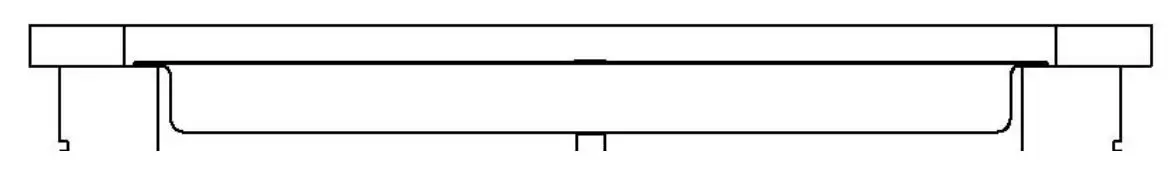

Match Lit 8″

Refer To Cut Sheets For Dimensions

FIRE PIT OPERATION

WARNING: Before use, be sure to test all gas connections for leaks. Do not use fire pit if there is any evidence of leaking gas. If
leaking gas suspected, turn off the main gas supply and repair i1runediately.

WARNING: Do not use the enclosure as a seating area. Wind and gusty conditions will affect the flame in an unpredictable
manner. If conditions exist that are not safe for patrons turn the fire pit off.

WARNING: Do not use fire pit if any part has been submerged under water. Immediately call a qualified service technician to inspect the fire pit.

WARNING: Never use any material that is non-porous and holds moisture such as gravel, pebbles, river rock, etc. This material, when heated will cause the trapped moisture to boil and fracture unexpectedly. This material is not sufficiently porous to allow heated steam to readily escape which can break and cause personal injury or damage.

WARNING: Solid fuels shall not be burned in the fire pit. Leaves, sticks, wood, paper, clothing, food material, should be kept away from the fire pit. Fire pit is not for cooking. Make sure that there is no vegetation or otl1er objects over the top or sides of tl1e fire pit that could interfere with safe operation. See clearances in section 2 Selecting the Location.
WARNING: If lava rock is wet, allow fire pit to burn for 45 minutes prior to coming within 15 feet of tl1e fire pit.

WARNING: When fire pit is not in operation tum off gas valve.
WARRANTY REQUIREMENT: When not in use the fire pit must be covered at all times.

IMPORTANT: Initial Start-up: It may be necessary to purge air in gas lines after system installation.

Please read all warnings prior to operation of fire pit.
This product is not for use with small tanks. It is intended to be connected to fixed piping systems only.

1. STOP! Read the safety information and warnings on pages 2 & 3 prior to operating the fire feature.

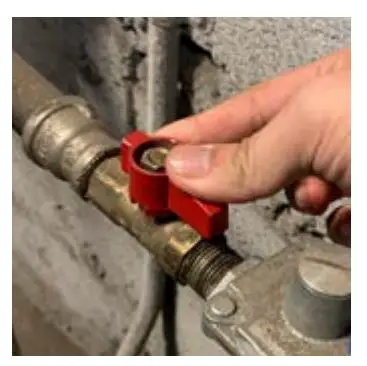

2. Turn gas supply valve to fire pit to the ON position. Ensure the ON/ OFF Knob is in center/middle position with the arrows aligned.

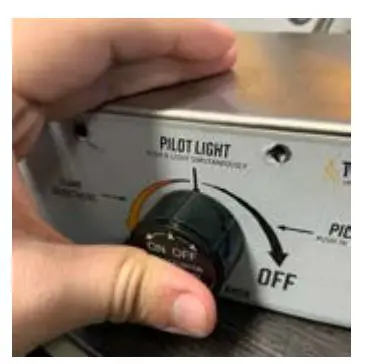

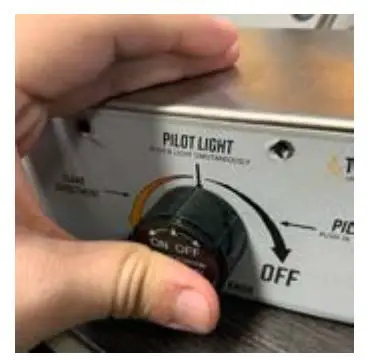

3. Push in the ON/OFF knob to activate the gas valve and allow the gas to flow.

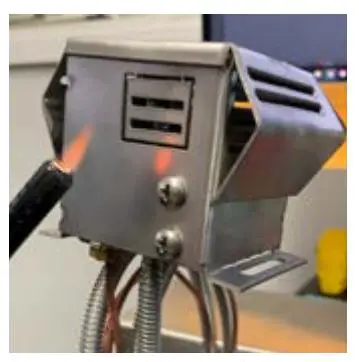

4. While depressing and holding the valve knob, take a kitchen lighter and safely ignite the gas coming out of the pilot

5. Once lit, continue to push in valve knob for 20 seconds to heat the
thermocoupling.

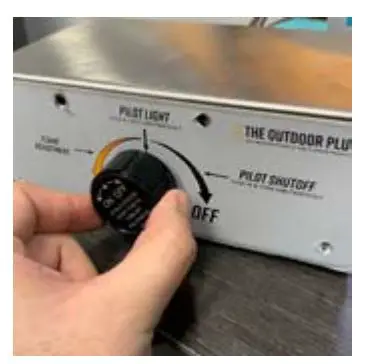

6. Turn the ON/OFF knob counterclockwise to light main burner. NOTE: If the burner fails to light, wait 5 minutes for gas to clear, then repeat steps 2-6.

TROUBLESHOOTING

Below are some potential causes and countermeasures to the symptoms indicated in bold. Please contact your retailer or certified technician for service & repair.

Below are some potential causes and countermeasures to the symptoms indicated in bold. If still unable to resolve issue, please contact your retailer or certified technician.

MAINTENANCE

Service We suggest that our products be serviced by a professional certified in the US by the National Fireplace Institute (NFI) as NFI Gas Specialists.

WARNING: Any guard or protective device removed for servicing must be replaced prior to operating the fire pit.
WARNING: Installation and repair should be done by a qualified service person. Fire pits should be inspected prior to use and at least annually by a qualified service person.
WARNING: Ensure gas and power (if applicable) are shut off and fire pit is cool before servicing.

• Keep fire pit covered at all times when not in use.
• In some areas of the country spiders or insects have been known to build nest and or lay eggs in the venture holes of the air-mixer for LP units. This can cause fuel to fill the fire feature cavity and result in personal injury or property damage. Periodical inspection by a qualified service technician of the air-intake is required to ensure your fire feature performs properly.
• Keep any debris out of fire pit- clean as needed.
• Ring Cleaning: (1 x YR) If flames exhibit any abnormal shapes or behavior, or if burner fails to ignite properly, then the burner holes may require cleaning. The appliance can be cleaned by carefully removing the media to allow access to burner. Use a brush to carefully remove dust, spider webs, and loose particles from base, logs, and fire ring itself. If evidence of damage, fire ring must be replaced with fire ring specified by manufacturer.

• Thermocouple cleaning of soot: Once every six months or as needed. Remove lava rock & glass around pilot, then the blowout box lid. Clean thermocouple of any soot using soft brush. Be careful not to damage hot wire element.
  Place lava rock or glass back as explained in Section 8 – Adding Approved Media. See Figure 10.2.1 & 10.2.2.
• Visually inspect the pilot. The pilot flame should cover 3/8 inch to 1/2 inch of the thermocouple, Cleaning of the pilot orifice may be required by removing pilot hood and removing the orifice.

REPLACEMENT PARTS

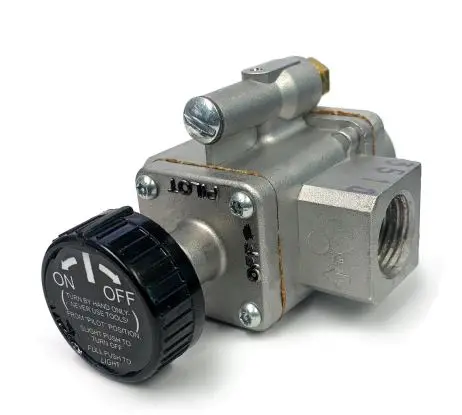

Flame Sense Gas
Valve OPT-FSGV

Flame Sense
Thermocoupling
OPT-FSTC

Flame Sense On/
Off Cover
OPT-FSOC

Flame Sense

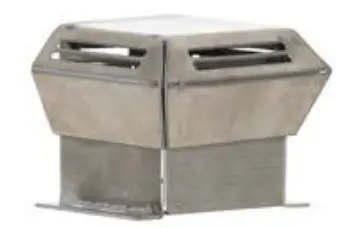

Pilot Hood
OPT-FSPH

Flame Sense
Pilot
OPT-FSPL-NG
OPT-FSPL-LP

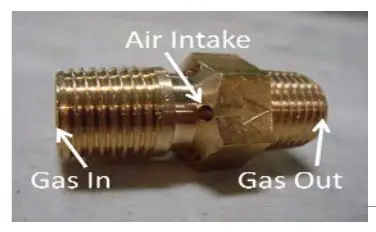

Propane Orifice
OPT-FSLPO

Natural Gas Orifice
OPT-FSNGO
