Installation Steps

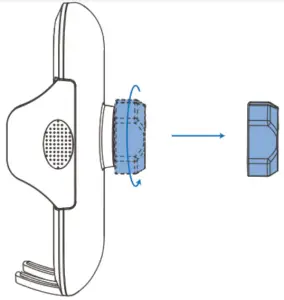

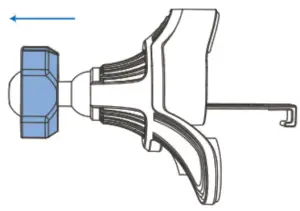

Unscrew the fixed nut from the car mount and remove it.
Pass the ball joint through the fixed nut from the smaller opening side.

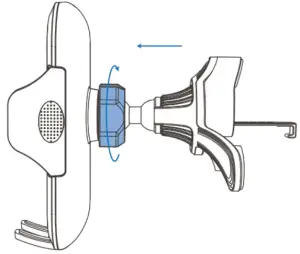

Push the ball joint firmly into the groove on the back of the car mount, then tighten the fixed nut.

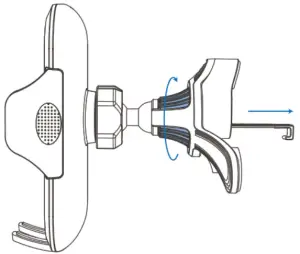

Twist the knob to expand the hook.

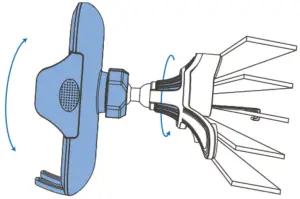

Firstly, insert the car mount into a proper position of the air vent, to hook the airvent blade sturdily. Then fix the support plate and tighten the knob to lock the car mount. Finally, adjust the car mount to fit your optimal viewing angle.

Using Steps

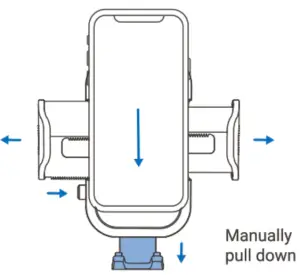

Press the quick release button, the clamps arms will automatically open. Then, adjust the legs (bottom tray) according the size of your phone, tighten up the clamps arms to hold your phone firmly.

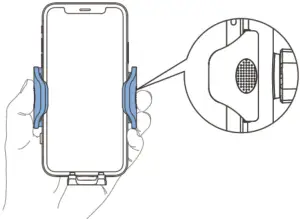

Find the press position (A dent place with tiny microdots on the side of clamp arms) and then push the clamp arms to tighten your phone firmly.

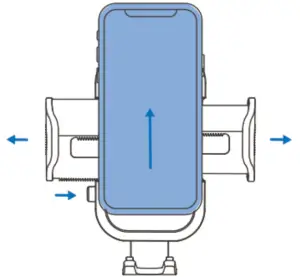

After using, press the quick release button again to open the clamp arms and take out the mobile phone (as shown in the figure).

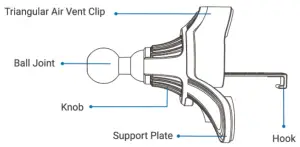

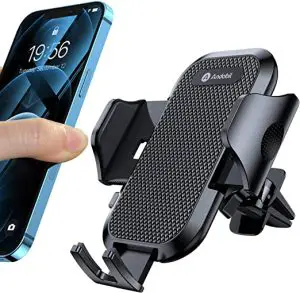

Overview

Specifications

Product Name	Easy Clip Car Mount
Model	CTEZ11
Applicable Place	Air Vent
Applicable Model	Mobile phone width (60-100) mm and thickness 15mm
Package List	Car Mount xl, Air Vent Clip x1, Welcome Guide x1

The parameters above are derived from the laboratory of ANDOBIL. The actual parameters would be different because of products and other factors. The image shown here is indicative only.

Attentions

Avoid dropping.
Do not dismantle it.
Please install the car mount on a suitable place before driving, do not operate or adjust the car mount during driving.
Do not install the car mount in places where it might interfere with airbag or driving.
Keep the car mount away from children.

For FAQs and more information, please message us:

m.me/andobil
