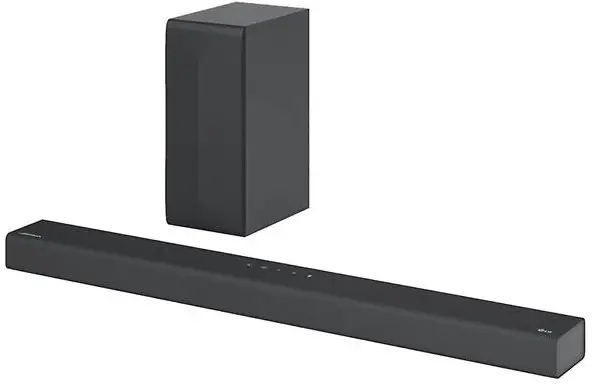

episode ES-PWR-SNDBR-180-BLK Powered Soundbar IR Control Protocol

Overview

This protocol provides the information required to control an ES-PWR-SNDBR-180-BLK via IR through a connected IR receiver or automation system. Follow the instructions carefully to ensure that IR functions at the highest level and does not cause damage to the soundbar or other components

IR Applications

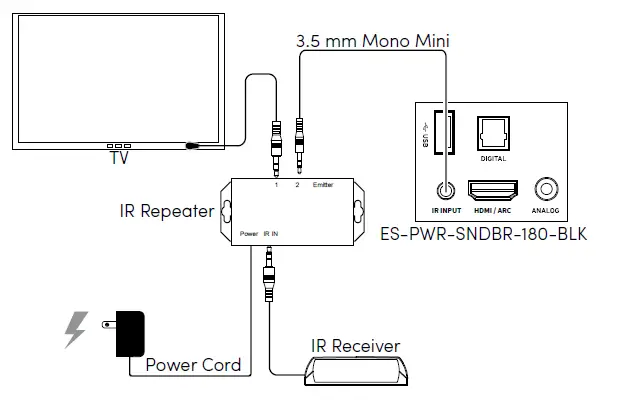

In-Room IR Receiver with IR Remote and IR Repeater

To control the soundbar with an in-room IR remote (commands transmit directly from the remote):

1. Connect an IR receiver via IR repeater. Position the receiver so that commands are received reliably.
2. Connect the IR repeater to the IR In port on the soundbar with a 3.5 mm mono mini cable.
3. Control additional equipment by attaching an IR flasher to the IR Out port of the repeater.

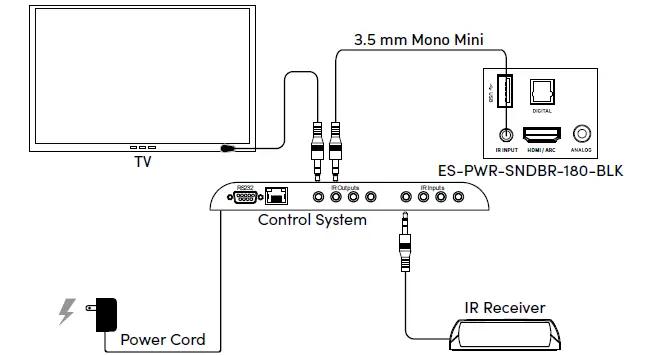

Programmed Automation Controller

To control the soundbar with a control system:

1. Connect an IR receiver to the control system. Position the receiver so that commands are received reliably.
2. Connect a 3.5 mm mono mini cable from the flasher output of the controller to the IR In port on the soundbar.
3. Program the control system using the IR control protocol

IR Codes

• Device address: 0x10EF
• The device address is 16 bit
• Based on NEC standard protocol with 8 ms on, 4.5ms off start bit
• Commands are standard 8 bit + 8 bit inverted (256 possible) with LSB first

Power Toggle

Power On

Power Off

Mute Toggle

Mute On

Mute Off

Volume Up

Volume Down

Sub Volume Up

Sub Volume Down

Play/Pause

Next Track

Previous Track

Source

Analog Input Source

Optical Input Source

Bluetooth Input Source

HDMI-ARC Input Source

USB Input Source

Wide EQ Toggle

Wide EQ On

Wide EQ Off

EQ Flat Toggle

EQ Music Toggle

EQ Movie Toggle

IR Learn

Bluetooth (BT) Pair

Night Mode Toggle

Night Mode On

Night Mode Off
