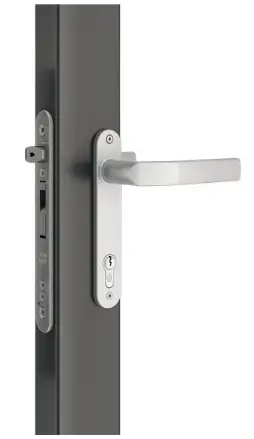

LOCINOX Profiles of 80mm Insert Lock Eight lock

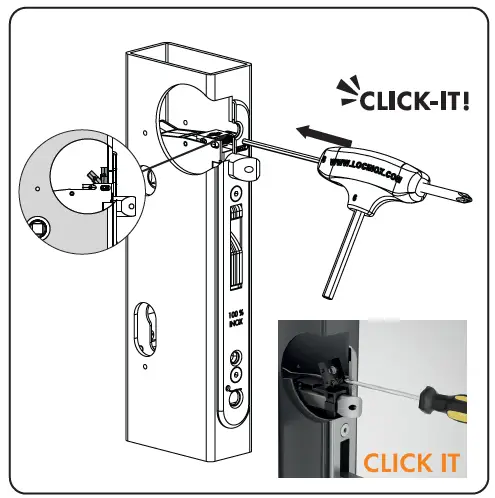

EASY AND FAST INSTALLATION
WITH THE NEW AND IMPROVED CLICK-IT SYSTEM

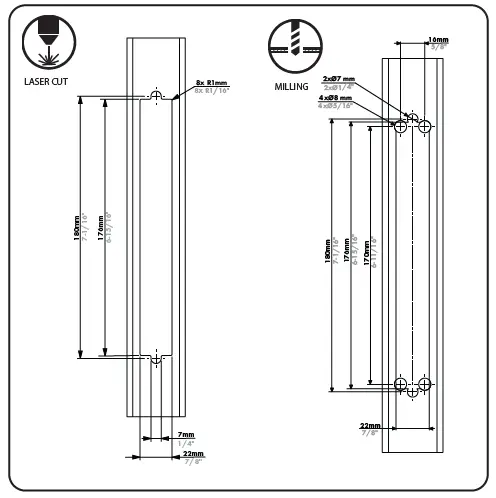

HOW TO PREPARE THE PROFILE

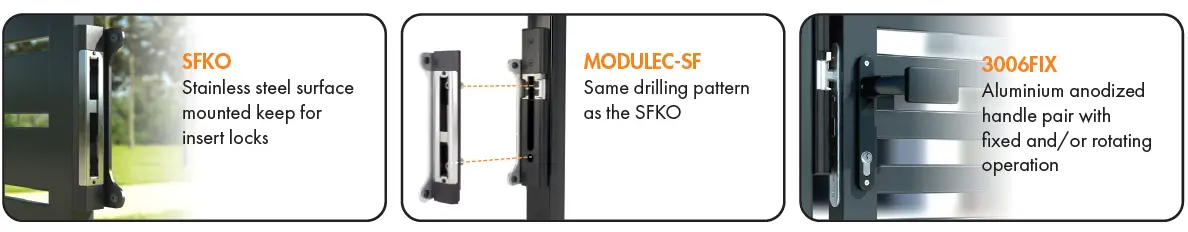

COMPATIBLE PRODUCTS
SPECIFICATIONS
- Stainless steel lock mechanism with cover plate against dirt penetration
- The mechanism, hook, front plate, latch bolt: stainless steel
- Backset 60 mm, for mounting in profiles of 80 mm of depth or more
- Continuous adjustment of the dayboat up to 10 mm without dismounting the lockbox
- Key-operated self-latching bolt
- Easy left or right changing of the self-latching dayboat
- Throw off the hook: 21 mm
- Center-distance cylinder <=> handles = 92 mm
- Compatible with Euro profile cylinder
- Handles to be ordered separately
- Perfect for wooden gates
