nVent ADP3 Metal Data Pocket

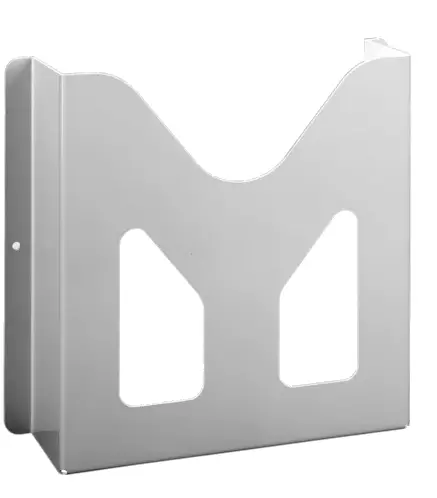

nVent-ADP3-Metal-Data-Pocket-product-image

Product Information

The Data Pockets are door accessories that provide a convenient place to store wiring diagrams, operation manuals, and other documentation inside the enclosure. There are two types of Data Pockets available: Door Accessories Data Pockets and External Data Pockets Type 4/4x/12.

Door Accessories Data Pockets:

Mount inside the solid enclosure cover using adhesive-backed pockets.
Includes mounting hardware.
Thermoplastic pockets are black and have cutaway areas for easy inspection of contents.
Available in small (Catalog Number ADP1) and large (Catalog Number ADP2) sizes.
Use ADP2 when A = 24 and B = 30.
Small pocket dimensions: 6.00 in./152 mm (L) x 6.00 in./152 mm (W).
Large pocket dimensions: 12.00 in./305 mm (L) x 12.00 in./305 mm (W).

External Data Pockets Type 4/4x/12:

Mounted on the exterior of an enclosure.
Allows access to system documentation without opening the enclosure door.
Available in mild steel and stainless steel models.
Mild steel models are either ANSI 61 medium-gray or RAL 7035 light-gray polyester powder finish inside and out.
Stainless steel models have a brushed finish.

Product Usage Instructions

To use the Door Accessories Data Pockets:

Clean the surface of the enclosure cover where you want to mount the pocket.
Peel off the adhesive backing from the pocket.
Stick the pocket firmly onto the enclosure cover.
Ensure that the cutaway areas of the pocket are facing outwards for easy inspection of contents.
If using the large pocket (ADP2), make sure that A = 24 and B = 30.

To use the External Data Pockets Type 4/4x/12:

Select the appropriate model based on your requirements (mild steel or stainless steel).
Mount the pocket on the exterior of the enclosure using the provided mounting hardware.
Ensure that the pocket is securely attached to the enclosure.
You can now access system documentation without having to open the enclosure door.

Note: Always refer to the product manual for any specific instructions or safety guidelines.

Data Pockets nVent-ADP3-Metal-Data-Pocket-07

Provides a convenient place to store wiring diagrams, operation manuals and other documentation inside the enclosure. Adhesive-backed pockets mount inside the solid enclosure cover. Mounting hardware included. Thermoplastic pockets are black and have cut-away areas for easy inspection of contents.

Bulletin: A80DP

Metal Data Pocket

nVent-ADP3-Metal-Data-Pocket-08 Three-inch (76-mm) deep Metal Data Pocket provides a convenient place to store wiring diagrams, operation manuals and other documentation inside the enclosure. Large enough to store 3-ring binders. Mounting hardware is included. Painted white and has cut-away areas for easy inspection of contents.
Bulletin: A80DP

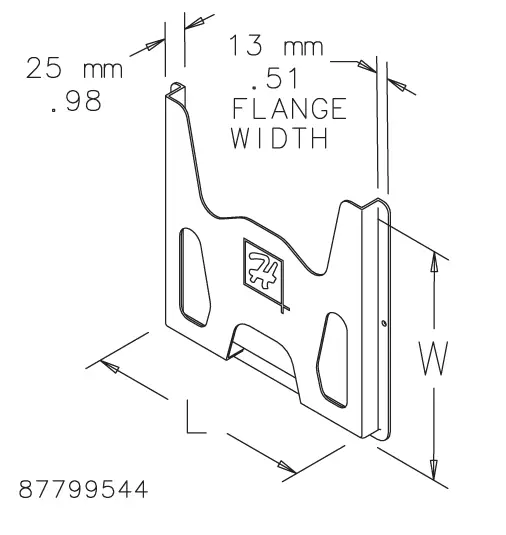

nVent-ADP3-Metal-Data-Pocket-01

Catalog Number	Description	L in./mm	W in./mm
ADP1	Small pocket	6.00 152	6.00 152

Use ADP2 when A = 24 and B = 30

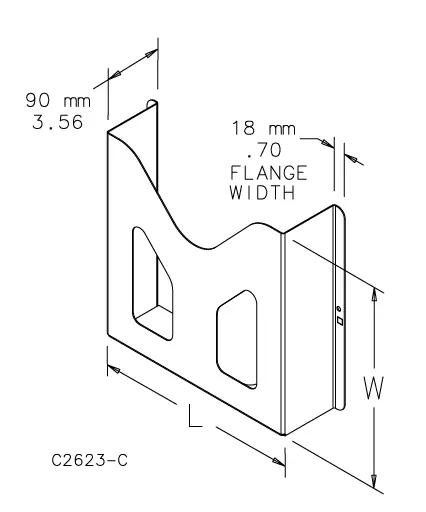

nVent-ADP3-Metal-Data-Pocket-02

Catalog Number	Fits A x B in./mm	L in./mm	W in./mm
ADP3	Greater than or equal to	12.00	12.00
	30.00 x 24.00	305	305
	Greater than or equal to
	762 x 610

External Data Pockets, tyPe 4/4x/12

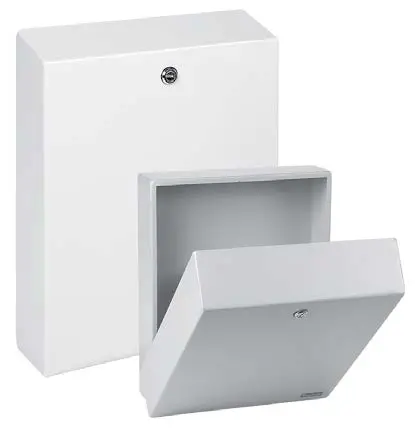

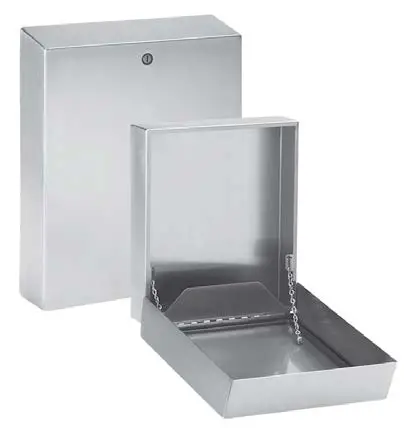

nVent-ADP3-Metal-Data-Pocket-03 Mild steel coated with polyester powder paint Type 304 stainless steel

INDUSTRY STANDARD

Mild Steel Models:
UL 508A Listed; Type 4, 12; File No. E61997
cUL Listed per C22.2 No. 94; Type 4, 12; File No. E61997

NEMA/EEMAC Type 4, 12
IEC 60529, IP66 Type

Stainless Steel Models:
UL 508A Listed; Type 4, 4X, 12; File No. E61997
CUL Listed per C22.2 No. 94; Type 4, 4X, 12; File No. E61997

NEMA/EEMAC Type 4, 4X, 12
IEC 60529, IP66

APPLICATION
Mounted on the exterior of an enclosure, Data Pockets allow access to system documentation without having to open the enclosure door

FeAtUres-

Available in mild steel or stainless steel to match the enclosure finish
Foam-in-place gasket to protect documentation from harsh environments
Hinged front for easy access to contents
Three sizes accommodate a wide variety of documents
Sloped top sheds liquids and prevents accumulation of extraneous material
Optional wing knob and keylock inserts available for additional security

SPECIFICATIONS

16 gauge steel or 16 gauge Type 304 stainless steel
Front of pocket hinges away from frame

FinisH
Mild steel models are either ANSI 61 medium-gray or RAL 7035
light-gray polyester powder finish inside and out. Stainless steel models have brushed finish.

Accessories
Key Inserts
Wing Knob Latch

Bulletin: A80DP

Standard Product

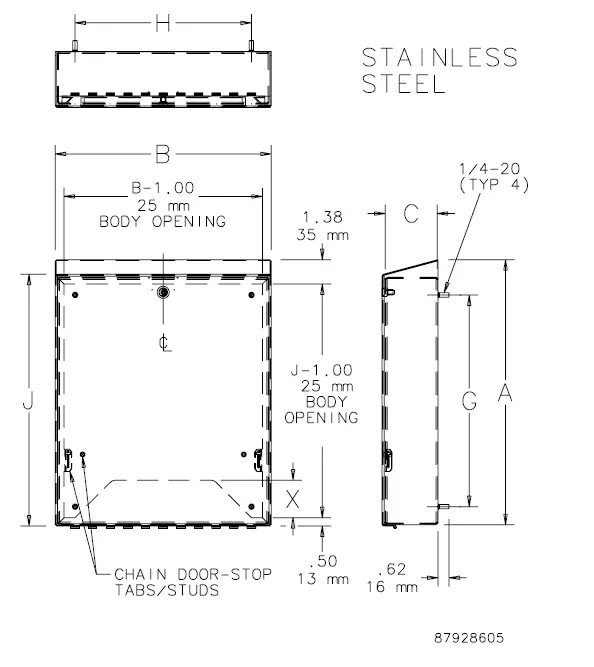

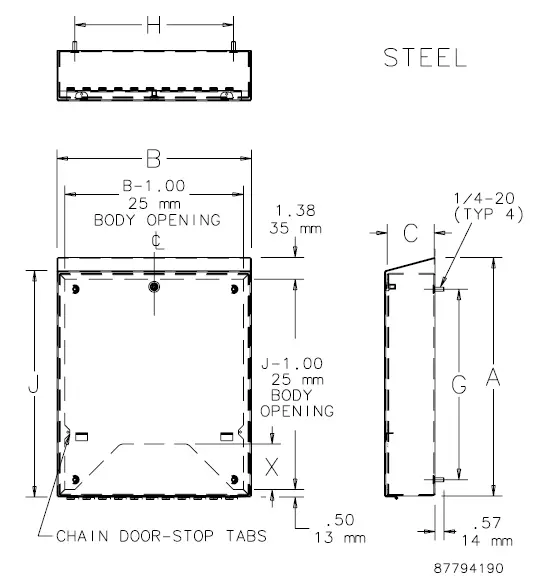

Catalog Number	AxBxC in.	AxBxC mm	Finish	G (in.)	G (mm)	H (in.)	H (mm)	J (in.)	J (mm)
ADPX4A	14.00 x 12.00 x 3.00	356 x 305 x 76	ANSI 61 paint	12.00	305	10.00	254	14.25	362
ADPX4AlG	14.00 x 12.00 x 3.00	356 x 305 x 76	RAL 7035 paint	12.00	305	10.00	254	14.25	362
ADPX4ASS	14.00 x 12.00 x 3.00	356 x 305 x 76	Brushed stainless steel	12.00	305	10.00	254	14.25	362
ADPX4B	6.00 x 6.00 x 3.00	152 x 152 x 76	ANSI 61 paint	4.00	102	4.00	102	6.25	159
ADPX4BlG	6.00 x 6.00 x 3.00	152 x 152 x 76	RAL 7035 paint	4.00	102	4.00	102	6.25	159
ADPX4BSS	6.00 x 6.00 x 3.00	152 x 152 x 76	Brushed stainless steel	4.00	102	4.00	102	6.25	159
ADPX4C	12.00 x 18.00 x 3.25	305 x 457 x 83	ANSI 61 paint	10.00	254	16.00	406	12.25	311
ADPX4ClG	12.00 x 18.00 x 3.25	305 x 457 x 83	RAL 7035 paint	10.00	254	16.00	406	12.25	311
ADPX4CSS	12.00 x 18.00 x 3.25	305 x 457 x 83	Brushed stainless steel	10.00	254	16.00	406	12.25	311
