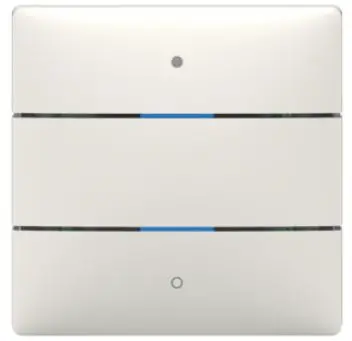

theben 4969232 iON 102 KNX HVAC Controller
overview
- The devices support KNX security. For a start-up, the Factory-Default-Setup-Key (FDSK) is required (sticker on the device).
- Keep the Factory-Default- Setup-Key in a safe place.
- Remove the stickers from the device for maximum safety. If the FDSK is lost, recovery is not possible. In this case, the startup is only possible „insecure“.
Safety

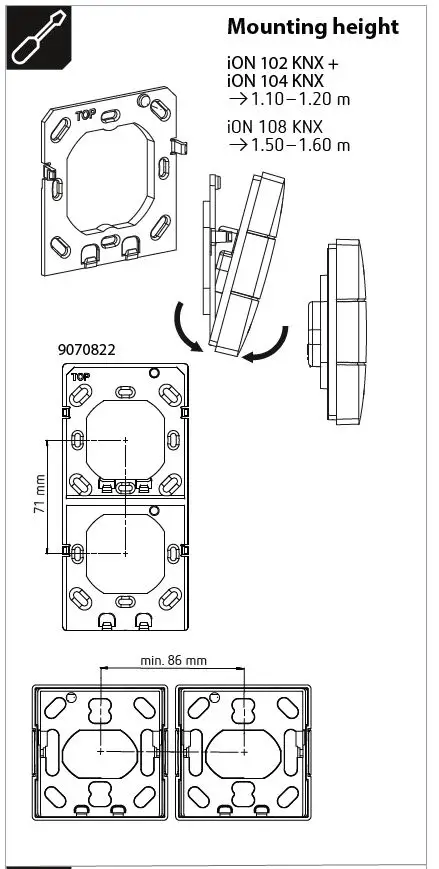

- Assembly and installation should only be carried out by a qualified electrician, somebody who has completed appropriate professional training and has the knowledge and experience necessary to be able to recognize and avoid the potential dangers posed by electricity.
- Please refer to the KNX manual for detailed functional descriptions (see QR code):

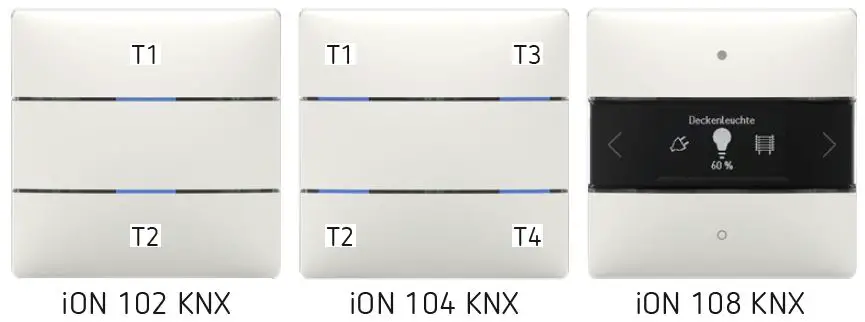

The iON 102 KNX + iON 104 KNX devices are push-button sensors (1-way/2-way). The iON 108 KNX room controller can also be operated by using an app (for Android, iOS) on mobile de-vices. Communication is via Bluetooth BLE.
Technical data

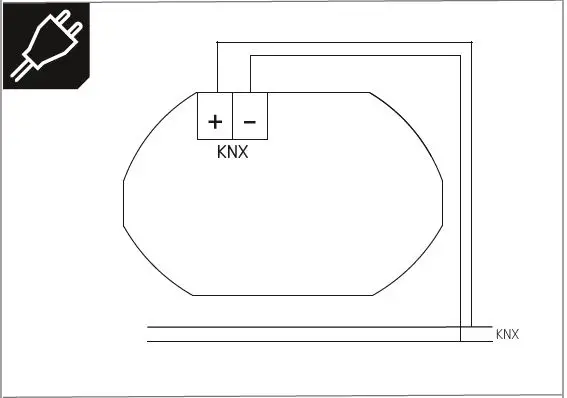

- Bus voltage KNX: 21–32 V DC
- Power input KNX bus: 12,5 mA
- Medium KNX: TP1-256
- Mode of operation: Type 1 in accordance with EN 60730-1
- Protection class: III subject to correct installation
- Pollution degree: 2
- Rated impulse voltage: 0,8 kV
- Radio frequency/transmission power: BLE 2.4 GHz Class 2 (2.5 mW) (iON 108 KNX)
- Software: class A
The ETS database is available at www.theben.de. Please refer to the KNX manual for detailed func- tion descriptions. Theben AG herewith declares that this type of radio installation complies with Directive 2014/53/EU. The complete text of the EU Declaration of Conformity is available at the following Internet address: www.theben.de/red-konformitaet
