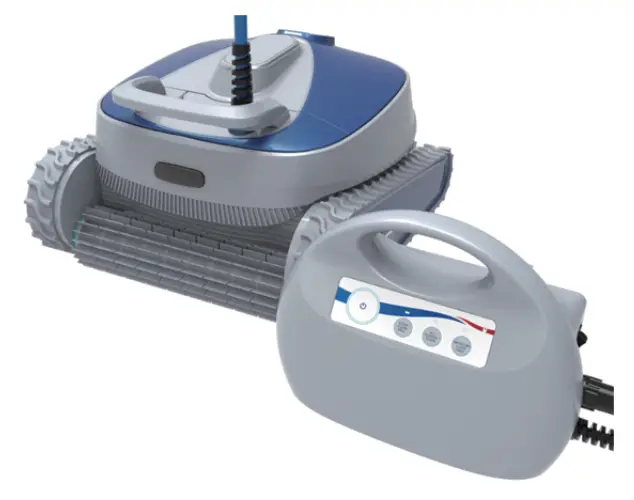

Bosta 73284100 Robotic Swimming Pool Cleaner Instruction Manual

73284100 Robotic Swimming Pool Cleaner
Instruction Manual

Read this instruction manual carefully before using your new robotic cleaner. Save for future reference.

Product Introduction

Human beings have liberated their hands because they walked upright. Even in modern society with advanced technology, to liberated hands is still the unremitting pursuit of
human beings. The swimming pool cleaning robot is developed for this purpose. The cleaning robot is a kind of the underwater cleaner , it is fully automatically. It is mainly used to clean the dirt and debris such as hair, leaves and sand from the pool floor; pool wall and waterline. As long as you put it into the pool after initial program setting, the
cleaning robot can automatically measure the size of the pool, automatically design the working route, and clean the pool by itself.
Warning and Cautions
Warning: Your cleaner should not be used while people are swimming in the pool. Do not allow swimmers in the pool while pool cleaner is operating.
Warning: Keep the cleaner away from Child, or use under adult’s strict and close supervision.
Warning: DO NOT switch on the pool cleaner if it is not immersed in the water. Operating the cleaner out of the water may cause severe damage and will result in loss of  warranty.
Warning: Always remember to turn the power supply off and unplug it from the power outlet before removing the cleaner from the pool.
Warning: DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.
Warning: To use this cleaner only when water temperature is 10-35! and the depth of the pool is 0.5M-3M. The cleaner is designed to work for the pool with 100M surface area.
Warning: Keep the controller box in a dry place which is 3.5m away from your pool.

Operation Instructions

Brief Introduction

1. Start/Stop
   Could measure the pool size automatically and set the working cycle.
2.  Mode of floor clean only
   To only clean the pool floor to increase the clean efficiency.
3. Mode of all purpose clean
   All-around cleaning, including pool floor; pool wall and waterline.
4. Mode of waterline clean only
   To quick clean the waterline only.
5. Use App to control (not available for all models)

Operation Instructions:

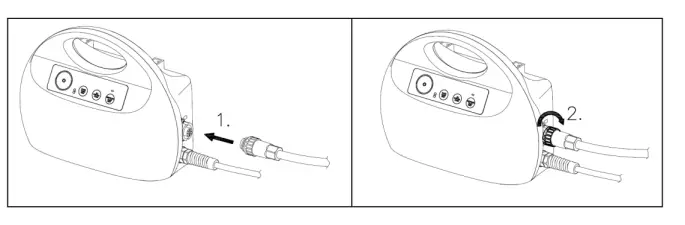

1. Connect floating power cord.

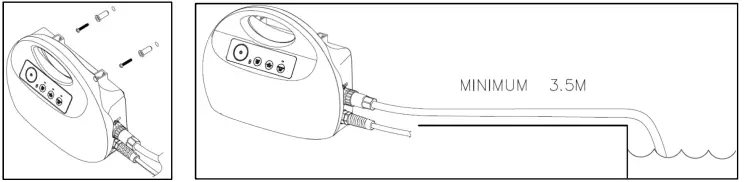

2. Position the power supply so that it is approximately in the middle of the long side of the pool at a distance of 3.5m /11.5ft.
3. Put the Pool Cleaner into the pool. Release the Pool Cleaner and let it sink to the floor of the pool. Make sure that the floating cable is free of any obstructions.
4. Turn the power supply ON ” 115V AC 60HZ# in the position $ One of the three modes light will be on. Press the button for the mode you want to run, then press ON/OFF button, the Pool Cleaner will now operate until it has reached the end of the cleaning cycle.
5. Mode switching: Press on/off button, choose the mode, press on/off button to start the cleaner.
6. Indicator lights%

Routine Maintenance

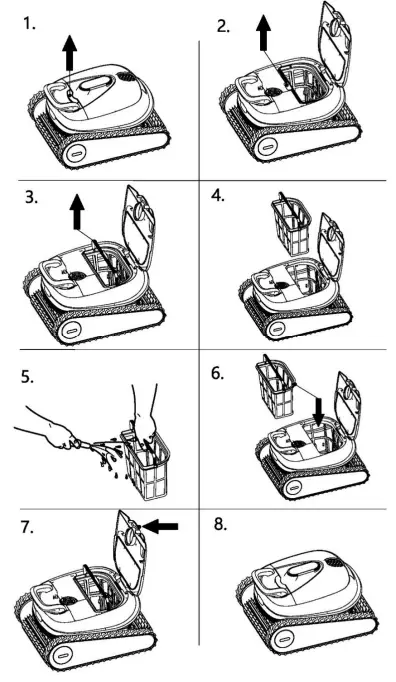

1. Clean the filter basket
   Turn off the Pool cleaner. Open the filter cover. Clean the filter basket with a hose. Insert the clean filter basket and close the filter cover. Make sure the power supply is switched off and unplugged.
   It is highly recommended to clean the filter basket after each cleaning cycle.
2. Use of filter paper coreThe filter paper core is a fragile part, which can filter particles below 5um, and its service life is less than 72 hours. (The filter paper core can be used without affecting the performance of the robot, and it is strongly recommended that the filter paper core be not used in the dirty swimming pool.)
3. Routine Maintenance of the floating cable
   The floating cable may get twisted after 8 hours of continuous work, please untwist the cable then before re-start the pool cleaner. After each use, roll up the cable so that it has no kinks.

Trouble shooting

Specifications
