Kingunion KU-5050RGB-60D-LC029E 185 5050RGB Hard Light Strip
Product Acknowledgment
Product name：5050RGB hard light strip
Product No.：KU-5050RGB-60D-LC029E 185 Customer Material No.: //
Supplier material No.：YZDT-2A1014-BB6X26 Version：A0
Effective date：2022/07/06 Product manager：
| Manufacturer | Customer Confirmation | |
| Draw up | Tang bowen |
|
| reviewer | Bai huiben | reviewer |
| Approval | Jiang chunhui | Approval |
（Both parties must sign and seal the acceptance letter after confirming that it is qualified）
Supplier address：Second Floor, No.1 Kaixinda Technology Park, No 49th Zhoushi Road,Langxin Community, Shiyan Town, Baoan District, Shenzhen City,Guangdong, China
Change Record
| Rev. | Description of Change | Changed Date | Handled by | |
| Version | Before | After | ||
| A0 | initial issue | 2022.7.6 | Tang bowen | |
Description of basic product parameters

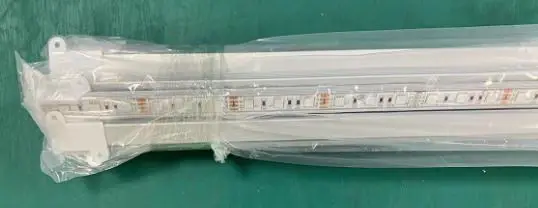

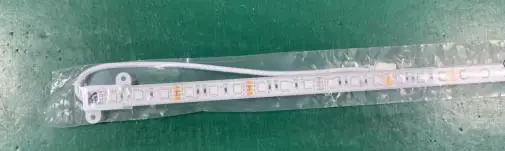

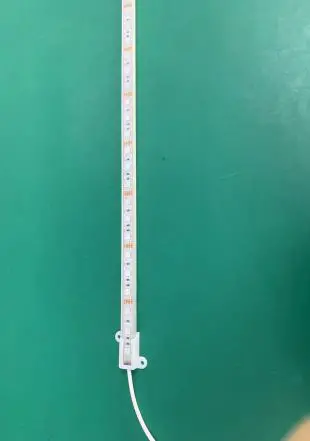

Picture Pictures are for reference only | Product name | 5050RGB hard light strip | ||||
| Product No. | KU-5050RGB-60D-LC029E 185 | |||||
| Item No. | YZDT-2A1014-BB6X26 | |||||
| Description | 12V 5050RGB 60led/m,111led/pcs,8.5W/M,0.5m double sided whiteboard 10MM,1.85m/pcs,a white 4PIN master terminal wire 23cm long at one end,LC-029E aluminum profile, surface drop filled with silicone gel, xanthan gum with 8 screws and 4 buckles | |||||
| Voltage rating | DC12V | |||||
| Nominal power per bar | 15.5W±10%（@RGB all on) | |||||
| Actual power per bar | 13.19W±10%（@RGB All on with power controller) | |||||
| Ambient temperature | -20℃~45℃ | |||||
| Each initial luminous flux | ≥300LM（@RGB All on with power controller） | |||||
| Initial photoactivity | ≥24LM/W（@RGB All on with power controller） | |||||
| Size | L1870*W13.7*H7mm±5mm | Spatial color inconsistency | / | |||
| Trichrome | wavelength nm | Colour temperature | Chromogenic index | Remarks | ||
| min. | max. | |||||
| R | 618 | 625 | / | / | / | |
| G | 520 | 530 | / | / | / | |
| B | 460 | 470 | / | / | / | |
| Beam angle | 120°±10° | Central light intensity | / | |||
| Nominal lifetime | / | Net weight | 5700g±10% | Gross weight | 6200g±10% | |
| Packing quantity | Set/box | Carton size | / | |||
| Certification | CCC/CQC □energy conservation explosion-proof □fire control other | |||||
| Executive standard |
| |||||

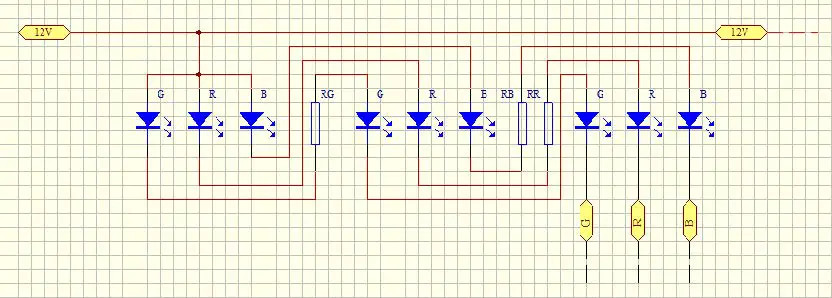

Product circuit diagrams
Schematic diagram of product dimensions, unit mm, for reference!

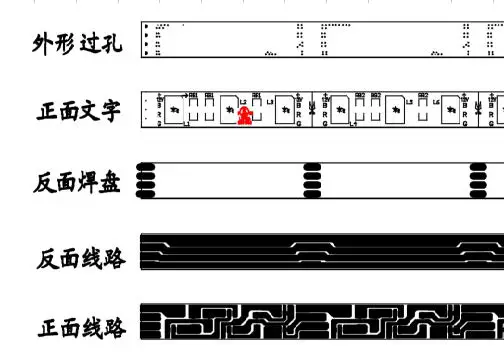

- FPCB:503*10mm
- Schematic diagram of light source arrangement
Material parameter/performance table
- Lamp bead parameter list
Item Symbol minimum typical maximum unit IF(RGB) / 3*20 3*30 mA direct voltage VF(R) 1.8 2.0 2.2 V VF(G) 2.8 3.0 3.2 V VF(B) 2.8 3.0 3.2 V wave length WD(R) 620 / 625 nm WD(G) 510 / 515 nm WD(B) 460 / 470 nm luminance IV(R) 0.8 / 1.2 Lm IV(G) 3.5 / 4.5 Lm IV(B) 0.7 / 1.2 Lm Beam angle Deg / 120 / ° Remarks: Test conditions: 60mA, 85 degrees junction temperature, 20ms pulse test - Light source panel parts list
No. Component Name specification parameters quantity 1 LED-RGB SMD5050-RGB Patch bead 5050RGB with notch positive / blue, bright, wavelength NM (R:618-625,G:520-530,B:460- 470),LV(R:0.8-1.5,G:3.5-5.5,B:0.7-1.3)，VF(R:1.8-
2.2V G:2.8-3.2V B:2.8-3.2V )。Copper support,(anti- breaking support, anti-vulcanization, can be used for dropping silica gel and silica gel extrusion)
111pcs/条
2 FPC board Circuit board, flexible 503*10mm 12V 5050 RGB 60 led/ M 10m wide double sided white board 2 oz L = 503mm 3L3R 1206 seal +BRG Model:KU-5050RGB-60D-12V
3.7pcs/条
3 SMD resistor 1206-G/B chip resistor 270 Ω precision ± 5% pack 1206 74pcs/条 4 SMD resistor 1206-R chip resistor 510 Ω accuracy ± 5%, encapsulating 1206 37pcs/条 - Other parts list
No. Component Name Specification Parameters Quantity 1 Aluminum profile LC-029E Aluminum profile L1460*W13.7*H7mm±5mm 111pcs/条 2 Plug LC-029E Plug Plug, matching with profile LC-029E 2pcs/条 3 Screw buckle screw 304 stainless steel screws，M3*10 8pcs/条 4 Dorsal gum Xanthan gum Double sided thermal conductive glue paper, yellow,10mm(9.7-9.9mm)wide/55M/roll 1.85米/条
5 4PINcommon terminal line 4PIN Female terminal +BRG/24#/4P/Line sequence “” black blue red green “” / outer cortex white circle line, maternal band line 230 mm long, caudal peeling tin 3MM
1pcs/条
6 Buckle LC-029E Buckle Buckle, matching with profile LC-029E 3pcs/条 7 PE bag Flat mouth PE bag Flat port PE bag, size: L*W=1910*40*0.05mm (lamp strip) 1pcs/条 8 PE bag Self sealing PE bag Self sealing PE bag,,Size：L*W=120*100*0.05MM, 100MM is the opening (screw mounting) 1pcs/条
Product packaging
- PE bag packaging ：1910*40*0.05mm
- Stretch film winding: 10 pieces per bundle

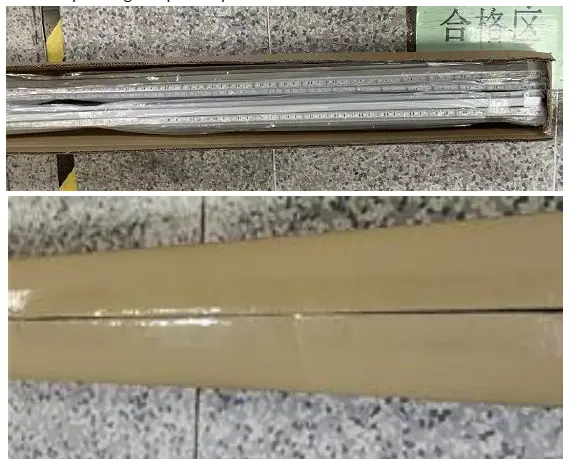

- Outer packing: 30 pieces per carton 1900*120*100mm
APP Download
Scan the QR code
iOS and Android systems can download the “LotusLantern” APP by scanning the QR code.
Open the browser or other tools with “Scan QR code” function, scan the “LotusLantern” QR code as below:
App Operation

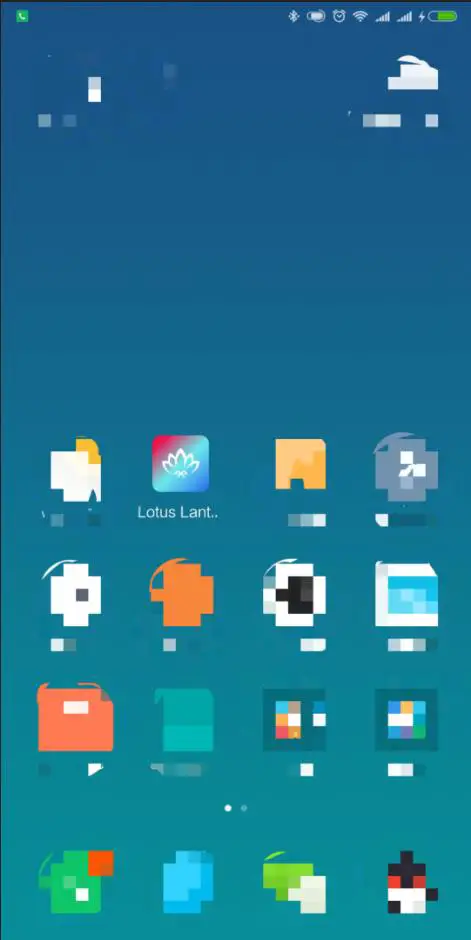

- Click on the LotusLantern APP icon, enter the APP page:
- After entering the APP interface, if Bluetooth is not enabled, “an application wants to enable the Bluetooth function of this device.” Click [Allow]

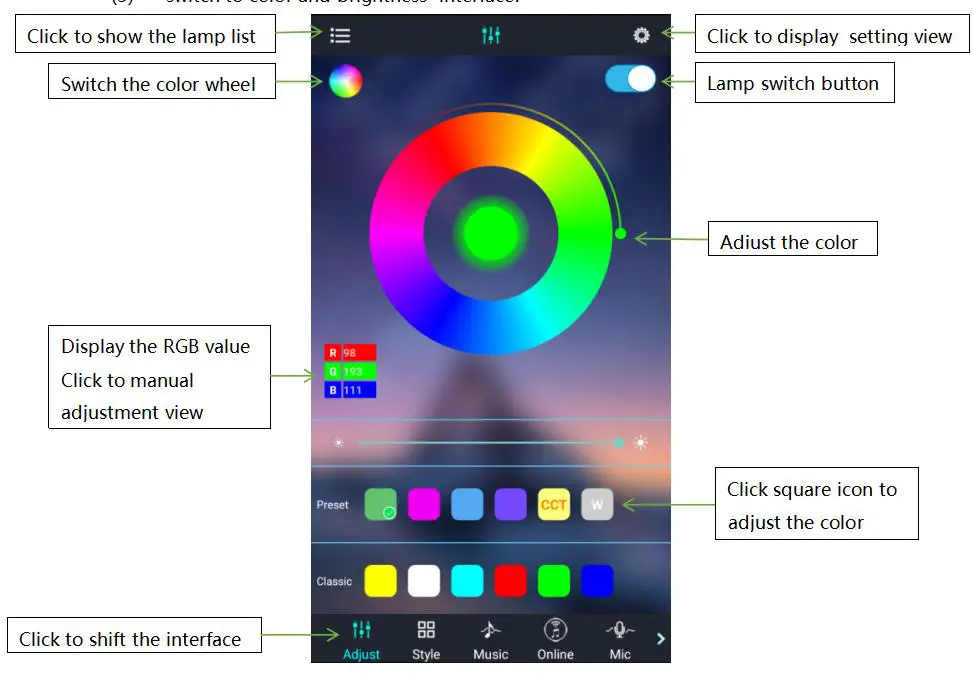

- Switch to color and brightness interface:
