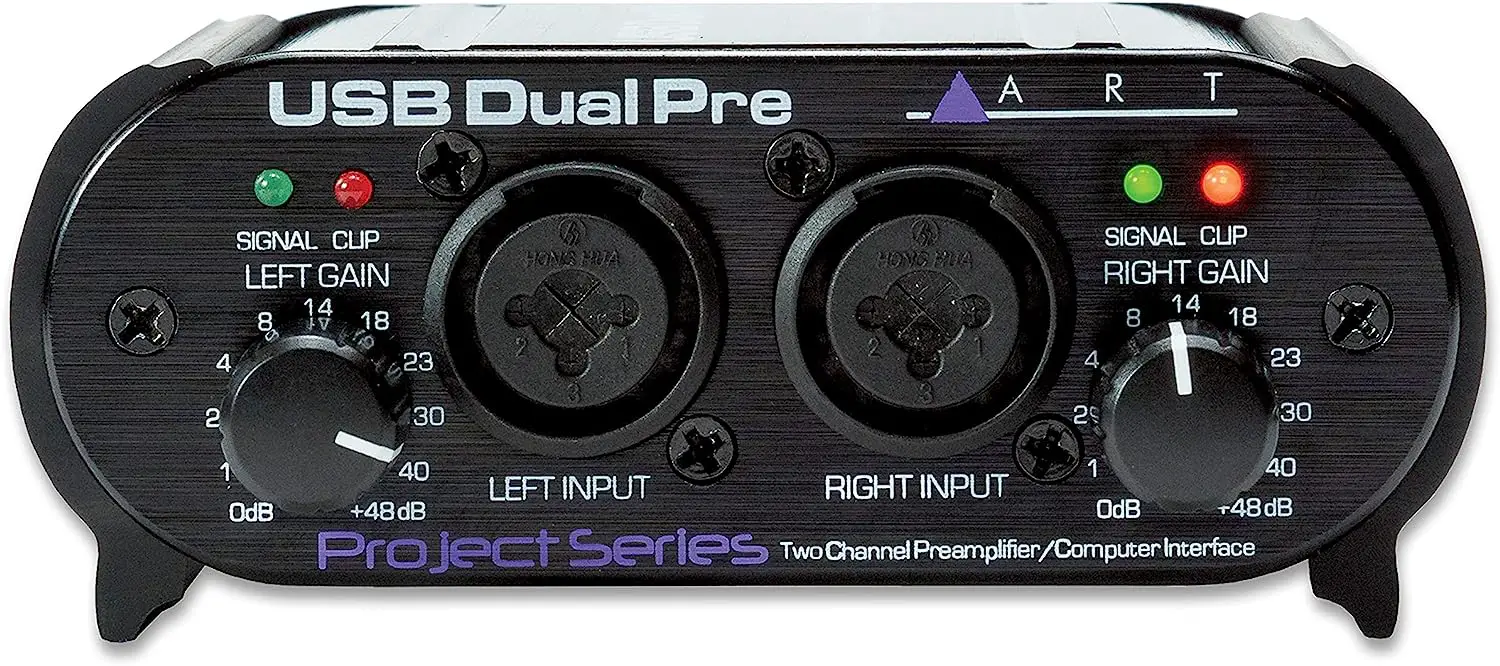

ART USBDUALPREPS Two Channel Preamplifier-Computer Interface
INTRODUCTION
ART is a collective of musicians, engineers, and music lovers who are passionate about recording. Since the company’s founding in 1984, one of our primary goals has been to break through the performance-to-cost barrier by developing a number of ground-breaking new audio devices that are tailored specifically to meet the requirements of musicians.
ART provides affordable audio solutions that deliver unmatched quality, tone, versatility, and dependability. These solutions include a full line of vacuum tube preamplifiers and compressors that offer unmatched warmth, tone, and character; innovative Graphic Equalizers that actually show you exactly where feedback may occur; and a full complement of cool little useful tools designed for stage and studio use. Customers all over the world have shown their devotion to ART by purchasing their items in venues as diverse as concert halls, nightclubs, arenas, recording studios, churches, rehearsal halls, and even basements and garages. Our long and illustrious history is a reflection of our genuine love of music and the creative process.
DESCRIPTION
- In a small, sturdy casing, the USB Dual Pre is a fully functional, high-quality dual portable preamplifier and computer interface.
- It is made to function with a wide range of applications, including desktop/studio tracking and remote field recording.
- The two low noise input channels each have a clean gain of up to 48 dB and signal presence and clip LED indications.
- Both 1/4-inch TRS and XLR balanced inputs are available. Each 1/4-inch TRS output is low impedance balanced and buffered.
- Pre-Project Series USB Dual Applications: The USB bus provides electricity to USB Dual Pre.
- Depending on the application, either the internal 9V battery or an optional external 12V power source (or any combination of USB, battery, & power supply) can be used.
- You should anticipate more than 50 hours of operation with phantom power off when running on battery alone.
- When phantom powering is activated, the battery life will decrease to around 20 hours (depending on the microphone), which is still long enough to complete a typical session.
- When operating from any power source, including the USB bus, the built-in low noise +48 Volt phantom power supply enables you to power up to 2 microphones as well as the preamplifier.
- Latency-free local monitoring of the inputs while recording as well as playback monitoring of the USB bus are both made possible by the 1/8-inch TRS tiny headphone jack with level and monitor mix controls on the back.
- Additionally, the monitor mix is sent to the 1/4-inch TRS balanced outputs.
- This enables you to use your powered monitors’ monitor feed or the 1/4-inch outputs as preamplifier outputs.
- Fully compliant with the USB 1.1 specification, using USB asynchronous mode for recording and USB adaptive mode for playback.
- works with computers running Apple OS 9.1/OS X and Windows 98SE/ME/2000/XP/Vista that have native USB support. No need for additional drivers
SPECIFICATIONS
- Brand: Art
- Compatible Devices: Laptop, Monitor, Personal Computer
- Connectivity Technology: USB
- Number of Channels: 2
- Item Dimensions LxWxH: 4.69 x 4.61 x 1.75 inches
- Item Weight: 13 ounces
- Product Dimensions: 4.69 x 4.61 x 1.75 inches
- Item model number: USBDUALPREPS
WHAT’S IN THE BOX
- Two-Channel Preamplifier-Computer Interface
- User Manual
PRODUCT USAGE
The ART USBDUALPREPS is a two-channel preamplifier and computer interface that was created to give users the ability to record high-quality music from a variety of different audio sources.
Its principal applications include the following:
- Recordings Sonoreuses:
When recording audio from microphones, instruments, and other line-level sources, the USBDUALPREPS is a typical piece of recording equipment utilized. It performs the function of a preamplifier, thereby amplifying the signal coming from various sources to a level that is appropriate for recording on a computer. - Recording in the Studio:
Home studios, project studios, and even professional recording setups will frequently make use of it in order to record vocals, acoustic instruments, electric guitars, and other types of audio sources. - Podcasting and Voice-Over:
The preamplifier-computer interface is ideal for voice-over work and podcasting because it delivers audio that is free of background noise and is easy to understand for both hosts and guests. - The Art of Producing Music:
Recording and producing music using USBDUALPREPS is possible for musicians and producers, and it allows for the creation of demos as well as full-fledged tracks by providing several inputs for a wide variety of instruments. - Recording in the Field:
Because of its portability, the USBDUALPREPS is well suited for usage in field recording applications, such as the recording of ambient noises or interviews while the user is on the move. - Streaming in Real Time:
Enhancing the audio quality of live broadcasts and online material can be accomplished with the help of USBDUALPREPS by content developers and live streamers. - The processing of sound:
Before the signal is input into recording software or digital audio workstations (DAWs), the preamplifier can be incorporated into an audio processing chain to amplify and improve the quality of the signal. - Recreational Activities at Home:
Connecting the USBDUALPREPS to a computer or media player, for example, is one way to improve the sound quality of a variety of audio sources in a home entertainment system. Other uses for this adapter include enhancing the overall sound experience. - Audio Monitoring:
During the process of recording or mixing music, you can use it as a headphone amplifier to monitor the sound.
FEATURES
- The USB bus provides the electricity for the USB Dual Pre. Depending on the application, either the internal 9 Volt battery or the optional external 12V power supply (or any combination of USB, battery, and power supply) can be utilized as the power source. It is reasonable to anticipate more than 50 hours of operation when using only the power provided by the battery and turning the phantom power off. When phantom powering is enabled, the microphone’s battery life will decrease to around 20 hours (depending on the microphone), which is still sufficient time to get through an ordinary recording session.
- When operating from any power source, including the USB bus, the built-in low noise +48 Volt phantom power supply enables you to power up to two microphones simultaneously in addition to the preamplifier.
- A 1/8-inch TRS tiny headphone connection on the rear panel, along with level and monitor mix settings, enables latency-free local monitoring of the inputs during recording, in addition to playback monitoring of the USB bus. In addition to this, the monitor mix is sent to the 1/4-inch TRS balanced outputs. Because of this, you are able to use the 1/4-inch outputs of the preamplifier in either the role of monitor feed to your powered monitors or as preamplifier outputs.
- Completely compliant with the USB 1.1 specification; when playing back, it employs the USB adaptive mode, and when recording, it uses the USB asynchronous mode.
- Compatible with the USB audio device drivers that are pre-installed on computers running Windows 98SE/ME/2000/XP/Vista and Apple OS9.1/OSX that have native USB capability.
- Compatibility with USB Ports on Desktop and Portable Computers
- Relatively Quiet XLR and 1/4-inch TRS Combi Inputs That Are Completely Balanced
- Built-in low noise phantom power supply and up to 48 dB of clean gain are both included.
- Mix and Level Controls That Are Latency-Free for Monitoring
- Independent Channel Gain Controls
- 1/8-inch Headphone Monitor Outputs in Addition to 1/4-inch TRS Balanced Monitor Outputs
- Comes included with the recording and production software Audacity
- Power Options from USB, an External Supply, or a 9 Volt Battery for Maximum Flexibility
- Comes with a USB Cable – You Have Everything You Need to Start Recording Right Away!
