SR-610A Ear hung Walkie Talkie
User Manual
SR-610A Ear hung Walkie Talkie
© CAUTION:
This Walkie-Talkie is the product with excellent design and advanced technology. The following suggestions will help you fulfill your obligations under warranty terms and understand the safety knowledge of using walkie-talkie.
- Don’t try to disassemble the walkie-talkie. Unauthorized disassemble may cause damage to the walkie-talkie.
- This machine can use universal qualified mobile phone charger(5V).
- Don’t expose the machine to sun for a long time or put it on a overheated place.
- Don’t place it in a dusty or damp place.
- Don’t use strong chemicals, cleaning agents or strong lotions to clean walkie-talkie.
- If it is found to emit peculiar smell or smoke, place it on the open ground to avoid injury, and contact the distributer in time.
- Don’t use the machine inflammable, explosive or other place where walkie-talkie is prohibited.
- In order to obtain the best communication performance, it is recommended that least distance between walkie-talkies is 2 meters.
- Please abide the local wireless management regulations, Contact with the distributor if you have any questions.
- This radio is designed for and classified as “General population/uncontrolled Use” and Personal Radio Service.
- The separation distance between user and the device or its antenna shall be at least 2.5 cm.
- The highest reported SAR values for Face-held, body-worn are 0.26W/Kg, 0.65 W/Kg.
Checklist:
Open the package carefully, check the product and accessories according to the following list: Please conduct your distributor immediately if any damaged or missing happened!
| NO. | Item | QTY |
| 1 | Walkie-talkie | 1 |
| 2 | Charger | 1 |
| 3 | Charging line | t |

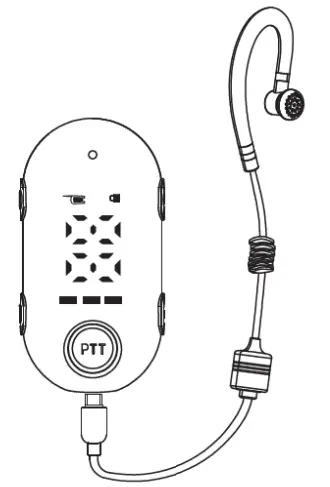

| 4 | Earphone(Antenna) | 1 |
| 5 | User manual | 1 |
Function & Description:
| Function | Description | Remark |
| Channel | Up to 22 channels | customized |
| CTCSS/DCS | Normal : 38 CTCSS+61CDCSS Professional: 50CTCSS+105CDCSS | Can be adjusted in normal mode only. Professional is default mode. |
| Volume | Receiving volume | 1-8 |
| Battery saving | Extending standby time |
LED icon
| Icon | Name | Description |
 | Channel// Volume level | Displaying channel while Transmitting/ Receiving |
 | Battery meter | The more lattice there are, the more electricity there is. |
 | Transmitting/ Receiving | The Green led is lighted on while receiving signal. The Red led is lighted on while transmitting signal. |
 | Lock indicator | The light is on while key is locked up. |
Part Description:

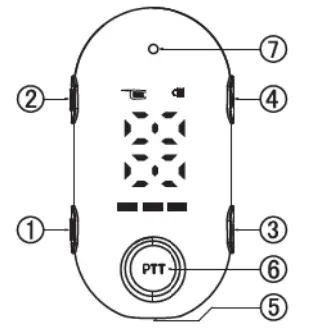

| No. | Name | Description |
| 0 | Power | Turn On: Press the key for 3 seconds in power off mode. Turn Off: Press the key for 3 seconds in power on mode. |
| (:) | P key | Press P key for 3 seconds to release the key lock. |
| e | + (UP key) | 1.Please lock off the key first, then press the key shortly to enter the setting mode to change the channel, Press the key lonely to enter the setting mode to change the volume. 2.In the setting mode, press the key to increase channel/volume. |
| ® | — mows key) | 1.Please lock off the key first, then press the key shortly to enter the setting mode to change the channel, Press the key lonely to enter the setting mode to change the volume. 2.In the setting mode, press the key to decrease channel/volume. |
| ra w | TYPE-C Socket | Multi-function interface, charge, Earphone and program. |
| ® | PTT | Push to Talk key |
| 8 | Micro phone | Built in Microphone |
Operation Guide
- Power On/Off
Keep pressing Power key about 2 seconds, “Di-“will be sounded and LED will be lighted on, the machine entered in standby mode. Such as the following illustration:
Keep pressing Power key about 2 seconds, “Di-“will be sounded and LED will be lighted off, and the machine enters power off mode. - Channel Setting
In Standby mode, Press “+”/”-” key shortly, . The led will display “CH” about I second, then the digit (“2′) will Blink, Press “+” r–“key repeatedly to adjust to desired channel, Press “PTT” key to save the information and exit.. - CTCSS/DCS setting
In order to prevent disoperation, the CTCSS/DCS of each channel is set to 67 Hz when the walkie talkie is manufactured. The CTCSS/DCS menu operation is no longer displayed on the equipment. If the CTCSS/DCS needs to be changed, - Volume Setting
In Standby mode, Press -=r-” key lonely, . The led will display “VL” about I second, then the digit (“5”) will Blink, Press “+” /”-“key repeatedly to adjust to desired volume, Press “PTT” key to save the information and exit..
- Key lock setting
Auto Lock: The key will be locked automatically when no key is pressed for about 38 seconds. Lock key: Press “P” key about 3 seconds and ”
” icon will be turned on, the other keys are ignored except power key and PTT.
Lock off: Press “P” key about 3 seconds and”” icon will be turned off, the keys are back to active. - PTT prohibited while Signal received
This function was set to on/off by PC programming. If this function is active,we cannot transmitting voice while receiving the signals. If the channel is free,we can send the voice normally and “Di-” tone will heard. If the channel is busy,we cannot send the voice normally and “Di-Di-” tone will be heard, then wait a moment and try again. - Normal/Professional mode setting(Default mode:Professional) The computer can be programmed to set the machine to normal / professional mode CTCSS/DCS can be set to 1-99 group by keys in normal mode.
Keep pressing Power key about 2 seconds, “Di-“will be sounded and LED will be lighted off, and the machine enters power off mode.
Battery Information:
■ Charge note
Please charge the walkie talkie when battery low. Battery meter will roll while charging. The rolling meter will be stopped when the battery is full.
