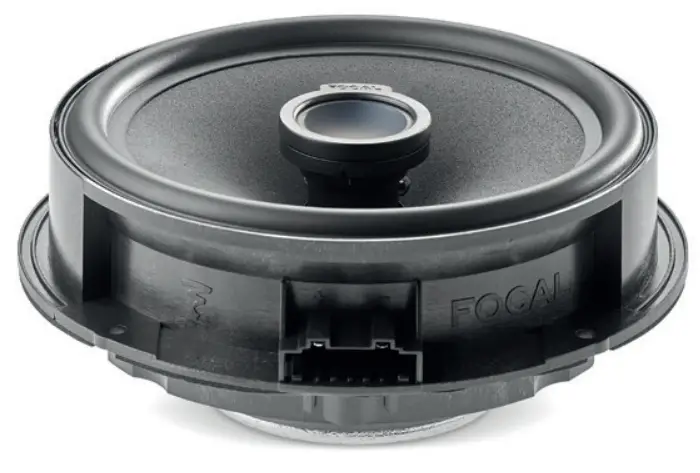

IC VW 165
Product Data Sheet

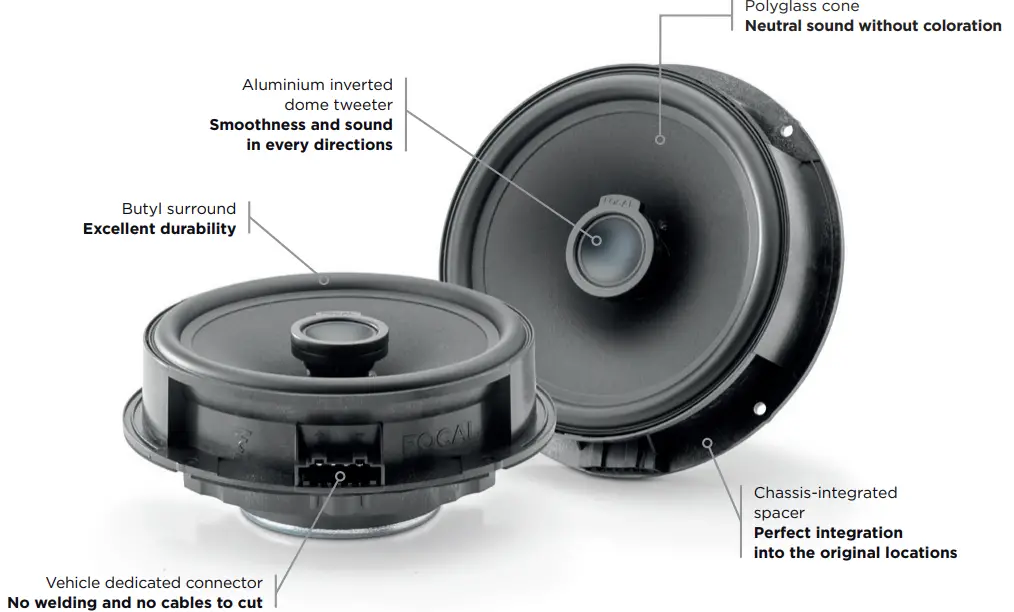

The IC VW 165 2-way coaxial kit is designed for all drivers who wish to replace their original audio system with a quality sound solution. The speaker drivers employ Polyglass technology, which delivers well-defined midrange and bass. The Aluminium inverted dome tweeter, a Focal technology, provides perfect treble reproduction.
Key Points
- Quick and easy install
- No modifications needed on the vehicle
- Invisible integration
- Increased sound quality
- No additional accessories required
Check your car compatibility at www.focal-inside.com
[Volkswagen®: Golf 6, Passat, Polo, New Beetle, Tiguan I…] Check online your vehicle compatibility.
| Type | 2-way coaxial kit |
| Woofer | 165mm |
| Tweeter | Aluminium inverted dome |
| Voice coil diameter | 1″ (25mm) |
| Voice coil height | 1/2″ |
| Magnet | Ferrite |
| Cone | Polyglass |
| Suspension | Butyl |
| Impedance | 2Ω |
| Max. power | 120W |
| Nom. power | 60W RMS |
| Sensitivity (2.83V/1m) | 93.7dB |
| Frequency response | 60Hz-20kHz |
| Crossover | Integrated Crossover |
Technical Sheet
Coaxial speaker

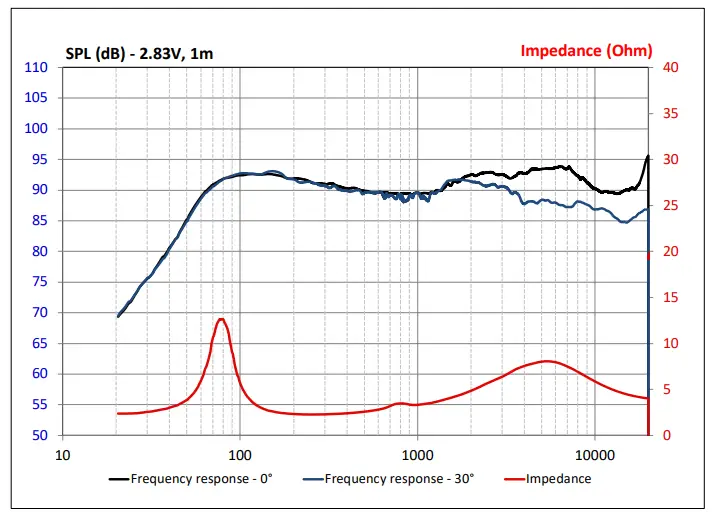

FREQUENCY RESPONSE/IMPEDANCE

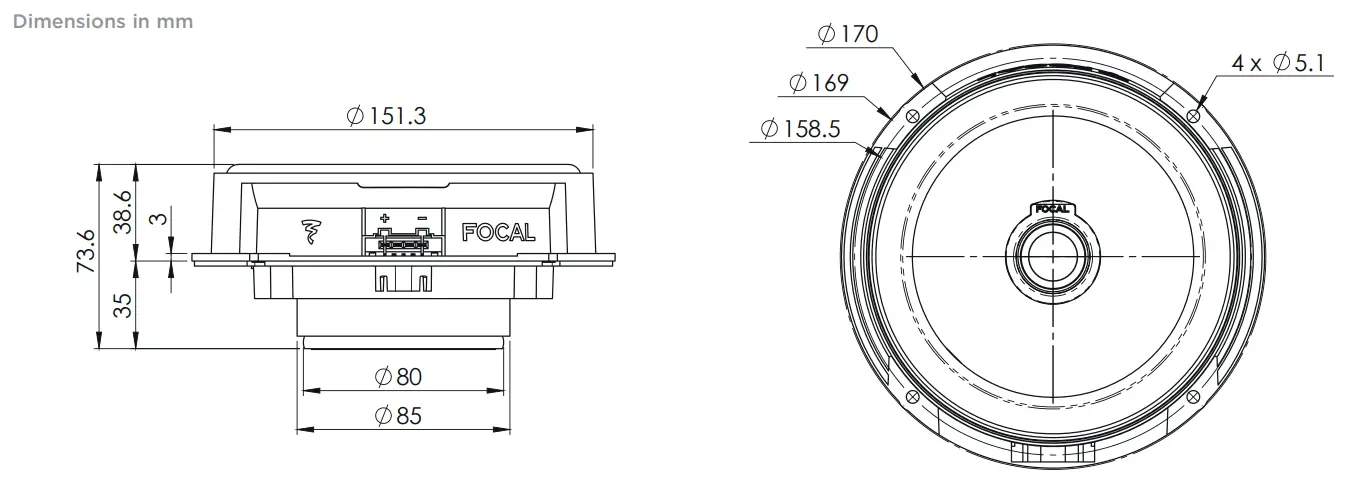

MECHANICAL DRAWING
SPECIFICATIONS
| Nominal power | 60W | |
| Maximum power | 120W | |
| Sensitivity | 93.7dB | |
| Nom. impedance | 2 Ω | |
| Cone | Black Polyglass | |
| Surround | Butyl | |
| DC resistance | 2.07 Ω | |
| VC diameter | 25mm | 1″ |
| Former | Kapton | |
| Layers | 2 | |
| Wire | Copper | |
| Net weight | 900g | 1.98 lbs |
PARAMETERS
| Rdc | 2.07 Ω |
| Fs | 77.1Hz |
| Mms | 16.53g |
| Cms | 0.258mm/N |
| Vas | 6.82 l |
| Qts | 0.776 |
| Qes | 0.894 |
| Qms | 5.841 |
| Bxl | 4.32N/A |
| Sd | 136.85cm² |
| SPL | 87.7dB |
| Xmax | 7mm |
Focal® is a trademark of Focal-JMLab® 169 – www.focal.com – SCCG – 09/11/2020 – v1
