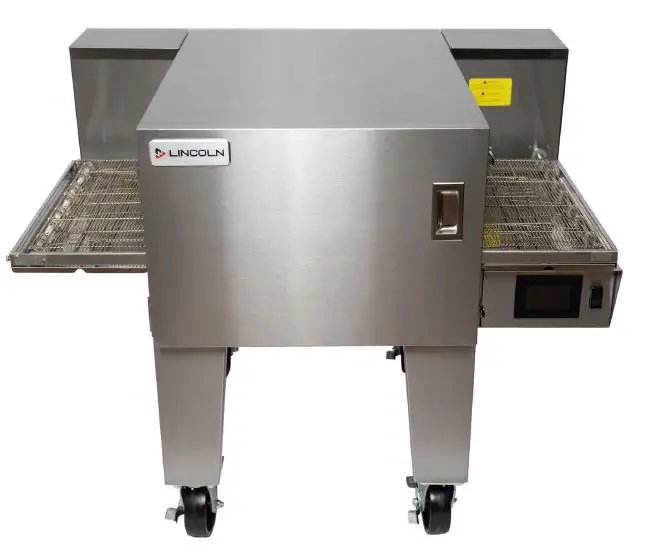

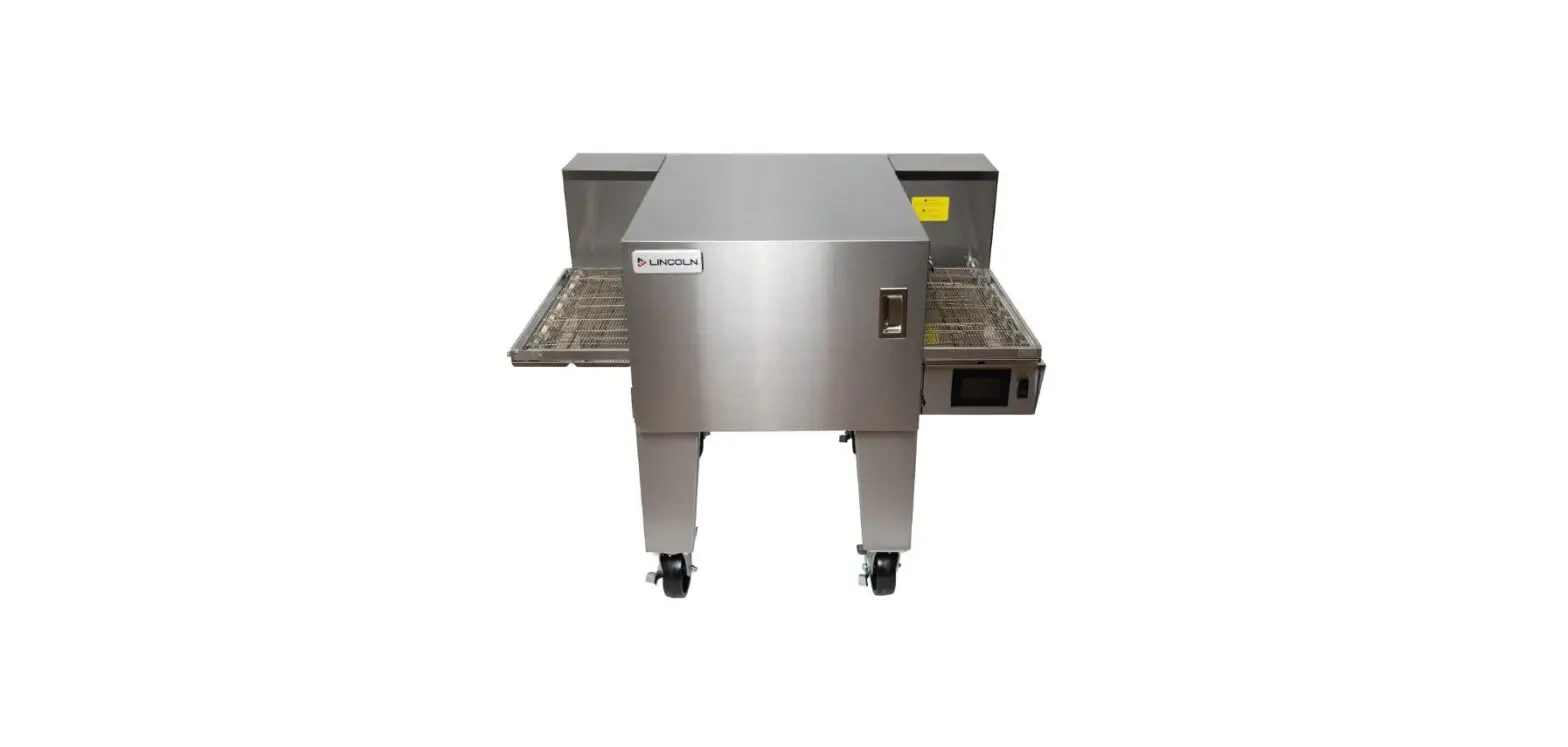

Lincoln Aperion 24 Impinger Conveyor Oven

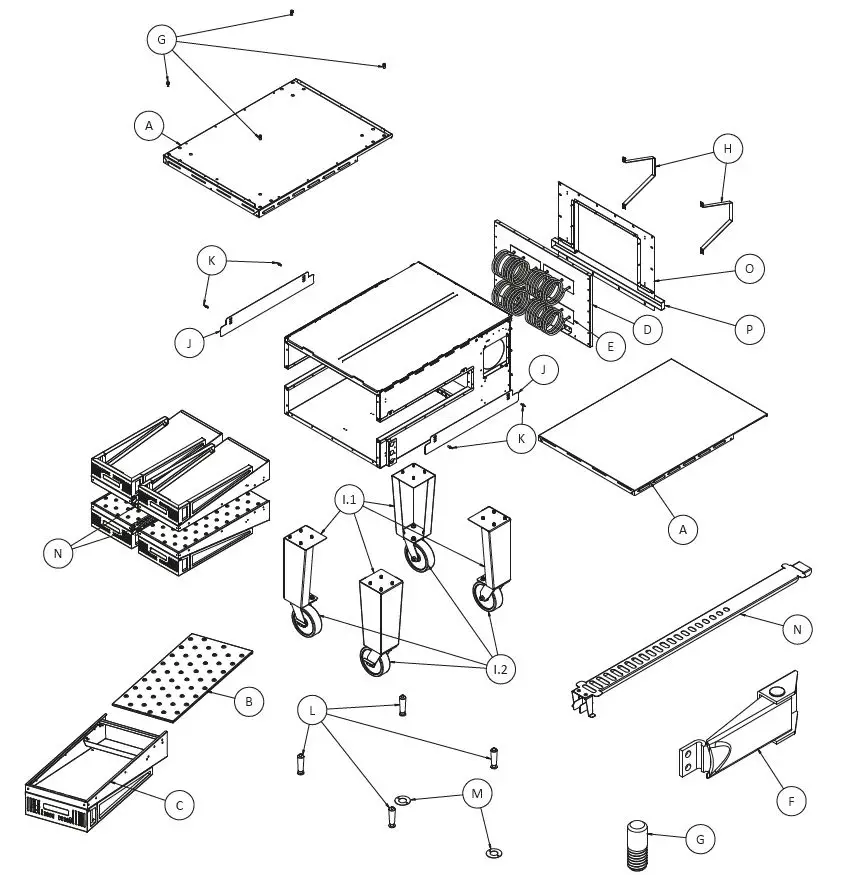

MAIN CAVITY

LETTER	PART NUMBER	DESCRIPTION	CRITICAL / RECOMM.
A	CK4606201	TOP COVER – STACKING KIT (STACKING COVER OPTION)
A	4604978	CAVITY TOP COVER GM (SINGLE OR TOP COVER OPTION)
B	4604975	FINGER JET PLATE
C	CK4605326	FINGER HOUSING ASSEMBLY
D	4605002	BACK PANEL
E	4605710	ELEMENT
F	369501	LATCH & CATCH
G	4606203	PARTIAL THREADED ROD 3/8-16 X 1 LONG
H	4607863	STANDOFF, REAR WALL
I.1	369328	LEG
I.2	369030	CASTER
J	4605382	BAFFLE
K	369211	THUMB SCREW
L	369461	LEG, 4 INCH
M	369451	MOUNTING RING (2 RINGS AND HARDWARE)
N	4606343	CENTER AIR RETURN BRACKET ASSEMBLY
O	CK4605538	REAR COVER ASSEMBLY
P	4605264	REAR COVER WIRE CHANNEL

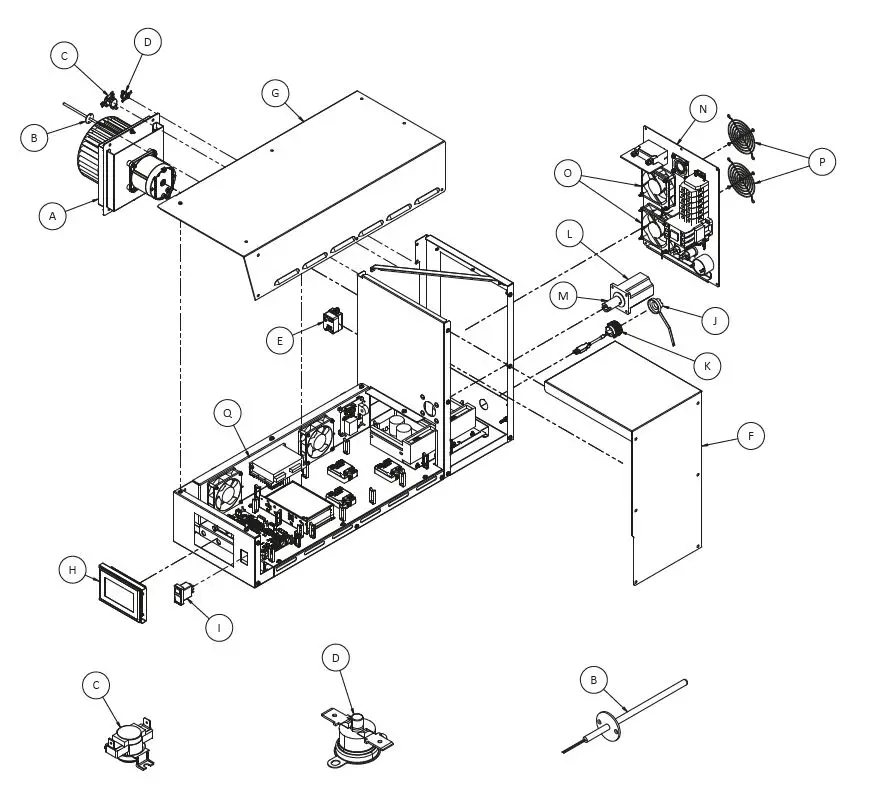

RIGHT CONTROL BOX

LETTER	PART NUMBER	DESCRIPTION	CRITICAL / RECOMM.
A	CK4605340	FAN MOTOR ASSEMBLY
B	4603578	THERMOCOUPLE
C	369507	THERMOSTAT BI-METAL
D	4605622	THERMAL DISCONNECT
E	4607695	HIGH LIMIT THERMOSTAT CAPILLARY
F	4605019	COVER, SIDE, CORNER, CTRL BOX
G	4604977	COVER, L-SHAPE, CTRL ELEC BOX
H	4605882	COMMON 4.3″ UI, ASSEMBLY
I	4600614	MAIN POWER SWITCH
J	4532043	USB SEALING CAP
K	4532040	USB PANEL MOUNT
L	4604754	CONVEYOR MOTOR
M	CK4605921	COUPLING SLEEVE
N	SEE SERVICE PANEL PAGE 8	SERVICE PANEL ASSEMBLY
O	4604746	COOLING FAN, 24VDC
P	4604757	FAN GUARD
Q	SEE COMPONENT PANEL PAGE 10	COMPONENT PANEL ASSEMBLY
NOT SHOWN	4605293	CONTROL BOX WIRING HARNESS
NOT SHOWN	4605294	RIGHT TOWER WIRING HARNESS (BACK HARNESS)
NOT SHOWN	4605295	REAR WALL WIRING HARNESS
NOT SHOWN”	4607498	ETHERNET PATCH CORD (UI TO I/O BOARD)
NOT SHOWN	4607876	USB EXTENSION

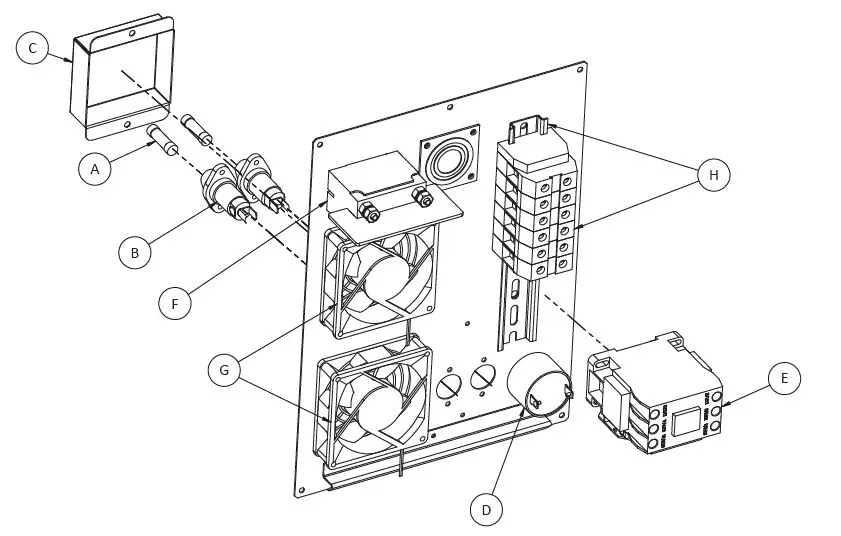

SERVICE PANEL

LETTER	PART NUMBER	DESCRIPTION	CRITICAL / RECOMM.
A	369166	FUSE, 10 AMP CARTRIDGE
B	369129	FUSE HOLDER 15A 300V
C	10001365	COVER FUSE 2′ OVEN
D	369579	ALARM, 240V
E	370739	CONTACTOR, DCTI
F	2688801	CIRCUIT BREAKER 2 POLE 30A
G	4604746	COOLING FAN, 24DC
H	2694800	TERMINAL BLOCK

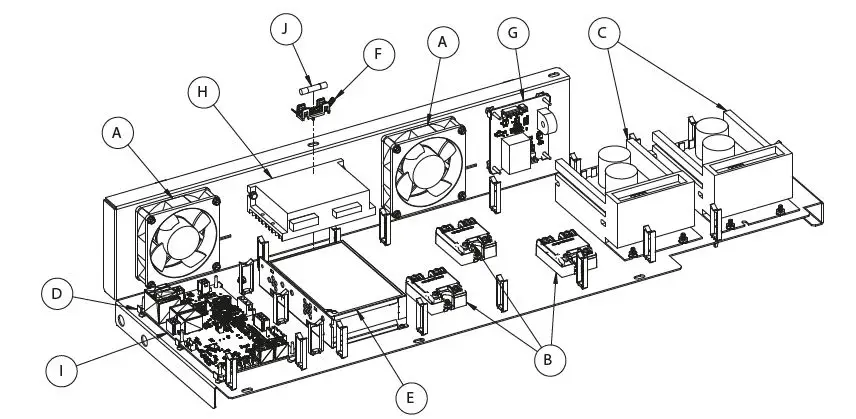

COMPONENT PANEL

LETTER	PART NUMBER	DESCRIPTION	CRITICAL / RECOMM.
A	4604746	COOLING FAN, 24VDC, 2424
B	4605506	SSR, 50A, 1 POLE
C	4605923	BLOWER MOTOR DRIVER
D	369856	STANDOFF, MALE SNAP-IN
E	4604751	POWER SUPPLY
F	2320700	FUSE BLOCK, 20A 600V, CHASSIS MOUNT
G	4604369	DUAL VOLTAGE CONTROL BOARD
H	4606821	MOTOR DRIVER, CONVEYOR
I	CK4607663	I/O BOARD LINCOLN
J	4606033	FUSE, 4A 600V
NOT SHOWN	4607696	BLOWER MOTOR CHOKE

LEFT CONTROL BOX

LETTER	PART NUMBER	DESCRIPTION	CRITICAL / RECOMM.
A	4606217	COVER, SIDE, CORNER, CONTROL BOX
B	4604746	COOLING FAN, 24VDC
C	4604757	GUARD, FAN
D	CK4605340	FAN MOTOR ASSEMBLY
E	4605622	THERMAL DISCONNECT
F	4603578	THERMOCOUPLE

DOOR ASSEMBLY

LETTER	PART NUMBER	DESCRIPTION	CRITICAL / RECOMM.
A	CK4605377	COVER, OUTER DOOR (INCLUDES A.1 AND A2)
A.1	08108	HANDLE DOOR LIFTOFF SST WITH #10 NUTS
A.2	370016	NAMEPLATE IMPINGER
B	CK4605374	DOOR SUB-ASSEMBLY
C	4605861	DOOR HINGE 2424
D	8003128	#10-24 X 1/2IN PHILLIPS

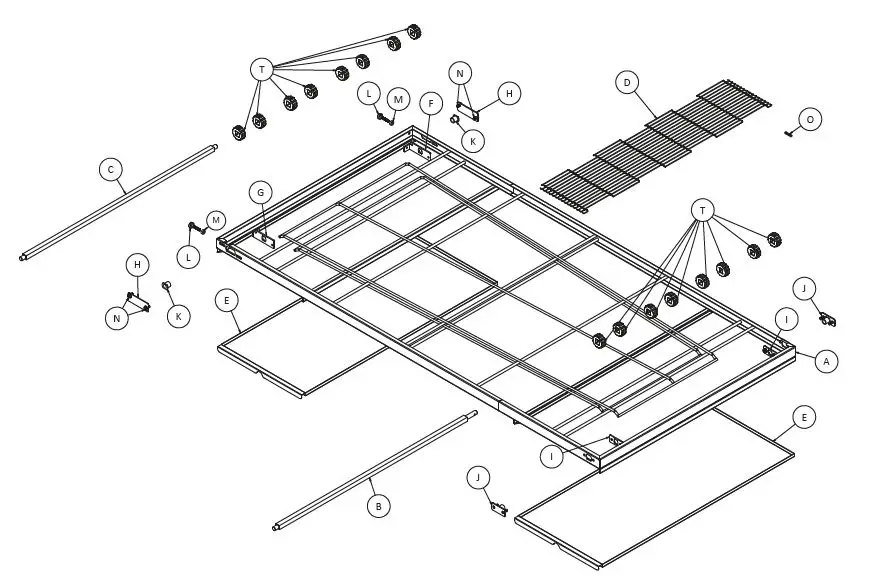

CONVEYOR ASSEMBLY

LETTER	PART NUMBER	DESCRIPTION	CRITICAL / RECOMM.
	CK4605743	COMPLETE CONVEYOR ASSEMBLY
A	4605386	FRAME ASSY
B	4605747	DRIVE SHAFT
C	4605748	IDLE SHAFT
D	4605744	BELT, CONVEYOR
E	4605384	CRUMB TRAY
F	4605920	BRACKET ADJ LH
G	4605757	BRACKET ADJ RH
H	4605756	COVER PLATE IDLE SHAFT
I	4605753	PLATE BUSHING DRIVE SHAFT
J	4605749	STUDS PLATE W/HOLES
K	4605752	FLANGED SLEEVE BEARING MODIFIED
L	4605754	10-32 X 1 KNURLED HEAD THUMB SCREW SS
M	4605755	SPACER
N	4605772	10-32 X 3/8 FLANGE SCREW
O	4605773	SLOTTED SPRING PIN

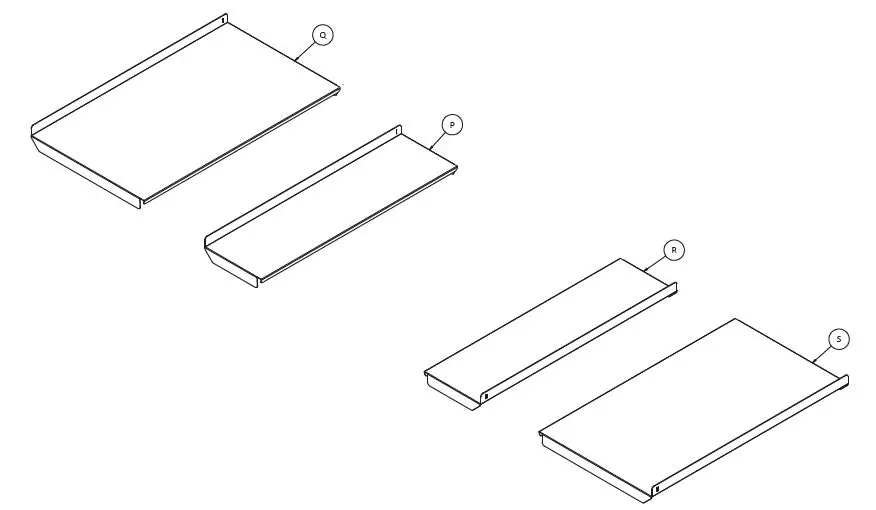

P	4605442	TRAY LOADING SHORT
Q	4605441	TRAY LOADING LONG
R	4605444	TRAY OFFLOADING SHORT
S	4605443	TRAY OFFLOADING LONG
T	369515	SPROCKET 12 TOOTH
NOT SHOWN	4608265	SPLICE CLIP, .050 DIA WIRE
