Itron IMRC-EXT – Vehicle Antenna

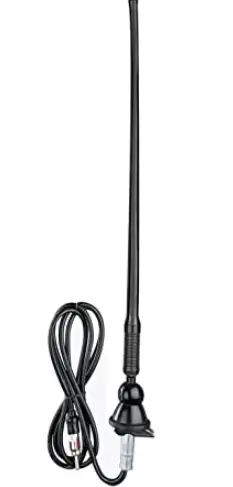

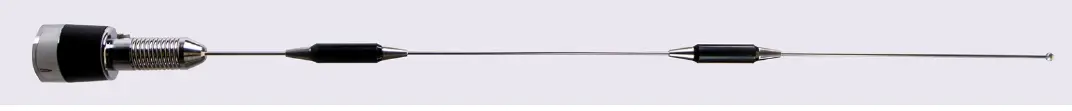

IMRC-EXT – Vehicle Antenna
- 908-958 MHz, 5dBi gain, Omni directional, Vertical polarization, 26.5” long
a. IMRC-EXT – Vehicle Antenna mount

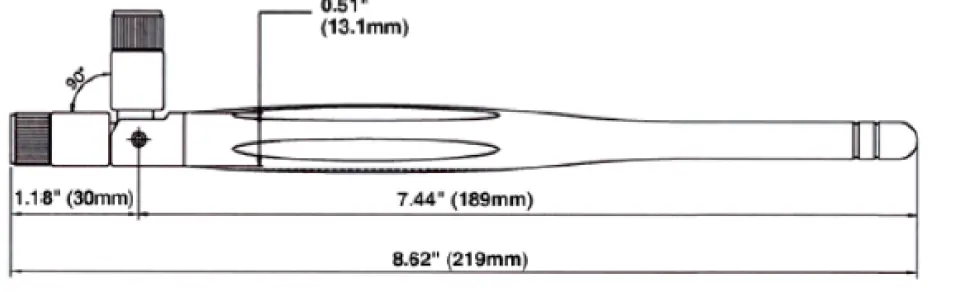

IMRC-EXT – Rubber Duck, 915 MHz
- 860-960MHz, 3dBi gain, Omni directional

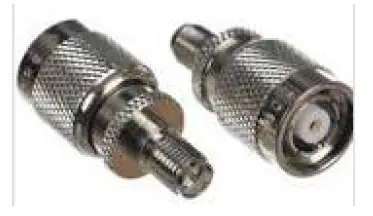

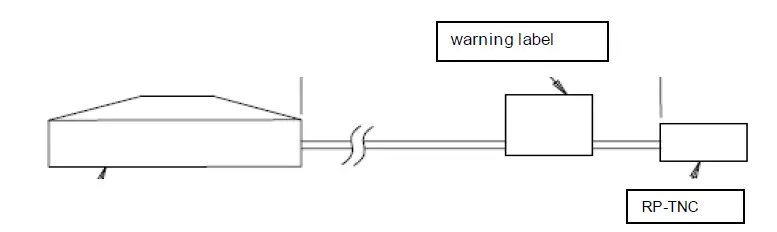

- Standard RP-SMA Jack to RP-TNC Plug
IMRC-EXT and IMR-INT – 2400 MHz
- On internal module PAN1326, contained in the IMR: FCC ID: T7V1316 / IC: 216Q-1316 Frequency Band: 2.4 GHz Type: Chip Gain (dBi): +0.9

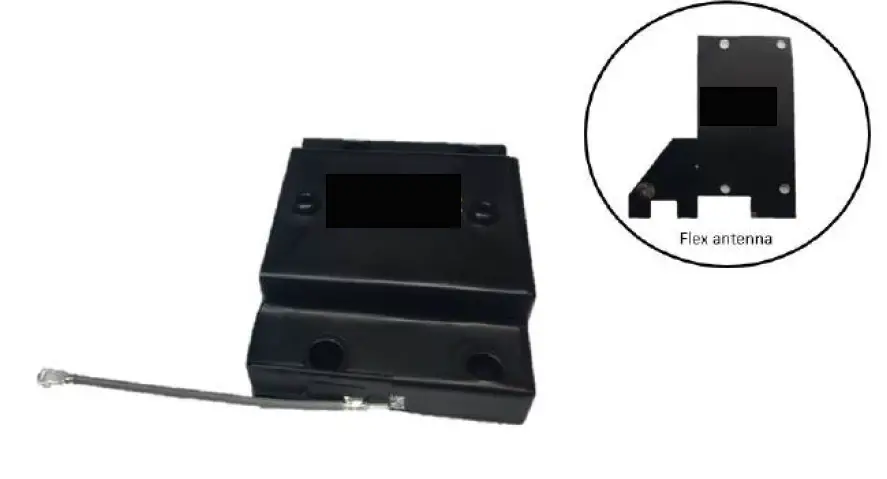

IMRC-INT – ISM/MAS bands
- Custom antenna, 902-958 MHz,
Internal to IMRC, directional, 1.2 dBi gain ISM band and 2.0 dBi gain MAS band
