Rubber Duck 915 MHz User Manual
FCC ID: E09IMRC – Antennas

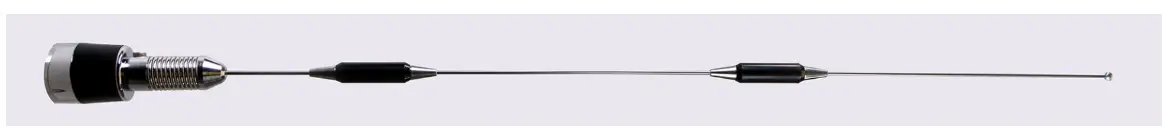

IMRC-EXT – Vehicle Antenna
| 908-958 MHz | 5dBi gain | Omni directional | Vertical polarization | 26.5” long |

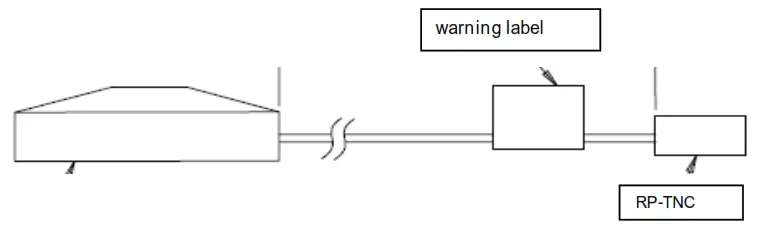

IMRC-EXT – Vehicle Antenna mount

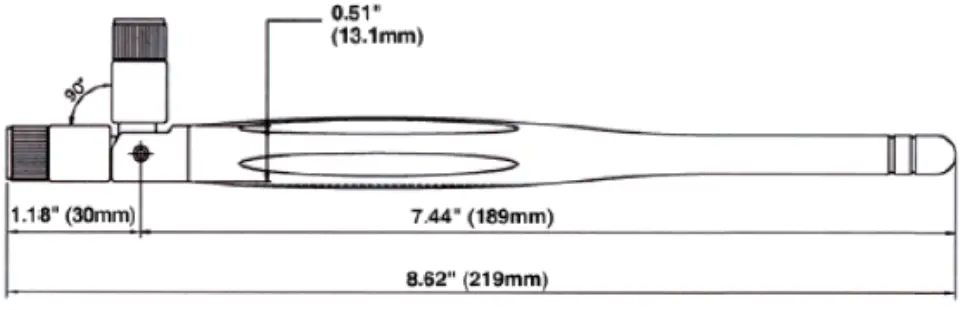

| IMRC-EXT | Rubber Duck | 915 MHz |
| 60-960MHz | 3dBi gain | Omni directional |

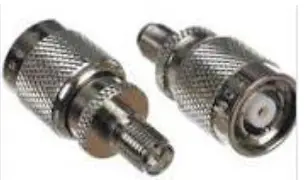

Standard RP-SMA Jack to RP-TNC Plug
MRC-EXT and IMR-INT 2400 MHz
On internal module PAN1326 contained in the IMR: FCC ID : T7V1316 / IC: 216Q-1316 Frequency Band: 2.4 GHz Type: Chip Gain (dBi): +0.9
IMRC-INT – ISM/MAS bands
Custom antenna, 902-958 MHz, Internal to IMRC, directional, 1.2 dBi gain ISM band and 2.0 dBi gain MAS band
