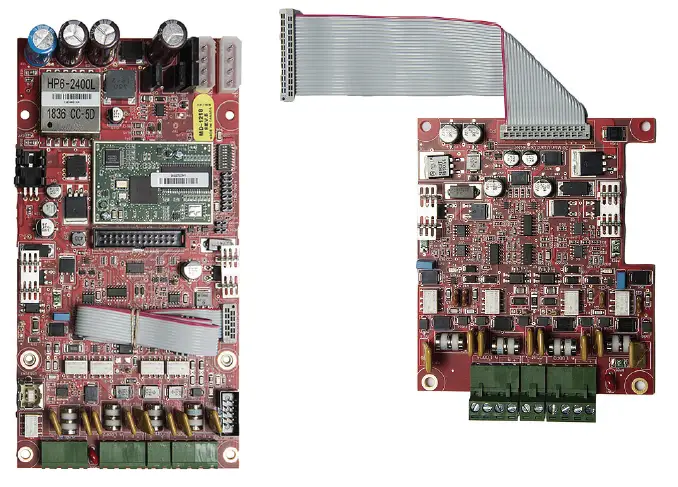

MGC ALCN-960MISO Quad Loop Adder Mother and Daughter Board

Description

The ALCN-960MISO Quad Loop Adder mother board and the ALCN-960D daughter board are components of the FleX-Net system that allows MIX-4000 series devices to be added to the project. The ALCN-960MISO/ALCN-960D connect on the internal bus and mount within the main panel enclosure. The SLCs may be configured for Class A or Class B wiring without the need for any additional modules Power is provided by the FleX-Net main board.

Features

ALCN-960MISO allows for two (2) SLCs ofMIX-4000 series devices to be connected to the FleX-Net panel.
ALCN-960D can be connected to ALCN-960MISOto add an additional two (2) SLCs using only one(1)internal bus address.
Any combination of MIX-4000 series devices upto 240 can be connected on a single SLC.
Up to seven (7) ALCN-960MISO and seven (7) ALCN-960D can connected on a FleX-Net panel.

Notes

All circuits are power limited and must use type FPL, FPLR, or FPLP power limited cable.
For more information, refer to wiring instructions inthe Network Fire Alarm Manual LT-894. Wiringis identical to that provided for ALCN-792M /ALCN-792MISO and ALCN-792D.

Ordering Information

Model	Description
ALCN-960MISO	Quad Loop Adder Module
ALCN-960D	Daughter Board

Electrical Ratings

ALCN-960MISO with ALCN-960D

Power limited:
24 VDC, 400mA MAX, 10kHz frequency
MAX loop resistance 40 ohms
Current Consumption:
Standby:	200 mA
Alarm:	213 mA

Canada
25 Interchange Way Vaughan, ON L4K 5W3 Telephone: (905) 660-4655 | Fax: (905) 660-4113
U.S.A.
4575 Witmer Industrial Estates Niagara Falls, NY 14305 Toll Free: (888) 660-4655 | Fax Toll Free: (888) 660-4113
www.mircom.com

THIS INFORMATION IS FOR MARKETING PURPOSES ONLY AND NOT INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY.
For complete and accurate technical information relating to performance, installation, testing and certification, refer to technical literature. This document contains intellectual property of Mircom. The information is subject to change by Mircom without notice. Mircom does not represent or warrant correctness or completeness.
