Instruction Manual
FEATURES AND BENEFITS
Covering all growing stage including Genetics. orcioagatIon, vegetation and flowering. Large luminous area uniform PPFD distribution. Hollow design have better airflow and great heat dissoation,IP65 waterproof,E TUCE certification
SPECIFICATIONS
| Light Source | LED |
| Spectrum | FSA/FSB |
| Efficacy | 2.3-2.6 pmol/J |
| Input Voltage | Auto sensing 120-277V,347V,480V |
| Waterproof | IP65 |
| Thermal Management | Passive |
| Ambient temperature range | 41-104°95-40°C) |
| Dimming | Linearly 0-10V Dims to off |
| Light Distribution | 120° |
| Lifetime | L70: >50,000hr s |
| Power Factor | > 90% |
| Certifications | UL&DLC |
| Warranty | 5 years standard Limited |
NOMINAL AMPERAGE BY AC INPUT VOLTAGE
| VOLTAGE | 120V | 208V | 240V | 277V | 347V |
| GLO3 320W | 2. 66A | 1. 53A | 1. 33A | 1. 15A | 0. 85A |
| GLO3 640W | 5. 33A | 3.07A | 2. 66A | 2. 31A | 1. 84A |
| GLO3 420W | 3. 49A | 2. 01A | 1. 74A | 1. 51A | 1. 21A |
| GLO3 840W | 6. 99A | 4. 03A | 3. 49A | 3. 03A | 2.42A |

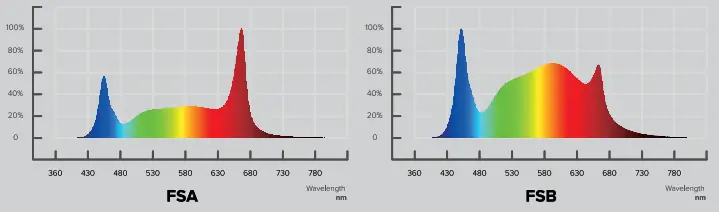

SPECTRA
Measurements of Normalized Photosynthetic Photon Flux
DIMENSIONS
| FAMILY | MODEL | SPECTRUM | INPUT VOLTAGE | AC POWER CORD |
| GLO3 | GL03 320W GL03 420W GL03 640W GL03 840W | FSA/FSB FSA/FSB | 120-277V 120-277V | 8. 2ft (2. 5m) |
| AC PLUG TYPE | DC EXTENSION CORD | OUNTING HARDWARE |
| N5 NEMA 5-15p N6 NEMA 6-15P N7 NEMA L7-15P | 8.2 ft (2.5m) | 2-Point Hanging Lances |

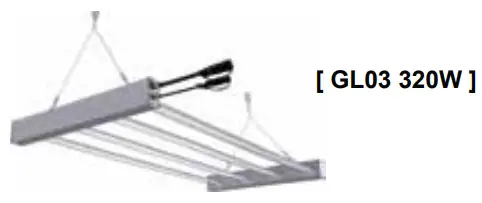

| Fixture | Dimensions & Weight | 45.67’x20.26″ x2.87″11 lbs ‘ 1160mm L x 515mm W x 73mm H I 5kg |
| Efficacy | FSA FSB | 2.6 pmol/J 2.4 pmol/J |
| Array | Number of Fixtures | 4 Units |
| Array | PPF | 832 pmol/s |
| Array | Input Power @277V AC | 320W |

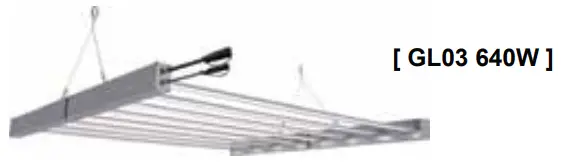

| Fixture | Dimensions & Weight | 45.67″ x 43.9″ x 2.87″221lbs 1160mm L x 515mm W x 73mm H I 10kg |
| Efficacy | FSA FSB | 2.6 pmol/J 2.4 pmol/J |
| Array | Number of Fixtures | 8 Units |
| Array | PPF | 1664 μmol/s |
| Array | Input Power @277V AC | 640W |

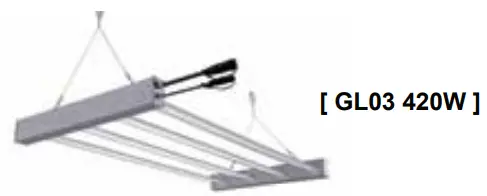

| Fixture | Dimensions & Weight | 45.67″ x 20.26″ x 2.87″15.4lbs 1160mm L x 515mm W x 73mm H I 15.4kg |
| Efficacy | FSA FSB | 2.5 pmol/J 2.3 pmol/J |
| Array | Number of Fixtures | 4 Units |
| Array | PPF | 1050 μmol/s |
| Array | Input Power @277V AC | 420W |

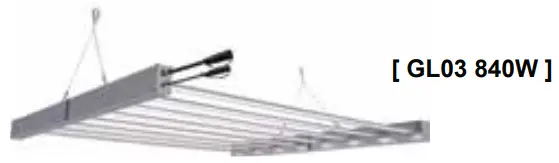

| Fixture | Dimensions & Weight | 45.67″ x 43.9″ x 2.87″30.8lbs 1160mm L x 515mm W x 73mm H I 30.8kg |
| Efficacy | FSA FSB | 2.5 pmol/J 2.3 pmol/J |
| Array | Number of Fixtures | 4 Units |
| Array | PPF | 2100 μmol/s |
| Array | Input Power @277V AC | 440W |
