ion4i_w Raven High Performance
User Guide
ion4i_w Raven High Performance
ANYWHERE EVERYWHERE
Introduction
Thank you for choosing ion4i_w Wireless Access Point with 2×2:2 Multi-User MIMO and 802.11 ac Wave 2 compliance.

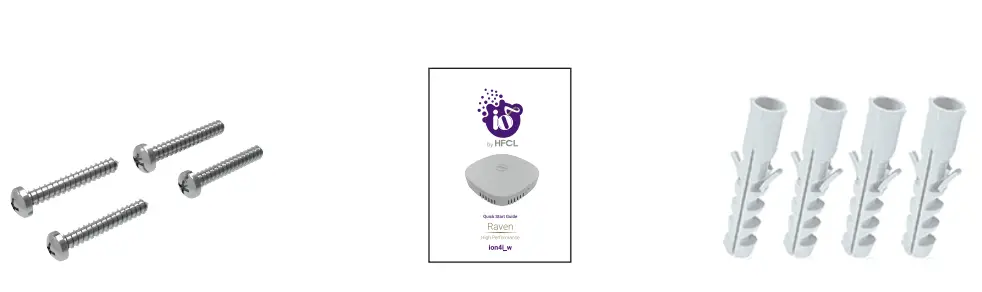

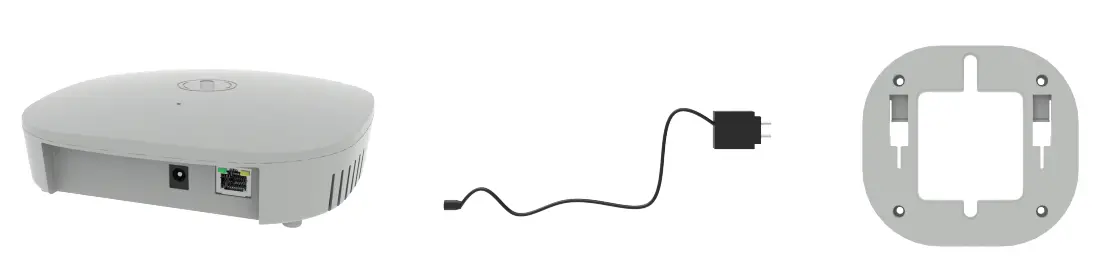

Packaging Content
 | ||
| ion4Lw Access Point (Qty:1) | DC Power Adaptor (Varies by Region) (Qty:1) | Mounting Bracket (Qty:1) |
 | ||
| Mounting screws Qty:4) | Quick Start Guide (Qty:1) | Plastic Wall Anchors Qty:4) |
| ion4i_w Specifications | |
| Peak Throughput(aggregate) | Up to 1.27 Gbps |
| Wi-Fi Standard Support | 802.11 a/b/g/n/ac/ac Wave 2 |
| Ethernet support/ Ports/Interface | 1 X 10/100/1000 BASE-T Ethernet |
| MU-MI MO | 2×2:2 |
| Mesh Support | Self-creating, Self-healing Mesh |
| Maximum number of SSID (per radio) | 4 |
| Maximum User Support | 128 on 5 GHz & 64 on 2.4 GHz |
| Power Supply | IEEE 802.3af PoE or + 12V DC Power Adaptor (Varies by Region) |
| Power Consumption (Max) | 11.5 W approx |
| Max Transmit Power | 2.4 GHz— up to 25 dBm & 5 GHz— up to 25 dBm (will depend on country specific guidelines) |
| Antenna Type | Integrated antennas |
| Antenna Gain | 6 dBi for both 2.4 GHz and 5 GHz |
| Management | Standalone (via GUI) or through on-premise based solution or cloud-based |
| Enclosure Dimensions | 180 x 180 x 50 mm (7.09 x 7.09 x 1.97 inch) |
| Weight | 0.37 kg |
| Operating Temperature | 0°C to 50°C |
| Certifications | FCC Class B, CE, Passpoint 3.0, WPA3, RoHS 3.0 |

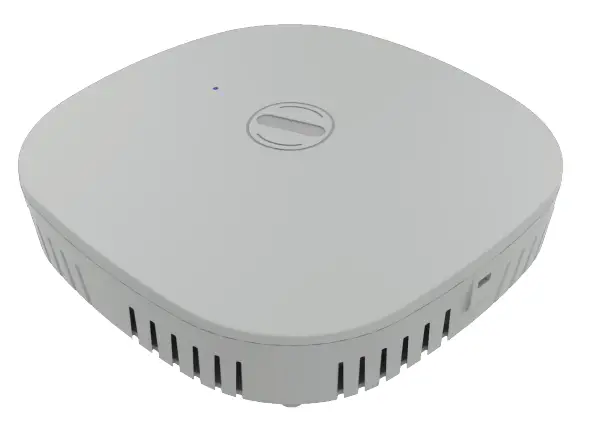

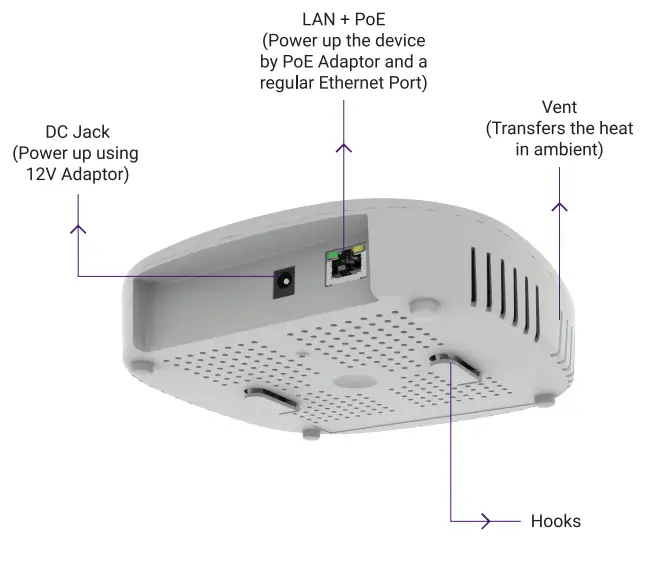

Product Overview
Mounting of ion4i_w Access Point

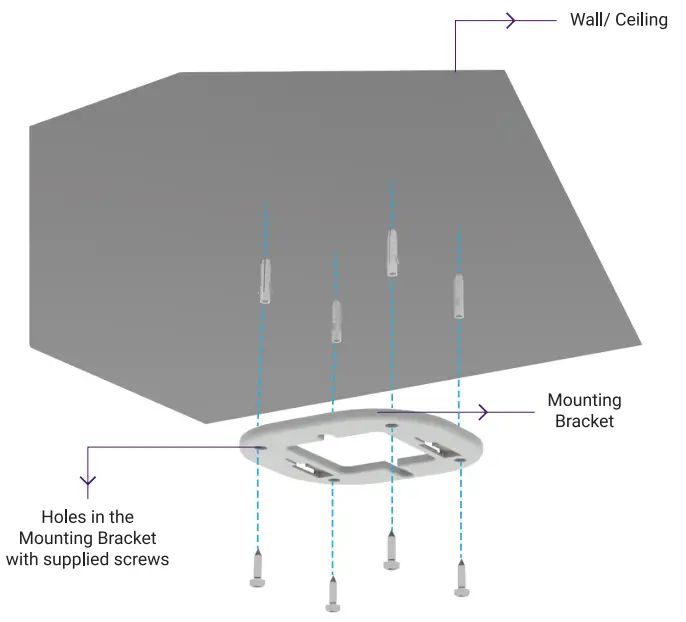

- Place the mounting bracket which came with the package on a wall or ceiling and mark holes with a marker where you will insert the screws. Drill holes in the marked points and insert the plastic wall anchors.
- Use supplied screws and attach mounting bracket on the wall.
Note: Make sure that mounting bracket is tightly installed before mounting the Access Point on the wall or ceiling.

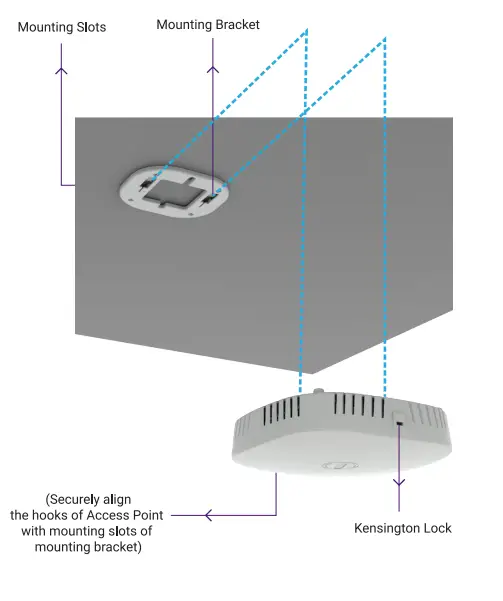

- Align the mounting slots of Access Point with the hooks of the mounting bracket, ensure that it is properly hinged.

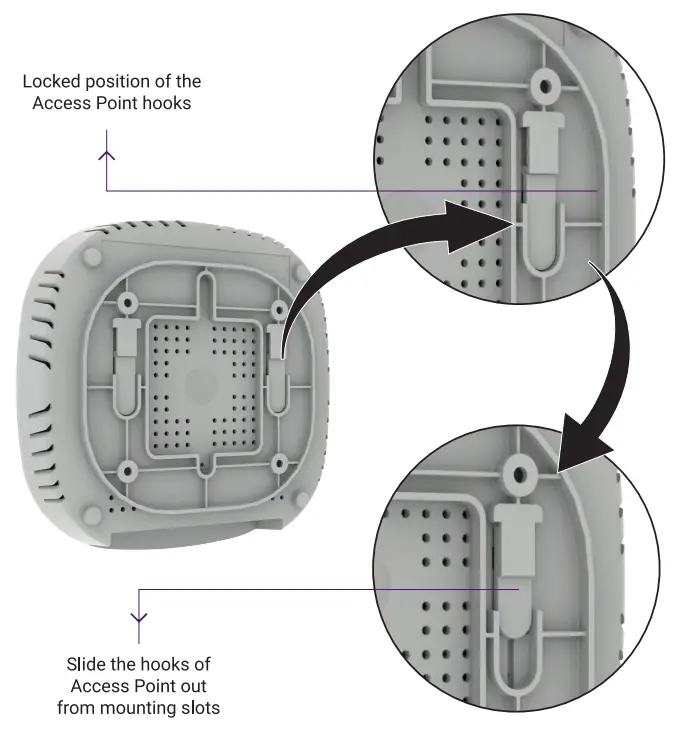

Unmounting of ion4i_w Access Point
- Slide the hooks of Access Point out from the mounting slots of mounting bracket.
WARNING: HFCL is not held liable for any damages incurred during the process.
Getting the ion4i_w Online
Step 1: Power up

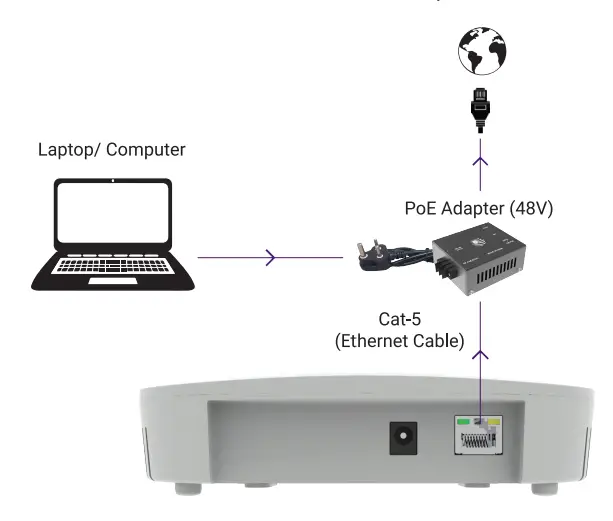

The Access Point can be powered up using PoE adaptor (48V) or DC adaptor (12V) as shown below:
Step 2: Connect to the network
Section 1: Standalone AP
Follow the steps mentioned below and connect the Access Point to a network :
- Connect an ethernet cable to the computer.
- Connect the other end of the ethernet cable to the LAN port on the ion4i_w Access Point or use a PoE adaptor to do so.
- Configure the computer with a same domain static IP 192.168.1.X and a subnet mask of 255.255.255.0 (X is from 2 to 255)
- Open the web browser and enter the Access Point static IP address in the address bar: 192.168.1.1

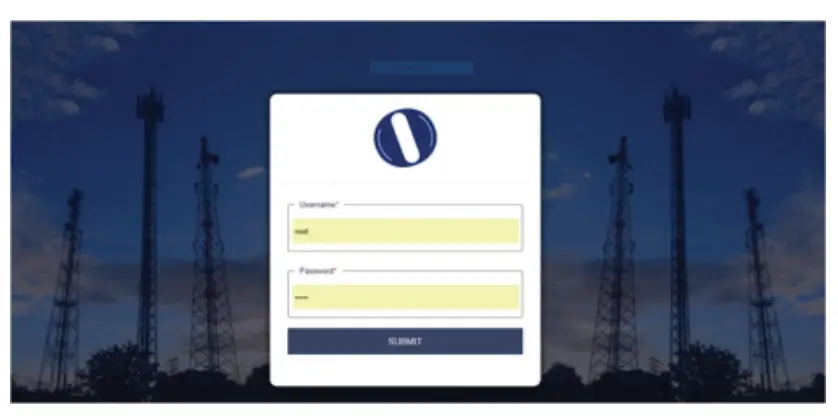

- A login screen will appear.
- Enter the default login credential details: User- root. Password- hfc8@ion
Section 2: Controller Managed AP
Follow the steps mentioned below and connect the Access Point to a network :
- Power-up the AP through PoE adapter or PoE switch
- Connect the AP to DI-ICP network and Internet
- Login to HFCL 10 cloud controller (cNMS) cnms.ionetworks.in with credentials provided
- Refer our website lo.hfcl.com for detailed information to configure AP through cNMS

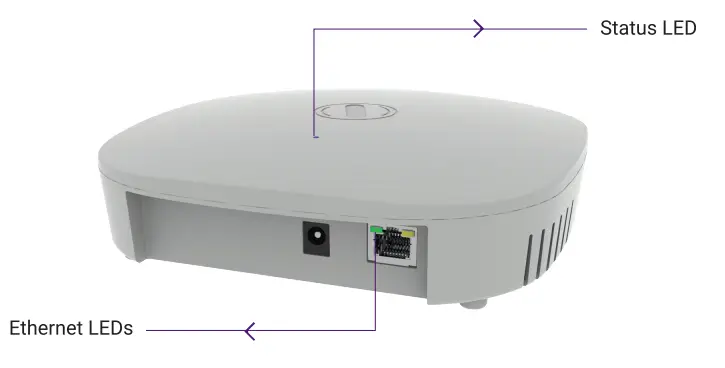

Step 3: Check the LED status
| LED Color | Status |
| Ethernet LEDs | Green and yellow ethernet LEDs indicates ethernet link status |
| Status LED Blue (Solid) | Solid blue color notifies the user that either 2.4 GHz radio, 5 GHz radio or both radios are active |
| Status LED Blue (Blinking) | Blinking blue color notifies the user that data is being transmitted on either 2.4 GHz radio, 5 GHz radio or both radios |
Safety Precautions
Observe the following safety precautions to avoid damage to the ion4i_w Access Point:
Do not subject the device to high temperaturesKeep away from high voltage cablesDisconnect the device before cleaning itDo not wipe the device with a damp clothDo not open the enclosure of the Access PointFasten the device tightly with the mount
Part Number: QSG-01-0001
Revision: A
Contact Us:
Email: [email protected]
Website: www.hfcl.com
www.io.hfcl.com
8, Commercial Complex, Masjid Moth,
Greater Kailash-II, New Delhi- 110048
HFCL Limited All Rights Reserved. 10 Networks and the 10 logo are registered trademarks of HFCL Limited.
Specifications are subject to change without notice.
