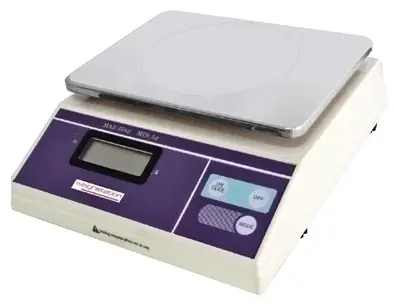

Electronic
Kitchen Scales
Instruction manual
Model:
F177-A/F178-A/F201-A
F177-A_F178-A_F201-A_A5_v3_20201030.indb 1 2020/10/30 14:37
Telephone Helpline: 1300225960
Setup
- Position the appliance on a flat, stable surface.
- Adjust the feet of the appliance to make it level, use a spirit level if necessary.
It is important that the scales are level to ensure accuracy.
Operation
 | Press to turn ON. Press whilst On to Tare (set the scales to zero). |
 | Press to turn OFF. |
 | Press to alternate between Metric (kilograms) and Imperial (pounds) readings. |
Note: The scales turn off if left unused for longer than 8 minutes (F177-A/F178-A only).
Symbols
Symbol | Description | Action required |
| H | Unit is overloaded | Remove some items |
| Lo | Low battery voltage | Replace the batteries |
Cleaning, Care & Maintenance
- Clean the weighing tray in warm, soapy water.
- Dry thoroughly after washing.
- Do not immerse the scales in water.
- Remove the batteries (if fitted) if using the adaptor or if the scales are to be left unused for an extended period of time.
- Always unplug the adaptor when not in use to prevent overheating.
| Model | Power | Weigh Pan Dimensions | Minimum Weight |
| F177-A | Adaptor or 2 x 1.5V Batteries | 235 x 178mm | 20g (1oz) |
| F178-A | 235 x 178mm | 100g (5oz) | |
| F201-A | 180 x 145mm | 10g (0.5oz) |
| Model | Maximum Weight | Measuring Increments |
| F177-A | 3kg (6.5lb) | 1g (0.05oz) |
| F178-A | 15kg (33lb) | 5g (0.25oz) |
| F201-A | 3kg (6.5lb) | 0.5g (0.025oz) |
Compliance
The product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.
WEIGH STATION parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.
WEIGH STATION products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of WEIGHSTATION.
Every effort is made to ensure all details are correct at the time of going to press, however, WEIGHSTATION reserve the right to change specifications without notice.
DECLARATION OF CONFORMITY
Conformiteitsverklaring
Equipment Type | Model |
| Electronic Kitchen Scale (Not Gov Stamped) 3kg graduation 1g kg&lbs Electronic Kitchen Scale (Not Gov Stamped)15kg graduation 5g kg&lbs Small Digital Platform Scale | F177-A F178-A F201-A |
| Application of Territory Legislation & Council Directives(s) | Electrical Safety 60335-1: 2012 +A11:2014 AS/NZS 61558.1:2008 +A1 AS/NZS 61558.2:2009 +A1Electro-Magnetic Compatibility (EMC) 61326-1: 2013 55032: 2015 55024: 2010 +A1:2015 61000-3-2: 2014 61000-3-3: 2013 |
| Producer Name | Weighstation |
I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s), and Standard(s).
| Date | 23rd October 2020 | |
| Signature |  |  |
| Full Name | Ashley Hooper | Josie Holt |
| Position | Technical & Quality Manager | Commercial Manager/ Responsible Supplier |
| Producer Address | Fourth Way, Avonmouth, Bristol, BS11 8TB United Kingdom | 15 Bagdally Road, Campbelltown NSW 2560 |
F177-A_F178-A_F201-A_A5_v3_20201030
