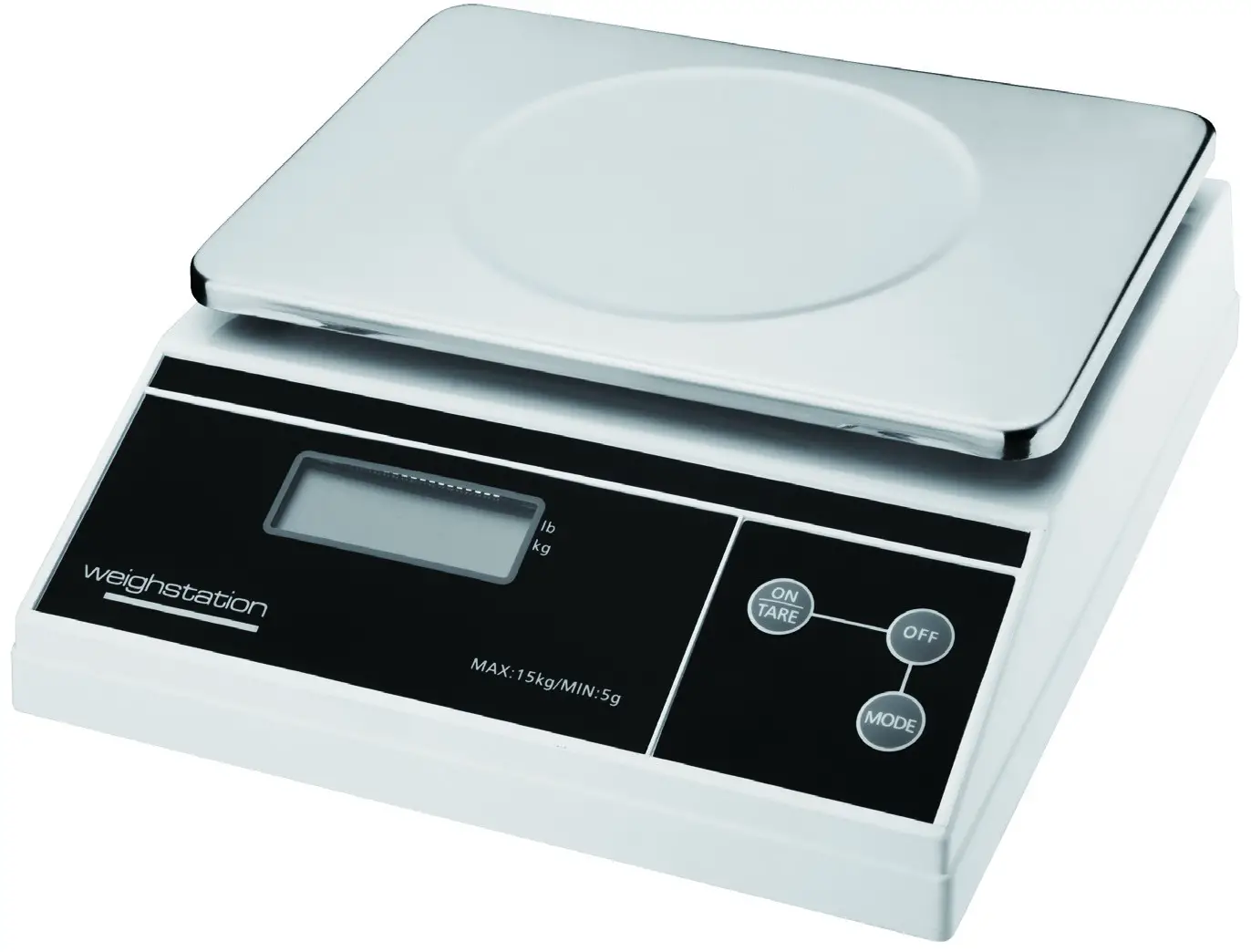

Electronic
Kitchen Scales
Instruction manual
Model: F177/F178/F201
Setup
- Position the appliance on a flat, stable surface.
- Adjust the feet of the appliance to make it level, use a spirit level if necessary.
It is important that the scales are level to ensure accuracy.
Operation
Press to turn ON.
Press whilst On to Tare (set the scales to zero).
Press to turn OFF.
Press to alternate between Metric (kilograms) and Imperial (pounds) readings.
Note: The scales turn off if left unused for longer than 8 minutes (F177/F178 only).
Symbols
| Symbol | Description | Action required |
| H | Unit is overloaded | Remove some items |
| Lo | Low battery voltage | Replace the batteries |
Cleaning, Care & Maintenance
- Clean the weighing tray in warm, soapy water.
- Dry thoroughly after washing.
- Do not immerse the scales in water.
- Remove the batteries (if fitted) if using the adaptor or if the scales are to be left unused for an extended period of time.
- Always unplug the adaptor when not in use to prevent overheating.
Technical Specifications
| Model | Power | Weigh Pan Dimensions | Minimum Weight |
| F177 | Adaptor or 2 x 1.5V Batteries | 235 x 178mm | 20g (1oz) |
| F178 | 235 x 178mm | 100g (5oz) | |
| F201 | 180 x 145mm | 10g (0.5oz) |
| Model | Maximum Weight | Measuring Increments |
| F177 | 3kg (6.5lb) | 1g (0.05oz) |
| F178 | 15kg (33lb) | 5g (0.25oz) |
| F201 | 3kg (6.5lb) | 0.5g (0.025oz) |
Compliance
The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/ or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.
WEIGH STATION parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.
WEIGH STATION products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of WEIGHSTATION.
Every effort is made to ensure all details are correct at the time of going to press, however, WEIGHSTATION reserve the right to change specifications without notice.
DECLARATION OF CONFORMITY
| Equipment Type | Model |
| Electronic Kitchen Scale (Not Gov Stamped) 3kg graduation 1g kg&lbs Electronic Kitchen Scale (Not Gov Stamped)15kg graduation 5g kg&lbs Small Digital Platform Scale | F177 (& -E) F178 (& -E) F201 (& -E) |
| Application of Territory Legislation & Council Directives(s) | Low Voltage Directive (LVD) – 2014/35/EU EN 60335-1: 2012 +A11:2014 EN 60950-1: 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 Electro-Magnetic Compatibility (EMC) Directive 2014/30/EU – recast of 2004/108/EC EN 61326-1: 2013 EN 55032: 2015 EN 55024: 2010 +A1:2015 EN 61000-3-2: 2014 EN 61000-3-3: 2013 Restriction of Hazardous Substances Directive (RoHS) 2015/863 amending Annex II to Directive 2011/65/EU |
Producer Name: Weighstation
I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s), and Standard(s).
| Date | 23 October 2020 | |
| Signature |  |  |
| Full Name | Ashley Hooper
| Eoghan Donnellan |
| Position | Technical & Quality Manager | Commercial Manager/ Importer |
| Producer Address | Fourth Way, Avonmouth, Bristol, BS11 8TB United Kingdom | 42 North Point Business Park New Mallow Road Cork Ireland |
+44 (0)845 146 2887
F177_F178_F201_ML_A5_v7_20201030
2020/10/30 14:59
