Grundig Ps 3411 Digital Body Weight Scales Instruction Manual

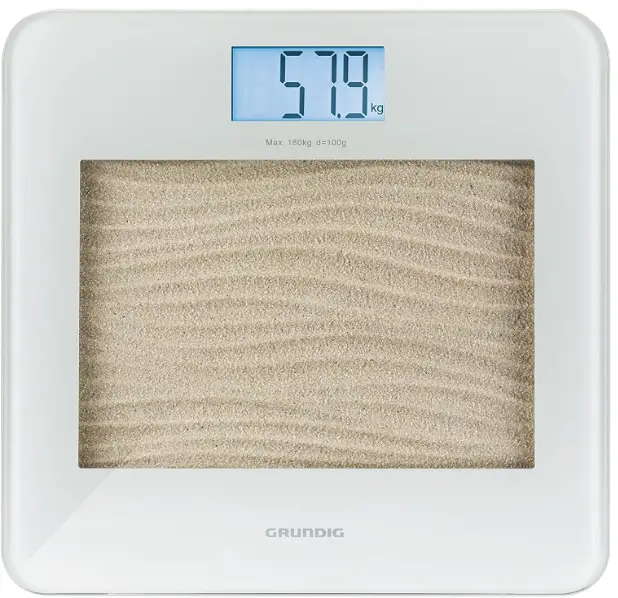

Grundig PS 3411 DIGITAL BODY WEIGHT SCALES

INTRODUCTION

You can analyze your body values with the use of our own scales. Obtain accurate information on the features of your body. It has a blue-lit LCD display with extra-large numbers (40 mm). The body weight displays in the display without any prior touching in just three seconds thanks to the pleasant auto-on function. Elegant flat digital glass bathroom scales with a lovely sand wave inlay design are included. SAFETY­AND­SET-UP
Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

SPECIFICATION

• POWER SUPPLY: 4 x 1.5 V batteries (AAA/UM4/R03)
• MAXIMUM WEIGHT LOAD: 180 kg / 396 lb / 28 st
• MINIMUM WEIGHT LOAD: 0 kg / 15.4 lb / 1 st
• GRADUATION: d = 100 g
• AMBIENT TEMPERATURE: 20ºC ±15 ºC

SAFETY INSTRUCTION

• The appliance is designed for domestic use only. Do not use the appliance for anything other than its intended use, which is the measurement of body weight.
• Do not use the appliance on a carpet or rug.
• Always use the appliance on an even, hard floor. This ensures constant measurements.
• Do not stand on the device with wet feet or if the glass surface is damp or wet.
• Always make sure that the appliance does not tip over, as there is a risk of injury.
• Never use the appliance outdoors.
• Do not continue to use the appliance if a malfunction occurs.
• Do not continue to use the appliance, if it is dropped or if there are any cracks or chips on the surface.
• Do not place any objects on the surface.
• Never jump on or off the appliance.
• If the appliance is being used in the bathroom, it should never come into contact with water.
• Do not immerse the appliance in water or in other liquids; do not hold it under running water.
• Do not expose the appliance to direct sunlight, high temperatures or constantly high humidity.
• Keep the appliance away from children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Never use the appliance if it is visibly damaged.
• Our GRUNDIG Household Appliances meet applicable safety standards, thus if the appliance is damaged, it must be repaired or replaced by the dealer, a service center or a similarly qualified and authorized person to avoid any dangers. Faulty or unqualified repair work may cause danger and risks for the user.
• Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damages caused by improper handling.
• To clean the appliance, please see details in the “Cleaning and Care” section. Dry the appliance after cleaning it.
• Never operate or place this appliance on or near to hot surfaces such as gas burner, electric burner or heated oven.
• Never use the appliance in or near to the places where combustible or inflammable materials exist.
• Do not overload this appliance.
• If this appliance functions improperly, try to reset it by removing the batteries for a short time or replacing them.
• Only use high quality batteries. Low quality batteries could leak and result in dam-ages to the appliance.
• Extreme conditions like hot and highly humid environment or improper use of this appliance may cause the batteries to leak which may cause personal injury. If the batteries leak, remove them with a cloth and dispose of them in accordance with the applicable laws.
• Prevent battery acid from coming into contact with skin and eyes. If battery acid comes into contact with your eyes, flush your eyes thoroughly with plenty of water and consult a physician immediately. If battery acid comes into con-tact with your skin, wash the affected area with plenty of water and soap.
• Batteries are dangerous if swallowed. Keep the batteries out of the reach of children at all times. Seek first aid if a battery has been swallowed.
• The batteries should never be recharged or reactivated in any way, nor should they be thrown into a fire. Never al-low the batteries to come in contact with water.
• If you do not plan to use the appliance for a long period of time, then remove the batteries. The appliance can get damaged if they leak.
• If your scale does not function properly, replace all batteries.
• Batteries should not be dis-posed of together with the household waste! Please dis-pose of expired batteries in an environmentally friendly way and according to the applicable legal regulations.
• Never use old and new batteries or batteries of differing brands simultaneously.
• Before disposing of the appliance, remove the batteries.
• When inserting batteries pay attention to the polarity as indicated inside the battery compartment. Do not short-circuit the batteries.
• The scale switches off automatically after 10 seconds once the measurement is complete.
• When voltage of battery is down, the “Lo” low battery warning will appear on the display. Replace the batteries with the new ones.

Caution

The PS 3411 is a product for your well-being. It is not a medical product. No medical recommendations can be made on the basis of its use or of the results displayed.

Your product is designed with complex algorithms. Due to these algorithms, if an external electromagnetic disturbance happens near your device, it may affect your readings. In such cases, first remove the electromagnetic disturbance reason and repeat your measurement. Under extreme electromagnetic disturbance, your device will protect itself and enter into protection mode. To turn back to normal running mode, remove and replace the battery of the product after removing the disturbance.

Preparation

Inserting / replacing the batteries

This appliance runs on four 1.5V batteries (AAA/UM4/R03). Always replace all of the batteries at the same time.

1. Open the battery compartment lid D on the bottom of the appliance by pressing and pushing down on the arrow and removing the battery compartment lid.
2. If necessary, remove the expired batteries first and dispose of them in an environmentally friendly way. Place four new 1.5V batteries (AAA/UM4/R03) into the battery compartment. Pay attention to the correct polarity as indicated in the battery compartment.
3. Close the lid of the battery compartment.

Make sure that it clicks into place.

Notes

• Do not expose the batteries to extreme heat, caused for example by direct sunlight, heaters or fire.
• If the battery is running low, the warning »Lo« appears on the LCD display B . Insert four new batteries immediately.
• Remove the batteries if they are flat or when you plan not to use the appliance for a long period of time. The manufacturer accepts no liability for damages caused by leaking batteries.
• Environmental note

Batteries, including those which do not contain heavy metal, should not be disposed with domestic waste. Please dispose of old batteries in accordance with the legal regulations which apply in your area.

Operation

1. Place the scales on a smooth flat surface.
2. Step carefully onto the surface A of the scales and stand still for your weight measurement.
   Notes:
   Step onto the appliance gently with only the left foot or the right foot, placing it on the section of the surface. Make sure that your foot re-mains at least 2 cm away from the edge. Then place your other foot on and position it in the same way on the other side of the surface. Position your body weight in the middle of the appliance.
   Your scales include a comfortable auto-on function. It turns on automatically when you step on it and the measured body weight appears on the display within 2-3 seconds only.
   If the scales do not switch on automatically when you stand on the glass surface, you can activate the scales by gently tapping on the glass surface A with your foot; „0.0“appears on the LCD display B.
3. Your body weight will be flashing on the LCD display B.
4. Wait until the indication of your weight stops flashing.
5. After about 10 seconds the scales switches off automatically.

Notes

The appliance has a self-calibration facility. After every energizing, it performs self-calibration which may cause to measure your weight inaccurately at your first 2 measurements.
If the batteries are low on charge, ”LO” appears on the LCD display B . Replace the batteries with the new ones.

The maximum load of the scales is 7-180 kg. If this is exceeded, “O-LD” appears on the LCD display B . Step down from the scales immediately.

• If the LCD display shows a malfunction, reset the scale. Remove the batteries, wait for 10 seconds and then insert them again.
• The scale is equipped with an automatic off function to preserve the battery. It switches off automatically after 10 seconds once the measurement is complete.

Cleaning and care

Warning

Make sure to follow the safety instructions carefully during cleaning.

1. Wait until the appliance turns off automatically.
2. Use a damp soft cloth to clean the exterior of the appliance.

Caution

• Never use cleaning agents, alcohol, acetone, petrol, solvents or abrasive cleaners, metal objects, metal polish or hard brushes to clean the appliance.
• Never put the appliance in water or any other liquid.

Note

Dry all parts carefully with a soft towel after cleaning the appliance.

Storage

If you do not plan to use the appliance for a long period of time, please store it carefully. Make sure that the appliance is completely dry. Store the appliance in a cool and dry place, which is protected from moisture and direct sunlight. Make sure the appliance is kept out of the reach of children. Remove the batteries from the battery compartment when you will not be using the appliance for a long period of time.

Environmental note

This product has been manufactured with high-quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product and batteries with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. This is indicated by this symbol on the product, in the operating manual and on the packaging. Please consult your local authorities to learn the nearest collection point.
Help protect the environment by recycling used products.

FREQUENTLY ASKED QUESTIONS

How do you fix a scale that won’t turn on?

When the new batteries are removed, check the terminals for corrosion caused by the old batteries. Reinstall the fresh batteries, lightly sand the contacts in the battery box, and then try turning the scale on once more.

Are cheap digital scales accurate?

No matter the brand, digital scales are generally accurate. If you merely want to monitor your weight, there’s no need to buy the priciest scale on the market. The BMC Public Health Study’s authors found no appreciable differences in accuracy depending on the brand of digital scales.

How can I tell if my scale is accurate?

Note the weight of a coin after placing it on the scale. Put one more nickel on the scale, and then record the updated weight. One additional nickel can be added to the scale; record the weight. The weight should have increased by 5g each time, if your scale is accurate.

Why does my scale show two different weights?

This is due to the possibility that every brand of scale has a unique calibration, and some scales may be adjusted for your particular body type or BMI. If the scales are reliable, they will most likely produce an accurate reading that is very close to your actual body weight.

How do I restart my scale?

From the scales back, remove all of the batteries. For at least 10 minutes, leave the scale’s batteries out of the equation. Make sure the battery compartment is spotless and that there is no residue or debris on the contact terminals. Make sure the batteries are polarized correctly and reinstall them securely.

Why is my digital scale not working?

Issues with the display and functionality of digital scales are frequently caused by batteries. Remove the batteries by carefully opening the battery compartment. Clear the compartment of any dust or other objects that could obstruct the battery connection using a small, clean paintbrush or cotton swab.

What can I use to calibrate my scale?

Put a calibration weight, a coin from the United States, or a common object on your scale. You can use an item to calibrate the scale as long as you know its precise weight. Avoid using the object to calibrate the scale if you don’t know its precise weight since if it’s too heavy, the scale could be damaged.

Why is my scale so inconsistent?

Your machine may start to provide erroneous and inconsistent readings if it isn’t receiving the electricity it requires to function. Make sure the batteries are connected completely and are producing adequate power by checking them. A fresh set of batteries can also be tested to determine if they offer your digital scale the boost it need.

Does this have a lift tray to weigh things that may roll-off?

No, it doesn’t.

Does the scale have a function to give you a piece count?

No, it doesn’t.

How many decimal places?

One.
