W12PRO Full-Range Loudspeaker
System Instructions
TNi W12PRO Full Range Loudspeaker System
HH ELECTRONICS LTD
STEELPARK ROAD,COOMBS WOOD BUSINESS PARK, HALESOWEN, WEST MIDLANDS, B62 8HD, UK WWW.HHELECTRONICS.CO.UK

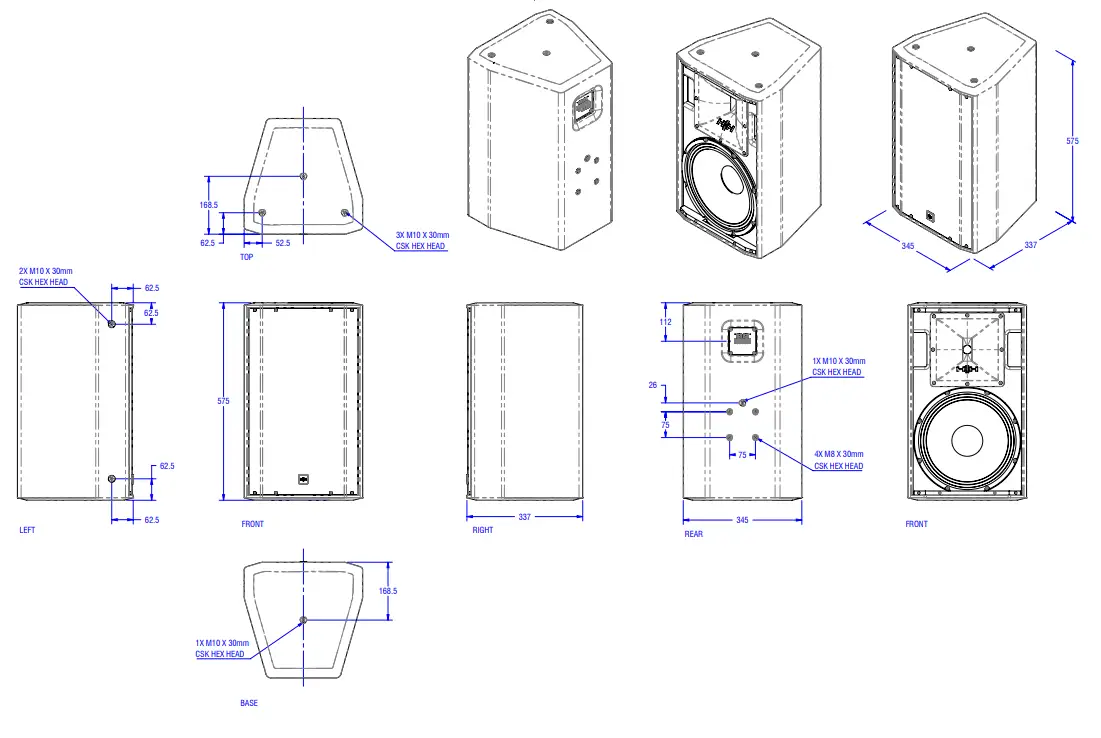

DESCRIPTION: FULL ASSEMBLY
STATE: RELEASED
UNLESS OTHERWISE STATED: ALL DIMENSIONS ARE IN MILLIMETERS (mm) LINEAR TOLERANCE ±0.5 ANGULAR TOLERANCE ±1.0°
PROJECT TITLE: TNI-W12PRO
DRAWINGS SUPPLIED FOR REFERENCE ONLY
THIS DRAWING REMAINS THE PROPERTY OF HH ELECTRONICS LIMITED. THIS DRAWING, HARD COPY OR DIGITAL, AND ANY ATTACHMENTS ARE CONFIDENTIAL, LEGALLY PRIVILEGED AND PROTECTED BY COPYRIGHT.
DWG NO. 15216
DATE: 18/01/2022
SCALE: 1:8.5
SHEET SIZE: A3
REVISION: 6
RELEASED BY: TB
SHEET: 1/1
