Thermacell E-series Mosquito Repellent E55 User Manual (+ PDF)

The Thermacell E-Series is an on-demand mosquito repeller.
The rechargeable battery powers a heater that diffuses mosquito repellent from the repellent refill into the air. Turn it on and within 15 minutes you will be protected from mosquitoes in the surrounding area. When finished using it just turn it off. It’s that easy. No sprays to wash off and no candles to blow out.

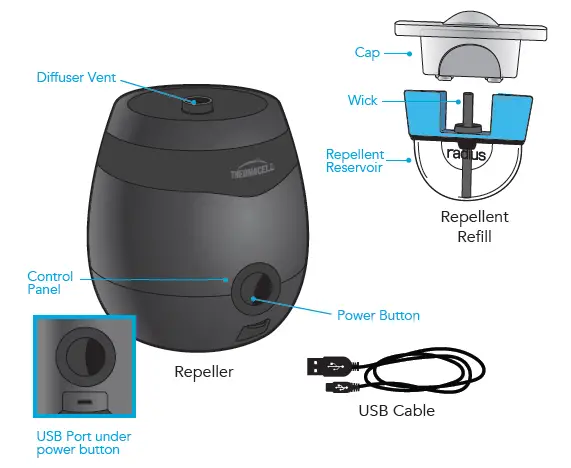

In the Box

1 E-Series Zone Mosquito Repeller
1 E-Series Zone Mosquito Repellent Refill
1 USB Cable

1. Getting Started

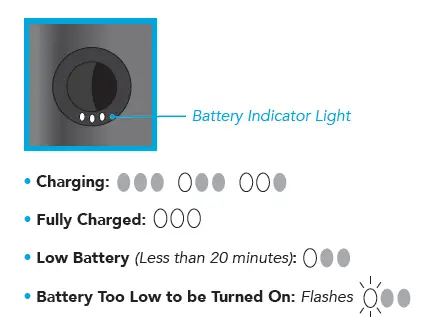

Your repeller has a rechargeable battery. Prior to first use, fully charge the battery. To charge the battery pull back the rubber cover to expose the USB charging port located on the front of the repeller. Insert the charging cable provided with the repeller. The battery indicator is located below the power button.

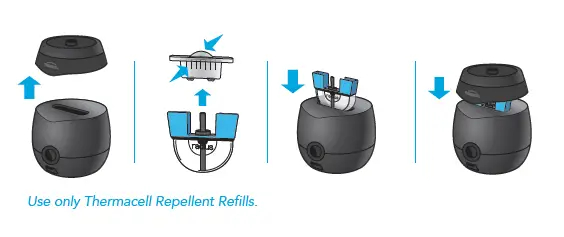

2. Inserting a Repellent Refill

Remove top from repeller: To remove the top grasp the repeller
base with one hand and remove the top with the other.
Remove the cap from a Repellent Refill.
Insert the Repellent Refill into the repeller.
Replace the repeller top taking care not to damage the Repellent Refill wick. The repeller uses magnets to hold the top to the bottom of the device.

3. Using Your Repeller

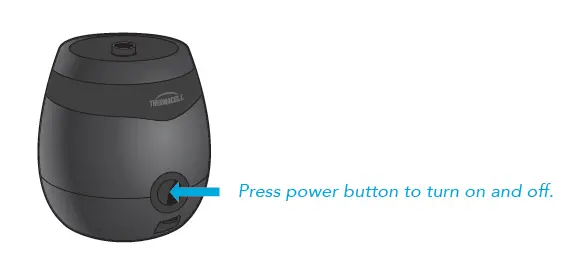

Press the power button to turn on.
The repeller will sound with an ascending tone and the battery indicator will illuminate with current battery level. The repeller will then display a chasing pattern of light indicating it is starting to heat up. Once temperature is reached the ring will stay illuminated.
It can take up to 15 minutes for the Zone to fully establish.
To turn off press and hold the power button for two seconds: You will hear a descending chime and all lights will turn off.

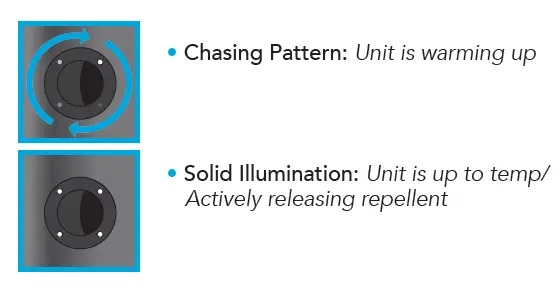

Control Panel

Your repeller will communicate different statuses through the control panel.
Power Button – Turns device on and off.
Status Indicator – A visual communication tool that lets you know the repeller status. No need to pick up the device or get close to check.

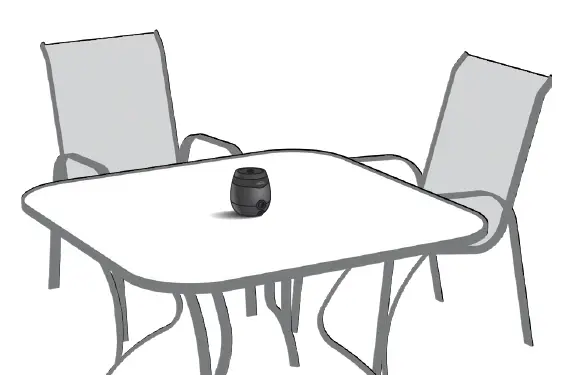

4. Place Your Device

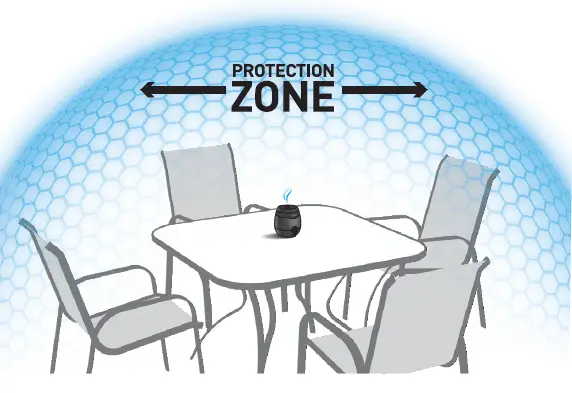

Repeller is best placed in the center of the desired Zone of repellency.
If it is windy, place the repeller upwind of where you are sitting.
Only operate with vent facing up.
Do not cover repeller while it is in use.
To protect larger areas use multiple repellers.

Care & Storage

Do not store with battery completely discharged for extended periods of time. Batteries should be charged at least once every 3 months during storage.

Occasionally debris or condensation may build up on your repeller device. Simply use a damp paper towel or rag to wipe away any build up.
Do not expose the repeller to extended periods of rain or submerge in water.
Do not expose the repeller to temperatures above 140°F.
Store at room temperature in a dry environment when not in use.

Questions?

We’re here to help, 24/7

1-866-753-3837
[email protected]
Thermacell Repellents, Inc.
26 Crosby Drive
Bedford, MA 01730 USA

IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE
ATTENTION: This product is intended for adult use only. This product is not a toy.

IMPORTANT SAFETY INFORMATION. READ CAREFULLY BEFORE USE.

NOTICE: This product contains a lithium ion battery which is subject to certain transport restrictions.

Inspect the product’s packaging prior to transport. Do not transport this product if the component housing the battery is damaged.

When using rechargeable battery operated products, basic precautions should always be taken. To reduce the risk of injury, close supervision is necessary when a product is used near children.

KEEP OUT OF REACH OF CHILDREN.

DO NOT put fingers, hands, metal or other foreign objects in the product. Do not remove the battery from the equipment housing. Do not store with battery completely discharged for extended periods of time. Batteries should be charged at least once every 3 months during storage. Battery should be discharged and charged after being stored more than a year to maintain optimal battery capacity.

The battery should be stored at room temperature in a dry location and should not be placed, charged or stored in high-temperature locations.

Exposure of the battery or device to fire or temperature above 130°C/265ºF may cause explosion. Only use with battery charger supplied in a properly functional electrical outlet. Charging should be performed at a temperature between 40°F and 110°F.

Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire. Recharge only with a USB Listed/Certified Class 2 Power unit charger marked 5V DC-1000 mA.

If any leaks, odors, or deformities are noticed in the structure housing the battery, immediately discontinue use and dispose of safely. Do not expose the device to water or otherwise allow the device to get wet. Do not modify or attempt to repair the device. For service, contact Thermacell.

USE ONLY Thermacell Repellent Refills. Thermacell will not be responsible for damage, injury or poor product performance caused by use of any other Repellent Refills or unapproved replacement parts in this Thermacell device.

SAVE THESE INSTRUCTIONS

WARRANTY, LIMITATION OF LIABILITY AND DISCLAIMERS:

Thermacell warrants that this product, when used in accordance with this label and all other instructions accompanying this product, complies with the product specifications set forth in this label and the associated instructions.

To the extent permitted by applicable law, Thermacell makes no other warranties, and disclaims all other warranties, express or implied, including but not limited to warranties of merchantability and fitness for a particular purpose.

To the extent permitted by applicable law, Thermacell’s liability for default, breach or failure of the product to perform in accordance with the product specifications set forth in this label shall be limited to the amount of the purchase price.

To the extent permitted by applicable law, Thermacell shall have no liability for incidental or consequential damages resulting from the use or handling of this product.
