Aircraft

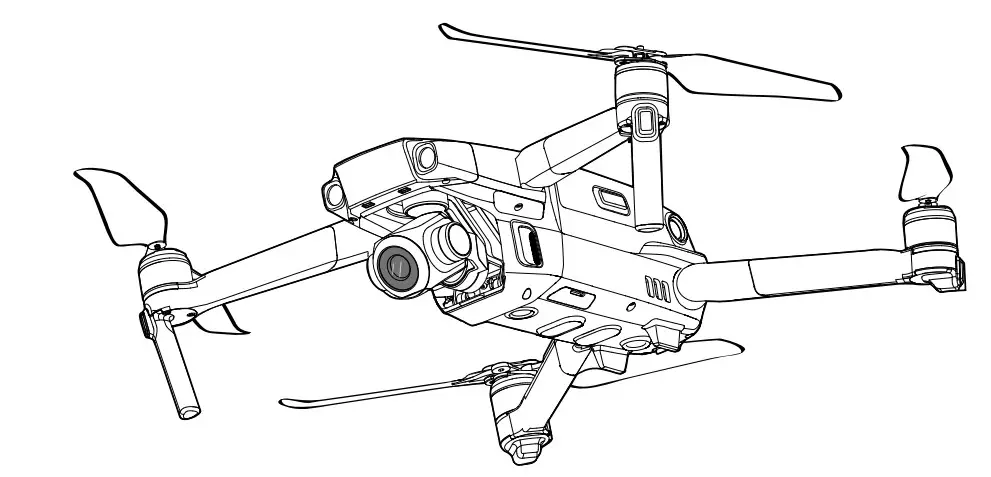

The DJITM MAVICTM 2 Zoom features omnidirectional Vision Systems and Infrared Sensing systems and comes with a fully stabilized 3-axis gimbal camera with an equivalent 2448 mm 2x optical zoom lens capable of shooting 4K videos and a 12-megapixel photo that support up to 4x FHD lossless zoom. DJI signature technologies such as Obstacle Sensing and Intelligent Flight Modes like HyperLapse, ActiveTrack MAVIC 2.0, QuickShot, Panorama, and Advanced Pilot Assistance Systems, help you capture complex shots effortlessly. The Mavic 2 Zoom boasts a maximum flight speed of 44.7 mph (72 kph) and a maximum flight time** of 31 minutes.

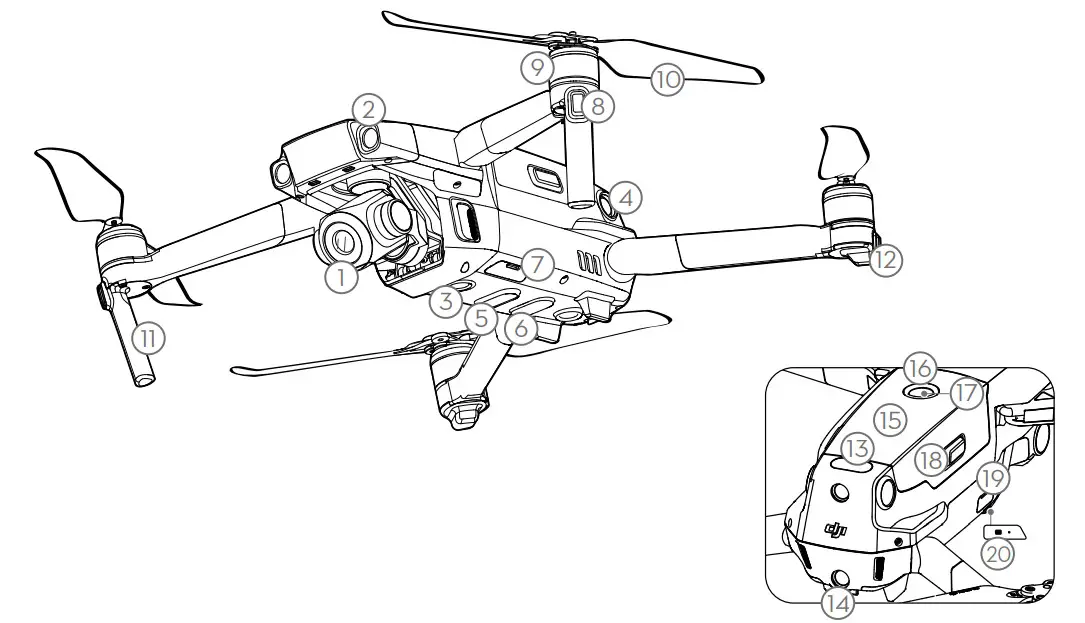

1. Gimbal and Camera
2. Forward Vision System
3. Downward Vision System
4. Lateral Vision System
5. Downward Infrared
   Sensing System
6. Auxiliary Bottom Light
7. microSD Card Slot
8. Front LEDs
9. Motors
10. Propellers
11. Antennas
12. Aircraft Status Indicator
13. Upward Infrared Sensing System
14. Backward Vision System
15. Intelligent Flight Battery
16. Battery Level LEDs
17. Power Button
18. Battery Buckles
19. USB-C Port
20. Link Button/Linking
    Status Indicator

* The Vision Systems and Infrared Sensing Systems are affected by surrounding conditions. Read the Disclaimer and Safety Guidelines, and User Manual, and watch the tutorial videos in the DJI GOTM 4 app or on the official DJI website to learn more. http://www.dji.com/mavic-2
** Maximum flight time was tested in an environment with no wind while flying at a consistent 15.5 mph (25 kph). This value is for reference only.

Remote Controller

Built into the remote controller is the DJI’s long-range transmission technology OCUSYNCTM 2.0, offering a maximum transmission range of 5 mi (8 km) and displaying video from the aircraft to the DJI GO 4 app on your mobile device at up to 1080p. An on-board LCD screen gives real-time aircraft data information and the detachable control sticks make the remote controller easier to store.
Maximum run time: 2 hours and 15 minutes*

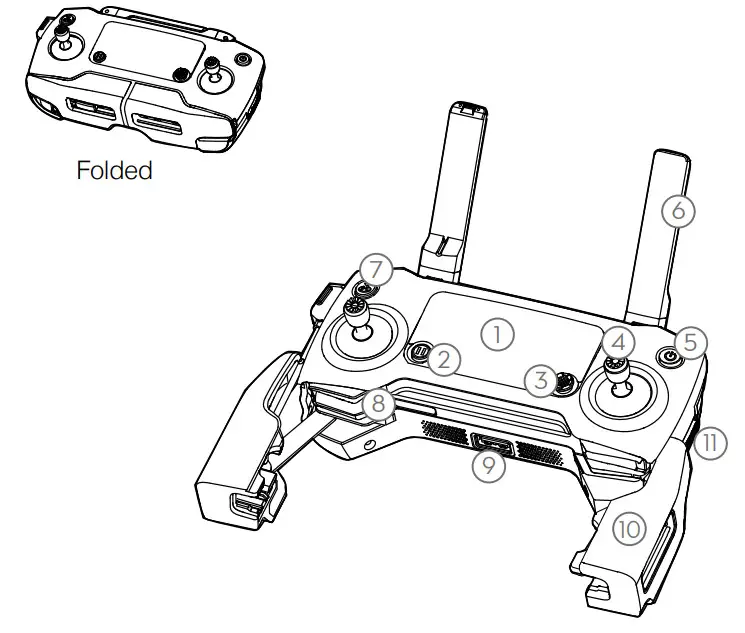

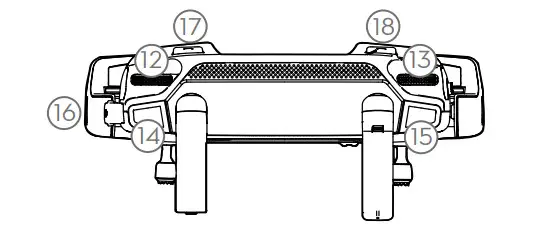

1. LCD Screen
2. Flight Pause Button
3. 5D Button
4. Removable Control Sticks
5. Power Button
6. Antennas
7. RTH Button
8. Control Sticks Storage Slot
9. Reserve Video-Downlink Port (USB)
10. Mobile Device Clamp
11. Flight Mode Switch
12. Gimbal Dial
13. Zoom Adjustment Dial
14. Record Button
15. Focus/Shutter Button
16. Video-Downlink/Power Port (micro USB)
17. C1 Button (Customizable)
18. C2 Button (Customizable)

* The remote controller is able to reach its maximum transmission distance (FCC) in a wide-open area with no electromagnetic Interference at an altitude of about 400 ft (120 m).
The maximum runtime is tested in a laboratory environment. This value is for reference only.

Download the DJI GO 4 App and Watching Tutorial Videos

Search “DJI GO 4” in the App Store or Google Play or scan the QR code below to download the app on your mobile device.
Watch the tutorial videos at www.dji.com/mavic-2 or in DJI GO 4 by tapping the icon in the top right corner of your screen.http://m.dji.net/djigo4
DJI GO 4 is compatible with iOS 9.0 (or later) or Android 4.4 (or later).

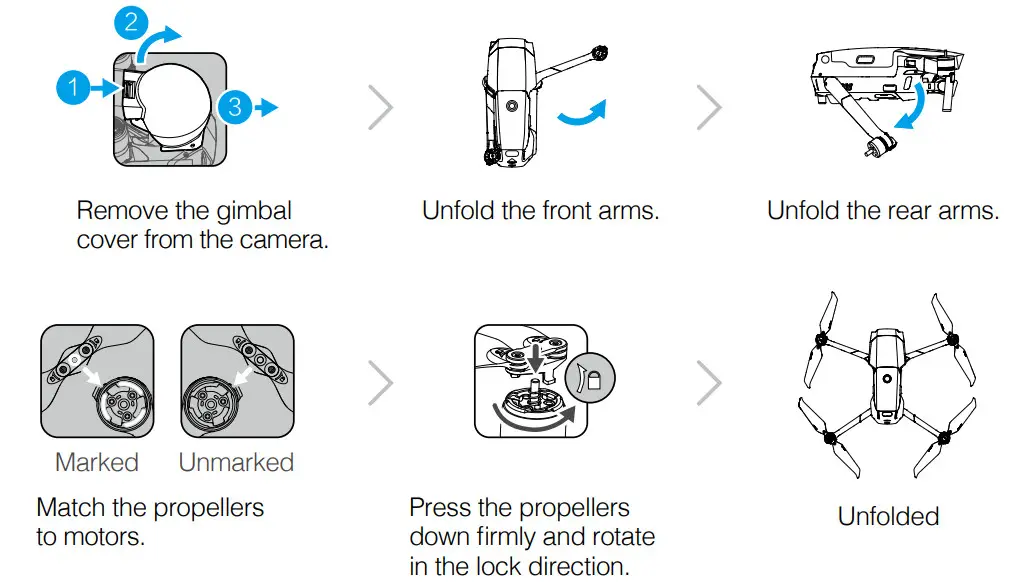

Preparing the Aircraft

Charging the Batteries

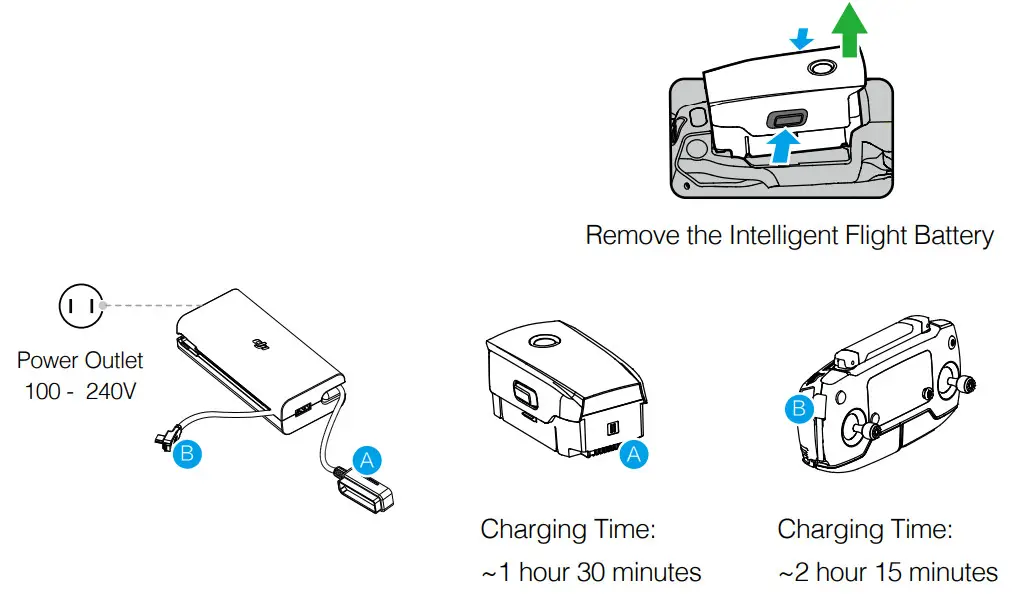

Use the provided charger to fully charge the Intelligent Flight Battery before first use.
Remove the remote controller cable before charging.
• Checking the Battery Levels and Powering On/Off

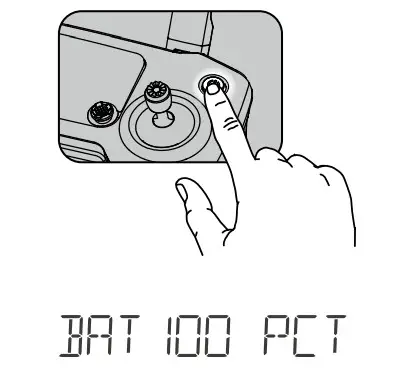

Press once to check the battery level. Press, then press and hold to turn it on/off.	Press once to check the battery level on the LCD screen. Press once, then press and hold to turn on/ off the remote controller.

Preparing the Remote Controller

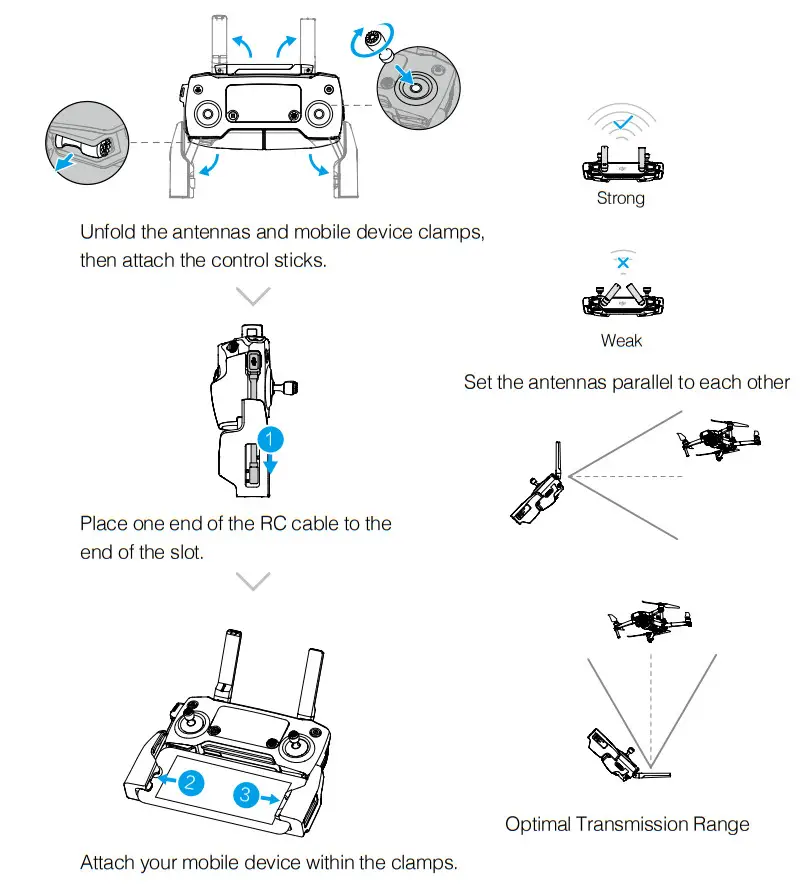

• Ensure the control sticks are firmly mounted.
• The remote controller cable with the Lightning connector is mounted by default. Use the appropriate cable for your mobile device to connect to the remote controller. When using an iPad or tablet, use the USB port on the remote controller.
• Do not use the Micro USB and the USB ports simultaneously for linking video.

Preparing for Takeoff

Use your DJI account to activate the aircraft. Activation requires an internet connection.

Flight

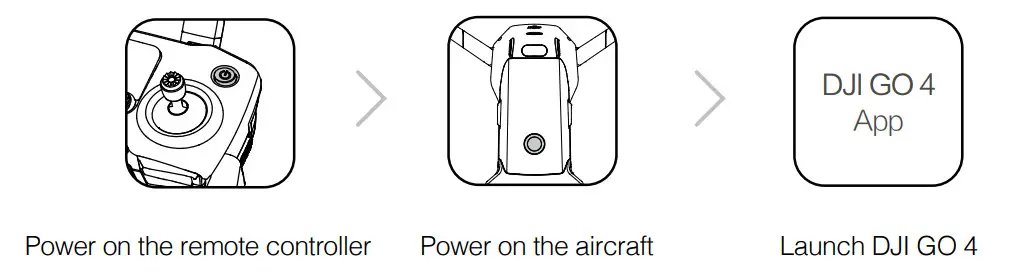

Before taking off, make sure the Aircraft Status Bar in DJI GO 4 displays “Ready to Go”.
Ready to Go (GPS)
* Auto Takeoff / Landing
* Manual Takeoff / Landing

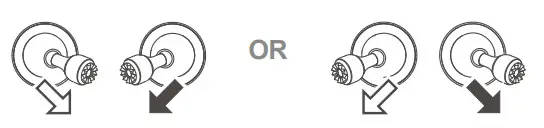

Combination stick command to start/stop the motors

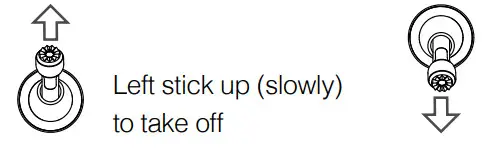

Left stick down (slowly) until you touch the ground
Hold a few seconds to stop the motors
The motors can only be stopped mid-flight when the flight controller detects a critical error.
* Remote Controller Operation
The default flight control is known as Mode 2. The left stick controls the aircraft’s altitude and heading, while the right stick controls its forward, backward, left, and right movements. The gimbal dial controls the camera’s tilt.
Press the Flight Pause button for emergency braking during the flight.

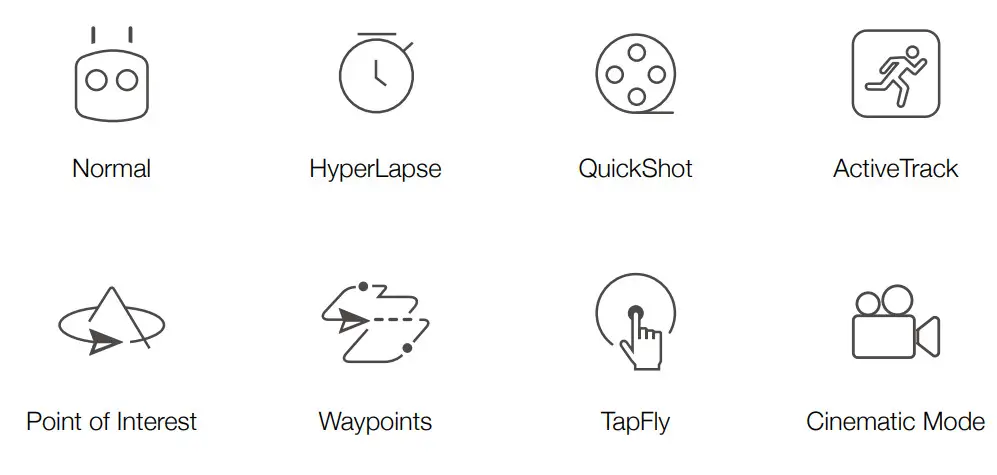

* In DJI GO 4

• Watch the tutorials in DJI GO 4 or on the official DJI website to learn more.
• Always set an appropriate RTH altitude before takeoff. When the aircraft is returning to the Home Point, you should guide it with the control sticks.

Fly Safe

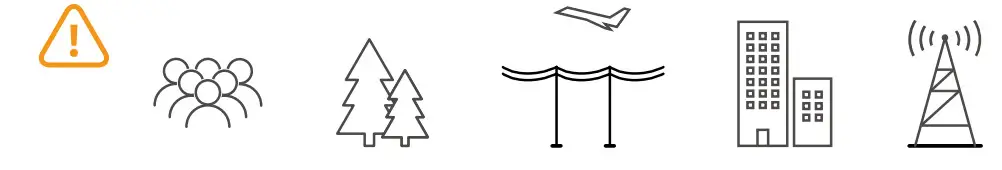

Avoid flying over or near obstacles, crowds, high-voltage power lines, trees, or bodies of water.
DO NOT fly near strong electromagnetic sources such as power lines and base stations as it may affect the onboard compass.

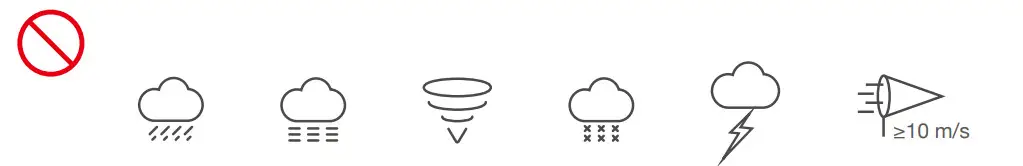

DO NOT use the aircraft in adverse weather conditions such as rain, snow, fog, and wind speeds exceeding 10 m/s or 22 mph.

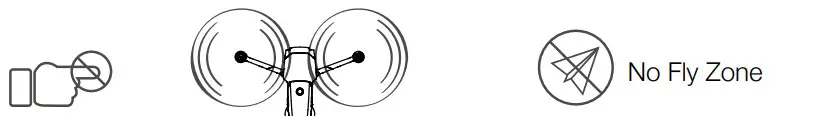

Stay away from the rotating propellers and motors.
Learn more at: http://flysafe.dji.com/no-fly
It’s important to understand basic flight guidelines, for the safety of both you and those around you. Don’t forget to read the Disclaimer and Safety Guidelines.

Specifications

※ This content is subject to change without prior notice.
