QUICK START GUIDE Home Dot

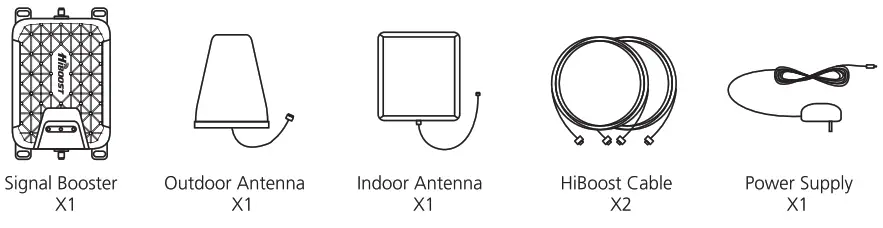

Package contents
Package contents

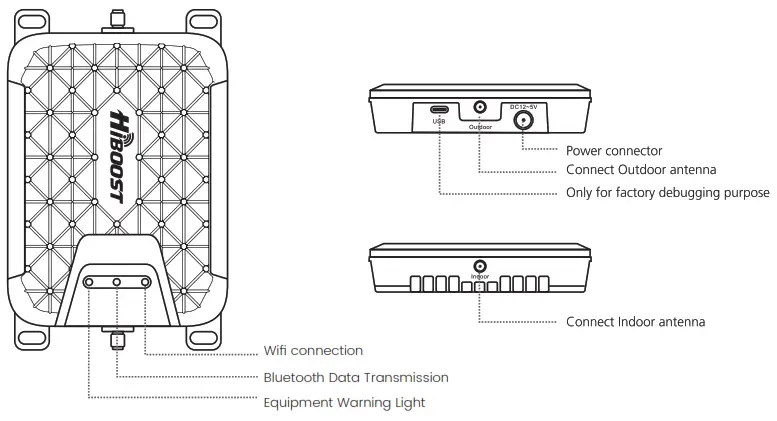

Overview
Overview
How It Works
How It Works
Getting Started
Getting Started | Step 1 Download the “Signal Supervisor App and register an account. Tips: Find it in the App Store or on Google Play. |
 | Step 2 Power on the booster and tap ‘Add Device’ on your App to connect the booster. Tips: Ensure both Location Services and 8luetooth a turned on, and enable their use in your phone’s Privacy Settings. Add your home’s wireless network at this point to enable remote monitoring of your signal strength. The distance between the phone and booster without obstacles cannot exceed 20 feet, if, with obstacles, the effective connection distance will be shorter. |
 | Step 3 Connect the Outdoor antenna Tips: The Outdoor antenna screws firmly into the pat labeled Outdoor. |

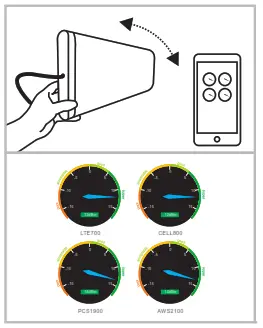

 | Step 4 Use the gauges found in the Quick Setup guide to finding the best place to point your Outdoor antenna to achieve maximum gain. Tips: Move the antenna only about an inch at a time, then wait 4-5 seconds for the change to register on the App. DO NOT INSTALL AN OUTDOOR DIRECTIONAL ANTENNA IN THE CENTER OF YOUR ROOF. |
 | Step 5 Mount the Outdoor antenna in the position found to have the most power. Tips: make sure that the drain hole in the plastic casing is facing the ground, and that the antenna itself is at least 20 feet higher in elevation than the location of your Indoor antenna. |
 | Step 6 Connect the Indoor Antenna to the Indoor antenna pal, Mount your indoor antenna facing 180 degrees from the direction your Outdoor antenna is pointing, and 20 feet lower in elevation. Tips: If trying to make up the separation horizontal be aware that at least 3 times more distance is needed than when separating vertically. |
 | Step 7 Mount your booster up and out of reach of children or pets. If you encounter issues with installation please see the Troubieshootrig* section of the User Manual. |
| Step 1 Download the “Signal Supervisor App and register an account. Tips: Find it in the App Store or on Google Play. |
 | Step 2 Power on the booster and tap ‘Add Device’ on your App to connect the booster. Tips: Ensure both Location Services and 8luetooth a turned on, and enable their use in your phone’s Privacy Settings. Add your home’s wireless network at this point to enable remote monitoring of your signal strength. The distance between the phone and booster without obstacles cannot exceed 20 feet, if, with obstacles, the effective connection distance will be shorter. |
 | Step 3 Connect the outdoor antenna Tips: The Outdoor antenna screws firmly into the pat labeled Outdoor. |
| Step 4 Use the gauges found in the Quick Setup guide to find the best place to point your Outdoor antenna to achieve maximum gain. Tips: Move the antenna only about an inch at a time, then wait 4-5 seconds for the change to register on the App. DO NOT INSTALL AN OUTDOOR DIRECTIONAL ANTENNA IN THE CENTER OF YOUR ROOF. |
| Step 5 Mount the Outdoor antenna in the position found to have the most power. Tips: make sure that the drain hole in the plastic casing is facing the ground, and that the antenna itself is at least 20 feet higher in elevation than the location of your Indoor antenna. |
 | Step 6 Connect the Indoor Antenna to the Indoor antenna pal, Mount your indoor antenna facing 180 degrees from the direction your Outdoor antenna is pointing, and 20 feet lower in elevation. Tips: If trying to make up the separation horizontal be aware that at least 3 times more distance is needed than when separating vertically. |
 | Step 7 Mount your booster up and out of reach of children or pets. If you encounter issues with installation please see the troubleshooting* section of the User Manual. |
| Step 1 Download the “Signal Supervisor App and register an account. Tips: Find it in the App Store or on Google Play. |
| Step 2 Power on the booster and tap ‘Add Device’ on your App to connect the booster. Tips: Ensure both Location Services and 8luetooth a turned on, and enable their use in your phone’s Privacy Settings. Add your home’s wireless network at this point to enable remote monitoring of your signal strength. The distance between the phone and booster without obstacles cannot exceed 20 feet, if, with obstacles, the effective connection distance will be shorter. |
| Step 3 Connect the outdoor antenna Tips: The Outdoor antenna screws firmly into the pat labeled Outdoor. |
| Step 4 Use the gauges found in the Quick Setup guide to finding the best place to point your Outdoor antenna to achieve maximum gain. Tips: Move the antenna only about an inch at a time, then wait 4-5 seconds for the change to register on the App. DO NOT INSTALL AN OUTDOOR DIRECTIONAL ANTENNA IN THE CENTER OF YOUR ROOF. |
| Step 5 Mount the Outdoor antenna in the position found to have the most power. Tips: make sure that the drain hole in the plastic casing is facing the ground, and that the antenna itself is at least 20 feet higher in elevation than the location of your Indoor antenna. |
| Step 6 Connect the Indoor Antenna to the Indoor antenna pal, Mount your indoor antenna facing 180 degrees from the direction your Outdoor antenna is pointing, and 20 feet lower in elevation. Tips: If trying to make up the separation horizontal be aware that at least 3 times more distance is needed than when separating vertically. |
| Step 7 Mount your booster up and out of reach of children or pets. If you encounter issues with installation please see the Troubieshootrig* section of the User Manual. |
