TRIPP-LITE B006-VU4-R 4 Port Desktop KVM Switch
1000 Eaton Boulevard Cleveland, OH 44122 United States

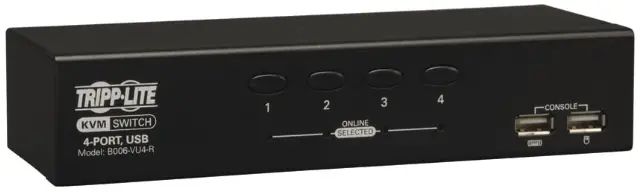

4-Port Desktop KVM Switch (USB)
MODEL NUMBER: B006-VU4-R
Description
Tripp Lite’s 4-port Desktop USB KVM Switch is the optimal solution for controlling up to 4 USB computers from one VGA monitor and USB keyboard/mouse. Manually switch between connected computers using pushbuttons or hotkey controls; or, monitor connected computers automatically via Auto Scan Mode. The B006-VU4-R is operating system independent, and works with all computers that have an available VGA and USB port. It supports video resolutions up to 2048 x 1536, and features a compact design that does not require software or complicated set-up procedures. Constructed of heavy-duty steel housing. Order P758 Cables separately.
Features
- Control up to 4 USB computers from a single VGA monitor and USB keyboard/mouse
- Order P758 Cables separately
- Port LEDs illuminate Dim Orange to indicate a computer is connected, and Bright Orange to indicate it is the selected port
- Supports video resolutions up to 2048 x 1536, DDC2B
- No software or complicated set-up procedures required
- Manually switch between connected computers via front panel pushbuttons or hotkey commands
- Automatically monitor connected computers via Auto Scan Mode
- Compatible with all major operating systems
- Compatible with most mice; including scroll mice
- Constructed of heavy-duty steel housing
Highlights
- Control up to 4 USB computers from a single VGA monitor and USB keyboard/mouse
- Switch between connected computers via pushbuttons or hotkey commands
- Auto Scan Mode allows monitoring of connected computers without manually switching between them
- Compatible with all major operating systems
- Supports video resolutions up to 2048 x 1536, DDC2B
Package Includes
- B006-VU4-R 4-port USB KVM Switch
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A /Output: 5.3V, 2.4A )
- Owner’s manual
Specifications
| OVERVIEW | |
| UPC Code | 037332152947 |
| Console | No |
| Max CPU | 4 |
| Technology | VGA/SVGA |
| VIDEO | |
| Max Supported Video Resolution | 2048 X 1536, DDC2B |
| POWER | |
| External Power Supply Plug(s) | NEMA 1-15P North America |
| External Power Supply Input Specs (V / Hz / A) | 100-240V/ 50/60Hz/ 0.5A |
| External Power Supply Output Specs (V / A) | 5.3V/ 2.4A |
| External Power Supply Cord Length (ft.) | 5 |
| USER INTERFACE, ALERTS & CONTROLS | |
| LED Indicators | Online Selected (Orange) |
| PHYSICAL | |
| LCD Monitor (cm) | Not Applicable |
| Shipping Dimensions (hwd / in.) | 3.50 x 9.80 x 8.70 |
| Shipping Dimensions (hwd / cm) | 8.89 x 24.89 x 22.10 |
| Shipping Weight (lbs.) | 2.20 |
| Shipping Weight (kg) | 1.00 |
| Unit Dimensions (hwd / in.) | 1.700 x 7.900 x 2.900 |
| Unit Dimensions (hwd / cm) | 4.32 x 20.07 x 7.37 |
| Unit Weight (lbs.) | 1.50 |
| Unit Weight (kg) | 0.68 |
| ENVIRONMENTAL | |
| BTUs | 7.1694 BTU/Hr |
| COMMUNICATIONS | |
| Port Control | Push Buttons, Hotkeys |
| IP Remote Access | No |
| CONNECTIONS | |
| Number of Ports | 4 |
| PC/Server Connections | USB; VGA |
| Side A – Connector 1 | (4) HD15 (MALE) |
| Side A – Connector 2 | (4) USB B (FEMALE) |
| Side B – Connector 1 | (1) HD15 (FEMALE) |
| Side B – Connector 2 | (2) USB A (FEMALE) |
| Computer Keyboard and Mouse Interface | USB |
| Computer Monitor Interface | VGA |
| Console Keyboard and Mouse Interface | USB |
| Console Monitor Interface | VGA |
| FEATURES & SPECIFICATIONS | |
| Autoscan (Y,N) | Y |
| Autoscan Duration | 11 TO 99 SECONDS; USER-DEFINEABLE |
| Number of Users | 1 |
| NIAP-Certified Secure | No |
| USB Specification | USB 2.0 (up to 480 Mbps) |
| Cat5 KVM Switch | No |
| WARRANTY & SUPPORT | |
| Product Warranty Period (Worldwide) | 3-year limited warranty |
