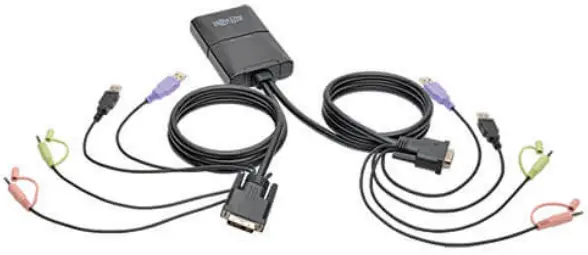

TRIPP-LITE B032-DUA2 2-Port USB-DVI Cable KVM Switch
Contents hide
Features
Control 2 computers using one DVI monitor, USB keyboard and USB mouse. Connect a USB 2.0 hub (sold separately) to share USB peripherals, such as printers and hard drives, between computers.
 |  |
 |  |
Access and Control 2 Computers with One Keyboard/Mouse/Monitor
- Recommended for home, office, gaming and multimedia applications
- Switch between computers using remote port selector, hotkeys or mouse wheel
- Supports video resolutions up to 1920 x 1200 (1080p)
- Supports 2.1-channel surround sound with full bass
- Listen to audio files on one computer while accessing the other
- Compliant with EDID and HDCP

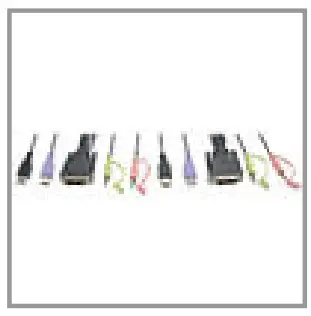

- Built-in 4-ft. (1.22 m) DVI, USB and audio cables
Independent USB 2.0 Peripheral Sharing
- Adding an optional USB hub (sold separately) to the USB console mouse port allows connection of peripherals, such as printers, hard drives, scanners, webcams and thumb drives
Flexible Keyboard/Mouse Applications
- Console mouse port emulation/bypass supports most mouse drivers and multifunction mice
- Works with multimedia keyboards and wireless keyboards and mice
- Supports Mac and Sun keyboard emulation
Easy Plug-and-Play Setup and Use
- Compatible with Windows, Mac and Linux
- No external power supply, software or drivers to install
- Switches automatically to other computer when one powers off
- Upgradable firmware
- Takes up no valuable desk space
Highlights
- Built-in 4-ft. (1.22 m) DVI, USB and audio cables
- Supports video resolutions up to 1920 x 1200 (1080p)
- Supports 2.1-channel surround sound with full bass
- Remote, hotkey and mouse port switching
- Compatible with Windows®, Mac® and Linux®
System Requirements
- DVI monitor
- USB keyboard
- USB mouse
- Computers with DVI and USB ports
Package Includes
- B032-DUA2 2-Port USB/DVI Cable KVM Switch
- Owner’s manual
Specifications
| OVERVIEW | |
| UPC Code | 037332200365 |
| Max CPU | 2 |
| Technology | DVI; Stereo Audio; USB 2.0 (High Speed) |
| POWER | |
| Power Consumption (Watts) | 3.05 |
| PHYSICAL | |
| Shipping Dimensions (hwd / in.) | 2.40 x 6.70 x 9.40 |
| Shipping Dimensions (hwd / cm) | 6.10 x 17.02 x 23.88 |
| Shipping Weight (lbs.) | 1.30 |
| Shipping Weight (kg) | 0.59 |
| Unit Dimensions (hwd / in.) | 0.000 x 0.000 x 0.000 |
| Unit Dimensions (hwd / cm) | 2.65 x 11.30 x 7.65 |
| Unit Weight (lbs.) | 1.06 |
| Unit Weight (kg) | 0.48 |
| ENVIRONMENTAL | |
| Operating Temperature Range | 32 to 122 F (0 to 50 C) |
| Storage Temperature Range | -4 to 140 F (-20 to 60 C) |
| Relative Humidity | 0% to 80% RH, Non-Condensing |
| COMMUNICATIONS | |
| IP Remote Access | No |
| CONNECTIONS | |
| Number of Ports | 2 |
| PC/Server Connections | DVI; USB |
| Side A – Connector 1 | DVI-D DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK) |
| Side A – Connector 2 | (2) USB A (FEMALE) |
| Side A – Connector 3 | (3) 3.5MM (FEMALE) |
| Side B – Connector 1 | (2) DVI-D SINGLE LINK (MALE) |
| Side B – Connector 2 | (4) USB A (MALE) |
| Side B – Connector 3 | (4) 3.5MM (MALE) |
| FEATURES & SPECIFICATIONS | |
| Cat5 KVM Switch | No |
| NIAP-Certified Secure | No |
| Number of Users | 1 |
| STANDARDS & COMPLIANCE | |
| Product Compliance | RoHS; CE (Europe); REACH; FCC (USA) |
| WARRANTY & SUPPORT | |
| Product Warranty Period (Worldwide) | 3-year limited warranty |
