Quick Start Guide
Outdoor Pan/Tilt Security
Wi-Fi Camera

©2023 TP-Link 7106509978 REV1.1.0
*Images may differ from your actual product.

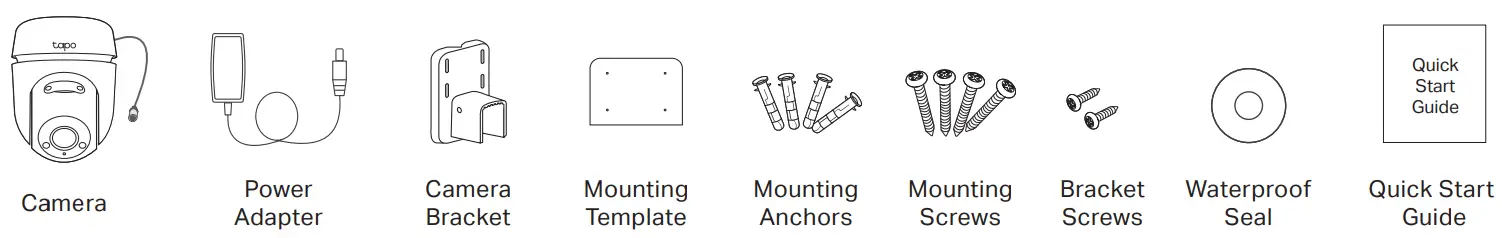

Package Contents

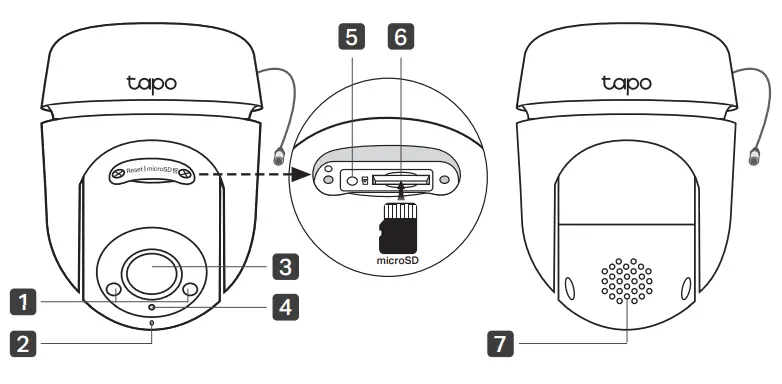

Appearance

1. IR LEDs
2. Microphone
3. Lens
4. System LED
5. Reset
   Use a pin to press and hold for 5 seconds to reset the camera.
6. microSD Card Slot
   Insert a microSD card* for local recording. *microSD card not included.
7. Speaker

System LED Indication

Set Up Camera

STEP 1
DOWNLOAD APP
Get the Tapo app from the App Store or Google Play.

https://www.tapo.com/app/download-app/

STEP 2
POWER UP
Plug in the adapter to power up your camera.

STEP 3
SET UP
Tap the + button in the app and select your model. Follow the app instructions to complete setup.

Mounting Instructions

(Two Options)

The camera is not waterproof when set on a table or shelf. Mount the camera via Option 1 or 2 when installing outdoors.

Option 1: Wall Mount or Overhang Mount

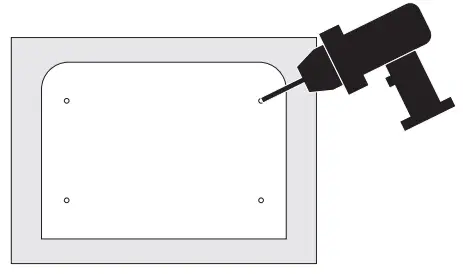

1. Drill Holes
   Stick the mounting template to the desired mounting place. Drill four screw holes according to the template.

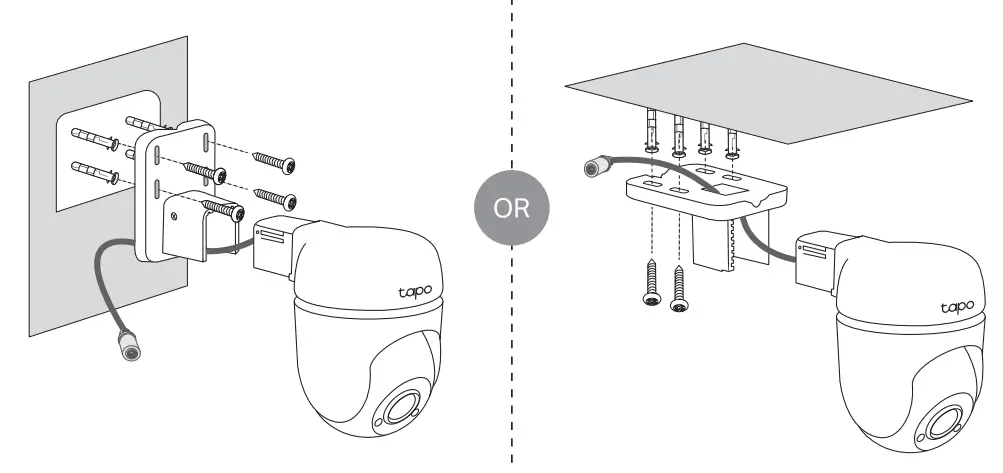

2. Mount Camera Bracket
   Route the power cord through the opening of the camera bracket.
   Insert four mounting anchors into the holes and use the mounting screws to affix the bracket over the anchors.

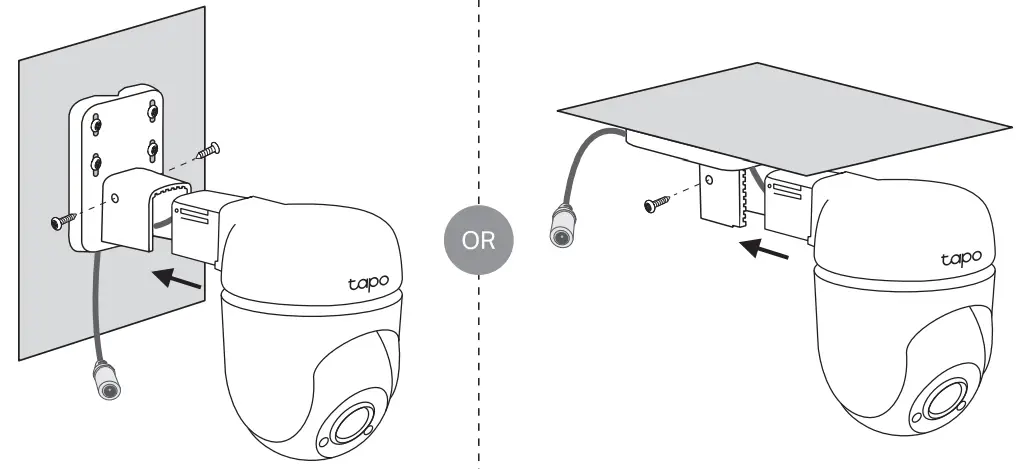

3. Install Camera
   Install the camera on the bracket. Use two bracket screws to affix the bracket and the camera.

4. Connect to Power

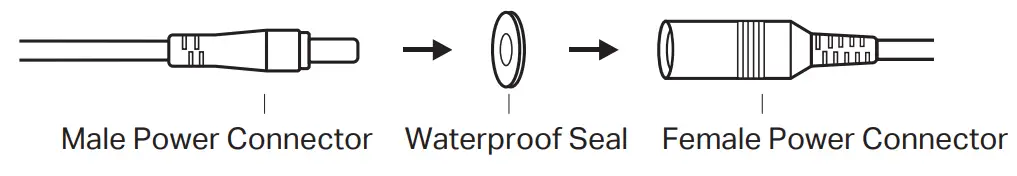

   Connect the camera to a power outlet using the provided power adapter. Install the waterproof seal for the power connectors.

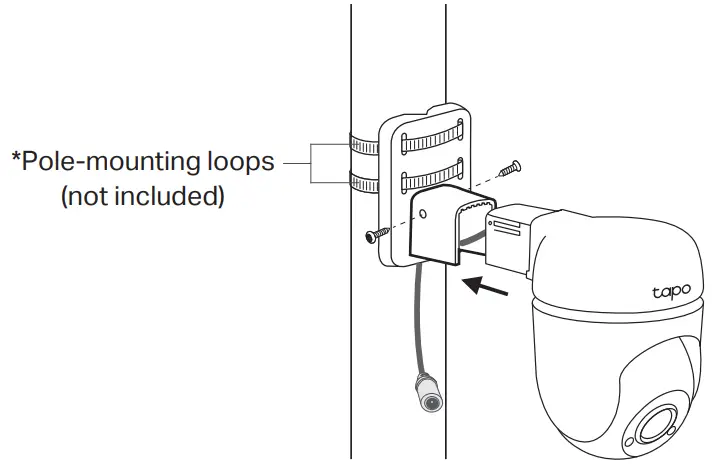

Option 2: Pole Mount

1. Mount Camera Bracket
   Route the power cord through the opening of the camera bracket.
   Mount the camera on the pole using two pole-mounting loops* (loop width ≤ 12mm).
2. Install Camera
   Install the camera on the bracket. Use two bracket screws to affix the bracket and the camera.

3. Connect to Power

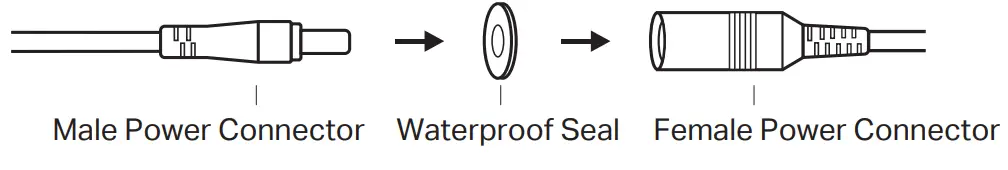

   Connect the camera to a power outlet using the provided power adapter. Install the waterproof seal for the power connectors.

Safety Information

• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.
• Do not use the device where wireless devices are not allowed.
• Adapter shall be easily accessible.
• Use only power supplies which are provided by manufacturer and in the original packing of this product. If you have any questions, please don’t hesitate to contact us.
• Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.
• Do not disassemble, repair or modify the product.
• Do not use the product if the casing has been broken. Danger of electric shock.
• Never touch the product with wet hands.
• Do not place near automatically controlled devices such as fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.
• Observe restrictions on using wireless products in fuel depots, chemical plants or when blasting operations are in progress.
• Do not use liquid to clean the product. Only use a dry cloth.
• Never put metal objects inside the product. If a metal object enters the product turn off the circuit breaker and contact an authorised electrician.
• This product is not intended to be used when providing medical care. Consult the manufacturer of any personal medical devices, such as pacemakers or hearing aids to determine if they are adequality shielded from external RF (radio frequency) energy.
• Do not use this product in health care facilities. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy.
• Do not place heavy objects on top of the product.
• When you leave the product unused for a long time unplug the product from the power outlet.
• This product may interfere with other electronic products such as TV, radios, personal computers, phones or other wireless devices.
• Adapter should be used indoors where the ambient temperature is lower than or equal to 40ºC.
• Operating Temperature: -30 ºC ~ 60 ºC (-22°F ~ 140°F )
  Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863. The original EU declaration of conformity may be found at https://www.tapo.com/support/ce
TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the Radio Equipment Regulations 2017. The original UK declaration of conformity may be found at https://www.tapo.com/support/ukca/

For technical support, the user guide, and more information, please visit
www.tapo.com/support/
