Rare Earth
Neodymium Magnetic
Soundhole Pickup
NEO-SP30
OWNER’S MANUAL
Thanks for choosing the AMUMU NEO-SP30 Neodymium Magnetic Soundhole Pickup.
Please read this instruction carefully before using.
PRECAUTIONS
- This is a magnetic pickup that only works with steel-string acoustic guitars. It does NOT work with Nylon strings.
- Fits in soundholes from 3.88” (98.5 mm) to 3.94” (100mm) diameter.
- DOES not work with 3/4-size guitars like Taylor Baby, Little Martin series whose soundhole diameters are usually 3.5″.
- This is a passive pickup without battery-powered, it only works with guitar amplifiers with a built-in preamp or preamp pedal.
- The single-coil pickup by its nature is susceptible to 50 – 60Hz hum. To minimize hum, keep the pickup away from fluorescence lights, dimmer packs, computer monitors, and transformers, and do not toward the soundhole to the amplifiers.
SPECIFICATIONS
- Fits in Soundhole Diameter: 3.88″ to 3.94″
- Transducer: Customized Rare Earth Neodymium Magnet
- Pickup Type: Single Coil Passive
- Connection: Customized 10ft cable
- Battery: No need
- Housing: Solid Beech Wood
- Housing Dimension: 4.17″ x 0.94″ x 1.02″ ( LxWxD)
- Net Weight: 2.3 oz

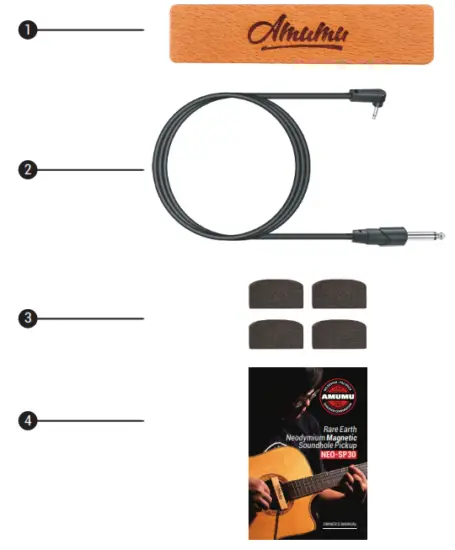

PACKAGE CONTENTS
1x Soundhole Pickup- 1x 10ft Audio Cable
- 4x Spare Pads for the clip slot
- 1x User Manual
1x Soundhole PickupINSTALLATION
 | |

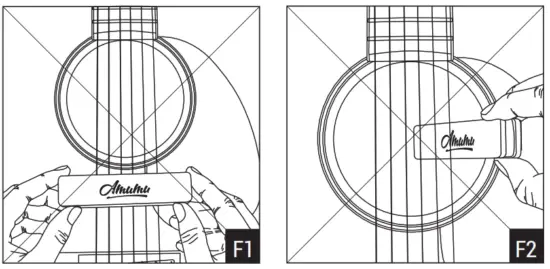

| Take out the pickup and hold it with the logo facing you | Slip the pickup into the soundhole from the high e string side |
 | |

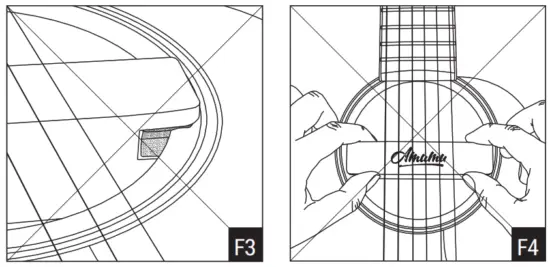

| Clip the right side of the pickup to the right soundhole edge | Clip the other side of the pickup to the left soundhole edge |
 | |

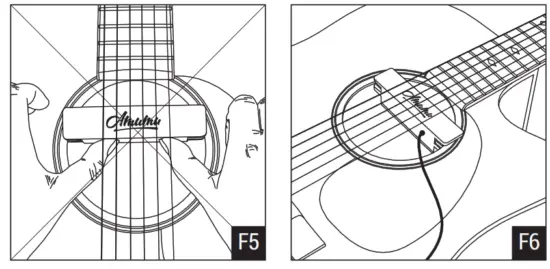

| Push the pickup as close to the end of the fingerboard as possible | Connect the 1/8″ jack of the cable with the pickup |

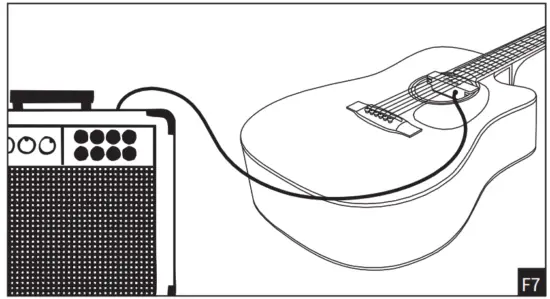

Connect the 1/4″ jack of the cable with the amplifier/PA/PREAMP and you are ready to rock
