Rowenta DR8120 X-Cel Steam Plus Steamer

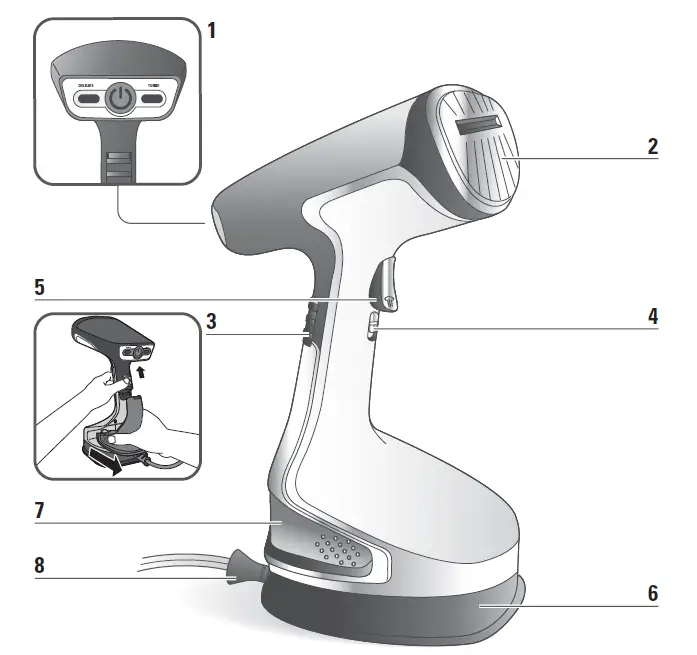

PRODUCT DESCRIPTION
- EN Control panel : On/off and steam level buttons
- Heated soleplate
- Water tank locker
- Locker switch for continuous steam
- Ste am trigger
- Standing base
- Removable water tank
- Fabric brush
- Steam cover
- Crease Attachment
- Door hook
Depending on model
IMPORTANT SAFETY INSTRUCTIONS
When using your appliance, basic precautions should always be followed, including the following:
- Read all instructions before using this product.
- This product has been designed for indoor, domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions results in the manufacturer accepting no responsibility and the warranty becoming voided.
- WARNING! The voltage of your electrical installation must correspond to that of the appliance (120V or 125V depending on model). Connecting to the wrong voltage may cause irreparable damage to the appliance and will invalidate your warranty.
- This section concerns only appliances with polarized plug (one blade of the plug is wider than the other): to reduce the risk of electric shock, the appliance is fitted with polarized plug. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.
- Use the appliance for its intended use only.
- To reduce the risk of contact with hot water emitting from steam vents, check the appliance before each use by holding it away from the body and operating the steam button. The surfaces which are marked with this sign means the steam head is very hot during the use of the appliance. Do not touch this surface before the appliance has completely cooled down.
- Never disconnect the appliance by pulling on the power cord; instead, grasp the plug and pull to remove from the socket outlet.
- Do not allow the cord to touch hot surfaces or come into contact with rough or sharp edges. Let the appliance cool completely down before putting away. Loop the cord loosely around the appliance when storing.
- Always disconnect the appliance from the electrical supply when filling with water or emptying when cleaning, when removing or applying accessories and when not in use.
- Do not operate the appliance with a damaged cord or if the appliance has been dropped or damaged. To avoid the risk of electric shock, do not disassemble or attempt to repair the appliance.Take it to the nearest approved service center for examination and repair. Incorrect reassembly or repair could cause a risk of fire, electrical shock or injury to persons when the appliance is used.
- Close supervision is necessary for any appliance being used by or near children.
- Do not leave the appliance unattended while plugged in or while it is still hot.
Burns could occur from touching hot metal or plastic parts, hot water or steam. Exercise care when you empty a steam appliance. There may be hot water in the reservoir. - If an extension cord is absolutely necessary, a cord with a 15A ampere rated shall be used. A cord rated for less amperage can result in a risk of fire or electric shock due to overheating. Care shall be taken to arrange the cord so that it cannot be pulled or be tripped over.
- To protect against a risk of electric shock, do not immerse the appliance in water or other liquids.
- Do not direct steam at people, animals or clothes while they are being worn.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- The use of accessory attachments other than those provided by the manufacturer is not recommended and may result in fire, electric shock or personal injury.
- The appliance must be rested on a stable surface. If the appliance is fitted with a base, when placing the appliance on its base, ensure that the surface on which the base is placed is stable.
The appliance must not be used if it has been dropped, if there are visible signs of damage or if it is leaking. - Check the electrical power cord for signs of wear or damage prior to use. If the electrical power cord is damaged, it must be replaced at an approved service center to avoid any danger.
- To achieve optimal results in sanitizing , gently steam back and forth 3 times on the fabric.
Before first use
When you first use the appliance, some smoke or a harmless odour may be produced or there may be a small discharge of particles. This will not affect the use of the appliance and will disappear quickly.
What water to use?
Your appliance has been designed to use untreated tap water. If your water is very hard, mix 50% tap water and 50% bottled demineralised water. Never use water containing additives (starch, perfume, aromatic substances, softeners, etc.), or condensation water (for example water from tumble dryers, water from refrigerators, water from air conditioning units, rainwater). This water contains organic waste materials or minerals that concentrate under the effect of heat and cause spitting, brown colouring or premature ageing of your appliance.
SAVE THESE INSTRUCTIONS
Environment protection first !
Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point.
BEFORE USE
Unlock and remove the water tank.
Remove the water inlet stopper.
Fill the water tank with untreated tap water.
Close the water inlet stopper.
Return the water tank to its place on the appliance. Make sure that the water tank is fully set in place and locked.
Hang your garment on a clothes hanger.

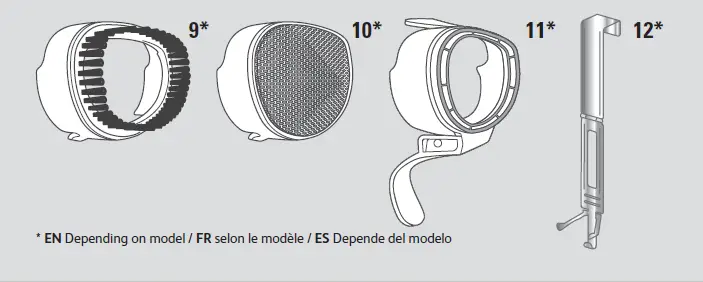

ACCESSORIES
The door hook allows to hang your garment EN for steaming.
The fabric brush opens the weaves of the fabrics for better steam penetration. Before removing or attaching the steam brush, unplug your appliance and allow it to cool down, for one hour.
The steam cover filters water impurities and protects fabrics from water drips.
This accessorie must be used for delicate fabrics which do not support ironing. Before removing or attaching the steam cover, unplug your appliance and allow it to cool down for one hour.
Warning: Never steam a garment while it is EN being worn
EN Plug-in the appliance.
Switch on the appliance.
Wait until the light stops flashing (approximately 25 to 40 seconds). When the light is steady the appliance is ready to use.
Press the steam button with the steam brush facing away from you holding it in a vertical position.
For optimal use, move the steam jets over EN your garment from top to bottom.
Delicate mode : a lower steam output for your most delicates clothes.
Turbo mode : Perfect for heavy fabrics and to remove the stubborn wrinkles.
For continous steam, lock the steam trigger by pushing the locker switch down. To release it, push it up.
Press and hold the On/Off button for EN 3 seconds to switch the appliance off.
Unplug the appliance.
Warning: Never touch the soleplate of the appliance.
STANDBY MODE
- For your safety, the steambrush is fitted with a standby monitoring system, which is activated automatically after approxi-mately 8 minutes without use.
- Only the ‘On-Off ’button flashes slowly to indicate that the appliance is on standb
- To reactivate the steambrus
Press the ‘ On-Off ’ button and wait that the button light stops flashing
You can start steaming again.
AFTER USE
Unlock and remove the water tank.
Empty the water tank completely.
Return the water tank to its place on the appliance.
Wait for an hour for your appliance to cool before storing.
EASY DESCALING
Do this operation in a vented room.
Unlock and remove the water tank.
Remove the water inlet stopper.
Fill the water tank with 50% water and 50% white vinegar. Do not use other descaling products.
Return the water tank to its place on the appliance. Make sure the water tank is fully set in place and locked.
Plug-in the appliance.
Switch on the appliance.
Wait until the light stops flashing (approximately 25 to 40 seconds). When the light is steady the appliance is ready to use.
Put the steam trigger in the locked position thanks to the locker. Place the product on a flat, stable, horizon-tal and heat resistant surface.
Allow the appliance to run until the water EN tank has completely emptied.
Press and hold the On/Off button for 3 seconds to switch the appliance off.
Unplug the appliance and pull the water tank out.
Remove the water inlet stopper and fill the water tank with untreated tap water.
Return the water tank to its place on the appliance. Make sure the water tank is fully set in place.
Plug in the appliance.
Switch on the appliance.
Wait until the light stops flashing (aprproximately 25 to 40 seconds). When the light is steady the appliance is ready.
Put the steam trigger in the locked position. place the product on a flat, stable, horizontal and heat resistant surface.
Allow the appliance to run until the water EN tank has completely emptied.
CLEANING
Wait an hour for complete cool down.
Only use a soft sponge with water to clean. Do not use any detergent product.
Never wash or rinse appliance directly over EN a sink.
IS THERE A PROBLEM ?
| PROBLEMS | POSSIBLE CAUSES | SOLUTIONS |
| There is no steam. | The appliance is not plugged in, or not switched on. | Check that your appliance is correctly plugged in and switched on. |
| The water level is too low. | Unplug your appliance and refill it. | |
| The steam pump has not been primed. | Press the steam trigger continu- ously for a few seconds to begin steaming. | |
| You are using the appliance for the first time. | Press the steam trigger continu- ously for a few seconds to begin steaming. | |
| The water tank is not fully in place. | Ensure that stopper is closed and that the water tank snaps when put into place. | |
| The appliance is on standby mode. | PLEASE REFER TO THE ‘STANDBY’ section. | |
| The appliance does not heat. | It is not plugged in, or not switched on. | Plug in your appliance and switch on. |
| The appliance is on standby mode. | PLEASE REFER TO THE ‘STANDBY’ section. | |
| Water leaks. | The water tank is not fully in place or the stopper is not closed properly. | Ensure that stopper is closed and that the water tank snaps when put into place. |
| Steam rate decreases. | Calc Sealing. | Refer to ‘ANTI CALC section in instructions for use. |
| The steam leaves stains on the fabric or the appliance spits. | You are using water with additives. | Never add any additive in the water tank. |
| The appliance has not been cleaned enough after the descaling operation. | Read carefully the ‘ANTI CALC’ section in instructions for use. | |
| You are using other liquids than white vinegar to descale the product. | Use only white vinegar during ‘ANTI CALC’ procedure. | |
| Appliance steams continuously. | The steam trigger is on the lock position. | Unlock the steam trigger. |
