Rowenta Dr61xx Garment Steamers User Manual

DR61XX Garment Steamers
User Manual
www.rowenta.com

Important safety instructions

When using your appliance, basic precautions should always be followed, including the following:

• Read all instructions before using this product.
• This product has been designed for indoor, and domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions results in the manufacturer accepting no responsibility and the warranty becoming void.
• WARNING! The voltage of your electrical installation must correspond to that of the appliance (120V). Connecting to the wrong voltage may cause irreparable damage to the appliance and will invalidate your warranty.
• This section concerns only appliances with polarized plugs (one blade of the plug is wider than the other): to reduce the risk of electric shock, the appliance is fitted with a polarized plug. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plugin anyway.
• Use the appliance for its intended use only.
• To reduce the risk of contact with hot water emitting from steam vents, check the appliance before each use by holding it away from the body and operating the steam button
• The surfaces which are marked with this sign mean the steam head is very hot during the use of the appliance. Do not touch this surface before the appliance has completely cooled down.
• Never disconnect the appliance by pulling on the power cord; instead, grasp the plug and pull it to remove it from the socket-outlet.
• Do not allow the cord to touch hot surfaces or come into contact with rough or sharp edges. Let the appliance cool completely down before putting it away. Loop the cord loosely around the appliance when storing.
• Always disconnect the appliance from the electrical supply when filling with water or emptying when cleaning, when removing or applying accessories and when not in use.
• Do not operate the appliance with a damaged cord or if the appliance has been dropped or damaged. To avoid the risk of electric shock, do not disassemble or attempt to repair the appliance. Take it to the nearest approved service center for examination and repair. Incorrect reassembly or repair could cause a risk of fire, electrical shock or injury to persons when the appliance is used.
• Close supervision is necessary for any appliance being used by or near children.
• Do not leave the appliance unattended while plugged in or while it is still hot.
• Burns could occur from touching hot metal or plastic parts, hot water, or steam. Exercise care when you empty a steam appliance. There may be hot water in the reservoir.
• If an extension cord is absolutely necessary, a cord with a 15A ampere rated shall be used. A cord rated for less amperage can result in a risk of fire or electric shock due to overheating. Care shall be taken to arrange the cord so that it cannot be pulled or be tripped over.
• To protect against the risk of electric shock, do not immerse the appliance in water or other liquids.
• Do not direct steam at people, animals or clothes while they are being worn.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• The use of accessory attachments other than those provided by the manufacturer is not recommended and may result in fire, electric shock, or personal injury.
• The appliance must be rested on a stable surface. If the appliance is fitted with a base, when placing the appliance on its base, ensure that the surface on which the base is placed is stable.
• The appliance must not be used if it has been dropped, if there are visible signs of damage or if it is leaking.
• Check the electrical power cord for signs of wear or damage prior to use. If the electrical power cord is damaged, it must be replaced at an approved service center to avoid any danger.
• To achieve optimal results in sanitizing, gently steam back and forth 3 times on the fabric.

Before first use

When you first use the appliance, some smoke or a harmless odor may be produced or there may be a small discharge of particles. This will not affect the use of the appliance and will disappear quickly.

What water to use?

Your appliance has been designed to use untreated tap water. If your water is very hard, mix 50% tap water and 50% bottled demineralized water. Never use water-containing additives (starch, perfume, aromatic substances, softeners, etc.), or condensation water (for example water from tumble dryers, water from refrigerators, water from air conditioning units, or rainwater). This water contains organic waste materials or minerals that concentrate under the effect of heat and cause spitting, brown coloring or premature aging of your appliance.
SAVE THESE INSTRUCTIONS
Environment protection first!
Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

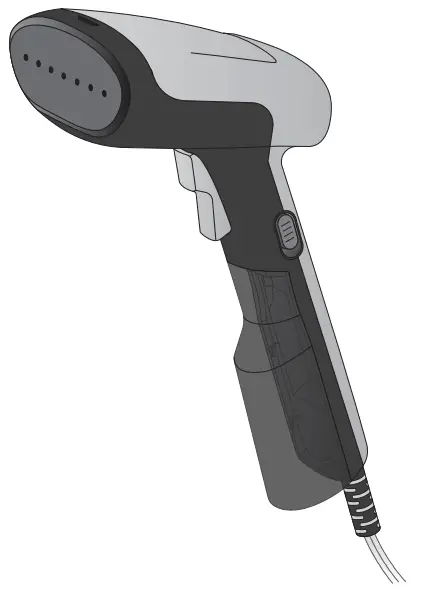

PRODUCT DESCRIPTION

1. Heating light indicator
2. On/Off button
3. Steam head
4. Steam button
5. Water tank inlet cap
6. Removable water tank (approx. 70ml)
7. Cord exit
8. Fabric brush
9. Travel pouch

BEFORE USE

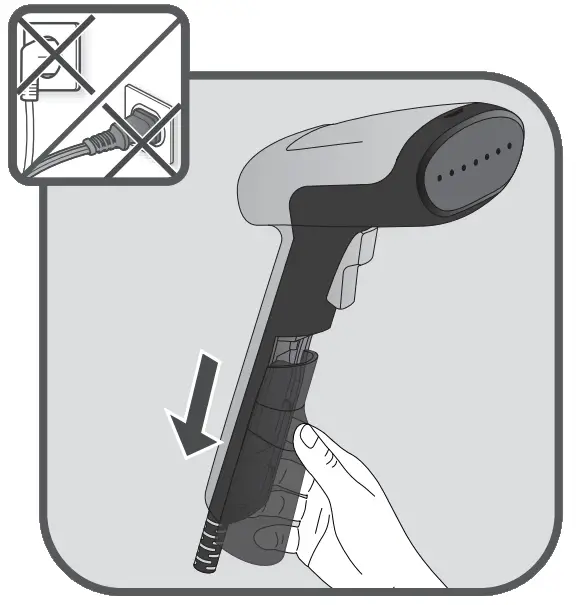

Remove the water tank by sliding it down

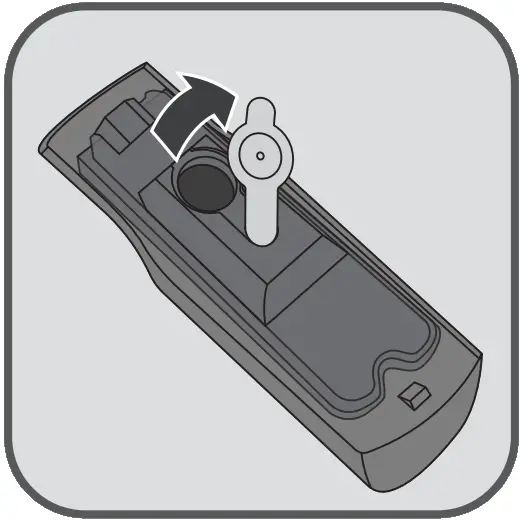

Open the water inlet cap.

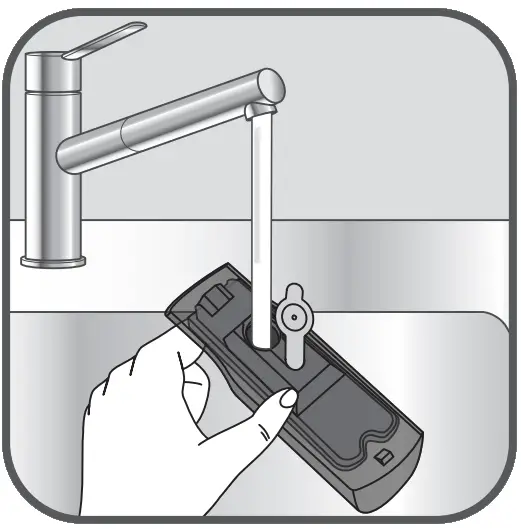

Fill the water tank with water (See section “what water to use”).

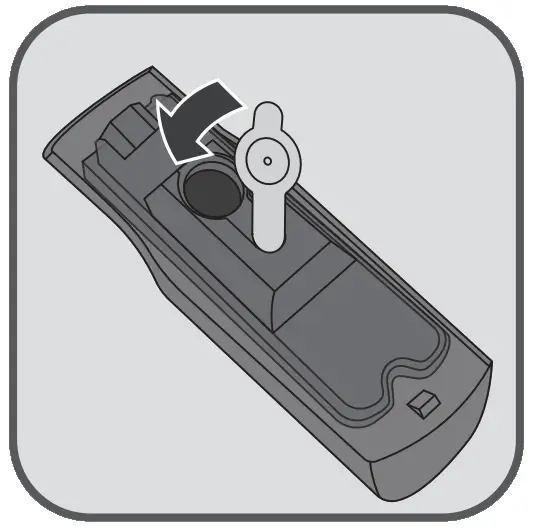

Close the water inlet cap.

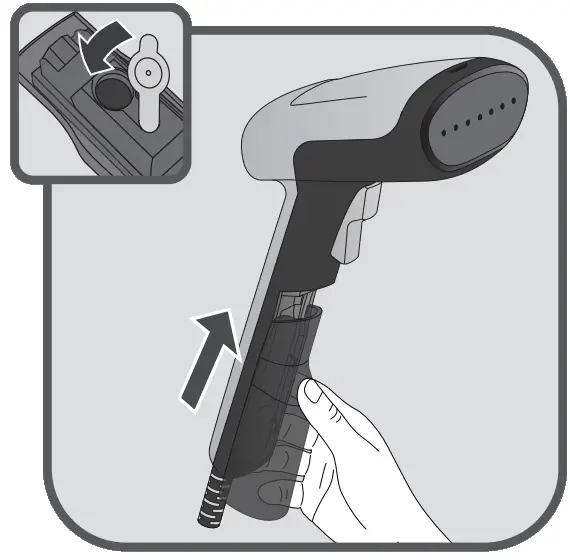

Return the water tank to its place by sliding it up until completely set. Make sure that water tank is fully set in place

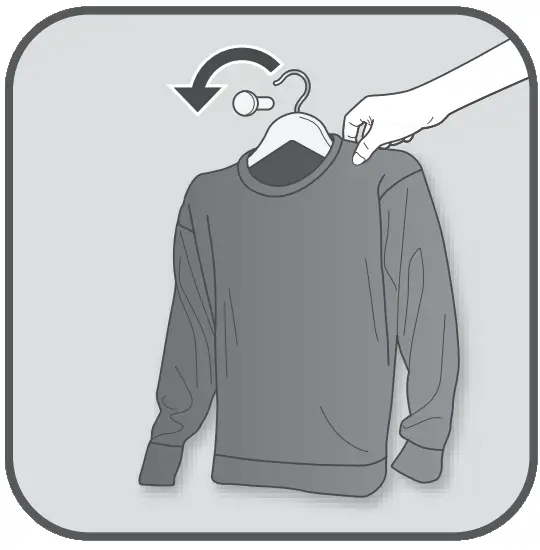

As steam is very hot: never attempt to remove creases from a garment while it is being worn, always hang garments on a clothes hanger.

ACCESSORIES

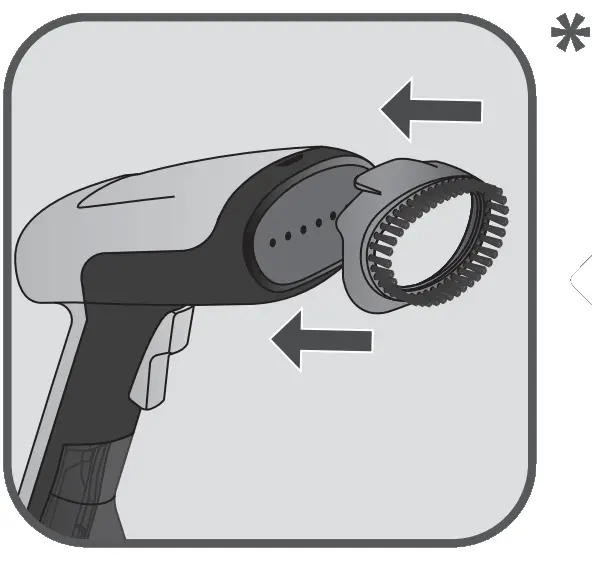

The fabric brush * opens the weaves of the fabrics for better steam penetration.

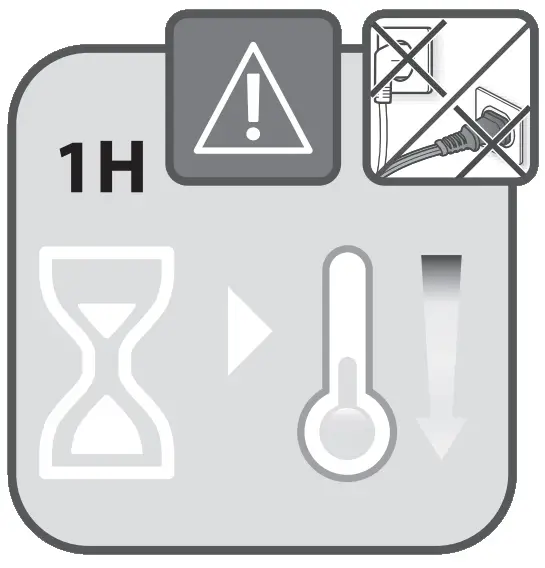

Before removing or attaching the steam brush, unplug your appliance and allow it to cool down, for one hour.

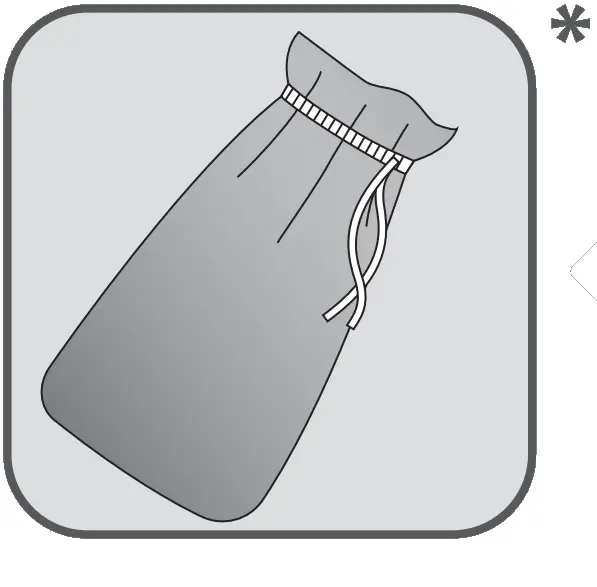

The travel pouch* is used to store your appliance or to travel with. Before using the travel pouch, unplug your appliance, empty the water tank and allow it to cool down for one hour.

USE

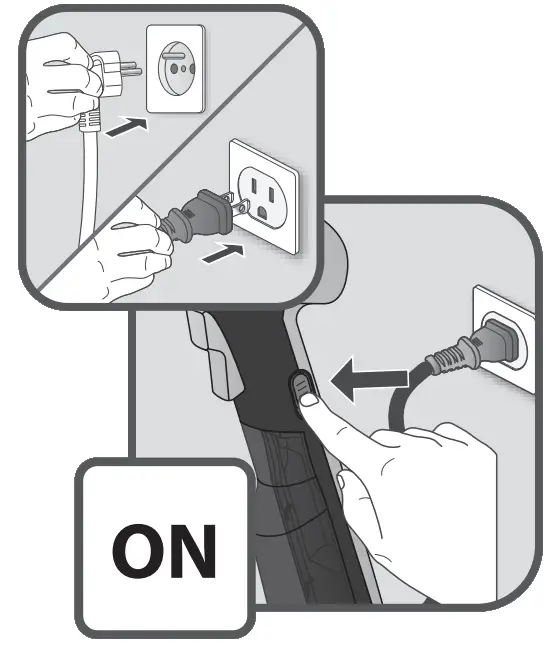

Plugin the appliance. Switch on the appliance.

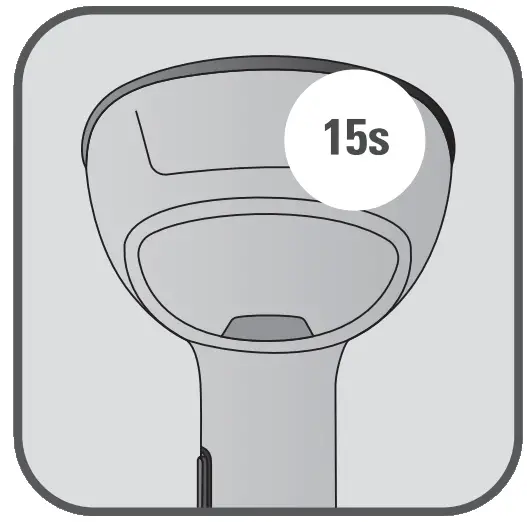

Wait at least 15 seconds before pressing the steam button. The light indicates the heating element is working.

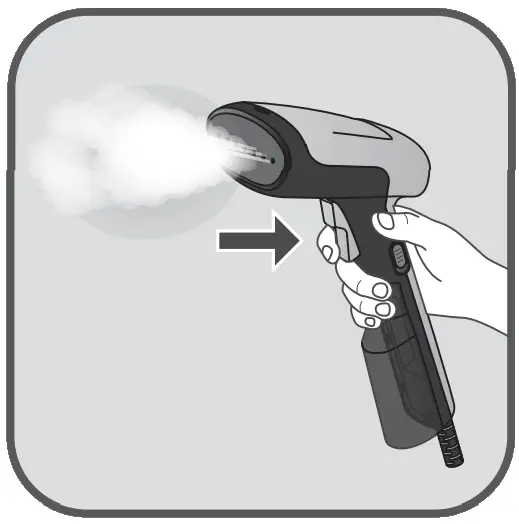

Press the steam button with the steam head facing away from you holding it in a vertical position.

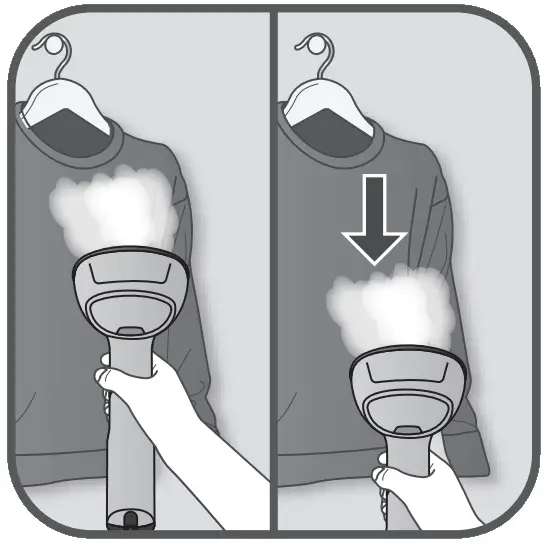

For optimal use, pass the steam jets over your garment from top to bottom.
Tips: Check the fabric’s label for garment care guidance. We recommend that you test acrylic, nylon or other synthetic fabrics in an inconspicuous area to ensure these fabrics are not damaged by hot steam.

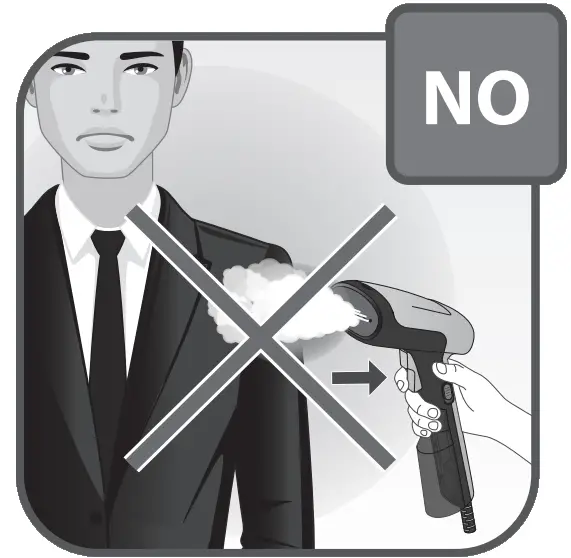

Warning: Never steam a garment while it is being worn.

AFTER USE

Switch off the appliance.

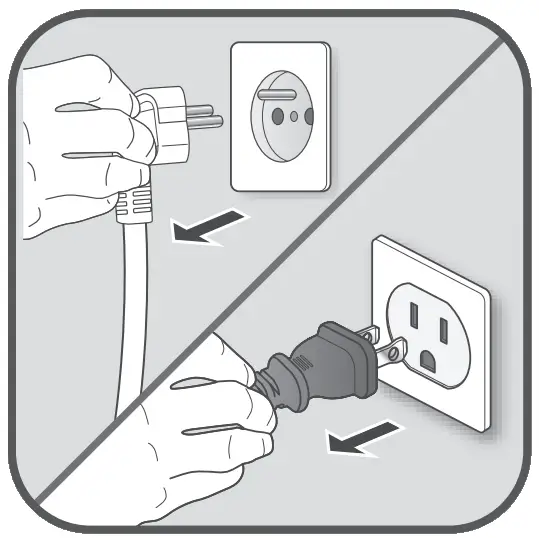

Unplug the appliance.

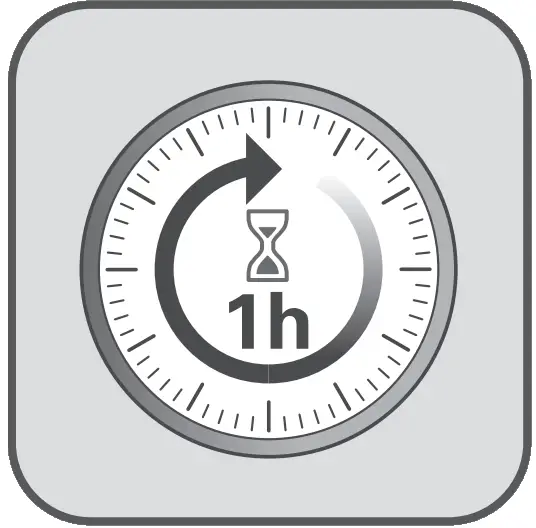

Wait for an hour for your appliance to cool before storing.
Take out the water tank by sliding it down.

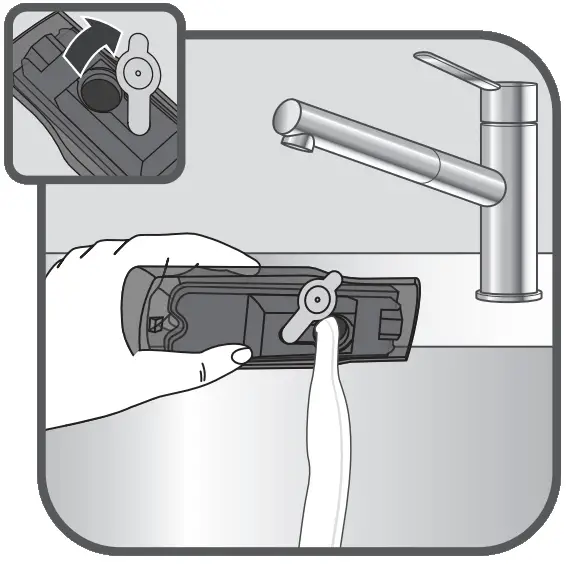

Empty the water tank completely and then close the water inlet cap.

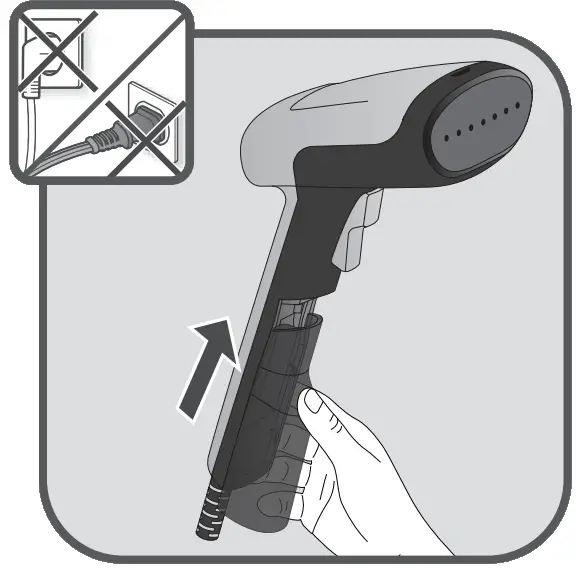

Return the water tank to its place on the appliance, and make sure it is completely in place.
ANTI CALC

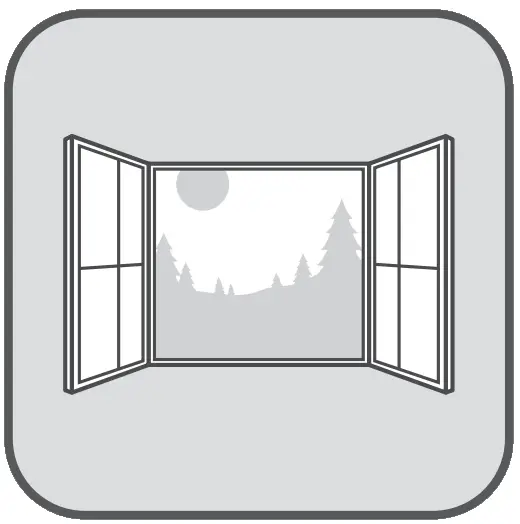

The anti-calc operation can be done if you notice your appliance performance has decreased. Do this operation in a vented room.
Remove the water tank by sliding it down.

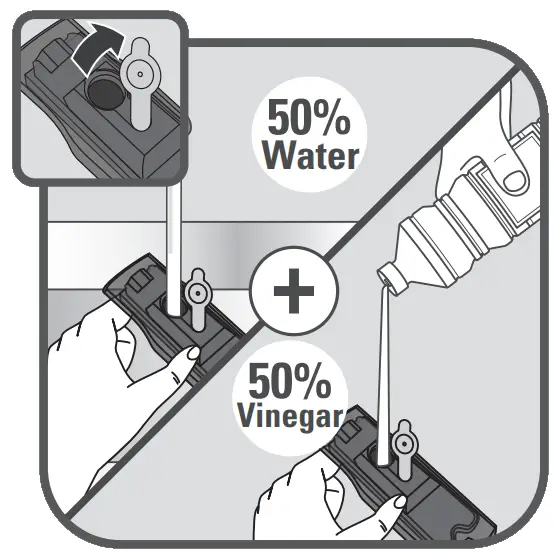

Fill the water tank with 50% water and 50% white vinegar. Do not use other descaling products.
Return the water tank to its place on the appliance. Make sure the water tank is fully set in place.

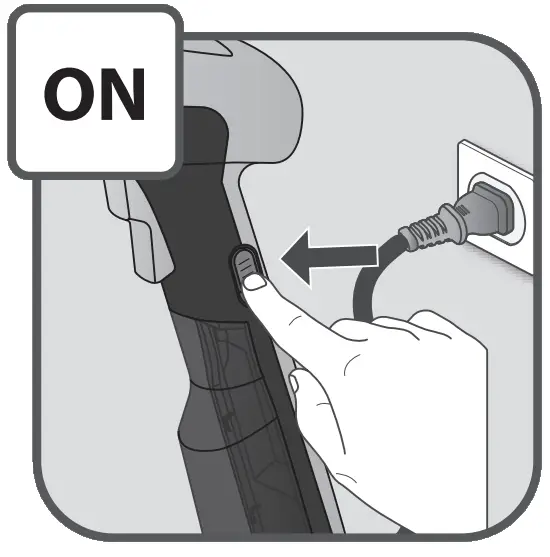

Switch on the appliance.
Wait at least 15 seconds before pressing the steam button. The light indicates the heating element is working.
Allow the appliance to run until the water tank has completely emptied.
Fill the water tank with 100% water and repeat the operation until the water tank is completely empty in order to rinse the appliance.

CLEANING

Wait an hour for the appliance to completely cool down.

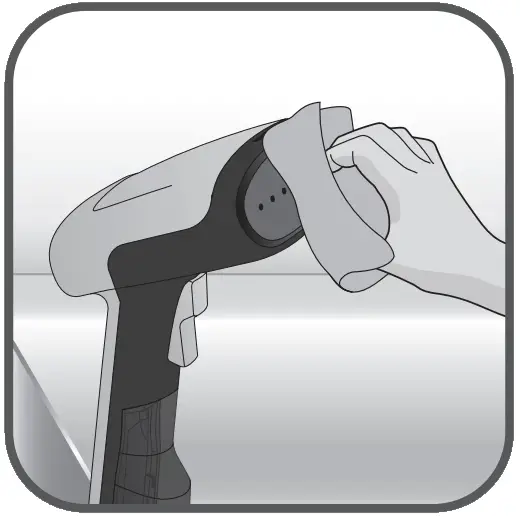

Clean the plastic parts of the appliance with a dry cloth.
Never wash or rinse appliances directly over a sink.

TROUBLESHOOTING

DR61XX
